concrete pipe making mould Pipe Mold /Die /Tooling Sets for SS Tube/Pipe
- Category: >>>
- Supplier: Jiangsu Durable Machinery Co. Ltd.
Share on (1600296494296):
Product Overview
Description
Product Description
Material | Cr12 /Cr12Mov/SKD11/D2/D3 |
Produced Size | Φ8(mm)-Φ273(mm) |
Hardness | HRC 58-62 degrees |
Model | HC |

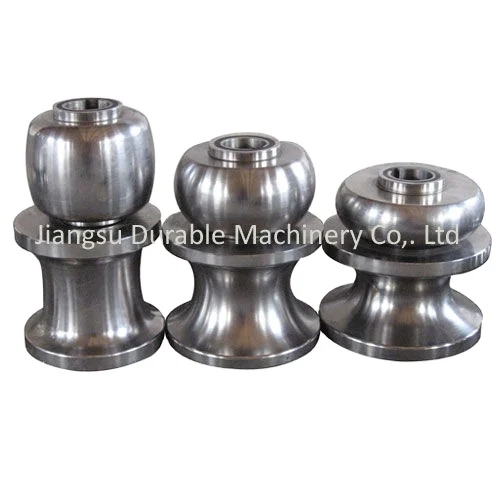

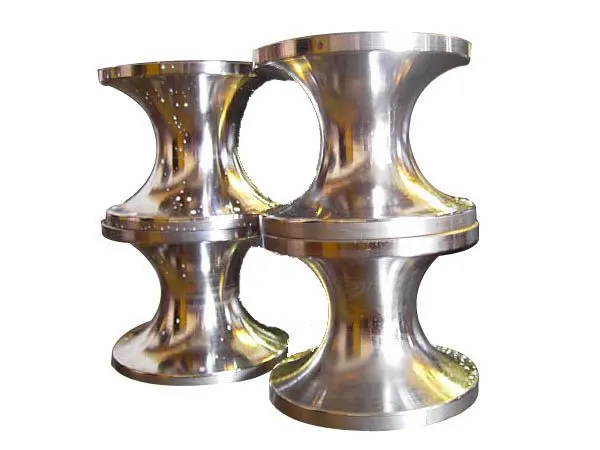

1. The forming or the sizing rollers are made of Cr12 or Cr12Mov. We could also make use of other materials according to your requirements.
2. The squeezing rollers are made of H13 or 4Cr5MoSiV1.
3. We have long-term material suppliers which ensures our prompt delivery time.
If you are interested in any of our products, please do not hesitate to contact us.
2. The squeezing rollers are made of H13 or 4Cr5MoSiV1.
3. We have long-term material suppliers which ensures our prompt delivery time.
If you are interested in any of our products, please do not hesitate to contact us.
Accessories Related
1 | Workshop, foundation construction |
2 | Electric appliance work, civil engineering and necessary materials. |
3 | Electric connection wires and cables ,pipes(including connectors) from Power supply, air supply,water supply and hydraulic station to equipment(control table, button station) of the production line |
4 | Auxiliary machine :for example lifting equipment,air compressor,air storage tank, water pump,high pressure pumps for pipe welding machine cooling,cooling water pools for pipe welding machine and high frequency electric equipment, volume 35m3 with water pipe,water pressure |
5 | The “Copra software” and the “FEA” simulation. |
Products Uses
High-quality pipes being made with the use of our moulds could be used in production of various goods, such as automobile, elevator guide rail, furniture, bike vehicle, fitness equipment, entertainment establishment, door and window, and also in building and stainless steel industry.
Supply ability
Supply ability: 200 Set/Sets per Month

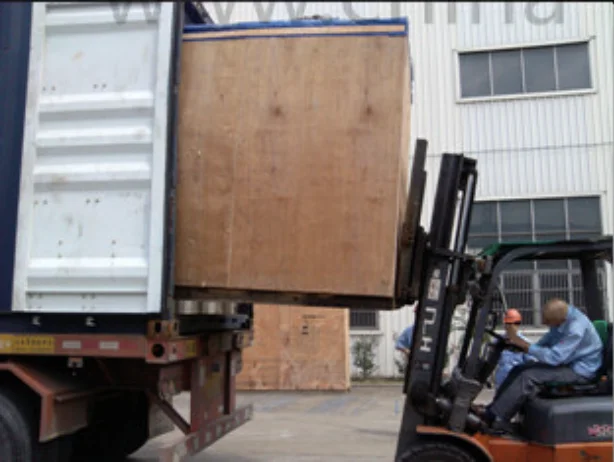

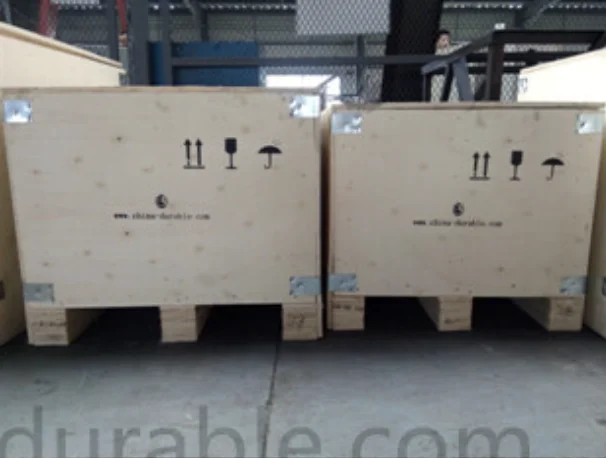

Packaging & Delivery

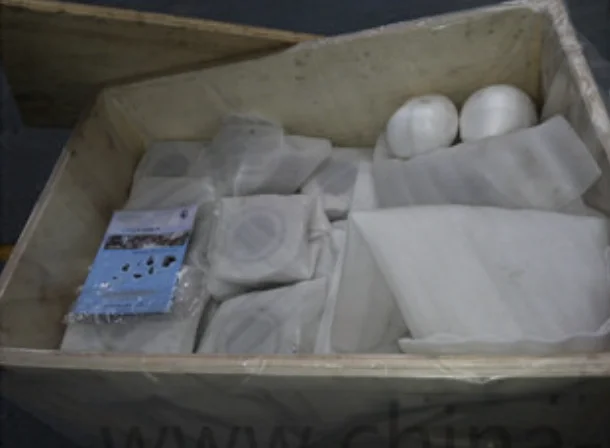

Packaging Details：Packaging DetailsInner packing :carton bag
Outside packing :wooden case
In addition, we can depend on your requirements to change our packing manner.Port Shanghai
Outside packing :wooden case
In addition, we can depend on your requirements to change our packing manner.Port Shanghai
or depend on your need.
Lead time:
Quantity(Sets) | 1 - 10 | >10 |
Est. Time(days) | 30 | To be negotiated |
Pipe Mill mold SKD11/SKD2 dies manufacturer

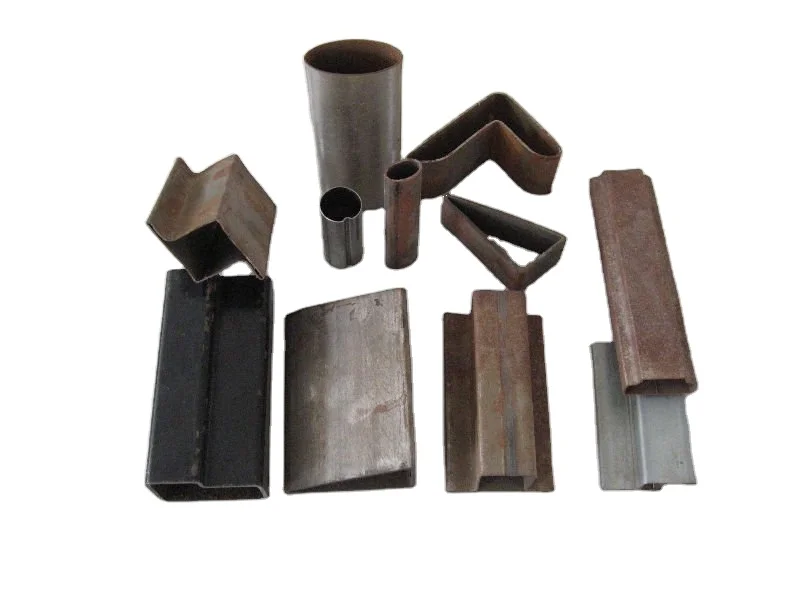

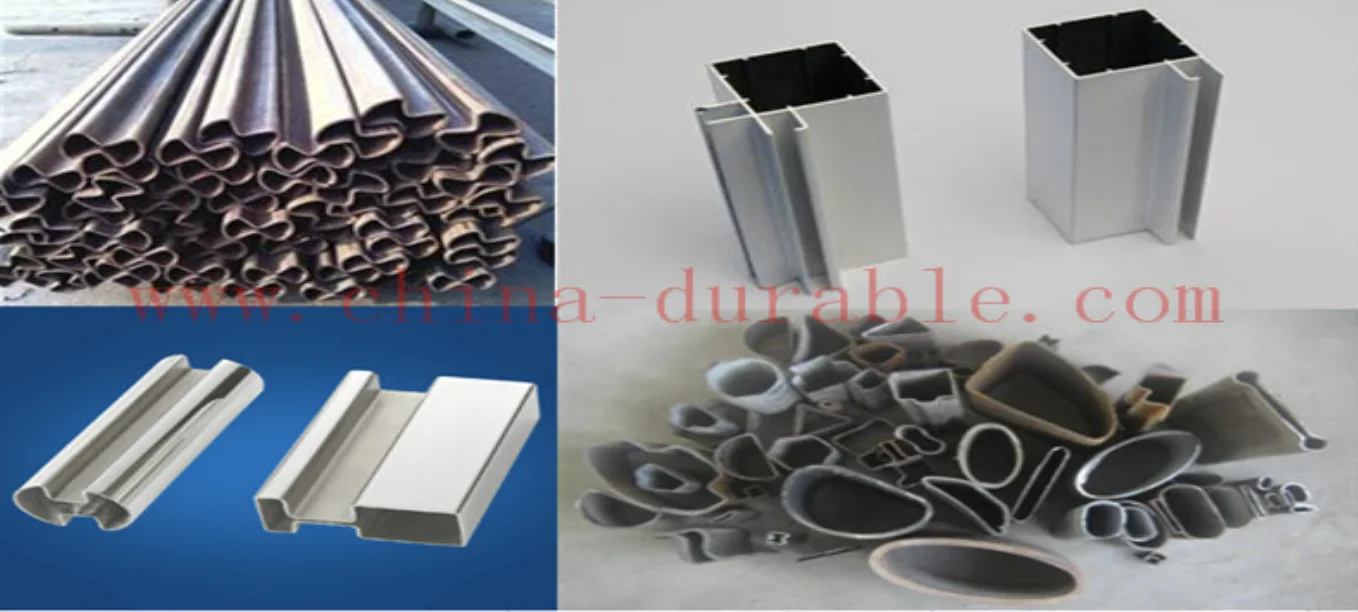

Tube manufacture available range:
Round:4-335mm
Square:10*10-300*300
Rectangle:10*20-200*400mm
Mold application:

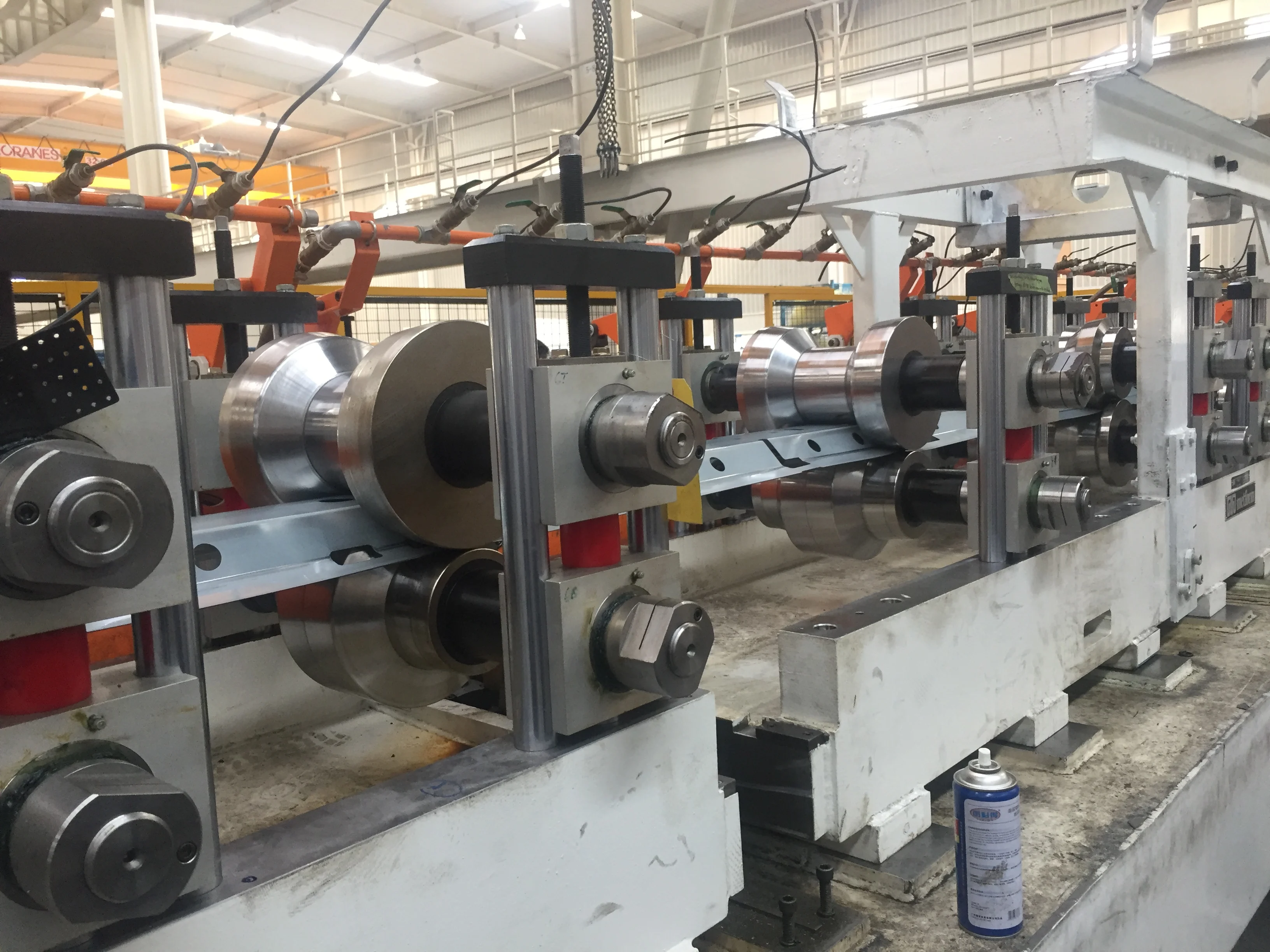

According to the pipe shape, thickness and diameter you want to manufacture, install the mold on the pipe making machine, and you can start production.
Pipe Specs:
Pipe Type | Specification(mm) | Tolerance Range | Hardness |
Round Pipe | φ5~325 | Roundness+/-0.05 | HRC63~65 |
Square Pipe | F10×10~F300×300 | Flatness+/-0.04 | HRC63~65 |
Rectangle Pipe | F10×20~F120×60 | Flatness+/-0.04 | HRC63~65 |
Material:
NO. | Material Science | Varieties |
1 | Cr12Mov | Dongbei special steel Cr12MOV/Daye special steel Cr12Mov |
2 | SKD11 | Daye Special steel SKD11/Taiwan SKD11/Japan SKD11 |
3 | D2 | Daye special steel D2/Taiwan D2 |
Roller Heat:
NO. | Treatment method | Roller HRC |
1 | Vacum Heat Treatment | HRC61-63 |
2 | Vacum gas quenching and minus 200°C degrees, cooling, tempering, to improve the hardness. | HRC63-65 |
Production Process
Tube Roller Process:
Raw material - sawing material - rough processing - Drilling - fine finishing - roller polishing - Typing Code - semi-finished
product inspection - heat treatment - grinding hole - horizontal die cutting KEYWAY - quality inspection - oil cleaning -
packaging
Raw material - sawing material - rough processing - Drilling - fine finishing - roller polishing - Typing Code - semi-finished
product inspection - heat treatment - grinding hole - horizontal die cutting KEYWAY - quality inspection - oil cleaning -
packaging
Heat treatment way: There are four heat treatment way for your choose.

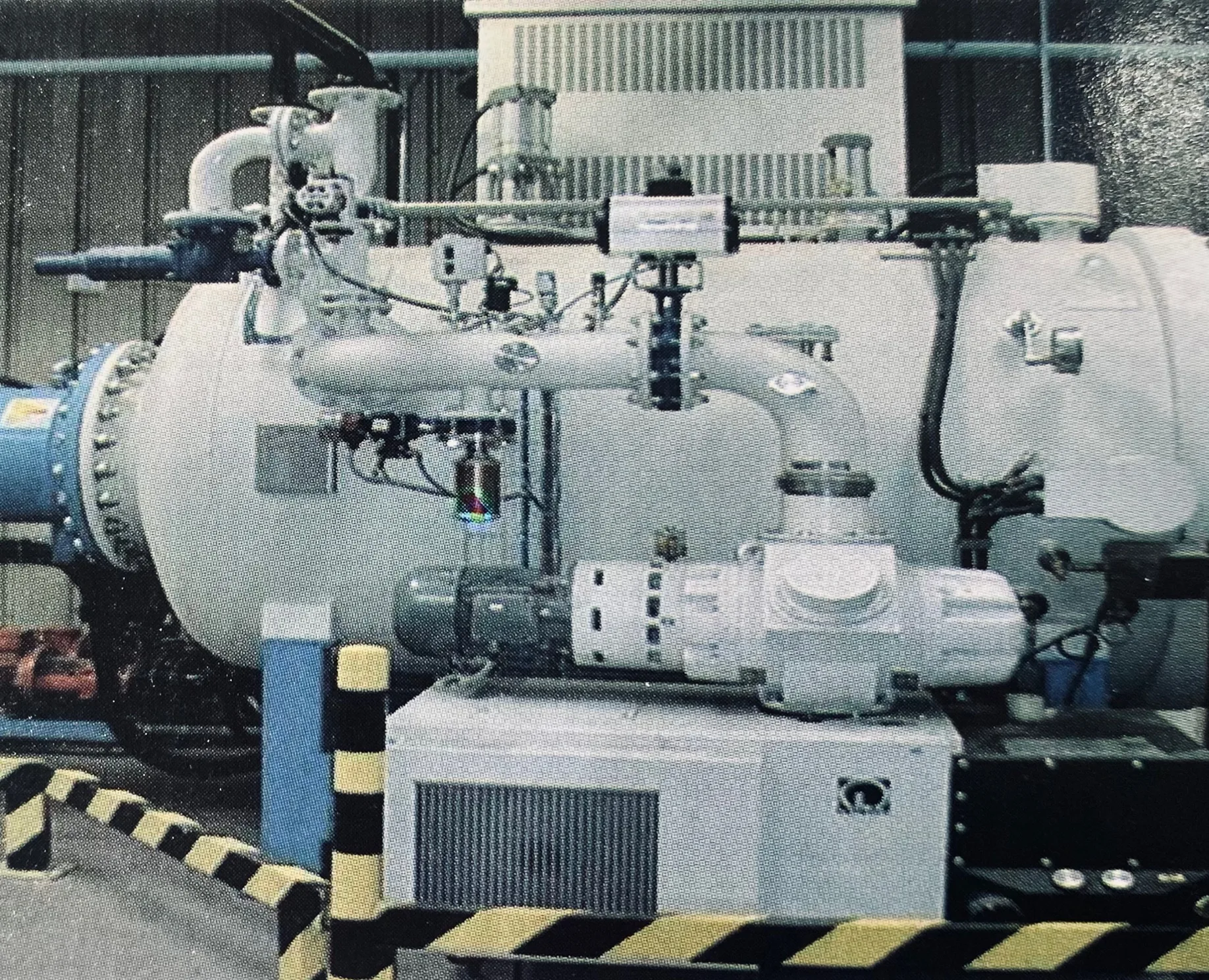

(1) Vacuum Heat Treatment :HRC 61-63
(2) Black treatment: HRC61-63
(3) Nit riding treatment: HRC61-63
(4) Vacuum Gas Quenching and Subzero Heat Treatment:HRC63-65
Warm reminding: Tube diameter≥133mm, HRC:58-61
Different heat treatment way , different price!
(1) Vacuum Heat Treatment :HRC 61-63
(2) Black treatment: HRC61-63
(3) Nit riding treatment: HRC61-63
(4) Vacuum Gas Quenching and Subzero Heat Treatment:HRC63-65
Warm reminding: Tube diameter≥133mm, HRC:58-61
Different heat treatment way , different price!
Q&A
1. Q:Are you a trading company or a factory?
A:We are a industry and trade service company cooperating with a manufacturing factory which is owned by myself. This can be checking authorized Chinese websites.
2. Q:What are your major products?
A:Our products cover welded pipe mechanical equipment, wide pipe mold and high-end stainless steel pipe, and meanwhile we can provide customized service including a complete set of machines like steel coll slitting machine, steel coll cold rolling mill, steel coll annealing furnace, steel pipe polishing machine and so on, both saving clients’ time and efforts.
3. Q:Why does your price seem higher than that of other suppliers?
A:Since you have much feeling, I understand and can not deny it. Price is a necessary factor when choosing a product. However , ifyou are really interested in our products, I think I can offer an authorized discount.
4. Q:Do you provide installation and training service as well. A:It is workable. We can arrange specialists to assist
installation, testing and provide training after you receive our equipment products. If long-term training is required, we welcome your staff to visit our factory and learn on site because we also have production line in operation, it will be easier you to experience to learn.
5. Q:How should we pay for the order?
A:(1) T/T.which is preferred since we are qualified with importing and exporting while we have got a USD currency account. It is safer and more effective.
(2)L/C.We need to sign the contract with the bank of your side directly.
(3)Western Union. This method suits a new enterprise who needs to control the cost.
(4) Cash
6. Q:How to guarantee the cargo transporting safely?
A:To guarantee the cargo transportation safely, insurance will covers the cargo. If necessary, our people would follow up at the container suffering location to make sure a tiny part is not missed.
7. Q:After signing the contract, how long can we receive the products?
A:The process cycle of different machines differs. For example, it normally make 7 days to produce mould, 30-40 days produce pipe making machine and about 3 mouths for larger machine. The cargo transportation time is additional.
A:We are a industry and trade service company cooperating with a manufacturing factory which is owned by myself. This can be checking authorized Chinese websites.
2. Q:What are your major products?
A:Our products cover welded pipe mechanical equipment, wide pipe mold and high-end stainless steel pipe, and meanwhile we can provide customized service including a complete set of machines like steel coll slitting machine, steel coll cold rolling mill, steel coll annealing furnace, steel pipe polishing machine and so on, both saving clients’ time and efforts.
3. Q:Why does your price seem higher than that of other suppliers?
A:Since you have much feeling, I understand and can not deny it. Price is a necessary factor when choosing a product. However , ifyou are really interested in our products, I think I can offer an authorized discount.
4. Q:Do you provide installation and training service as well. A:It is workable. We can arrange specialists to assist
installation, testing and provide training after you receive our equipment products. If long-term training is required, we welcome your staff to visit our factory and learn on site because we also have production line in operation, it will be easier you to experience to learn.
5. Q:How should we pay for the order?
A:(1) T/T.which is preferred since we are qualified with importing and exporting while we have got a USD currency account. It is safer and more effective.
(2)L/C.We need to sign the contract with the bank of your side directly.
(3)Western Union. This method suits a new enterprise who needs to control the cost.
(4) Cash
6. Q:How to guarantee the cargo transporting safely?
A:To guarantee the cargo transportation safely, insurance will covers the cargo. If necessary, our people would follow up at the container suffering location to make sure a tiny part is not missed.
7. Q:After signing the contract, how long can we receive the products?
A:The process cycle of different machines differs. For example, it normally make 7 days to produce mould, 30-40 days produce pipe making machine and about 3 mouths for larger machine. The cargo transportation time is additional.
