Промышленный пыленепроницаемый и водонепроницаемый металлический сенсорный коврик из нержавеющей стали для точной точки
- Category: Keypads & Keyboards >>>
- Supplier: Shenzhen Xufan Technology Co. Ltd.
Share on (1600296495271):
Product Overview
Description
Product Description
MECHANICAL DATA | ||
Model Number | XM703 | |
keys | 2 keys | |
Switching material | Carbon-on-Gold key switch technology PCB | |
Actuation Force | 1.0N to 3.0N | |
Frame/keys materials | Stainless steel | |

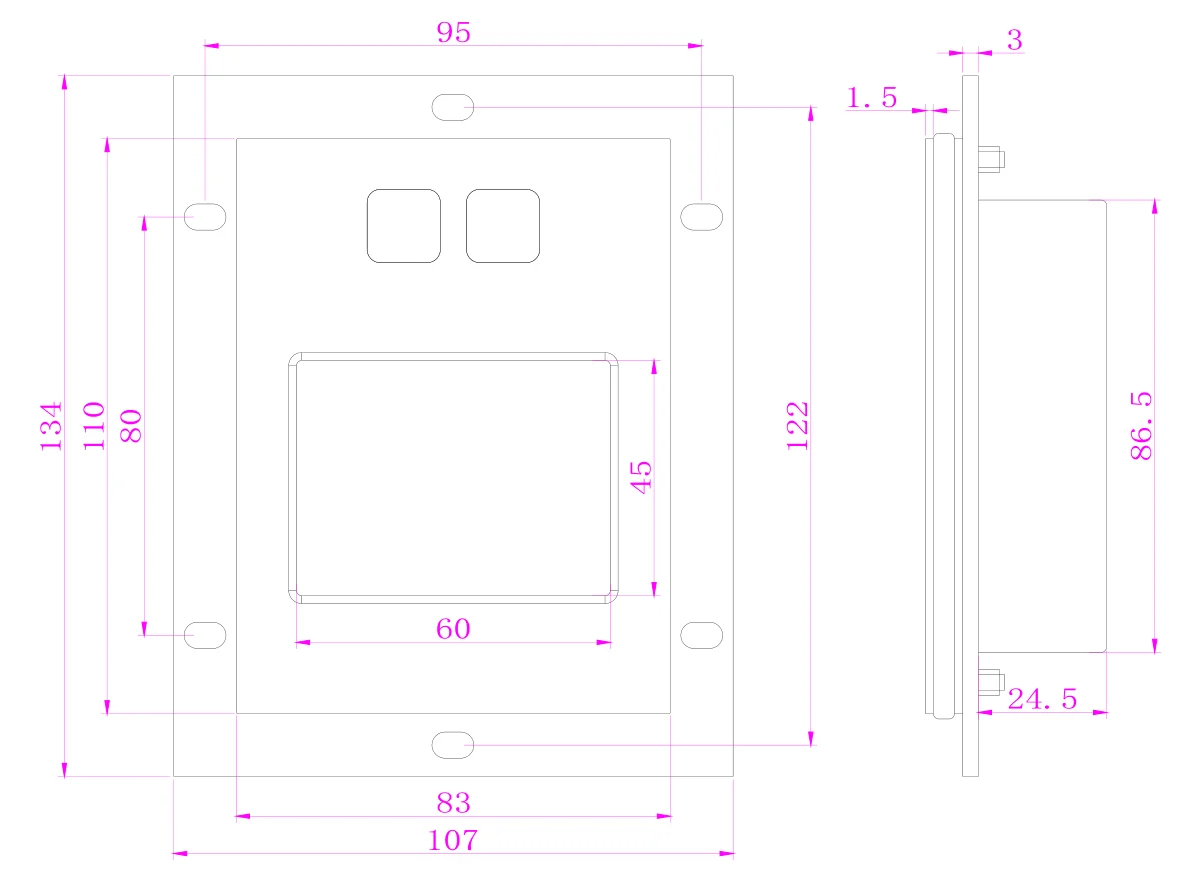

Dimensions | 83mm×110mm (panel) | |
Key Size | 14.0mm ×14.0mm | |
Key Travel | 2MM | |
Track ball lifespan | more than 5 million actuations | |
G.W. | 0.39KGs | |
ELECTRICAL DATA | ||
Power supply voltage | 5V DC +/-5% | |
Current Rating | 12mA | |
Electrical lifetime | > 6 years | |
EMC | EN 55032:2015, EN 55035:2017 | |
Touch valid area | 60mm ×45mm | |
Resolution in X / Y direction | 1000 points/inch(40 points/mm) | |
Interface | USB or PS2 | |
OS | All windows, Linux, Unix, Mac OSX | |
ENVIRONMENTAL ADAPTABILITY | ||
Operating temperature | -20℃ to +75℃ | |
Storage temperature | -50℃ to +125℃ | |
Operating RH | 30-90%RH | |
Atmospheric pressure | 60-106Kpa | |
RELIABILITY | ||
Protection Level | IP67(front panel) | |
Company Profile
Shenzhen Xufan technology is the leader of technological innovation in China's metal industry keyboard industry. The core R & D personnel have accumulated more than 20 years of industry technology and experience. Now we have more than 10 national invention patents and focus on the product design and manufacturing of global input devices,With high quality products, excellent service quality, The company provides better and better products and service for users in different industries.
Our Team
Production Workshop
Production Process
Application Field
Certifications
Packaging & Shipping
FAQ
Q1) Is it safe on the payment for me as we are the first cooperation?
A:We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q2) Can you print the logo on Metal keyboard or draw the artwork?
A:We can print your own logo on the keyboard, and we can draw the artworks for you, but we need the proto logo.
Q3) What should i provide to get a quotation? When can I get the quotation?
A:We will send you quotation within 24 hours after you tell us the size, quantity, special requirement and send us the artwork if possible.
Q4) Can you do a sample for me?
A: Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.
Q5) What is the shipping way you do for the Metal keyboard?
A:We will send it by express delivery or air for small order; will send it by sea if it is a large quantity.
Q6) Are you factory?
A:Yes ! Shenzhen Xufan is a professional manufacturer of metal keyboard company, with more than 20 years of professional technology accumulation.we have many invention patents and utility model patents.
A:We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q2) Can you print the logo on Metal keyboard or draw the artwork?
A:We can print your own logo on the keyboard, and we can draw the artworks for you, but we need the proto logo.
Q3) What should i provide to get a quotation? When can I get the quotation?
A:We will send you quotation within 24 hours after you tell us the size, quantity, special requirement and send us the artwork if possible.
Q4) Can you do a sample for me?
A: Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.
Q5) What is the shipping way you do for the Metal keyboard?
A:We will send it by express delivery or air for small order; will send it by sea if it is a large quantity.
Q6) Are you factory?
A:Yes ! Shenzhen Xufan is a professional manufacturer of metal keyboard company, with more than 20 years of professional technology accumulation.we have many invention patents and utility model patents.
