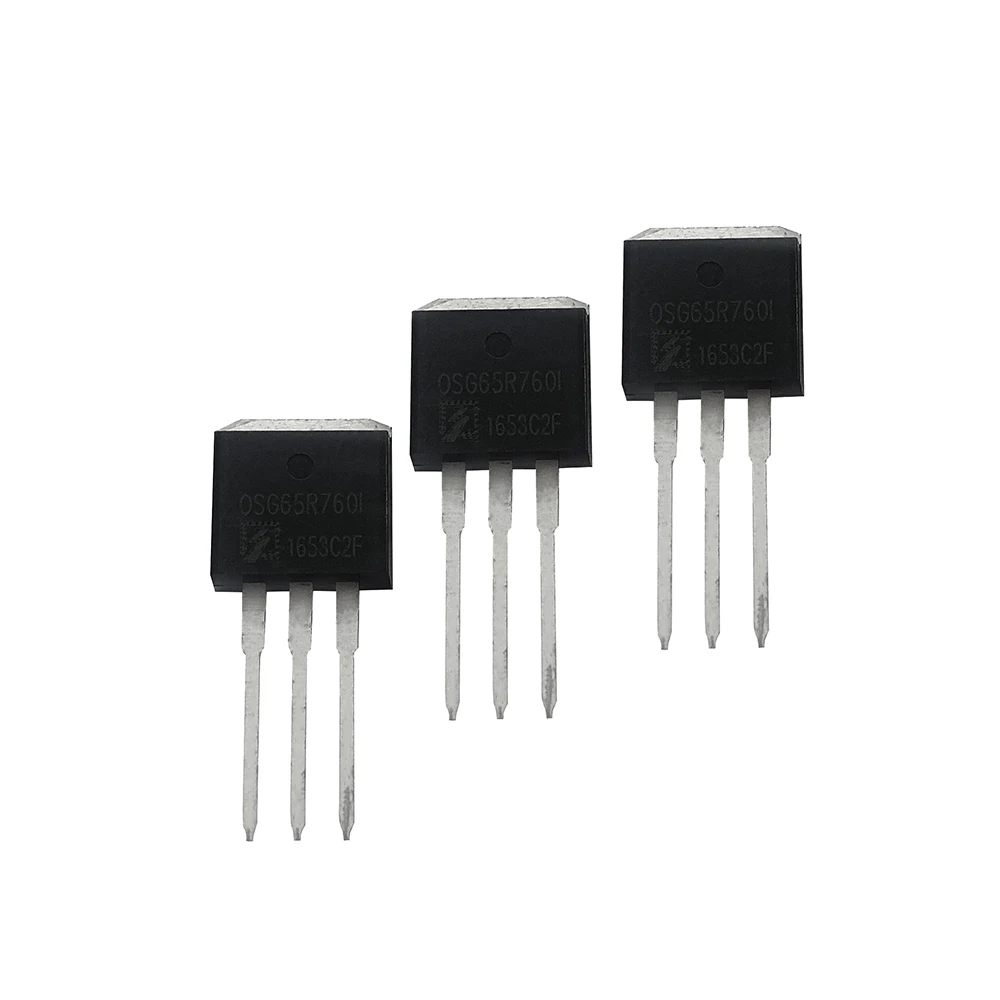

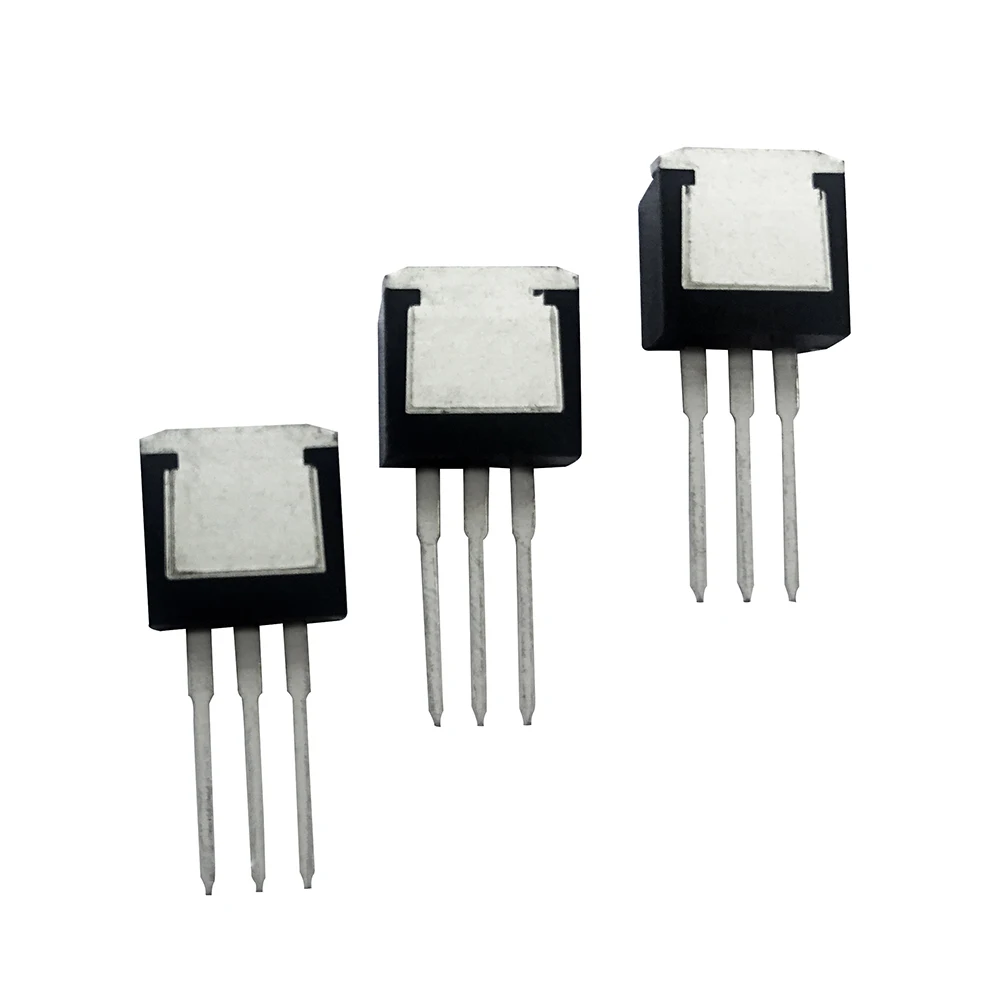

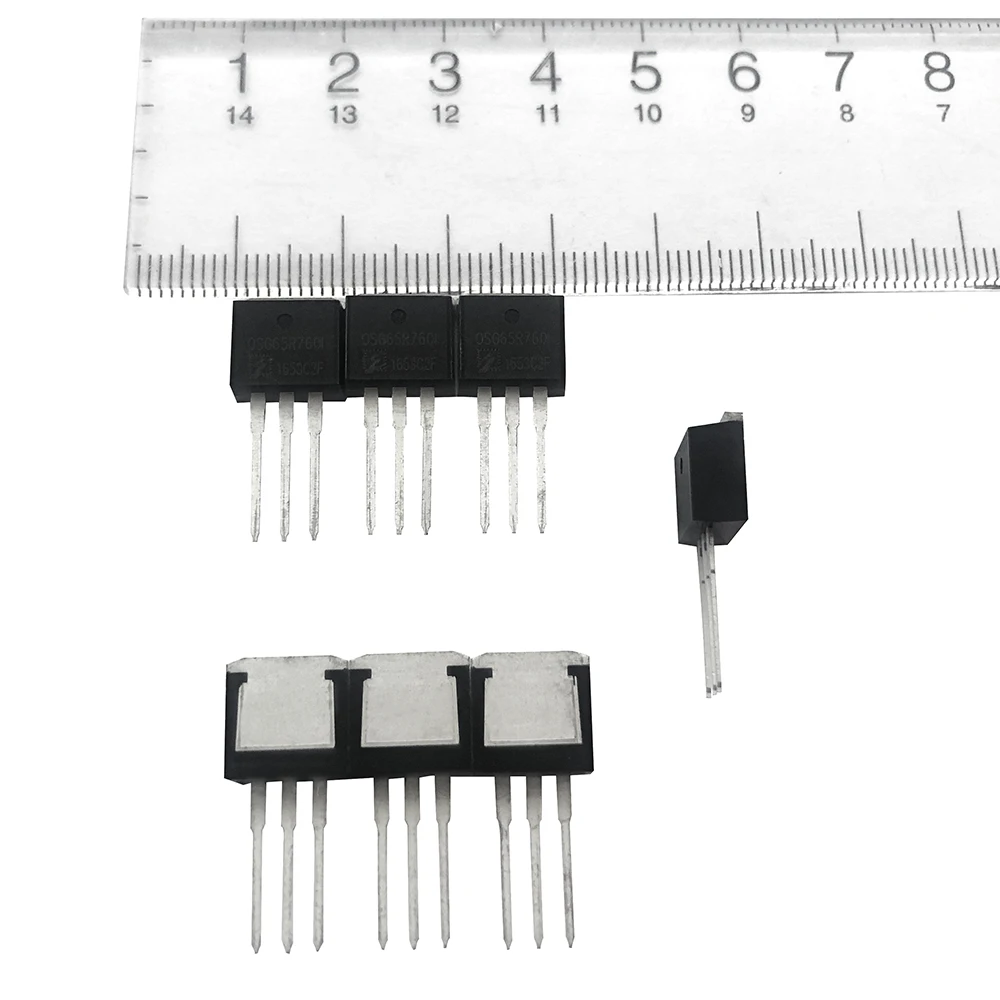

Photovoltaic Mosfet Driver High Frequency Mosfet OSG65R760I 650V 11A

Share on:

Price:$0.42 - $0.49
Price in USD:Details


Product Overview


General Description
The GreenMOS® high voltage MOSFET utilizes charge balance technology to achieve outstanding low on-resistance and lower gate charge. It is engineered to minimize conduction loss, provide superior switching performance and robust avalanche capability.
The GreenMOS® E series is optimized for its switching characteristics to achieve balance between EMI and efficiency. It is designed to enable power supply systems to reach the highest efficiency while still meeting EMI standards.

1,Low RDS(ON) & FOM
2.Extremely low switching loss
3.Excellent stability and uniformity
4.EMI and performance balanced

1.LED lighting
4.TV power
5.Telecom power
6.Server power



In order to meet the demand of high efficiency and minification of power supply system, Oriental Semiconductor has launched a new GreenMOS series of high voltage MOSFET, which adopts unique patented device structure and manufacturing process. GreenMOS product has faster switching speed and softer switching curve than conventional MOSFET, which can greatly restrain switch oscillation while obtaining extremely low dynamic loss. It can not only greatly improve system efficiency and reduce heating, but also simplify system EMI design.GreenMOS series products cover the whole series of 500V~900V, can provide up to 100A static current specifications, high operating frequency up to 2MHz, can meet the needs of various power systems. Based on its characteristics of high efficiency and low temperature rise, it is especially suitable for PD charger, LED power supply, communication, server power supply, electric vehicle charging pile and other systems.

Generic series:
The Generic series products includes a full range of 500V~900V, with low on-resistance, low gate charge, low static and dynamic
losses, and can be widely used in a variety of high-performance power conversion fields.
S-series (EMI Optimization)
The S-series products optimize the switching speed based on the Generic series products to achieve better EMI compatibility with
lower switching speed, especially suitable for low-power power supply systems such as LED lighting, chargers, adapters, etc.
E-series (EMI Balance)
The E-Series products combine the characteristics of Generic series products and S-series products to achieve the balance between
switching speed and EMI, especially suitable for TV power supply, industrial power supply, etc.
Z-series (Fast Recovery)
The Z-series products are integrated with fast recovery diode (FRD), with fast reverse recovery speed, very low switching loss and
high reliability, especially suitable for all kinds of half-bridge, full-bridge topological circuit, motor drive, charging pile,
SuperSi series
The SuperSi series is specially optimized for switching speed with extremely low FOM and switching speed comparable to gallium
nitride MOSFET, especially suitable for high-density power systems such as PD chargers, module converters, large-screen TVS,
displays, etc.

Company Profile

Product and Application

Application Scenario

Customer Photos

Green Product Declaration
To ensure that the products provided to customers can meet international and domestic laws and regulations and customers' requirements on Hazardous Substance Process Management, Oriental Semiconductor formulates measures for the control of harmful substances to ensure that the products are halogen-free, and to meet the harmful substances requirements of EU RoHS and REACH.
