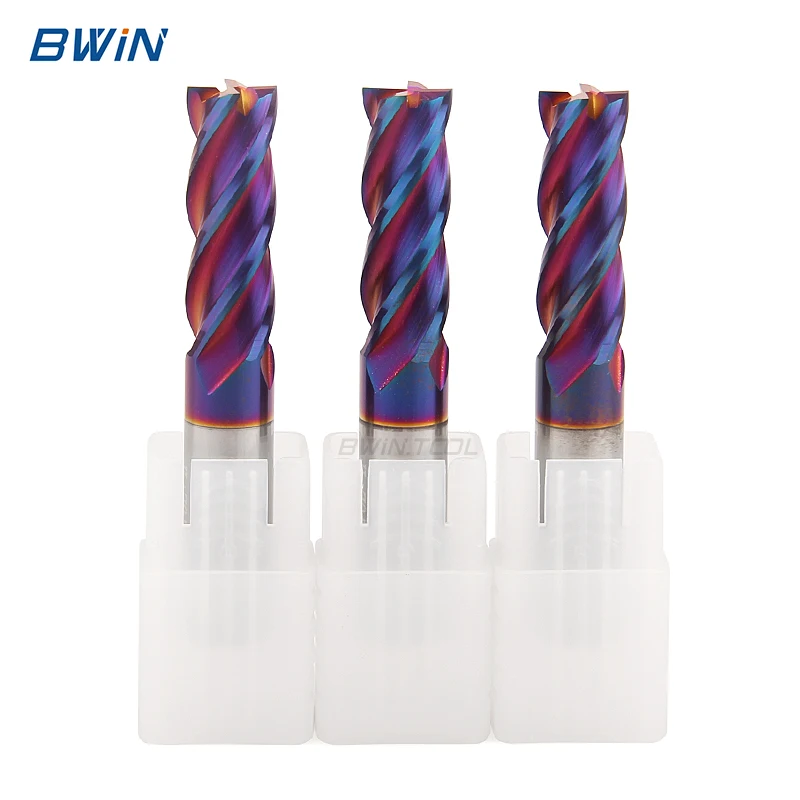

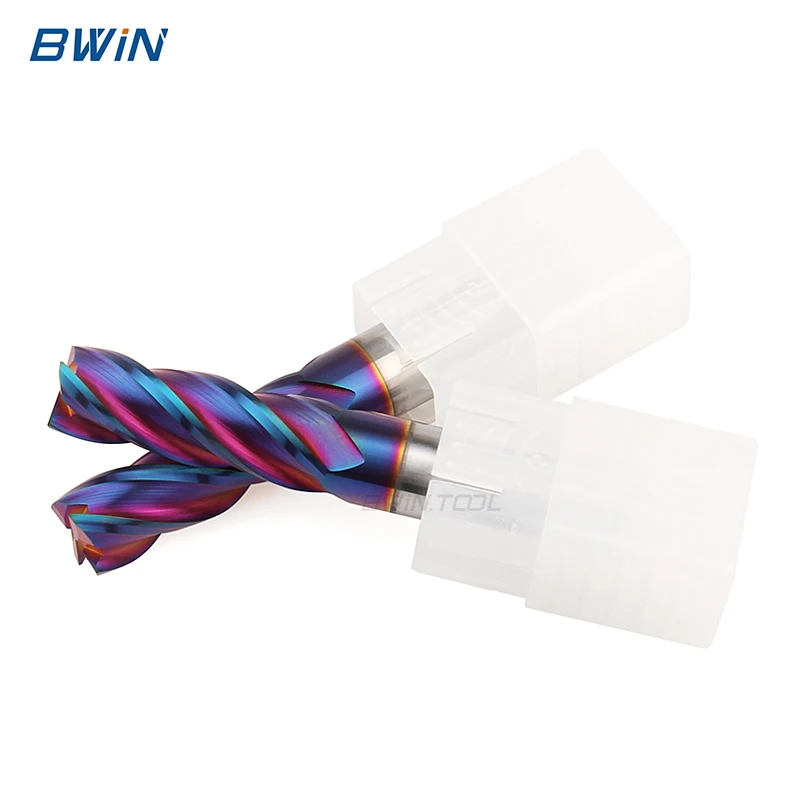

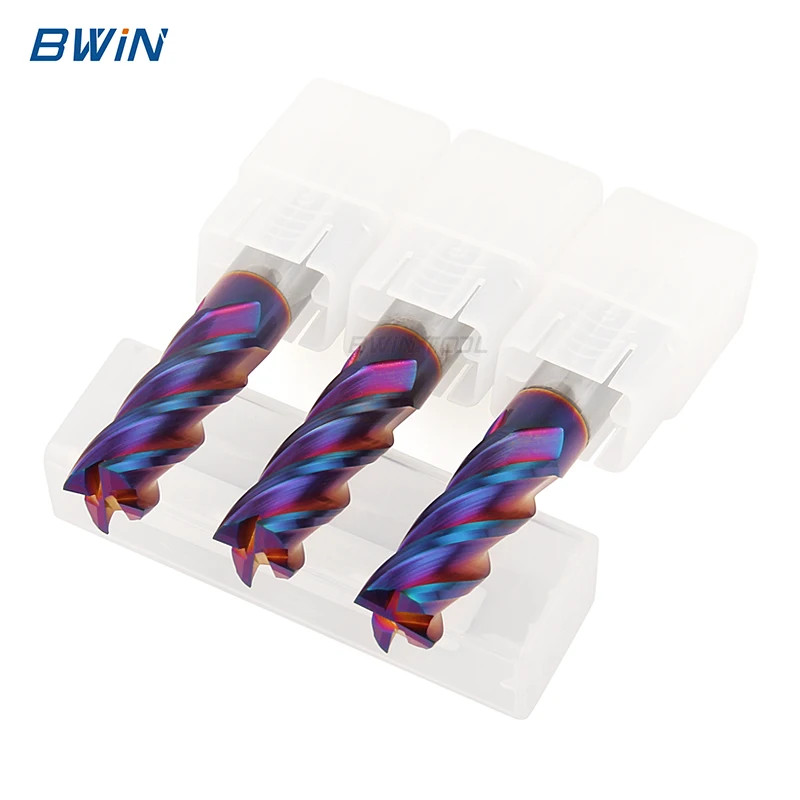

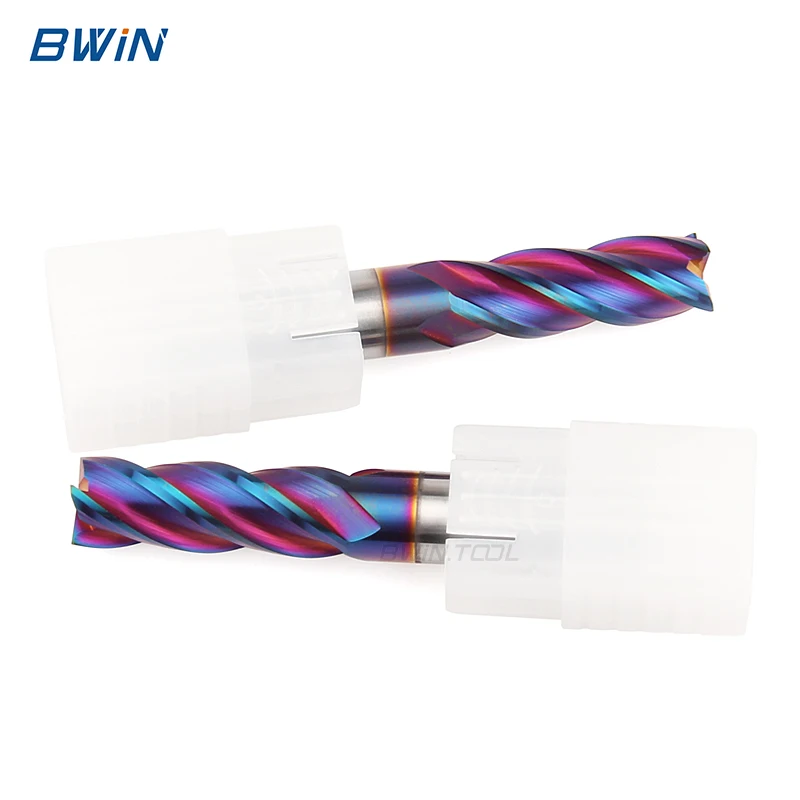

BWiN blue nano coated flat milling cutter 8*100 hrc65 4*50 end mill cutter cutting tool for stainless steel
- Category: >>>
- Supplier: Shenzhen Bwin Precision Tools Co. Ltd.
Share on (1600296541559):
Product Overview
Description
Products Description
BWiN blue nano coated flat milling cutter 8*100 hrc65 4*50 end mill cutter cutting tool for stainless steel
Product Name | hrc65 4*50 end mill cutter cutting tool for stainless steel | |
Material | Tungsten carbide | |
Flutes | 2/4 flutes | |
HRC | 45, 55, 60, 65 | |
Coating | AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano blue, or your requirements | |
Shank Diameter | 1mm-20mm | |
Overall Length | 50mm-150mm | |
Suitable For | Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc | |
Usage | High speed cutting | |
All the specs. can be customized | ||
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.

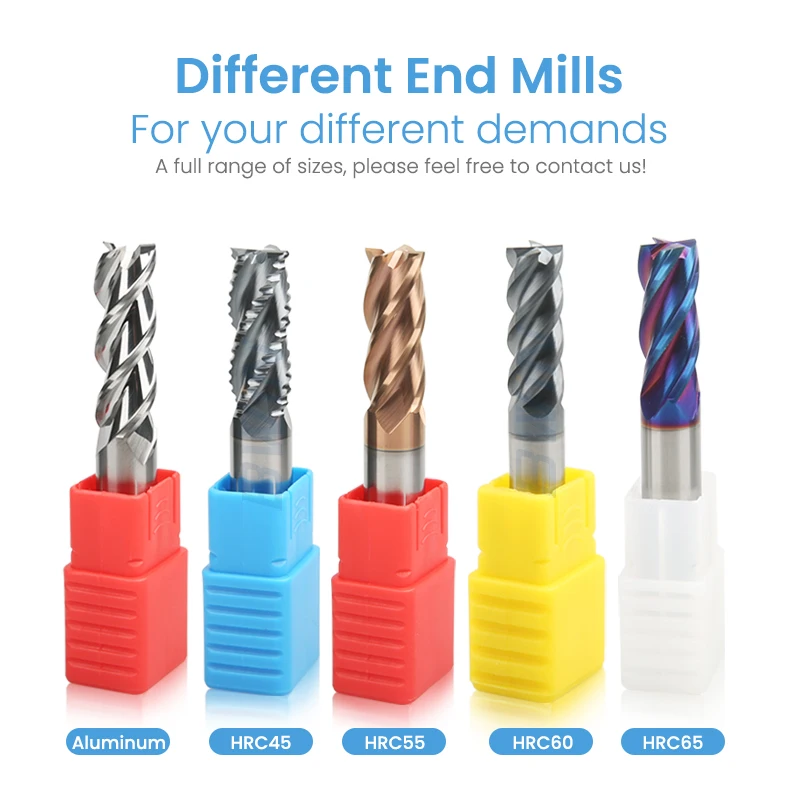

Grade | HRC45 | HRC55 | HRC60 | HRC65 |
Materials | YG10X | ZK30UF | ZK40SF | GU25UF |
Grain size: 0.8um Co: 10% Flexural strength: 3320N/mm2 | Grain size: 0.6um Co: 10% Flexural strength: 4000N/mm2 | Grain size: 0.5um Co: 12% Flexural strength 4300N/mm2 | Grain size: 0.5um Co: 10% Flexural strength: 4300N/mm2 |
2. Super coating:
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
Item | Color | Hardness (HV) | Thickness (UM) | Oxidation Temp.(℃) | Friction Coeffient |
AlTiN | Black | 3300 | 2.5-3 | 900 | 0.3 |
TiAlN | Violet | 2800 | 2.5-3 | 800 | 0.3 |
TiSiN | Bronze | 3600 | 3 | 1000 | 0.45 |
AlTiSiN | Blue | 4000 | 4 | 1200 | 0.4 |
Nano | Blue | 42(GPA) | 3 | 1200 | 0.4 |
The key cutting products we selling as below: | ||
◆ Carbide inserts ◆ Solid Carbide End Mills ◆ Turning Bar Tool ◆ Face Milling Tool | ◆ Drills & Reamers & Thread Cutters & Burrs ◆ Thread Tapper Tool ◆ CNC Chuck & Adapter ◆ Precision Tool Vise ◆ Other Accessories | |

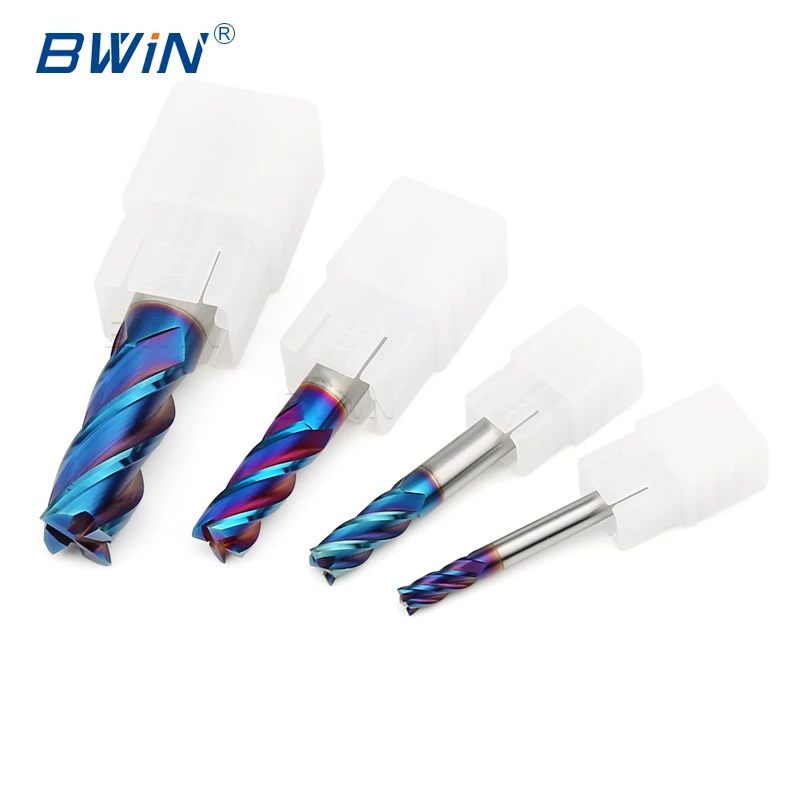

Products Show

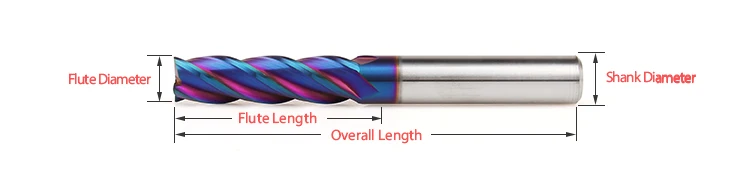

Specification | Flute dia(Φ) | Flute length(C) | Shank Dia(D) | Overall Length(L) | Flutes |
Φ1x3Cx4Dx50L | 1.0 | 3 | 4 | 50 | 2/4 |
Φ1.5x4Cx50L | 1.5 | 4 | 4 | 50 | 2/4 |
Φ2x5Cx4Dx50L | 2.0 | 5 | 4 | 50 | 2/4 |
Φ2.5x7Cx4Dx50L | 2.5 | 7 | 4 | 50 | 2/4 |
Φ3x8Cx3Dx50L | 3.0 | 8 | 3 | 50 | 2/4 |
Φ3x8Cx4Dx50L | 3.0 | 8 | 4 | 50 | 2/4 |
Φ3.5x10Cx4Dx50L | 3.5 | 10 | 4 | 50 | 2/4 |
Φ4.0x11Cx4Dx50L | 4.0 | 11 | 4 | 50 | 2/4 |
Φ1x3Cx6Dx50L | 1.0 | 3 | 6 | 50 | 2/4 |
Φ1.5x4Cx6Dx50L | 1.5 | 4 | 6 | 50 | 2/4 |
Φ2.0x5Cx6Dx50L | 2.0 | 5 | 6 | 50 | 2/4 |
Φ2.5x7Cx6Dx50L | 2.5 | 7 | 6 | 50 | 2/4 |
Φ3.0x8Cx6Dx50L | 3.0 | 8 | 6 | 50 | 2/4 |
Φ3.5x10Cx6Dx50L | 3.5 | 10 | 6 | 50 | 2/4 |
Φ4.0x11Cx6Dx50L | 4.0 | 11 | 6 | 50 | 2/4 |
Φ4.5x12Cx6Dx50L | 4.5 | 12 | 6 | 50 | 2/4 |
Φ5.0x13Cx5Dx50L | 5.0 | 13 | 5 | 50 | 2/4 |
Φ5.0x13Cx6Dx50L | 5.0 | 13 | 6 | 50 | 2/4 |
Φ5.5x15Cx6Dx50L | 5.5 | 15 | 6 | 50 | 2/4 |
Φ6.0x15Cx6Dx50L | 6.0 | 15 | 6 | 50 | 2/4 |
Φ6.5x20Cx8Dx60L | 6.5 | 20 | 8 | 60 | 2/4 |
Φ7.0x20Cx8Dx60L | 7.0 | 20 | 8 | 60 | 2/4 |
Φ7.5x20Cx8Dx60L | 7.5 | 20 | 8 | 60 | 2/4 |
Φ8.0x20Cx8Dx60L | 8.0 | 20 | 8 | 60 | 2/4 |
Φ8.5x25Cx8Dx75L | 8.5 | 25 | 10 | 75 | 2/4 |
Φ9.0x25Cx10Dx75L | 9.0 | 25 | 10 | 75 | 2/4 |
Φ9.5x25Cx10Dx75L | 9.5 | 25 | 10 | 75 | 2/4 |
Φ10x26Cx10Dx75L | 10.0 | 26 | 10 | 75 | 2/4 |
Φ10.5x30Cx12Dx75L | 10.5 | 30 | 12 | 75 | 2/4 |
Φ11x30Cx12Dx75L | 11.0 | 30 | 12 | 75 | 2/4 |
Φ11.5x30Cx12Dx75L | 11.5 | 30 | 12 | 75 | 2/4 |
Φ12x30Cx12Dx75L | 12.0 | 30 | 12 | 75 | 2/4 |
Φ13x45Cx14Dx100L | 13.0 | 45 | 14 | 100 | 2/4 |
Φ14x45Cx14Dx100L | 14.0 | 45 | 14 | 100 | 2/4 |
Φ15x45Cx16Dx100L | 15.0 | 45 | 16 | 100 | 2/4 |
Φ16x45Cx16Dx100L | 16.0 | 45 | 16 | 100 | 2/4 |
Φ17x45Cx18Dx100L | 17.0 | 45 | 18 | 100 | 2/4 |
Φ18x45Cx18Dx100L | 18.0 | 45 | 18 | 100 | 2/4 |
Φ19x50Cx20Dx100L | 19.0 | 50 | 20 | 100 | 2/4 |
Φ20x50Cx20Dx100L | 20.0 | 50 | 20 | 100 | 2/4 |
Other Products
Our Company
COMPANY PROFILE
Shenzhen BWiN Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, BWiN manufacture with integration of R&D, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of products and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
