SUNTECH Good price High Capacity customized Woven Fabric Inspection and Rolling Machine
- Category: >>>
- Supplier: Zhejiang Strength Machinery Co. Ltd.
Share on (1600296562368):
Product Overview
Description
Products Description

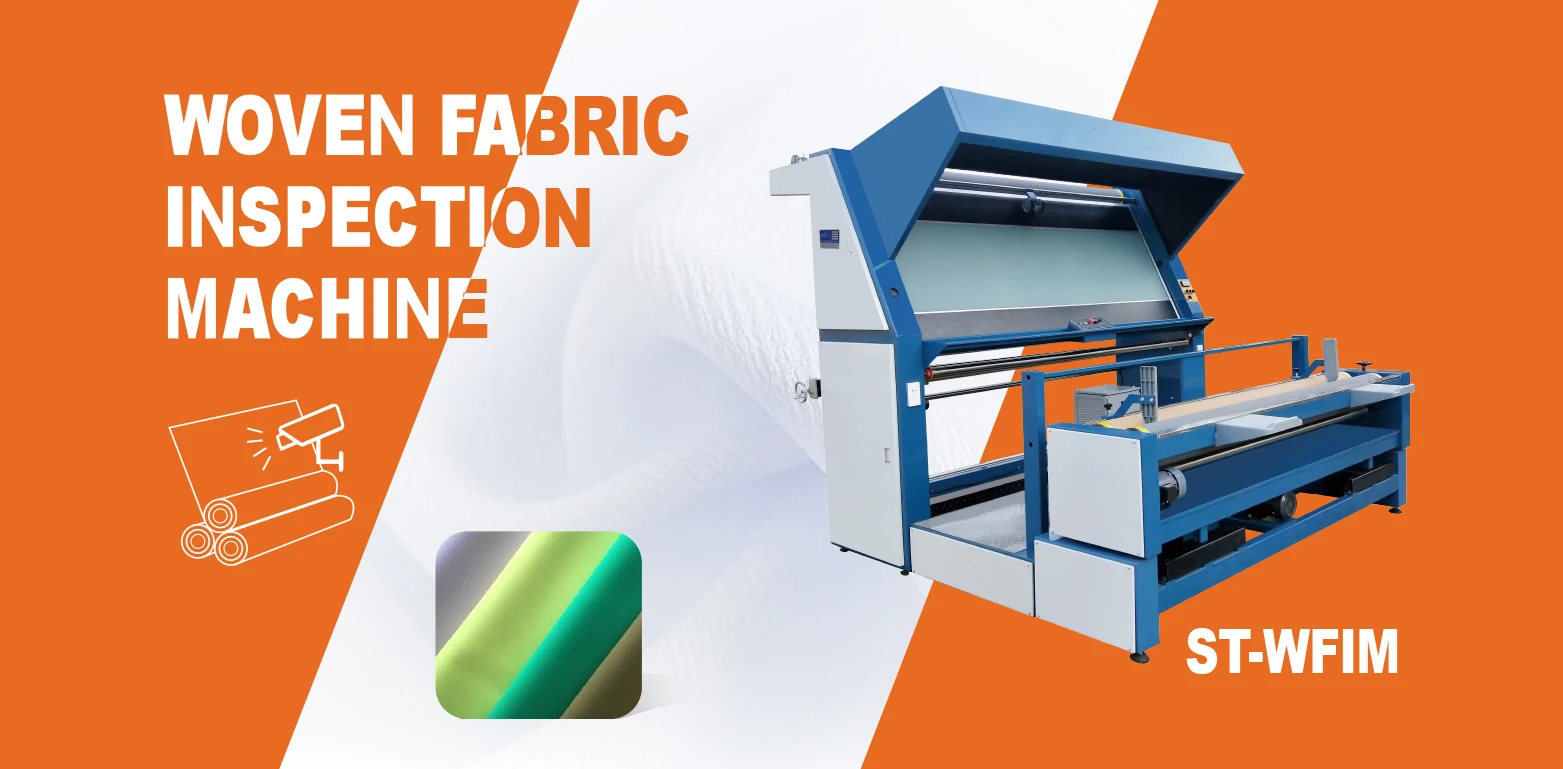

Suntech Woven Fabric Inspection Machine Without Platform
ST-WFIM is suitable for a wide range of woven materials, including denim fabrics.
Technical Specifications
Speed: | 5-60m/min |
Fabric Width: | 1.8-4.0 meters |
Standard Roll Diameter: | 500mm |
Dimensions(L*W*H): | 3050*2630*2430mm(For model ST-WFIM-180 only) |
Weight: | 1000kgs(For model ST-WFIM-180 only) |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Main Technical Features
●End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
●Full Width Fabric Inspection- With 30 degree fixed angle inspection screen.
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Available for different Fabric Input and Output Presentation like plait to roll, roll to roll etc.- Synchronize with other
production operations.
●Accurate Fabric Edge Controlling- Edge alignment error ≤6mm.
●Consistent Roll Output- Roll hardness adjustable.
●Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll etc.- Synchronize with other
production operations.
●Selvedge Shifting Device- Ideal for Thick/Sulzer Selvedges.(Option)
●Full Width Fabric Inspection- With 30 degree fixed angle inspection screen.
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Available for different Fabric Input and Output Presentation like plait to roll, roll to roll etc.- Synchronize with other
production operations.
●Accurate Fabric Edge Controlling- Edge alignment error ≤6mm.
●Consistent Roll Output- Roll hardness adjustable.
●Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll etc.- Synchronize with other
production operations.
●Selvedge Shifting Device- Ideal for Thick/Sulzer Selvedges.(Option)
Machine Drawing
Details Images

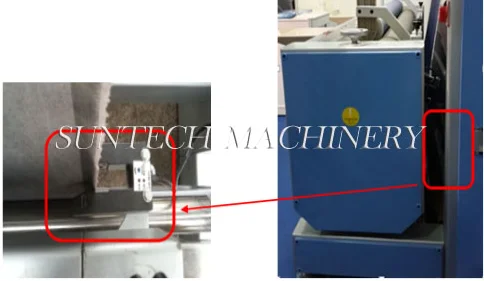

Hand Wheel at fabric feeding place, which could totally open the fabric through adjusting the position of two feeding rollers.

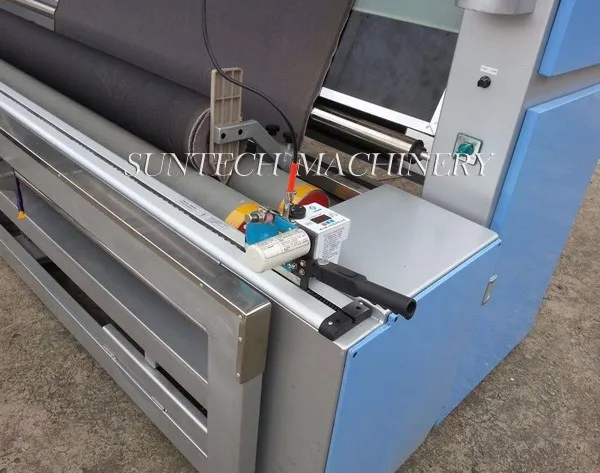

Cloth Guider
Make sure that fabric stays in the center of machine. When fabric running deflected, Cloth Guider will correct it automatically.

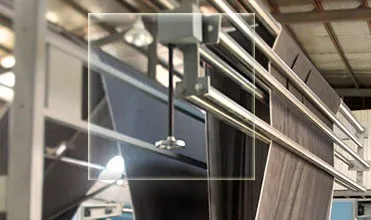

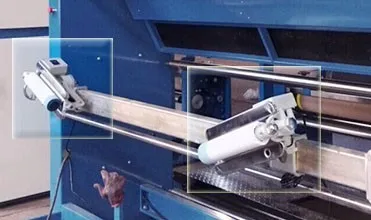

Edge Alignment Photo Sensor will align the fabric edges accurately. When fabric declines, the rewinding station will move left or
right for aligning.
right for aligning.
Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight)
through the hand-wheel.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight)
through the hand-wheel.
option
