65 Inches All in one Clever Touch Interactive Whiteboard for Education Smart Board
- Category: >>>
- Supplier: Shenzhen Photool Vision Technology Co. Ltd
Share on (1600296574192):
Product Overview
Description
Product Name | 65 Inches All in one Clever Touch Interactive Whiteboard for Education Smart Board |

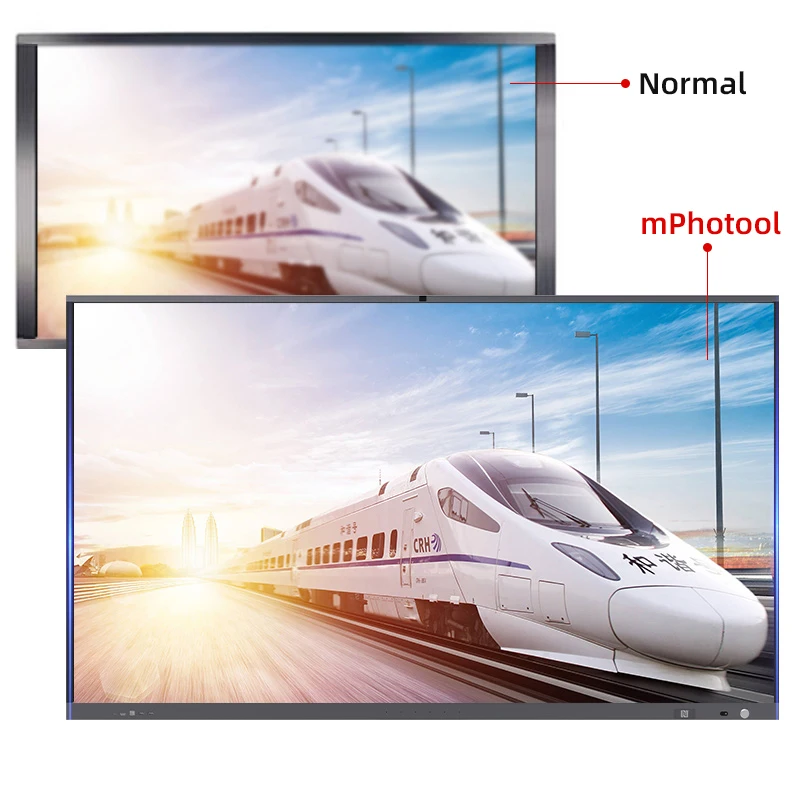

Main Features | Ultra-narrow bezel & super-thin body, USB ports for both Android and PC, Type-c supported. |
Function | High Accuracy Infrared Touch, Networking Bridging, Atomatic Writing Recognition |
Size | 65 inches |
Details Images
Hidden antenna, simple and elegant design(optional)
The antenna is hidden inside to help present a simple and delicate appearance.

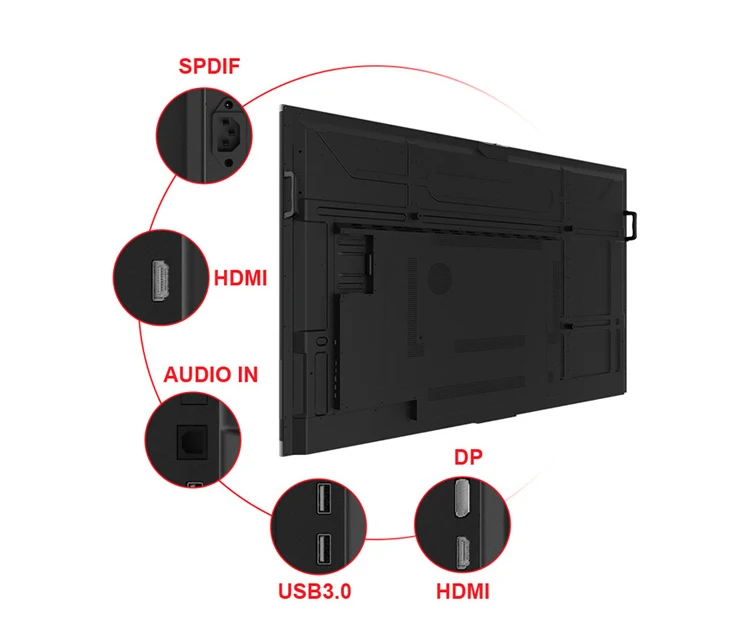

HDMI out Public USB Type-c
All channels support HDMI OUT.
The front Public-USB port can auto switch through sources.
Front Type-c port supports PD charging and DP display.
Product Size
We have three size available size you can choose: 65inches, 75inches, 86inches
The size details please check picture above
Easy to install

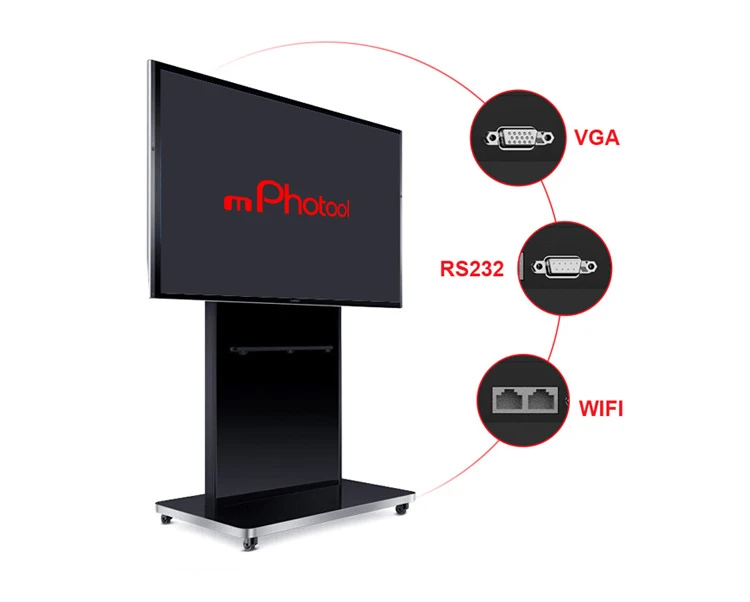

Our interactive whiteboard can be installed with a bracket
It can also be installed directly on the wall
Applications

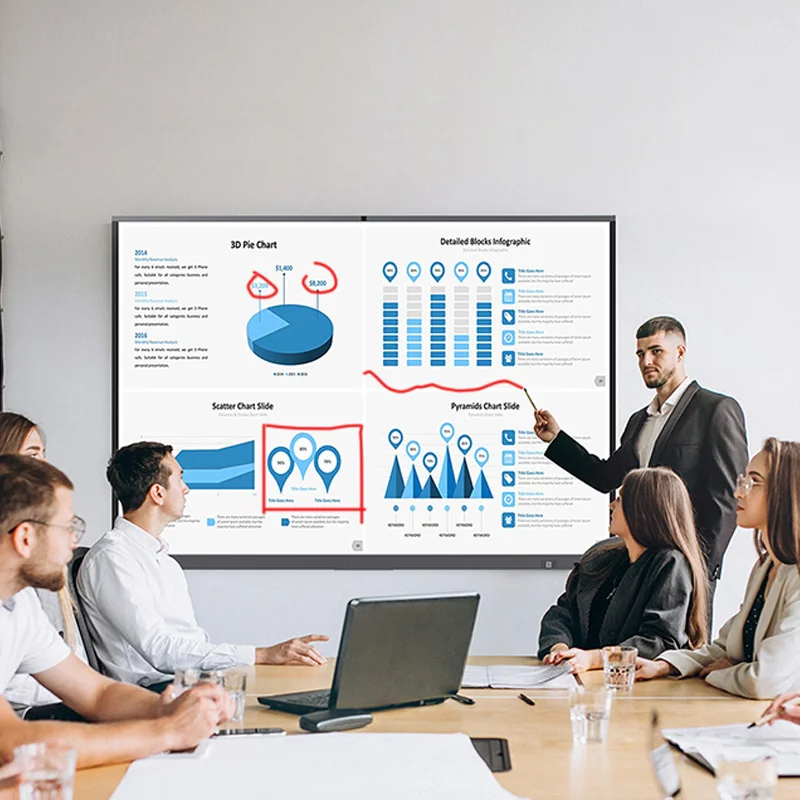

Business
All in one interactive whiteboard can be used in:
All in one interactive whiteboard can be used in:
1. Business conference hall ,
2. Exhibition hall
3. Remote video conference
4. Daily office work communication
5. Other business communication.

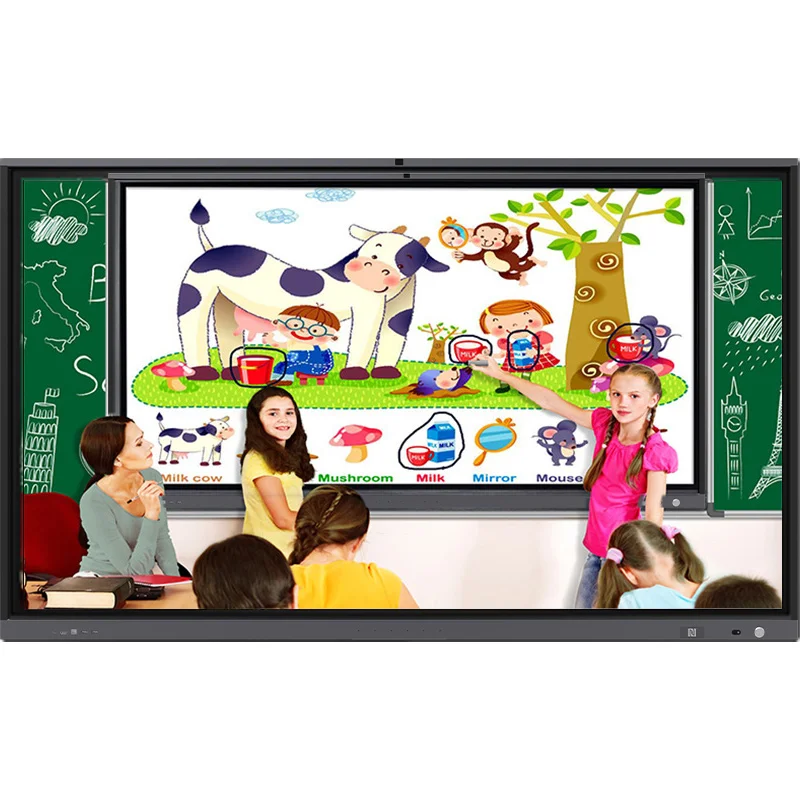

Education
All in one interactive whiteboard also can be used in:
1. Kindergarten activity classroom
2. Primary school teaching classroom
3. University multimedia classroom
4. Other education and training .
Wireless Screen Cast Solution

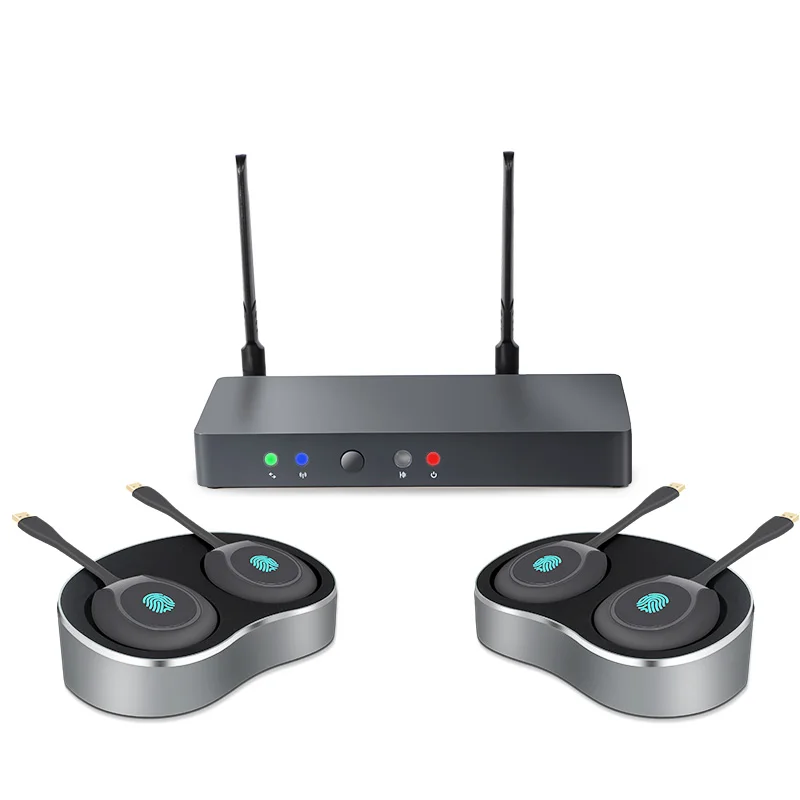

mPhotool box is an interactive wireless presentation system, suitable for large meeting rooms and multimedia meeting rooms, which enhance the interaction functions between speaker and audiences are.
mPhotool box is an interactive wireless presentation system, suitable for large meeting rooms and multimedia meeting rooms, which enhance the interaction functions between speaker and audiences are.
mPhotool Box can realize stable transmission of file, photo and video from laptop and mobile phone to interactive whiteboards and LED devices.

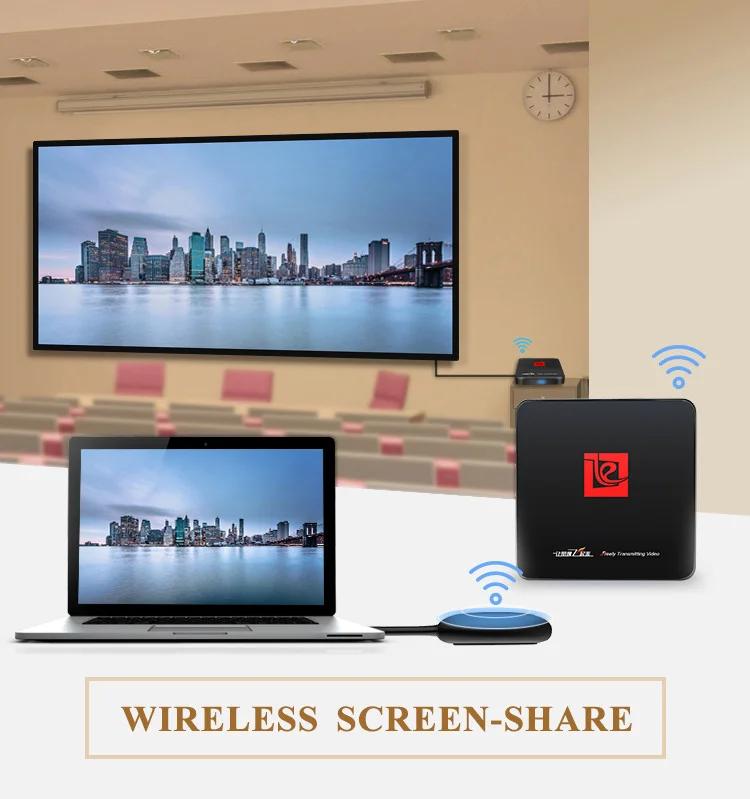

Wireless Screen Cast
One to More Solution

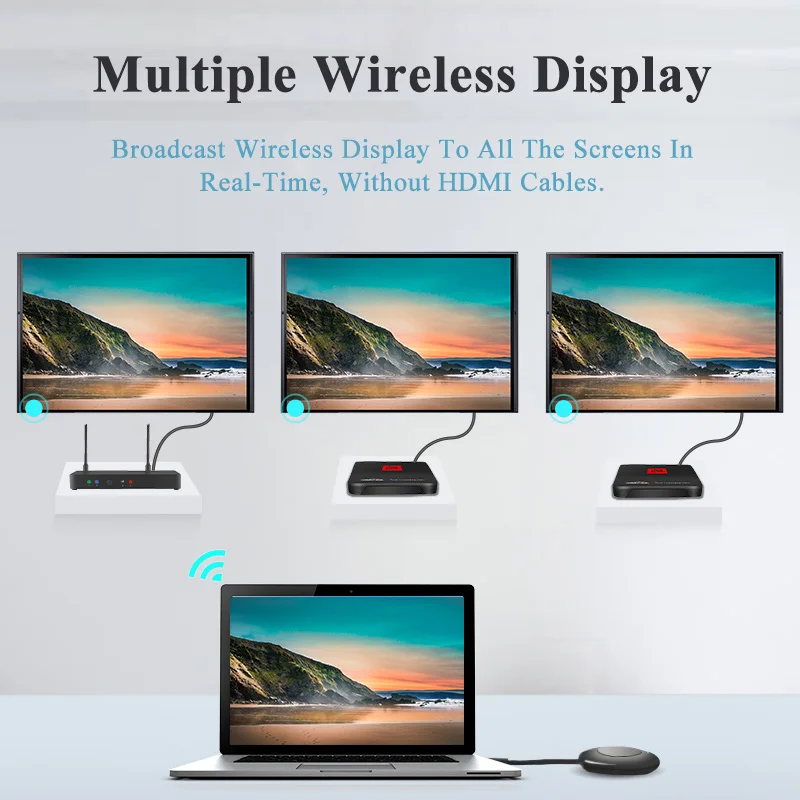

Multiple Wireless Display:
Multiple Wireless Display:
Broadcast Wireless Display To All The Interactive Whiteboards In Real-time, Without HDMI Cables.
Product Paramenters
Size | 64.5" 74.52" 85.6" | |
LCD | UHD | |
LCD supplier | LGD /BOE | |
Resolution | 3840 x 2160 (pixels) | |
Pixel Pitch | 0.372(H)x0.372(V)/0.4296(H)x0.4296(V)/0.4935(H)x0.4935(V) | |
Brightness | 300 cd/㎡(min.) 350 cd/㎡(typ.)/350 cd/㎡(min.) 400 cd/㎡(typ.) | |
Contrast Ratio | 1200:1 (typ.) | |
Display Colors | 1.07B(10bit) | |
Response Time (typ)/(min) | 8ms (typ.) | |
Viewing angle | 178°(H) / 178°(V) | |
Life Time (typ)/(min) | 30,000 hrs (min.) | |
Color Saturation (x% NTSC) | 68% | |
Chipset | MSD8386/MSD9950 | |
CPU | ARM A73+A53/1.5GHz ; Cortex A73*4，1.8GHz | |
GPU | Quad Core / MaliG51 ; MailG52 MP2 | |
RAM+ ROM | 3GB+16G or 32G /4GB+32G or 64G | |
System | Andriod 8.0/Andriod 9.0 | |
Sensing Type | Infrared Touch Frame | |
Surface Protection | 3.2mm Toughened Glass | |
Infrared Touch | 20 Points | |
Interpolation Resolution | 32768 * 32768 | |
Response Time | ≤ 8ms | |
Theory Clicks | Unlimited | |
Minimum Touch Object | ≥ 2mm | |
Environment: | ||
Working Temperature | 0℃~40℃ | |
Working Humidity | 20% ~ 80% RH Non-Condensing | |
Storage Temperature | -10℃～60℃ | |
Storage Humidity | 10%～60% RH Non-Condensing | |
Patent/Certification: | ||
Certification | Option | |
ID/Material: | ||
Housing Material （Frame/back cover） | Aluminum/Metal plate | |
Housing color （Frame/back cover） | Gray or Black/Black | |
Size: | ||
Product Size(mm) (W x D x H) | 1511.6mmx87.8mmx919.7mm/1722.5mmx87.1mmx1033.6mm/ 1989.18 mm x 119.7 mm x 1180.22mm | |
Package Size(W x D x H) | 1660mmx245mmx1045mm/1880mmx280mmx1160mm/ 2140 mm x 280 mm x 1340 mm | |
VESA | 600mm*400 mm/800mm*400 mm/800mm*600 mm | |
