RG402 TFT402 TFT 405 RG401 Coaxial cable RFI PE Times microwave
- Category: >>>
- Supplier: Raynool Technology Co. Ltd.
Share on (1600296734342):
Product Overview
Description

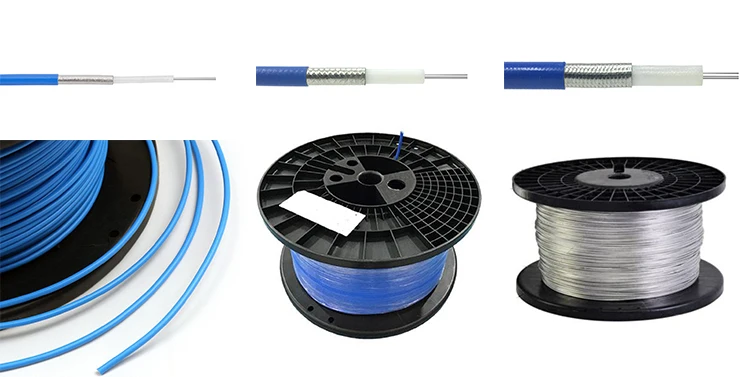

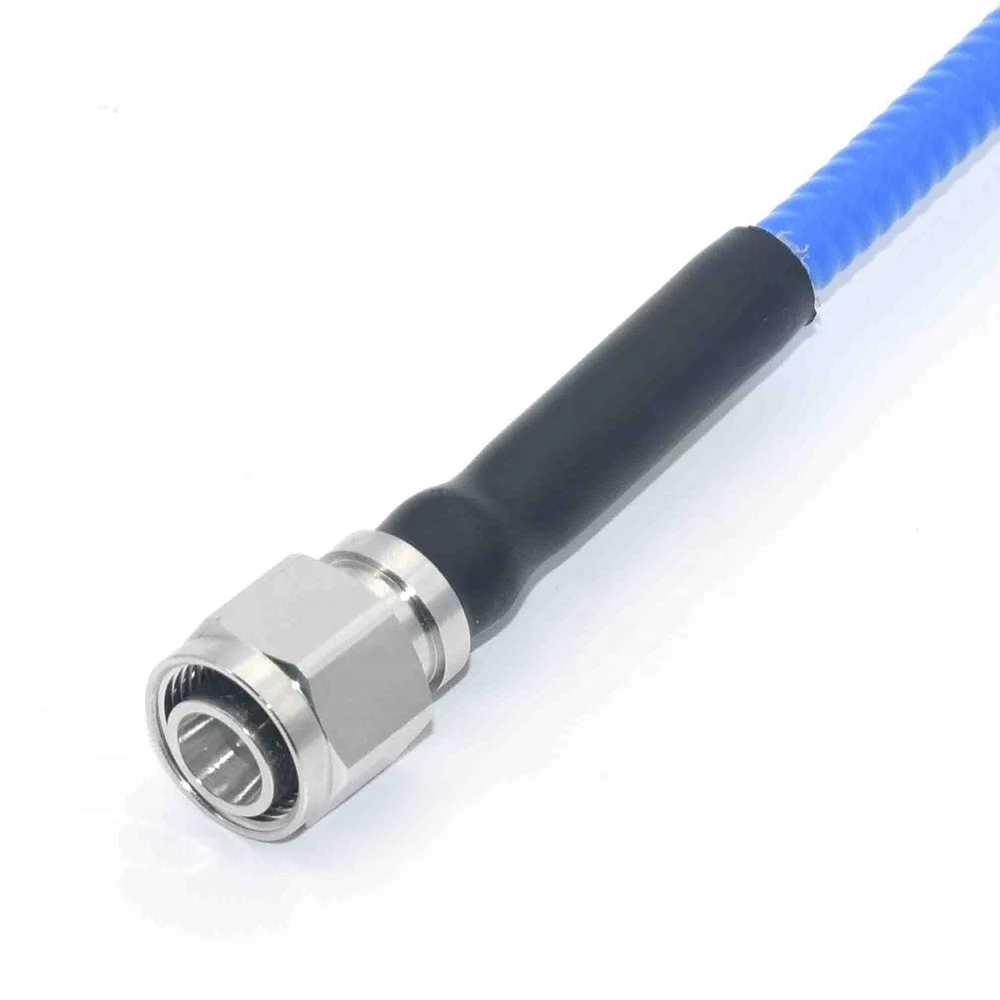

RG402 TFT402 TFT-405 RG401 Coaxial cable RFI PE Times microwave
Product Description
Product Description

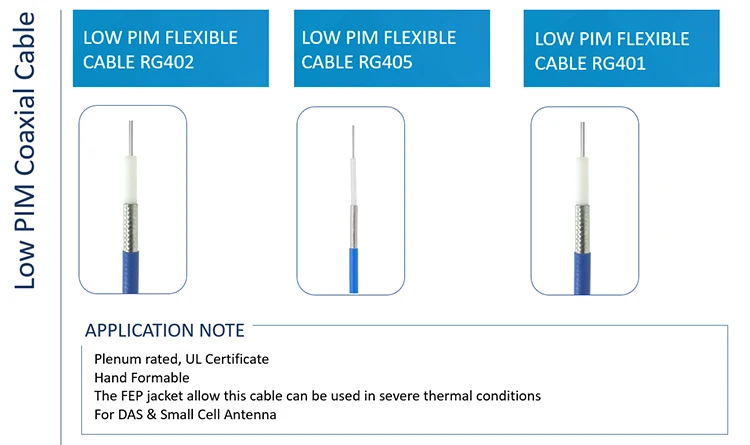

RG402, RG401, RG405 cable assembly
* Tinned soaked cable assembly are available
RG402 Cable Construction
| Inner Conductor | Silver Plated Copper | 0.93 mm |
| Insulation | PTFE | 3.00 mm |
| Outer Conductor | Tinned Copper braid | 3.52 mm |
| Jacket | FEP | 4.32 mm |
RG401 Cable Construction
| Inner Conductor | Silver Plated Copper | 1.63 mm |
| Insulation | PTFE | 5.27 mm |
| Outer Conductor | Tinned Copper braid | 6.20 mm |
| Jacket | FEP | 7.00 mm |
RG405 Cable Construction
| Inner Conductor | Silver Plated Copper | 0.525 mm |
| Insulation | PTFE | 1.65 mm |
| Outer Conductor | Tinned Copper braid | 2.15 mm |
| Jacket | FEP | 2.65 mm |

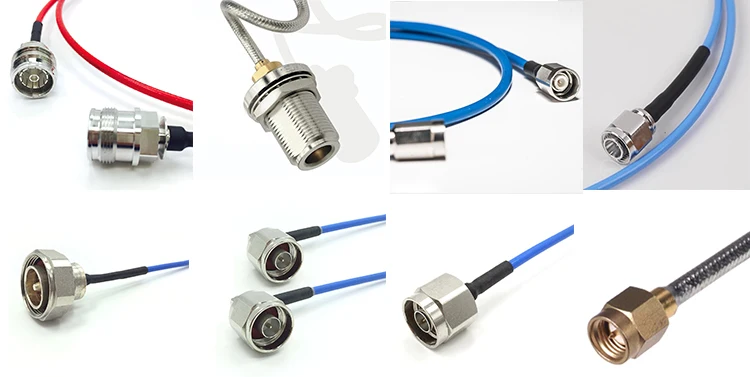

RF Connector type
- Low PIM Connector: 7/16 DIN / 4.3-10 / N / 2.2-5 / NEX10
- QMA / SMA / TNC / SMP

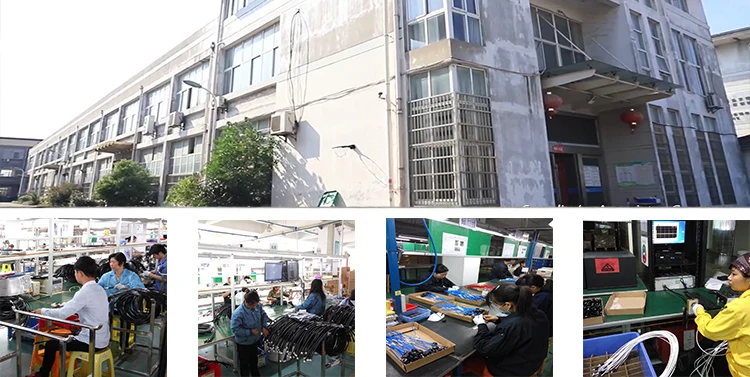

Factory product line
Raynool Cable Assembly factory product line
Packaging & Shipping
Customized label
Carton package
FAQ
Q:Could you please advise reference list of customers?
A: We are an OEM manufacture of Amphenol & Rosenberger.
Q: Could you accept custom products?
A: Raynool is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.
Q: What is your MOQ?
A: Our MOQ is normally 200 pcs.
Q: How about the Lead Time?
A: For connector, the LT is 2 weeks.
For Cable Assembly, the LT is 3 to 4 weeks.
For Coaxial Cable ,the LT is 4 weeks.
