High purity temperature resistance Tungsten melting crucible liner
- Category: Tungsten Crucibles >>>
- Supplier: Baoji Hanz Metal Material Co. Ltd.
Share on (1600296830307):
Product Overview
Description
High purity and high temperature resistance Tungsten melting crucible liner
Detailed Images

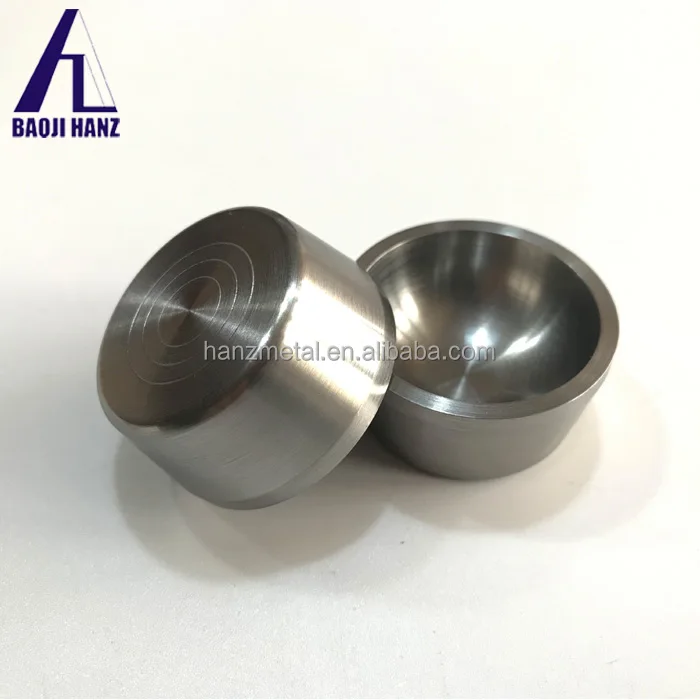

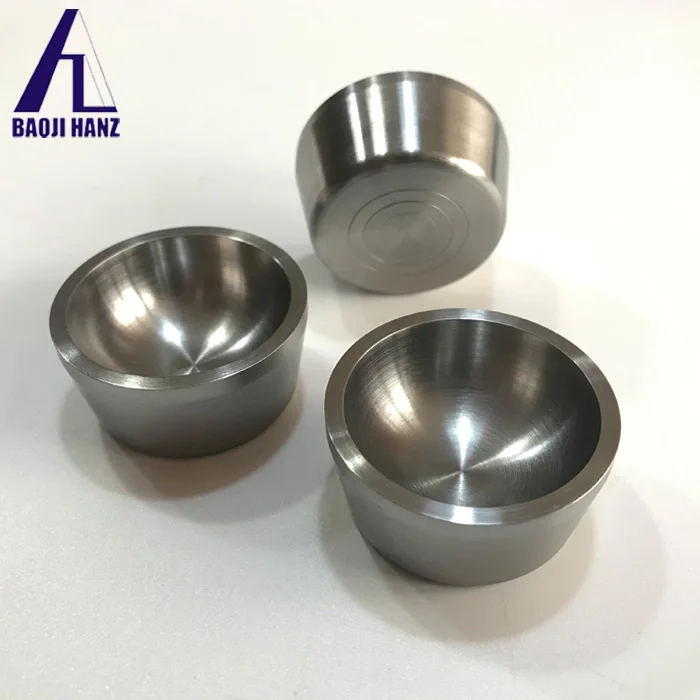

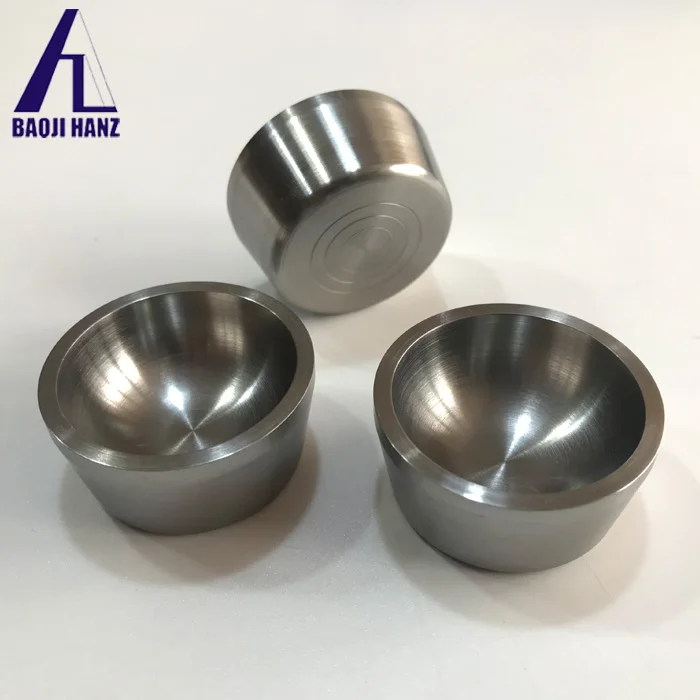

High purity and high temperature resistance Tungsten melting crucible liner
Product Description
High purity and high temperature resistance Tungsten melting crucible liner
| Item name | High purity and high temperature resistance Tungsten melting crucible liner |
| pure tungsten | W Purity: 99.95% |
| Other Material | W1,W2,WAL1,WAL2,W-Ni-Fe, W-Ni-Cu, WMO50,WMO20 |
| Density | 1.Sintering tungsten crucible Density: 18.0 - 18.5 g/cm3
2.Forging tungsten crucible Density: 18.5 - 19.0 g/cm3 |
| Dimension & Cubage | According to your needs or drawings |
| Delivery time | 10-15 days |
| Application | It is widely used for smelting of rare earth metals, heating elements of induction furnace, and solar energy and sapphire. |
| Technique (Type) | Sintering,stamping, spinning. |
Working temperature | 1800 - 2600 DC |
Delivery time | 10-15days |
Special sizes can be manufactured based on customers' requirements. | |

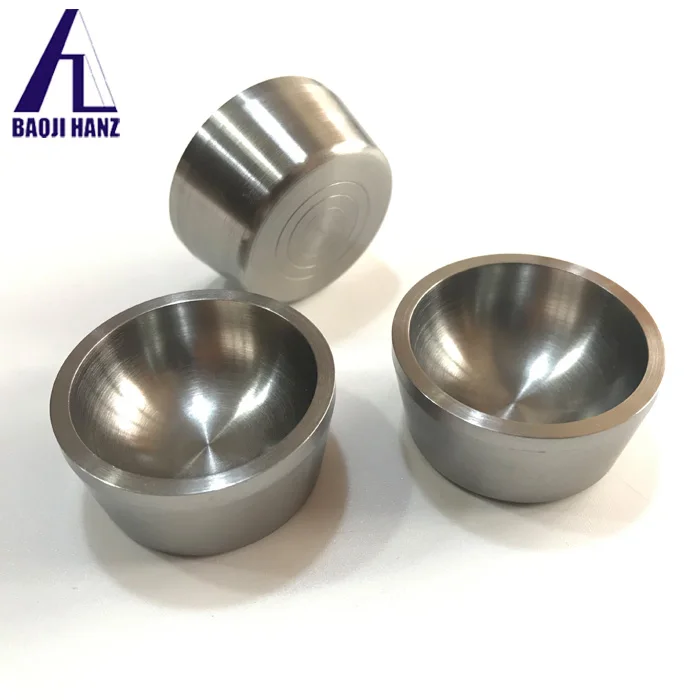

High purity and high temperature resistance Tungsten melting crucible liner
Dimensions and Tolerance
Supply Situation | Dimensions | Tolerance | ||
Diameter(mm) | Height(mm) | Diameter(mm) | Height(mm) | |
Sintering | 10-500 | 10-750 | ±5 | ±5 |
Forging | 10-100 | 10-120 | ±1 | ±2 |
Sintering and Machining | 100-550 | 10-700 | ±0.5 | ±1 |

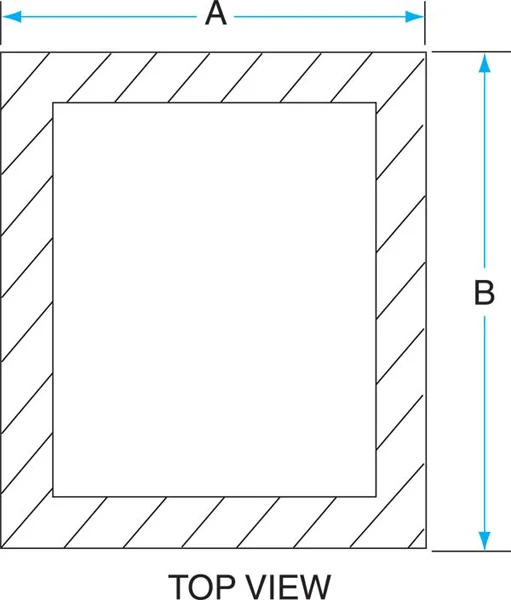

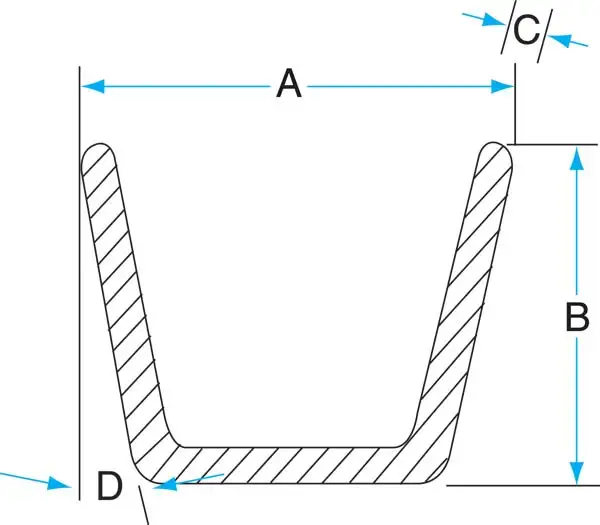

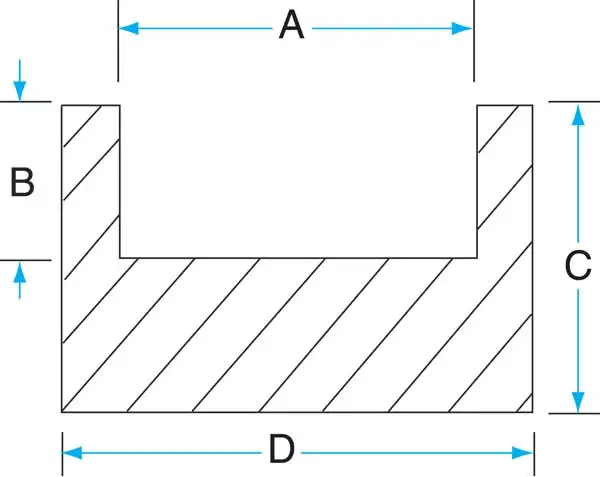

Drawing High purity and high temperature resistance Tungsten melting crucible liner
 |  |  |

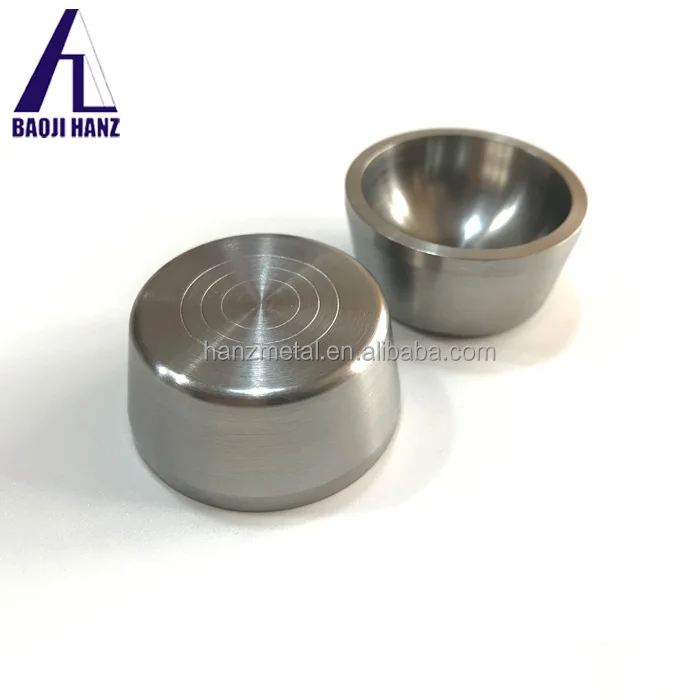

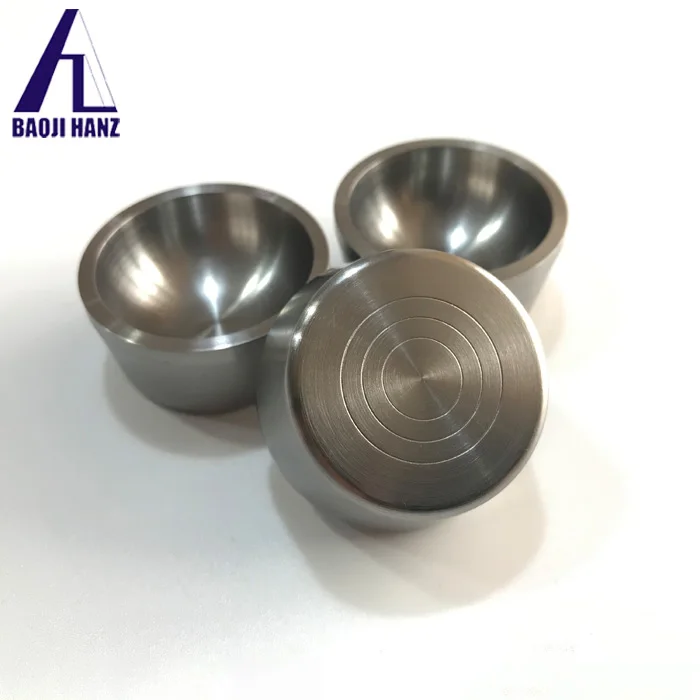

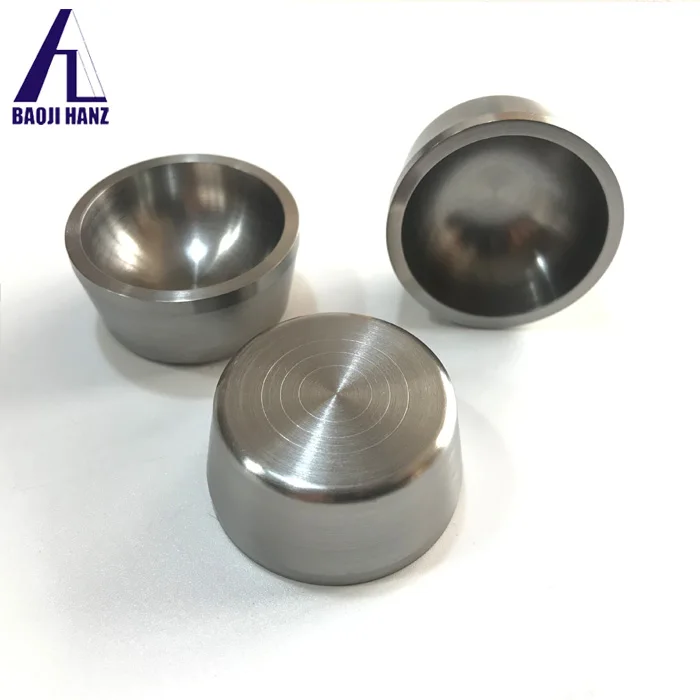

High purity and high temperature resistance Tungsten melting crucible liner
Features
- Low thermal expansion;
- High density;
- Good corrosion resistance
- High strength;
- Low resistivity;
- The surface roughness of tooled crucibles does not exceed Rz 6.3;
- The use temperature below 2450ºC in vacuum or deoxidize atmosphere.
- Manufactured based on customers' requirements
Application
- Used for sapphire single crystal growth furnace;
- Applied for quartz glass melting furnace;
- Used for rare earth smelting furnace;
- Used for sintering metal mold of high melting point;
- Widely used in other following industries: Ceramics and metallurgical industries, machinery processing and light dustries.
Company Information
Baoji Hanz Advantage
- 1. Ability to customize;
- 2. Has items in stock;
- 3. Short lead time;
- 4. Exported to many counrises before;
- 5. Has a factory
Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing all shapes of tungsten, molybdenum, tantalum, niobium , titanium, nickel products and other alloy.
Packaging & Shipping
Shipping
Various Mode of Transportation for You :
- 1. Air transportation
- 2. Sea transportation
- 3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.
Packing
- 1. Packaging with moisture-proof paper.
- 2. Packaging with Kraft paper.
- 3. Packaging with foam plastics in all side of wooden case.
- 4. Packing products in wooden case.

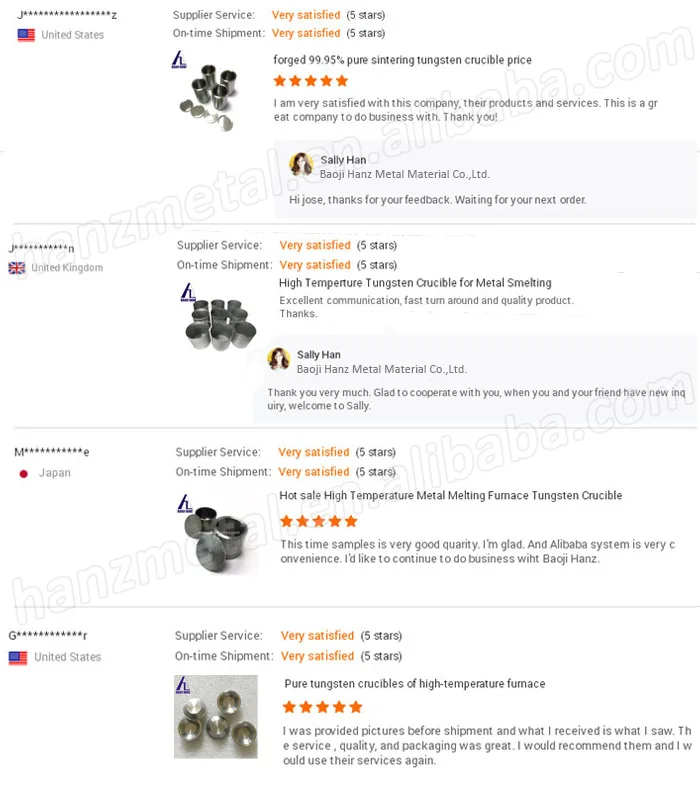

Buyer Feedback
