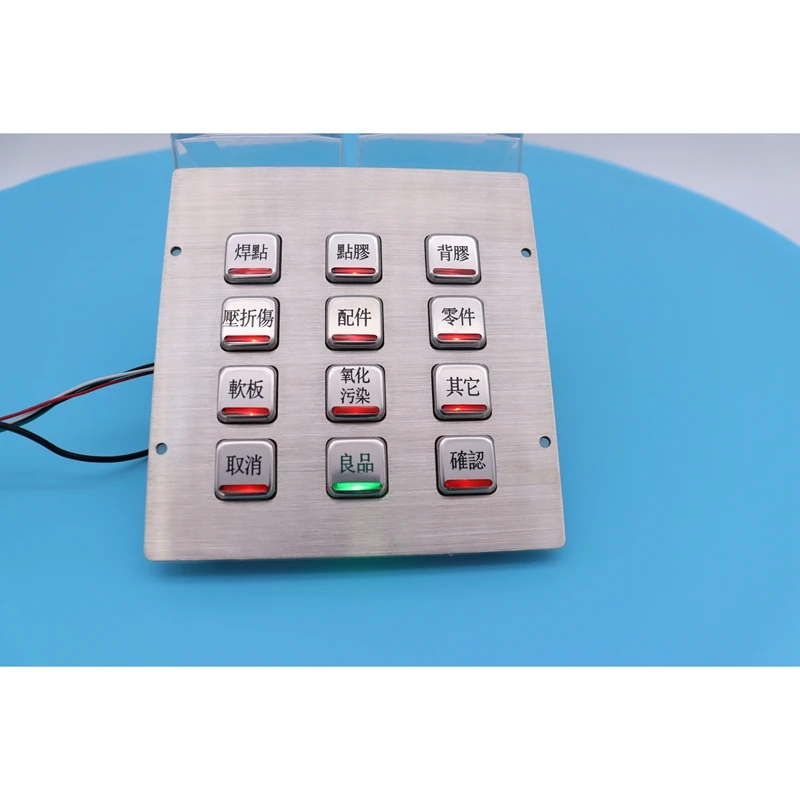

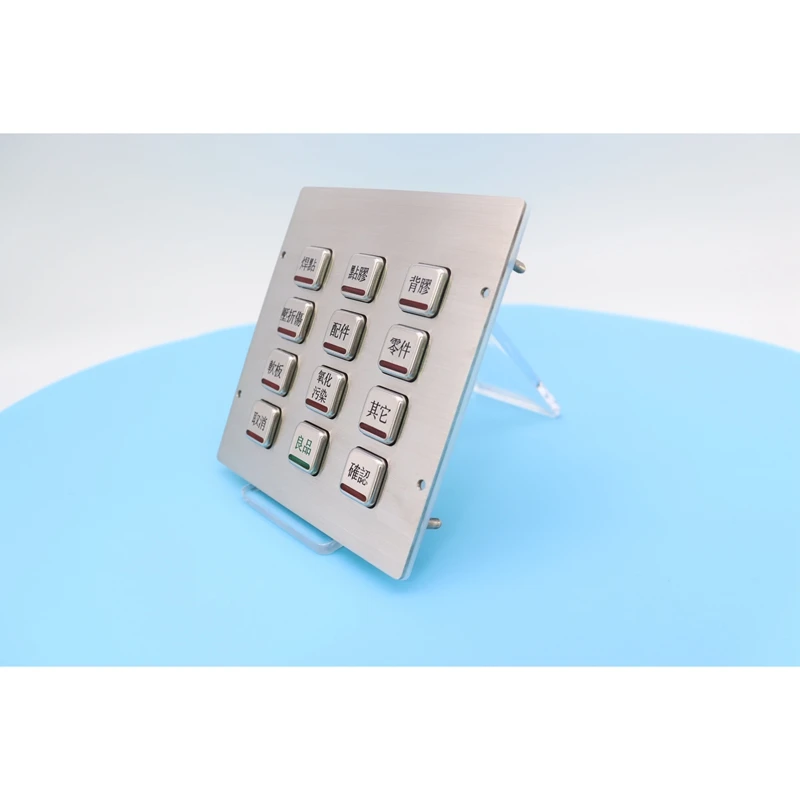

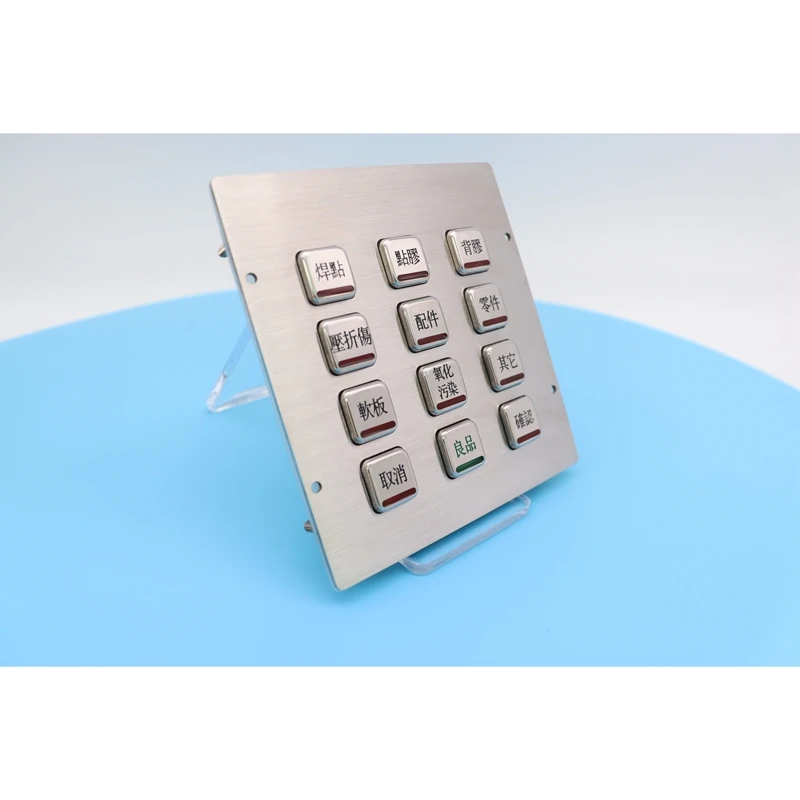

Finely processed LED backlight solid waterproof stainless steel 12 key digital industrial metal key

Share on (1600296889263):


Price:$33.00 - $38.00

Quantity:


Product Overview

Description


























































































































MECHANICAL DATA



Model Number


XD109


keys


12 keys

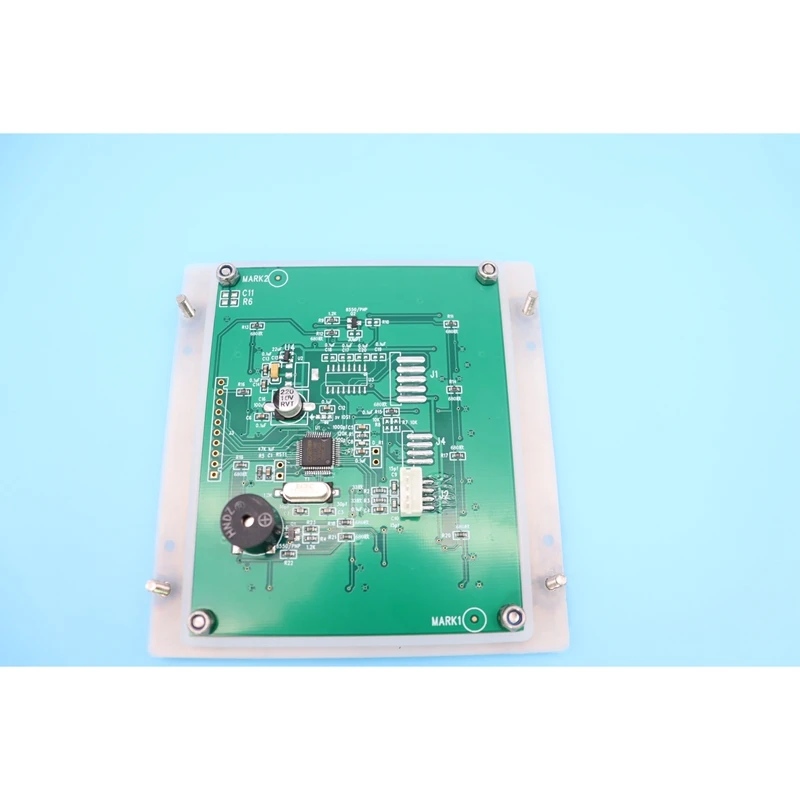

Switching material


gold on gold metal dome and rugged PCB


Actuation Force


1.2N +/-0.1N (pressure point).


Frame/keys materials


Stainless steel

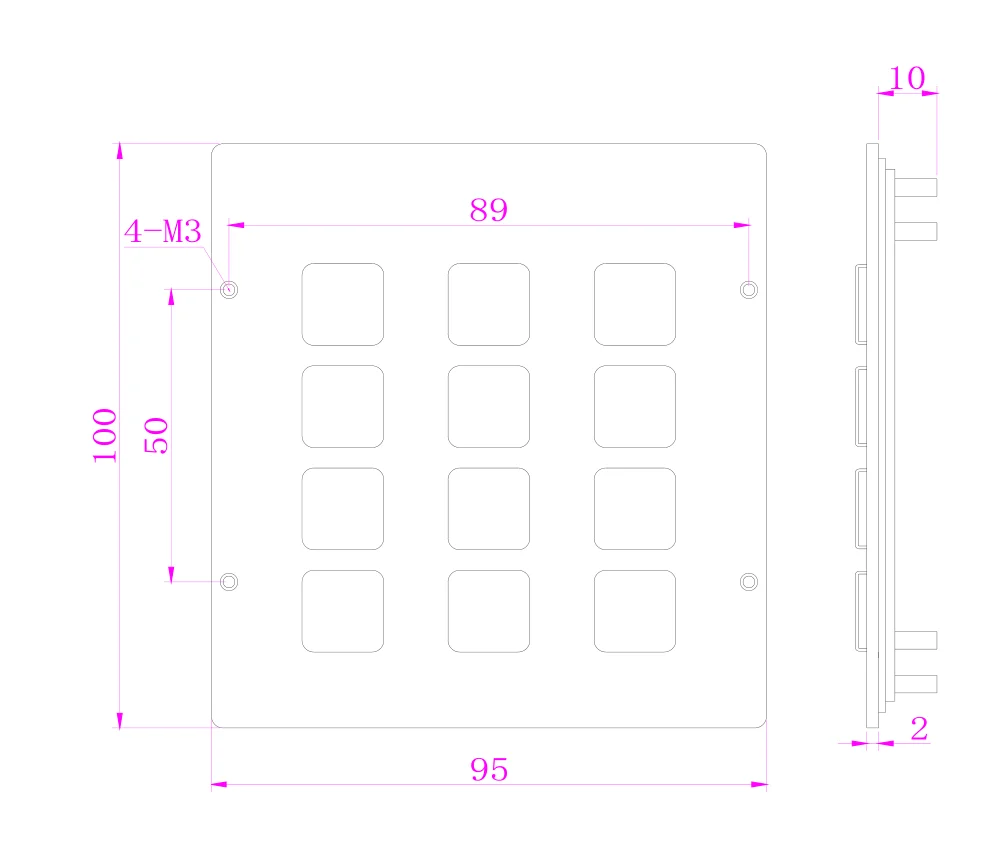

Dimensions


95mm×100mm (panel)


Key Size


14.0mm ×14.0mm


Key Travel


2MM


Key life


More than 5 million of operations


G.W.


0.27KGs



ELECTRICAL DATA



Power supply voltage


5V DC +/-5%


Current Rating


10mA


Contact resistance


5 ohm


Electrical lifetime


> 6 years


EMC


EN55022(B)


Interface


USB / PS2 / RS232 / MATRIX


OS


All windows, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY



Operating temperature


-40℃ to +85℃


Storage temperature


-50℃ to +125℃


Operating RH


30-90%RH


Atmospheric pressure


60-106Kpa



RELIABILITY



Protection Level


IP67(front panel)


Vandal resistant


IK07


Mean time between failures


MTBF >50000H


Average maintenance time


MTTR <30min


1 (1).jpg1 (2).jpg1 (3).jpg1 (4).jpg1 (5).jpg1 (6).jpg1 (1).png


Company Information






















Shenzhen Xufan technology is the leader of technological innovation in China's metal industry keyboard industry. The core R & D personnel have accumulated more than 20 years of industry technology and experience. Now we have more than 10 national invention patents and focus on the product design and manufacturing of global input devices,With high quality products, excellent service quality, The company provides better and better products and service for users in different industries.














Our Team













Production Workshop














Production Process















.jpg3.Laser recording.jpg5.Place buttons.jpg
7.Insert the motherboard.JPG8.Access communication.JPG9.Assemble the bottom box.JPG




Application Field



















Certifications


.jpg





Packaging & Shipping















FAQ


Q1) Is it safe on the payment for me as we are the first cooperation?


A:We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment  way as you want.


Q2) Can you print the logo on Metal keyboard or draw the artwork?


A:We can print your own logo on the keyboard, and we can draw the artworks for you, but we need the proto logo.


Q3) What should i provide to get a quotation? When can I get the quotation?


A:We will send you quotation within 24 hours after you tell us the size, quantity, special requirement and send us the artwork if possible.


Q4) Can you do a sample for me?


A: Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.


Q5) What is the shipping way you do for the Metal keyboard?


A:We will send it by express delivery or air for small order; will send it by sea if it is a large quantity.


Q6) Are you factory?


A:Yes ! Shenzhen Xufan is a professional manufacturer of metal keyboard company, with more than 20 years of professional technology accumulation.we have many invention patents and utility model patents.
