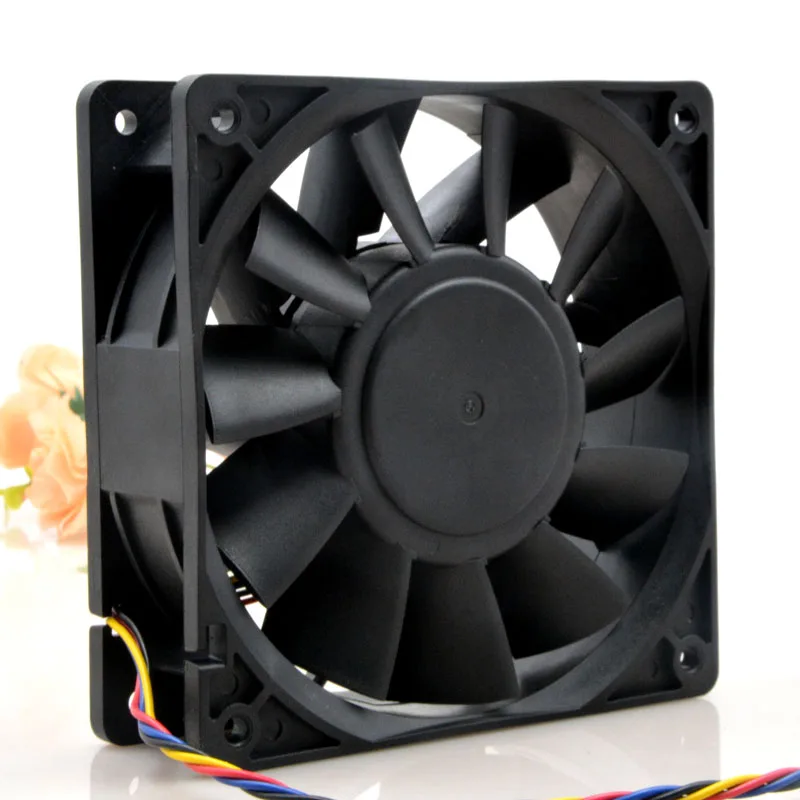

120x120x38mm 12v Ball Bearing Fan for PFC1212DE 12038 1238 120mm 4.80A High RPM Speed Air FLow Cooling Fans
- Category: Fans & Cooling >>>
- Supplier: Shenzhen,Chuangyida,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
MODEL: PFC1212DE
Dimensions: 120 × 120 × 38MM;
Voltage: DC12V;
Current: 4.8A;
Air volume: 252.85CFM;
Power: 57.6W;
Number of revolutions: 7500RPM;
Fan frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Fan rotation: from the fan direction is counter-clockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearings;
Power range: plus or minus 15% of the rated power;
Insulation resistance:> 500 megohms;
Withstanding voltage: Department of leakage current 0.5mA 500V / 1 minute;
Working life: an ambient temperature of 25 degrees when 80,000 hours.
Dimensions: 120 × 120 × 38MM;
Voltage: DC12V;
Current: 4.8A;
Air volume: 252.85CFM;
Power: 57.6W;
Number of revolutions: 7500RPM;
Fan frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Fan rotation: from the fan direction is counter-clockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearings;
Power range: plus or minus 15% of the rated power;
Insulation resistance:> 500 megohms;
Withstanding voltage: Department of leakage current 0.5mA 500V / 1 minute;
Working life: an ambient temperature of 25 degrees when 80,000 hours.
Specification
Part Number | 120x120x38mm 12v Ball Bearing Fan for PFC1212DE 12038 1238 120mm 4.80A High RPM Speed Air FLow Cooling Fans |
Package | Original |
Brand Name | Original |
Latest Price | Please contact us |
