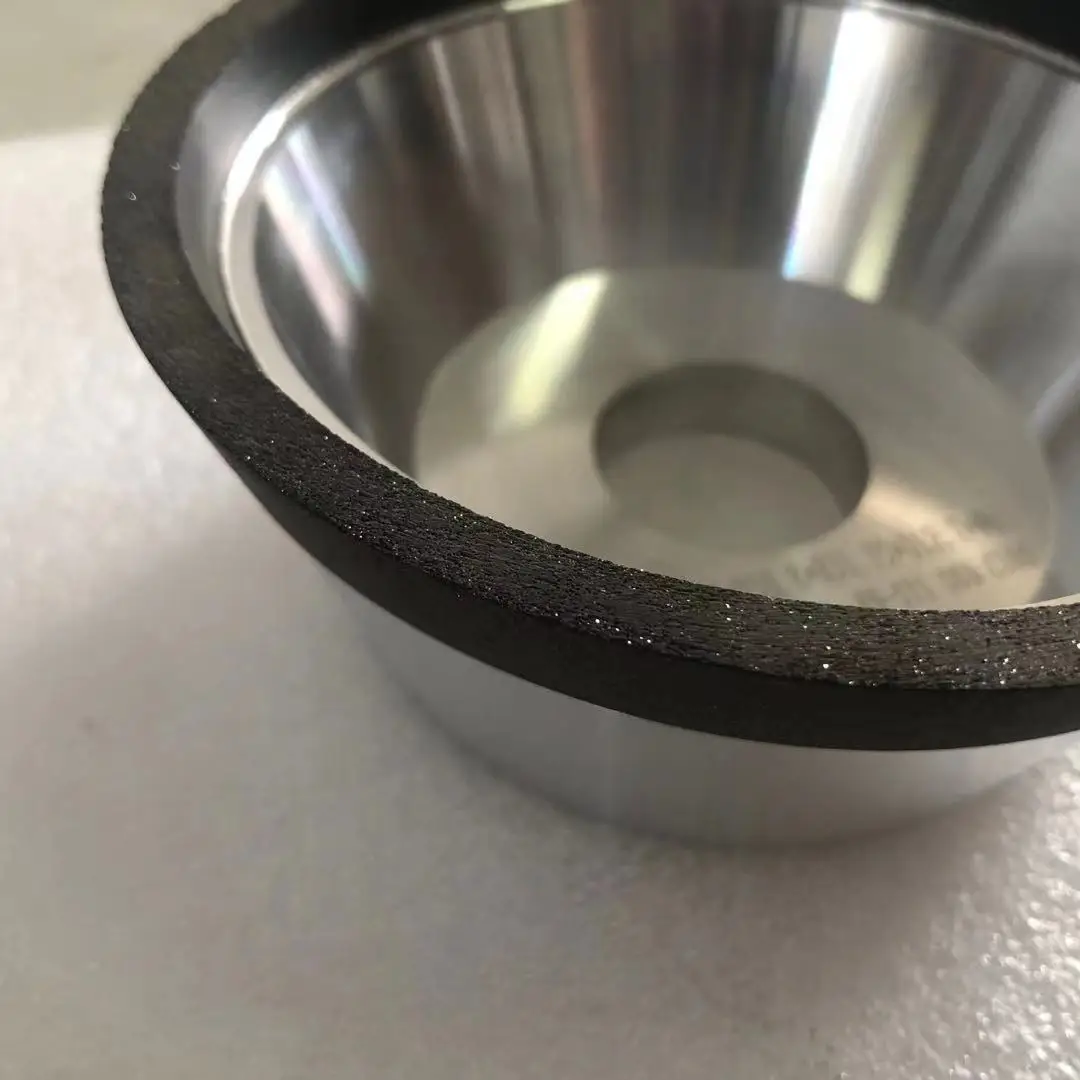

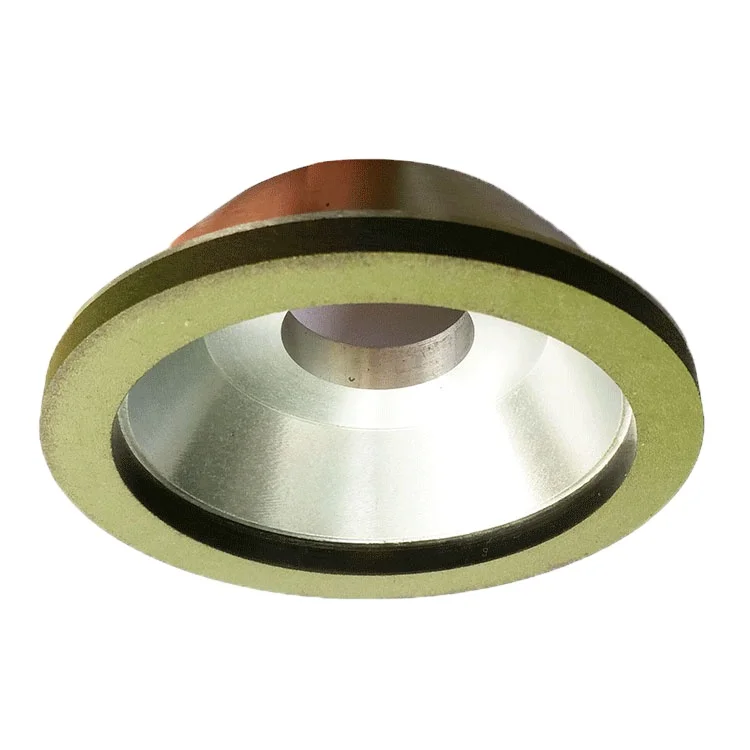

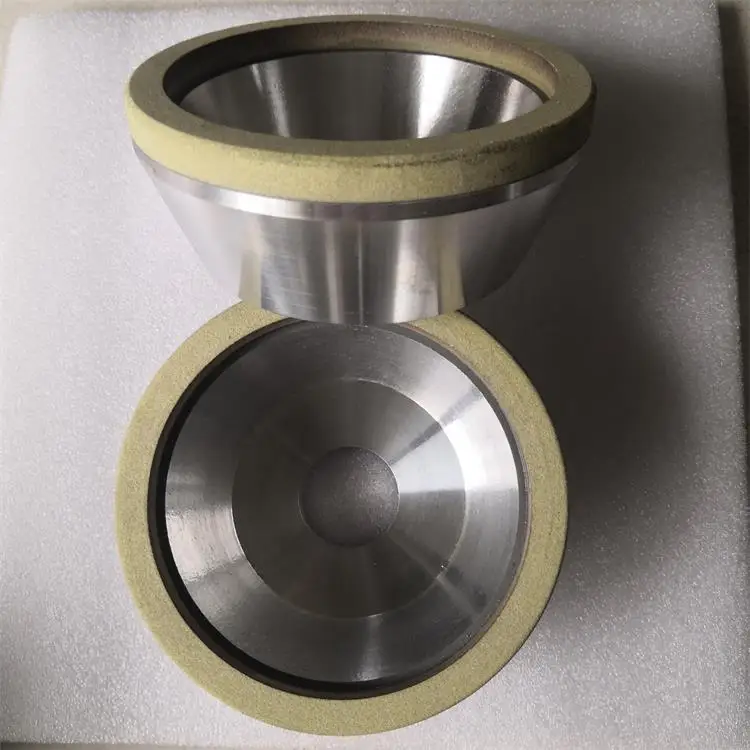

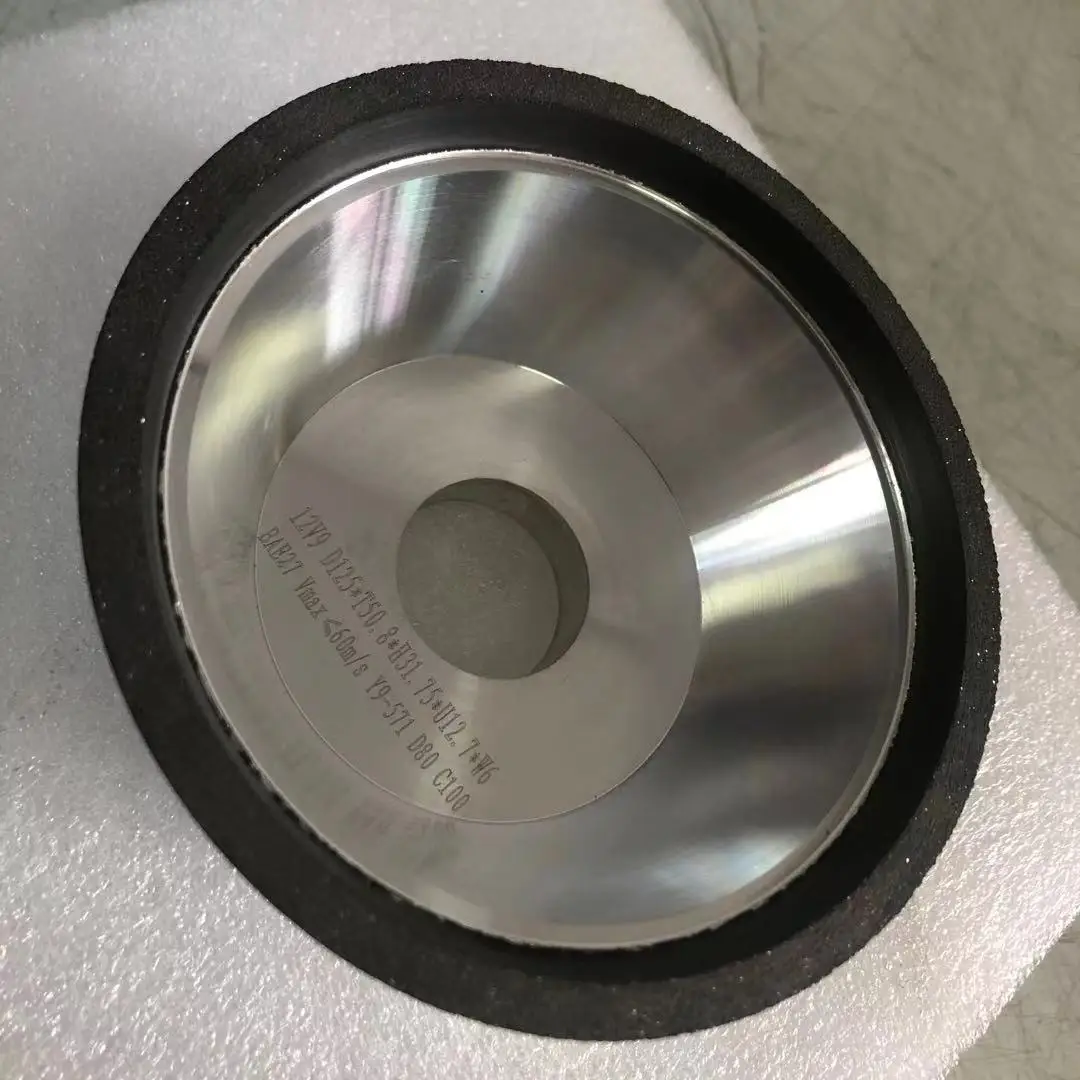

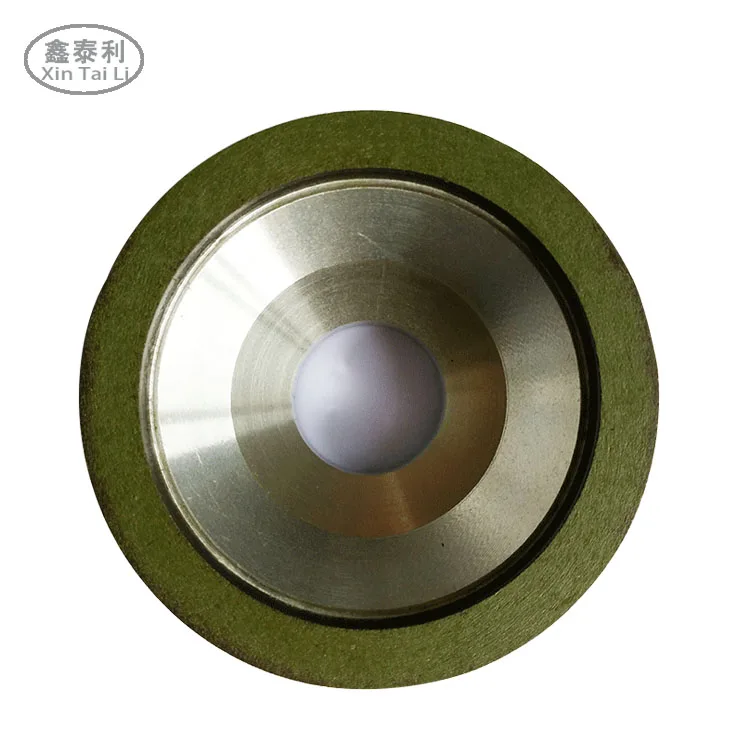

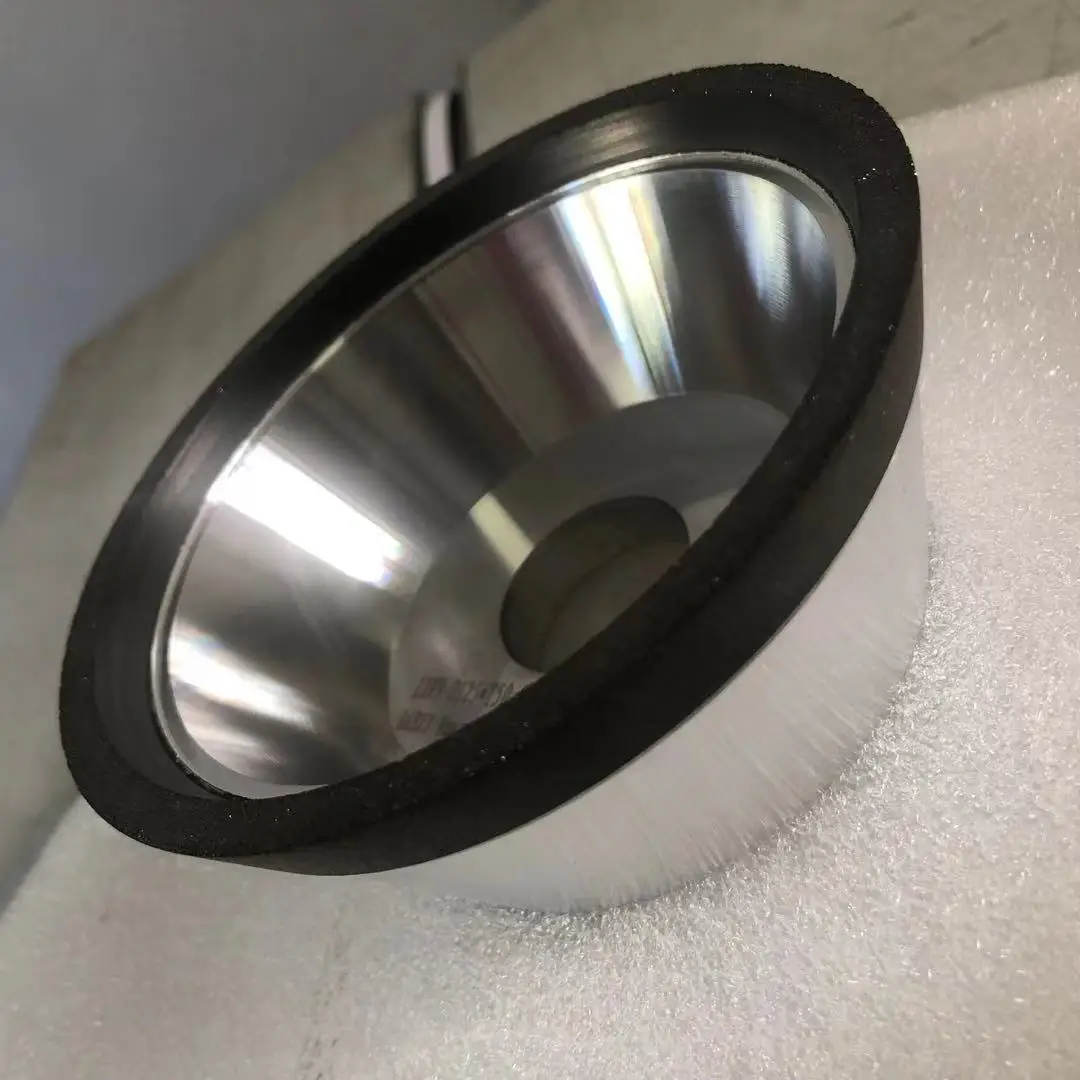

11A2 12A2 Resin Bond Diamond Grinding Wheels for Chain Saw TCT Circular Blade Sharpener

Product Overview

Description

resin bond Bowl-shape diamond grinding wheel



       metal bond type                       electroplate type                ceramics bond type

Grinding is one of the main machining methods in the present semi finishing and finishing, and the grinding wheel is an important tool in the grinding process.

According to different uses, grinding mode and the type of grinding machine, the wheel was made of various shapes and sizes, the common grinding wheel with flat shaped grinding wheel, cylindrical wheel, double bevel wheel, cup wheel, a bowl shaped grinding wheel, disc wheel and so on.

Selection of grinding wheel elements

(1) hard grinding material, choose the soft, fine grit grinding wheel. Soft grinding material, should choose a hard, coarse grit grinding wheel. By doing this ,grinding wheel loss is small, also not easy to plug.

(2) when doing the rough grinding ,in order to increase the productivity, the coarse grit, soft grinding wheel should be chosen, In order to improve the surface quality of the work piece during accurate grinding , the fine grit ,hard grinding wheel should be chosen.

(3) the large area of grinding or thin-walled work piece grinding should choose the coarse grit, soft grinding wheel. This wheel is not easy to plug, the surface of the work piece is not easy to burn, the work piece is not easy to deformation.

(4) form grinding process to select the fine grit, the small organization, and the hard grinding wheel to maintain the profile of the grinding wheel.



Diamond resin grinding wheel with high hardness, high strength, high abrasive ability, mainly used for grinding high and hard alloy, non-metallic materials, cutting hard and brittle metal, non-metallic minerals, etc.. Such as carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, etc..



 Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, not easy to plug, the specific characteristics are as follows:



1 grinding efficiency is high, while grinding wheel consumption is relatively slow;



2 self sharp, the grinding heat is small, not easy to plug, reduce the phenomenon of the work of the grinding burn;



3 the grinding wheel has a certain elasticity, which is beneficial to improve the surface roughness of the work piece, which is mainly used in the process of finishing, semi finishing, cutting and polishing;



4 diamond resin grinding wheel is a low temperature curing, production cycle is short, the equipment and supply process is relatively simple; because of the flow of resin, easy to form the complex surface of the grinding wheel.



Main Products

             1A1 parallel shape type                                  2A2 Grinding disc shape type

                          6A2 cup shape type                                                  14A1 Reinforced series

                     12A2 bowl shape type                                    4BT9 single    bevel
