Model Description
|

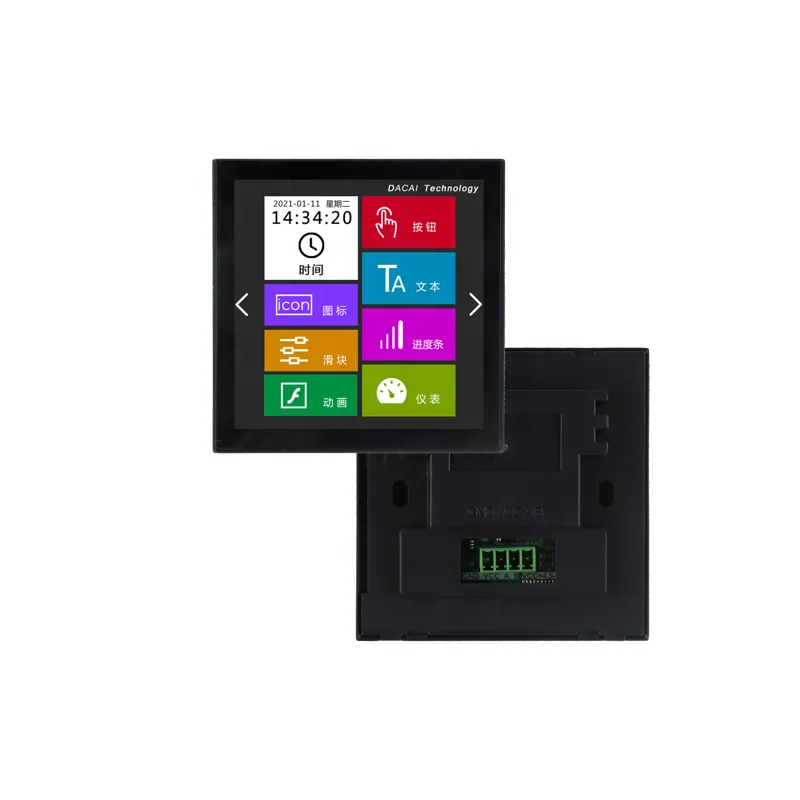

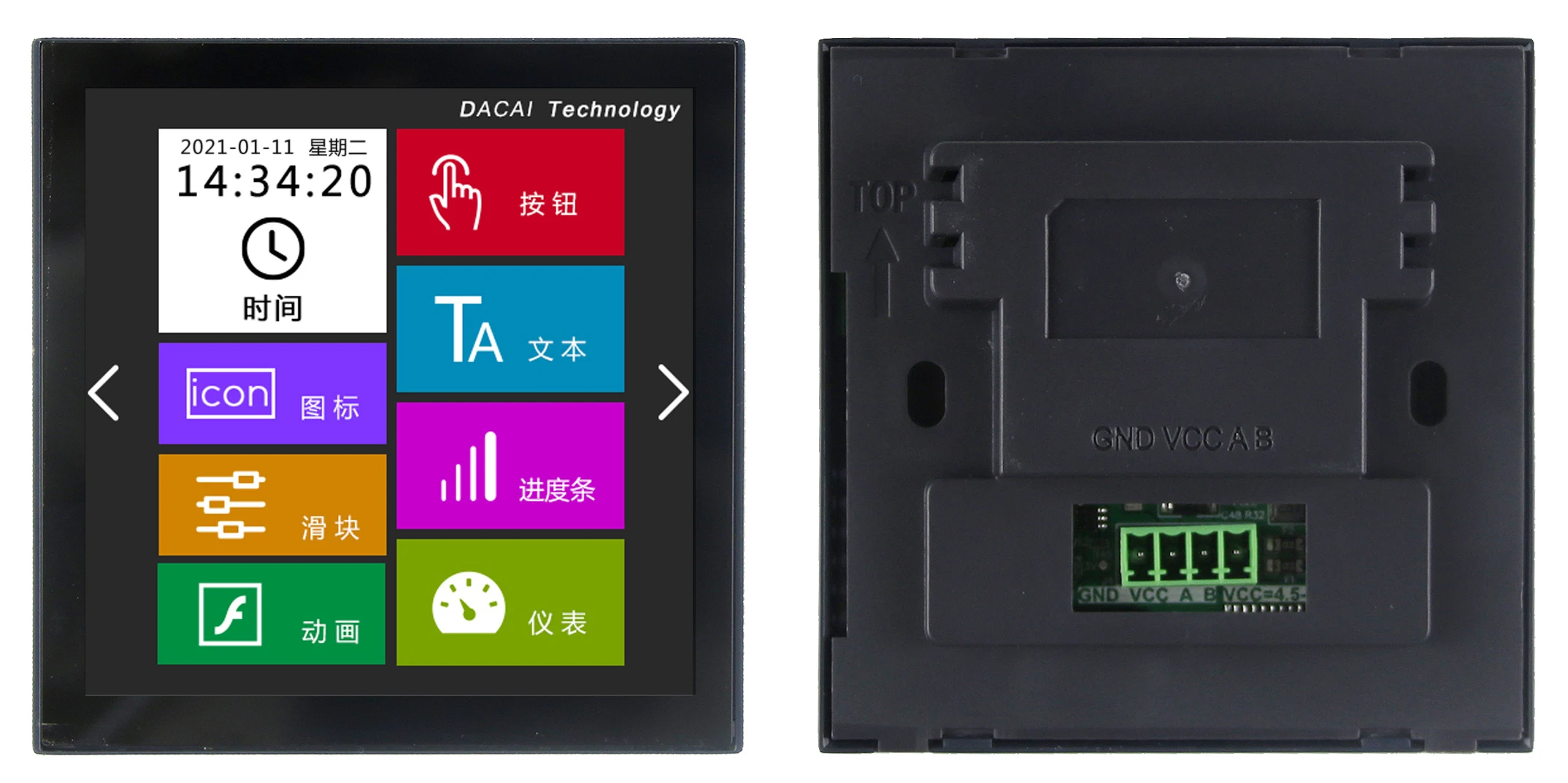

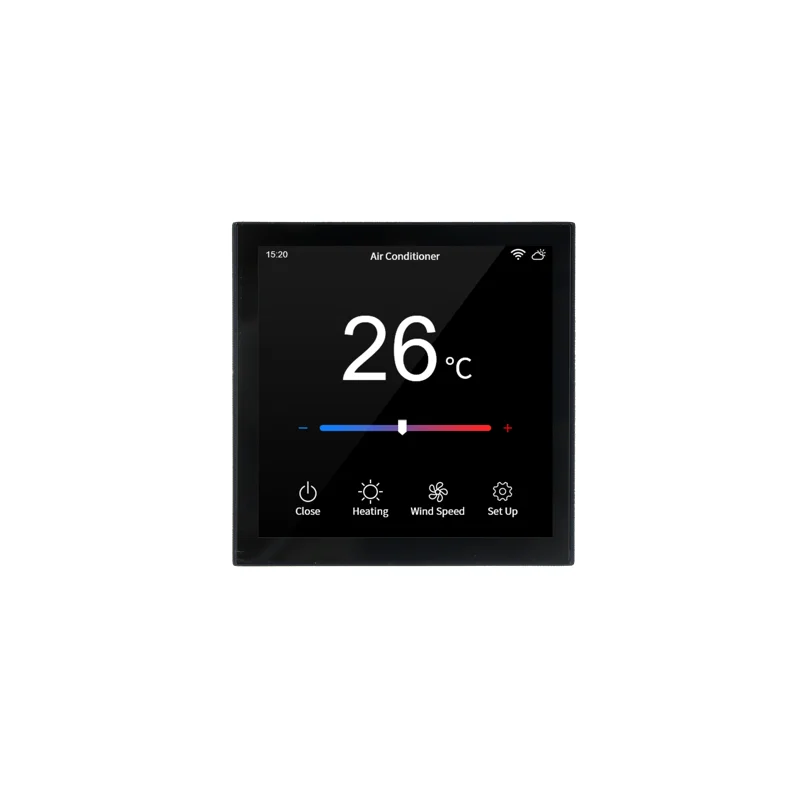

DC48480M040_1011_4C, 86 box(RS485, capacitive touch)
|
Product Series
|
Mseries,Medical grade
|
Core Processor
|
400M SOC processor
|
Operating System
|
No operating system (OS),can run once power on
|
Protocol Type
|
Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU, XGUS protocol
|
Script language
|
LUA script, The screen can run user-written logic, protocol and algorithm functions
|
Size
|
4.0 inch
|
Resolution
|
480*480
|
Installation Display
|
Support 0°/90°/180°/270°rotate display
|
Memory space
|
128Mbit
|
Font Library
|
Built-in vector font,edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE(Global language) libraries.Customized computer font display
|
Image Storage
|
Support JPEG,PNG (semi-transparent / full transparent) image,support for any size image storage. Accumulate to store about 150 full-screen images (calculated by size 70KB/frame,BMP format is not recommended).The image compression ratio is different,this value will float up and down.
|
Color
|
65K color,16-bit RGB
|
Voltage
|
4.5-30V
|
Power Consumption
|
Dormant : 0.2W
|
Darkest backlight non-speaker:0.5W
|
Brightest backlight with speaker:1.2W
|
Communicate Interface
|
RS485
|
Communicate Baudrate
|
RS485:1200~115200bps,typical baud rate:9600bps
|

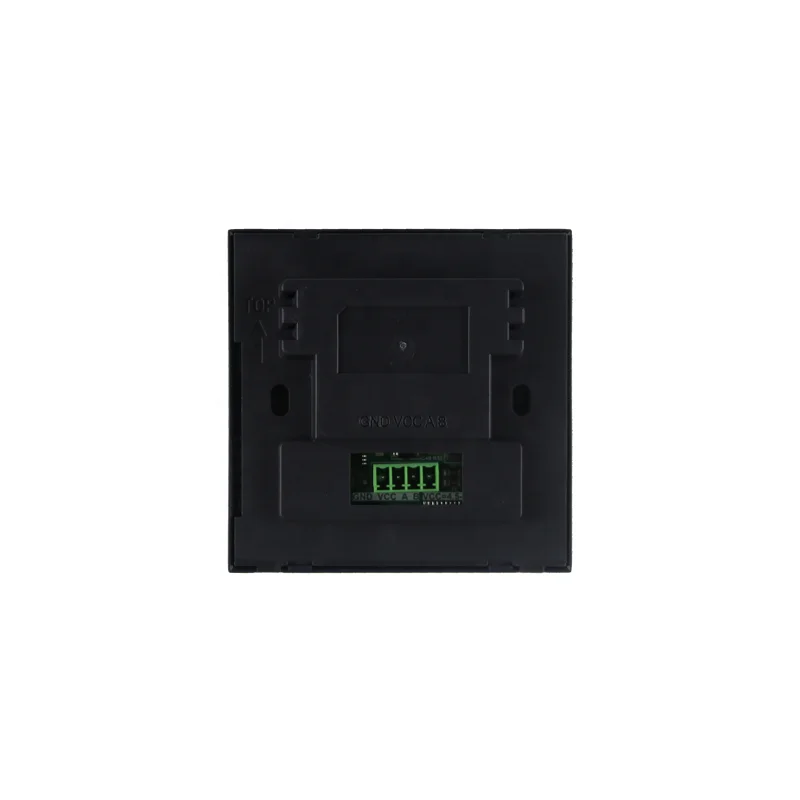

Interface Specification
|
2EDG3.81-4P
|

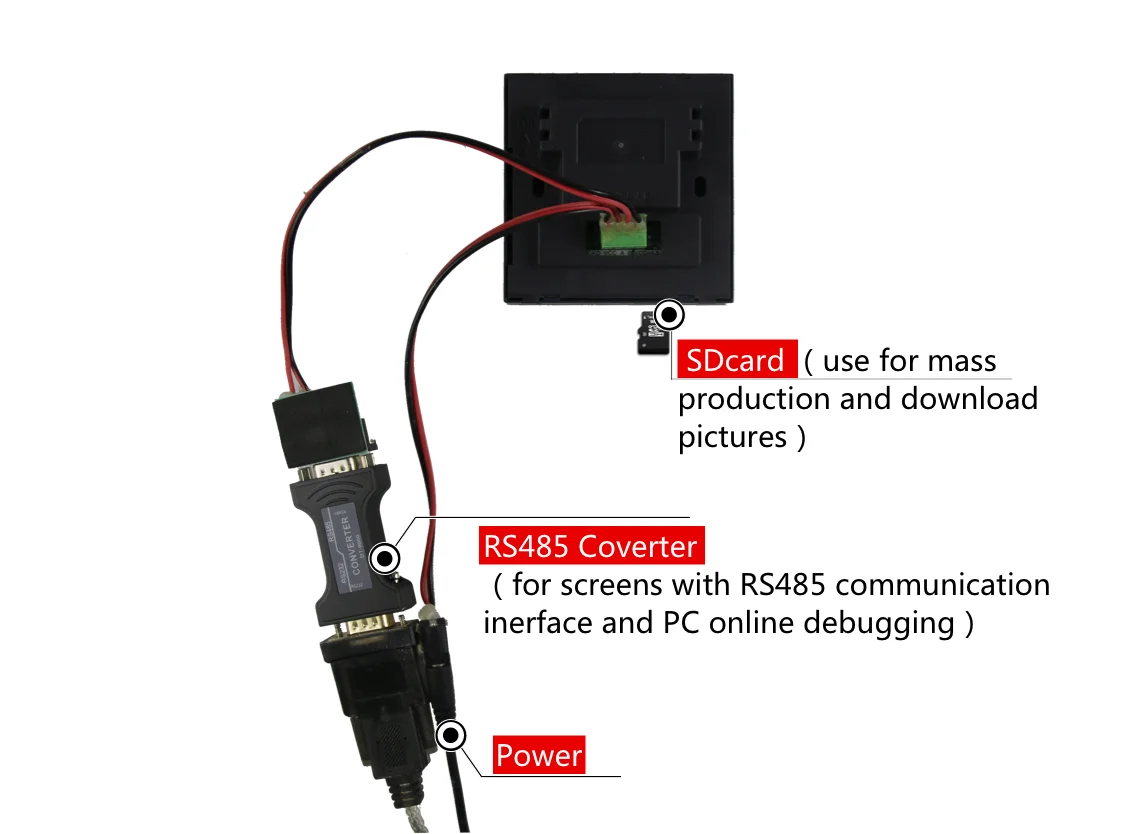

Image Local Download
|
SD card, Serial port
|
Firmware local/remote upgrade
|
Insert SD card to upgrade locally / support user motherboard remote serial port to upgrade screen firmware
|
Image remote upgrade
|
Support users to remotely use their motherboard serial port to upgrade screen related picture projects, fonts, configuration files, etc.
|

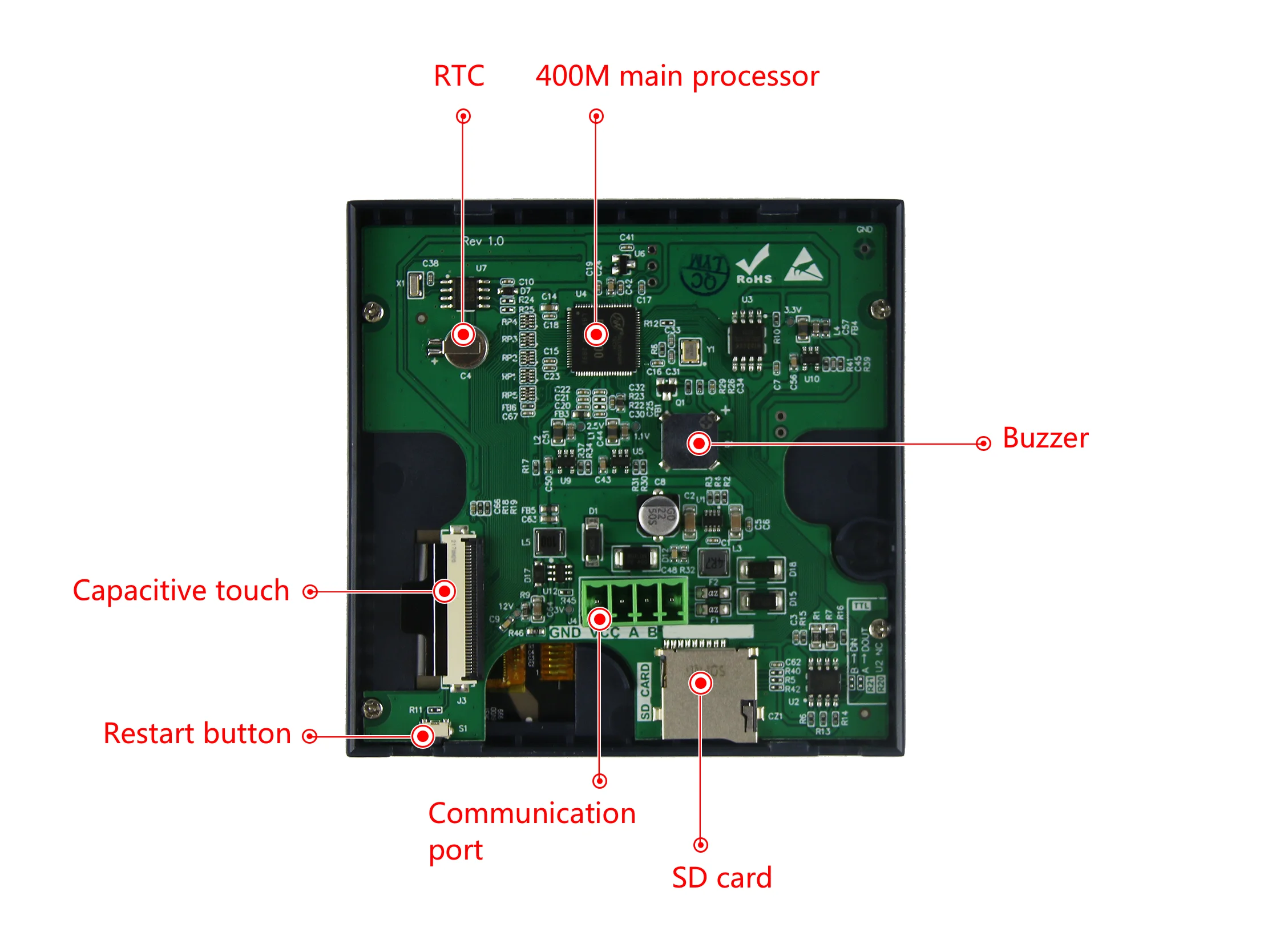

Real-time clock(RTC)
|
Support clock,countdown, timer,etc.function)
|
Active Area of Displaying(AA)
|
L*W =71.9mm*70.2mm
|

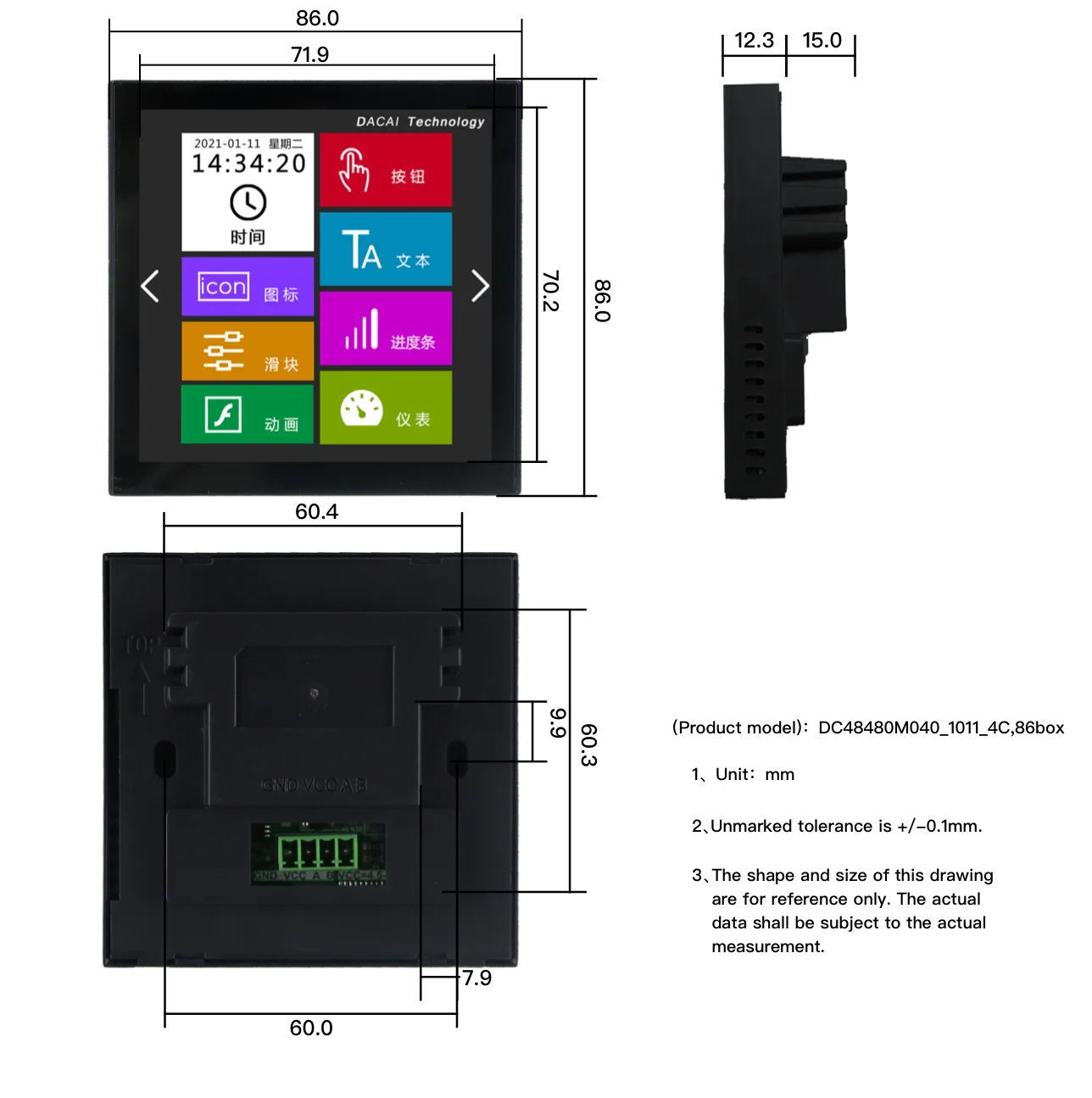

Product Dimension(L*W*H)
|
86.0mm*86.0mm*27.3mm
|
Development Software
|
VisualTFT®
|
Operating temperature
|
-20~+70℃
|
Storage Temperature
|
-30~+80℃
|
Audio Player
|
Not supported
|
Audio connector specifications
|
Not supported
|
AV input
|
Not supported
|
Video play
|
MP4 video format, sharing storage space with pictures. If a video file with a resolution of 800*600, a video bit rate of 3000Kbps, an audio bit rate of 166Kbps, and a frame rate of 25Hz, takes up 21.9MB/minute of storage
|
WIFI
|
Not support
|
Three Anti-paint Process
|
None(It is optional)
|
|
|
|
Learning Circle
|
Familiar with the development environment in 30 minutes and complete the HMI design in 3 days
|
Program Debugging
|
The development software contains simulator.Engineers do not need to buy equipment and it can debug with Keil IDE directly.
|
Start-up Time
|
Operation upon power-on, no system loading time
|
Configuration Control
|
Various configuration controls are available, including button, text, pull-down menu,progressbar,slidingblock,instrument,animation,QR code, curve,data record and circular progress bar, Sprite slide control etc.function.
|
System keyboard
|
Built-in virtual numeric and character keyboard, support Chinese and English input method, customizable keyboard
|
Data record
|
Support data record controls content export to SD card
|
Layer Technique
|
The system has multiple built-in display layers to provide a higher switching speed
|
Multiple Languages
|
More than 10 languages of any country in the world can be preset, one-click to switch the required language, no need for multiple sets of UI
|
Logical Operation processing
|
The host computer has a built-in LUA script compiler, and users can customize various complex logical relationships and protocols on the screen to meet 99.9% of product function requirements of customers.
|
Remote Upgrade
|
Support remote serial port upgrade screen firmware, project files, designated pictures, configuration files and fonts, etc.
|
Life Cycle
|
Adopt traditional brand processors without supply shortage for years
|
|
|
Display Type
|
TFT LCD
|
Backlight Tube
|
LED
|
Brightness(cd/m²)
|
300
|
Backlight Life(h)
|
>20,000
|
Contrast Ratio
|
800:1
|
Viewing(L/R/T/B)
|
80/80/80/80
|
