DDM WE67K standard industrial press brake cnc hydraulic press brake machine suppliers from china
- Category: Press Brake >>>
- Supplier: DDM (Shanghai) Industrial Machinery Co. Ltd.
Share on (1600300514144):
Product Overview
Description
Product Overview
DDM WE67K standard industrial press brake cnc hydraulic press brake machine suppliers from china
Model | WE67K -40T/1600 |
Controller system | Delem -DA66T |
Machine Backgauge | 6 axis +1 （ Y1/Y2/X1/X2 /Z/R ) |
Machine Electricity | 380v/220v / customized |
Machine Color | Blue & white / customized |
Hydraulic Oil | 46# anti-wear hydraulic oil |
Machine Feature
1.Main body manufacturing by the CNC flooring and boring machine .
2.Technical utilize parametric 3D SolidWorks analysis.
3.Adopt integrated hydraulic system, more reliable and easy for maintenance.
4.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the working piece precision.
5.The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
6.Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
8.Strict manufacturing process keep product standard reach Euro standard
2.Technical utilize parametric 3D SolidWorks analysis.
3.Adopt integrated hydraulic system, more reliable and easy for maintenance.
4.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the working piece precision.
5.The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
6.Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
8.Strict manufacturing process keep product standard reach Euro standard
Machine Details

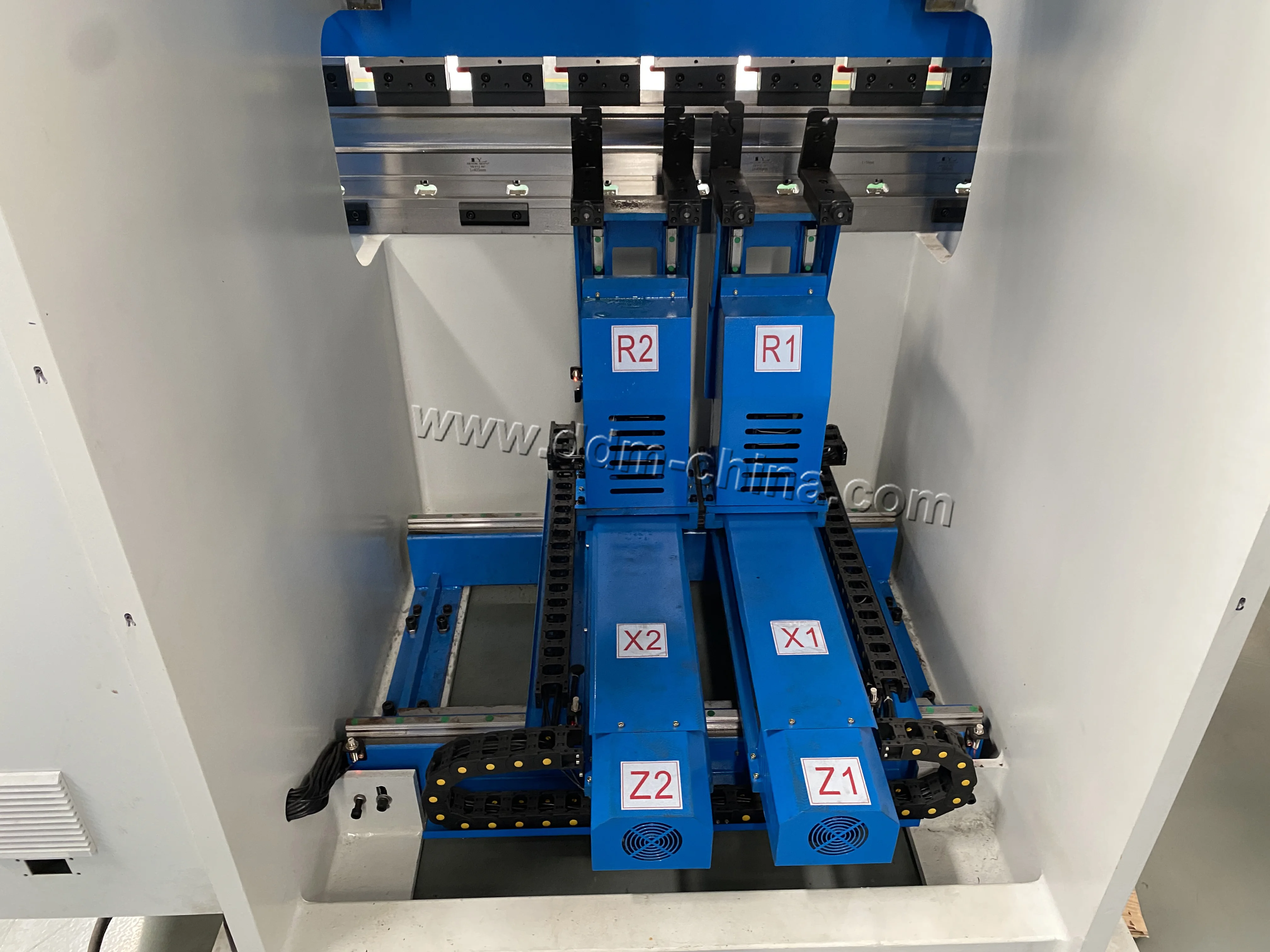

DDM PRESS BRAKE -Auto Backgauge up to 6 axis
Our press brake backguage is composed of 6 axis - X1/X2/ Z1/Z2 /R1 /RZ . It can meet your mult -type of bending angle and files .

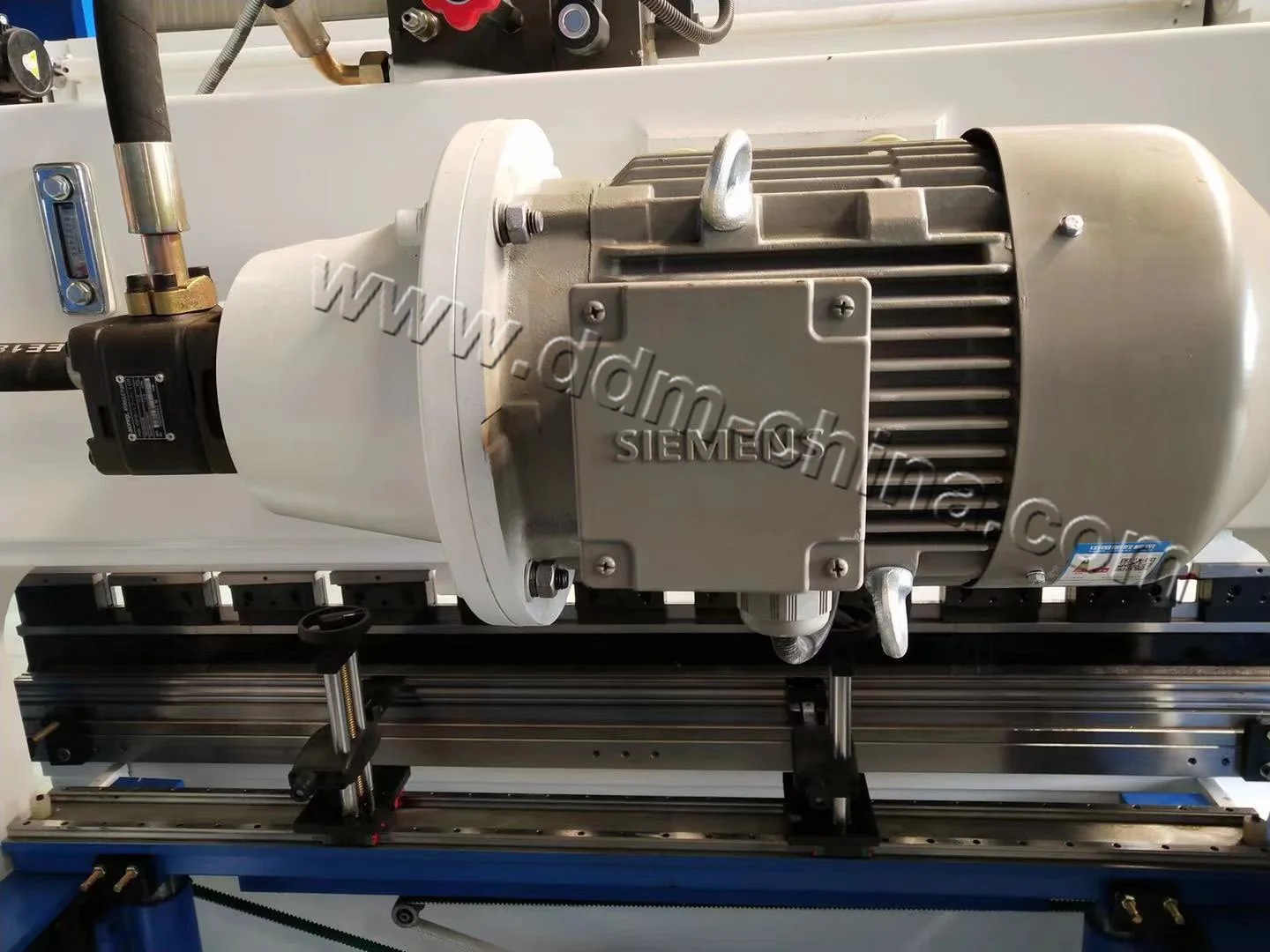

DDM PRESS BRAKE - Main Motor -Siemenz
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment

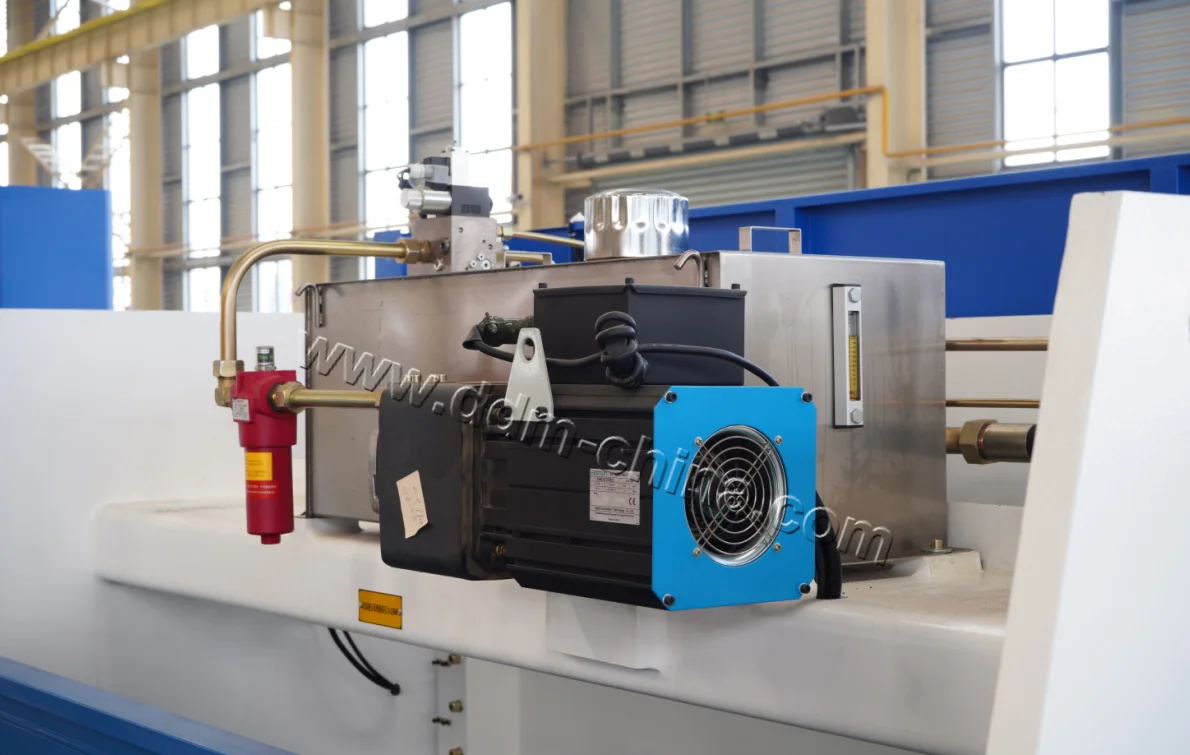

DDM PRESS BRAKE -Servo Motor
DDM press brake uses the new type servo motor instead of traditional motor . It can decrease machine noise and save power 。
DDM PRESS BRAKE- Bosch Rexroth Hydraulic Valve System
DDM PRESS BRAKE all uses BOSCH -REXROTH hydraulic unit .Cause it will enhance press brake to out put the pressure more stably .
DDM PRESS BRAKE - Hydraulic pump -Bosch Rexroth -Germany
Press brake hydraulic pump will be the main combination of the hydraulic system .We use the world wide famous brand Bosch Rexroth -Pump . The damaged rate will be decreased in a large degree .
EMB Tube connector & oil tube
Machine oil tube is going with EMB tube connector .It will prevent the oil leakage . also we use trwo ferrule tube ,it will be damaged in a long time .
Press Brake Punch & Die -DDM
To meet your mult-bending needs ,we can customize all kind of die to meet your all works of life except for standard straight punch& mult -v die
Fast Clamp
It is convenient for take on and take off the upper punch ,which will Save time and simplify your job in a large degree .
DDM PRESS BRAKE-DSP Itali laser protection
It is a good choice for machine to go with such facility . cause it can decrease the risk when your employee operate the press brake .
DDM PRESS BRAKE -Electrical Box
For cnc press brake , all of our servo drive is YASKAWA from Janpan .Meanwhile , all of our main electricity part is Schneider . These famous parts guarantee the machine using of life also it is easy for you to purchase replacement in your country .
