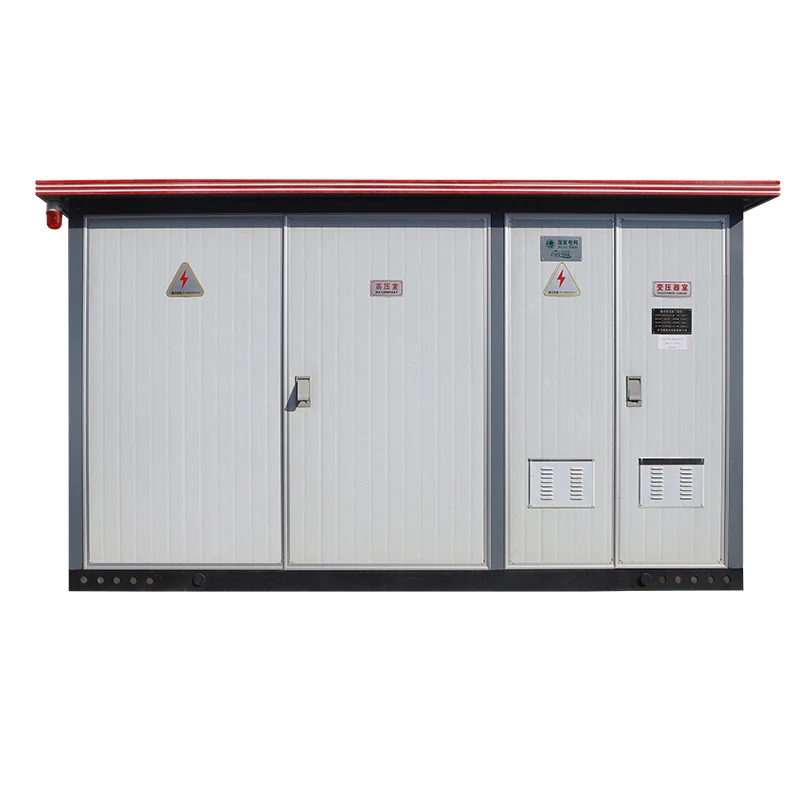

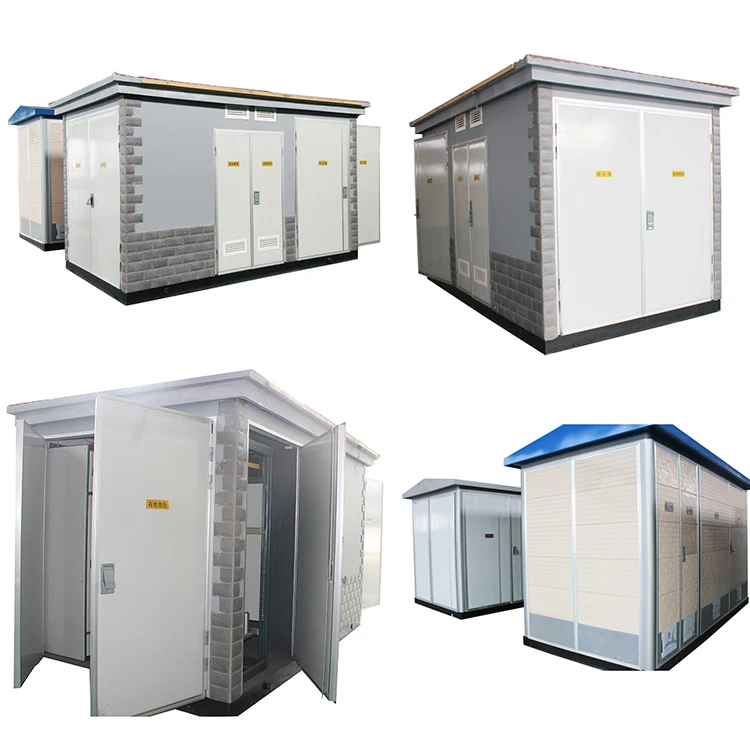

1000kva 1250kva 2000kva preinstalled box type outdoor compact power substation 12kv 40.5kv
- Category: >>>
- Supplier: Shanghai Jinyou Jinhong Intelligent Electric Co. Ltd.
Share on (1600300596704):
Product Overview
Description
Product Description
Normal operating environment conditions
The altitude shall not exceed 3000m (the capacity shall be reduced for use if the altitude exceeds 3000m). The ambient temperature shall be -30℃~+40℃, the relative humidity of the air shall not exceed 90% (+25℃), and the maximum humidity shall not exceed 95%. The wind speed shall not exceed 35m/S2, the horizontal acceleration shall not exceed 0.4m/S2, and the vertical acceleration shall not exceed 0.4m/S2
Product type | 12kv | 40.5kv | ||||
Product model | ZGYB-12/1000kVA | ZGYB-12/1250kVA | ZGYB-12/2000kVA | ZGYB-40.5/1000kVA | ZGYB-40.5/1250kVA | ZGYB-12/2000kVA |
Total power (kW) | 1000 | 1250 | 2000 | 1000 | 1250 | 2000 |
Number of DC input loops | 16 | 16 | 32 | 16 | 16 | 32 |
Maximum array voltage(V) | DC1000 | |||||
Scope of MPPT(V) | 500~850 | |||||
Rated network frequency(Hz) | 50 | |||||
Allows a range of grid frequencies(Hz) | 47.5~51.5 | |||||
High output voltage(kV) | 10.5 | 36.75 | ||||
High power inverter(kW) | 500kW*2/1000kW*1 | 630kW*2 | 500kW*4/1000kW*2 | 500kW*2/1000kW*1 | 630kW*2 | 500kW*4/1000kW*2 |
Energy saving transformer(kVA) | 1000 | 2000 | 2000 | 1000 | 2000 | 2000 |
High pressure protection | Load switch + fuse Method 1 The circuit breaker Method 2 | |||||
Intelligent measurement, control and protection communication unit | with | |||||
The site monitoring | True color touch screen (optional) | |||||
Communication interface | Standard: optical fiber ring network Optional: Ethernet, GPRS | |||||
Equipment noise | ≤60dB(1m) | |||||
Cooling way | Air cooling | |||||
Design life | ≥25years | |||||
Typical product box size(mm) | L4200*W2438*H2896 L5800*W2438*H2896 | L4200*W2438*H2896
| L6000*W2438*H2896 L6400*W2438*H2896 | L4200*W2438*H2896 L5800*W2438*H2896 | L4200*W2438*H2896 | L6000*W2438*H2896 L6400*W2438*H2896 |
