Product Overview
Description
Product Description

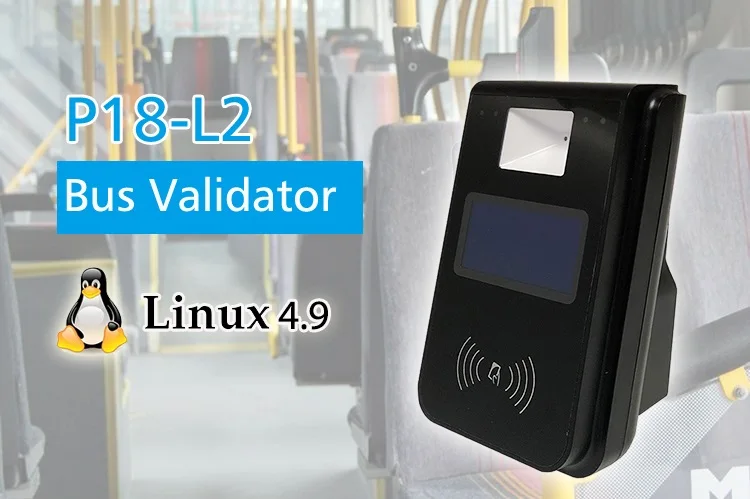

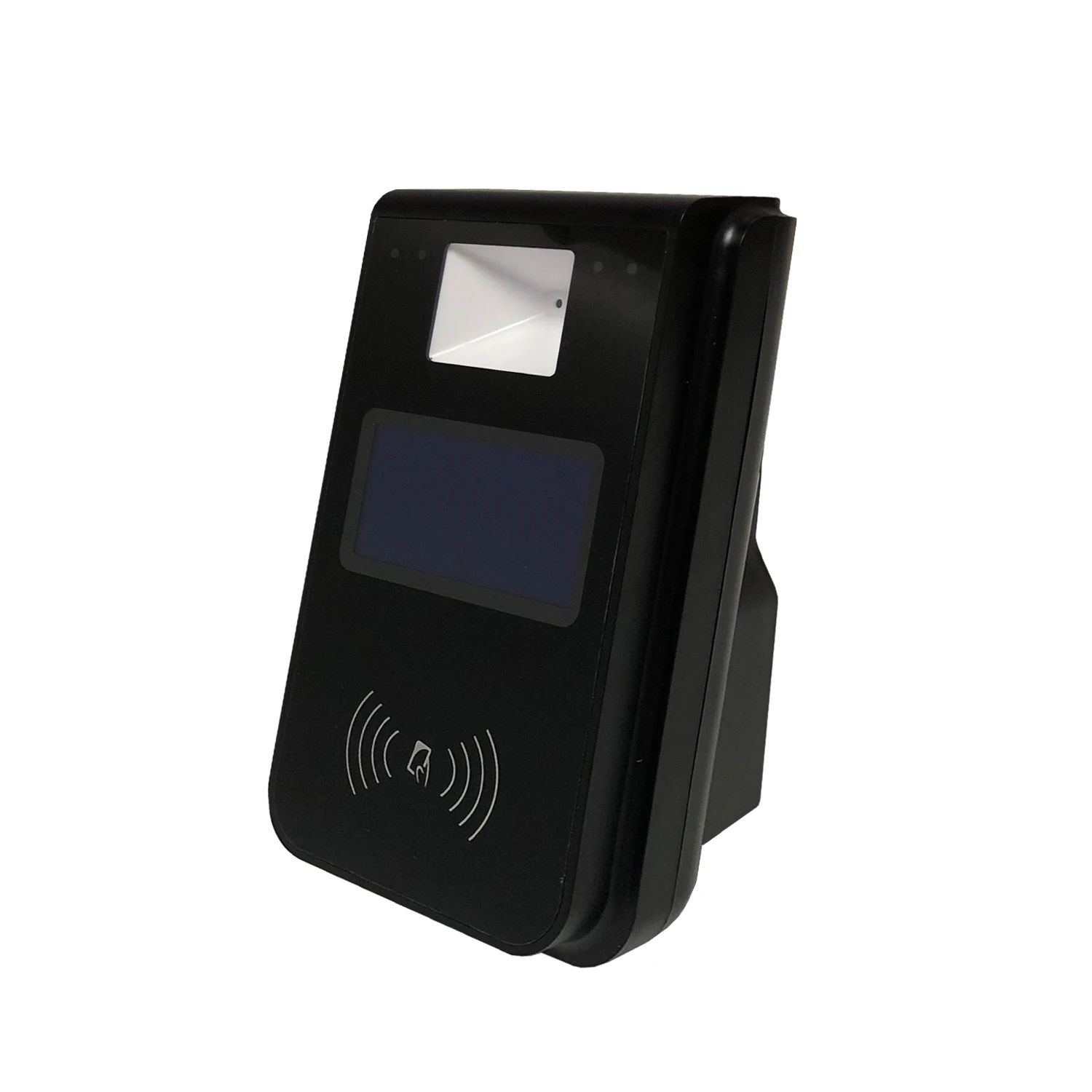

1.The P18-L2C Bus Validator supports all smart cards compliant to ISO14443 Type A & B, built-in the embedded powerful 32bit ARM Cortex-A7 528MHz processor. There are 4 SAM sockets for holding Purchase SAM to ensure the security and integrity of the transactions.
2.With the integrated smart card readers, graphical LCD, audio and LED indicators, P18-L2 Bus Validator is perfectly suitable for various types of automatic fare collection systems, e.g. for buses, trams and other transportation means. With GPS features, the P18 enables you to locate the vehicle and set fare flexibly with reference to distance.

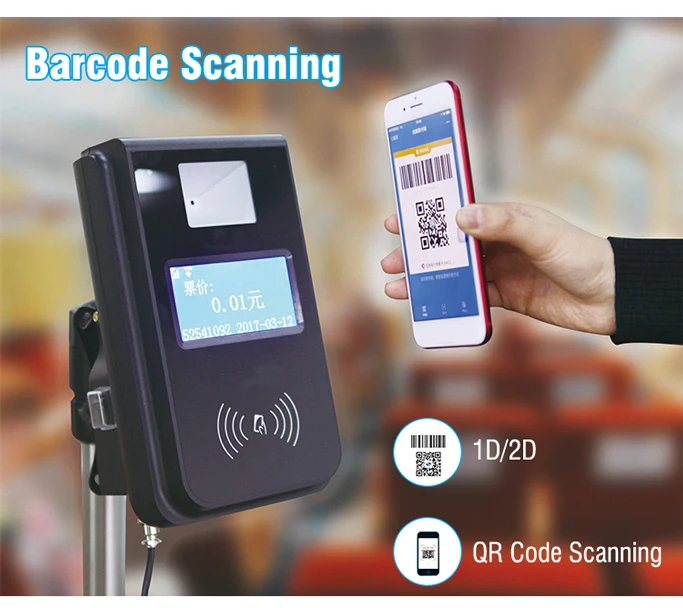

3.With the barcode scanner built-in, the P18-L2 can support multiple cashless payment methods.
2.With the integrated smart card readers, graphical LCD, audio and LED indicators, P18-L2 Bus Validator is perfectly suitable for various types of automatic fare collection systems, e.g. for buses, trams and other transportation means. With GPS features, the P18 enables you to locate the vehicle and set fare flexibly with reference to distance.
3.With the barcode scanner built-in, the P18-L2 can support multiple cashless payment methods.
OS | Linux 4.9 | |
Processor | 32-bit ARM Cortex-A7 528GHz | |
Memory | ||
DDR (RAM) | 512 MB | |
EMMC (Flash) | 8 GB | |
SPI Flash | 64 MB | |
FRAM | 8 KB | |
Power | ||
Supply Voltage | 9 – 48 V DC | |
Supply Current | Max. 2A | |
Over Voltage Protection | Supported | |
Over Current Protection | Supported | |
Connectivity | ||
RS232 | 3 lines R*D, T*D and GND without flow control | |
RS485 | 3 lines A, B and GND | |
Ethernet | Built-in 10/100-base-T with RJ45 connector | |
USB | USB 2.0 Host Full Speed | |
GSM/GPRS/EDGE | 900 MHz/1800 MHz | |
Dual Band UMTS/HSDPA/HSPA+ | B1/B8 | |
Dual Band TD-SCDMA | B34/B39 | |
Four-Band FDD-LTE | B1/B3/B7/B8 | |
Four-Band TDD-LTE | B38/B39/B40/B41 | |
WiFi | IEEE 802.11 b/g/n | |
GPS | Supported | |
Barcode Scanner | ||
1D Barcode Scanning | Supported | |
2D Barcode Scanning | Supported | |
QR Code Scanning | Supported | |
Contactless Smart Card Interface | ||
Standard | ISO-14443 A & B part 1-4, ISO-18092 | |
Protocol | Mifare® Classic Protocols, T=CL, FeliCa | |
Smart Card Read /Write Speed | Up to 424 kbps | |
Operating Distance | Up to 50 mm | |
Operating Frequency | 13.56 MHz | |
SAM Card Interface | ||
Number of Slots | 4 ID -000 slots | |
Card connect slot | Contact | |
Standard | ISO/IEC 7816 Class A, B (5V, 3V) | |
Protocol | T=0, T=1 | |
Smart Card Read /Write Speed | 9,600-115,200 bps | |
Firmware Upgradeable through | RS232 | |
Built-in Peripherals | ||
LCD Display | 160×80 dot-matrix LCD display with backlight, 4.3 inch | |
Speaker | Supported | |
Buzzer | Supported | |
LED Status Indicators | 4LEDs for indicating status (from left most: blue, yellow, green, red) | |
Other Features | Real Time Clock | |
Working environment | Temperature: -20℃～60℃ | |
Humidity: 5℅～93℅(Non-condensing) | ||
Storage environment | Temperature:－30℃～80℃ | |
Humidity: 5℅～95℅(non-condensing) | ||
Physical Specifications | ||
Dimensions | 227mm×140mm×99mm | |
Case Color | Black | |
Weight | 880g | |
Certifications/Compliance | ISO-7816, ISO-14443, CE, FCC, RoHS, Contactless, IK08/EN50155, IP54 | |
