SAV Model Refrigeration Parts Copper Brass Water Control Bypass Valve for Compressor welded
- Category: >>>
- Supplier: Shanghai Minran Refrigerating Engineering Equipment Co. Ltd.
Share on (1600301051561):
Product Overview
Description
Product Description

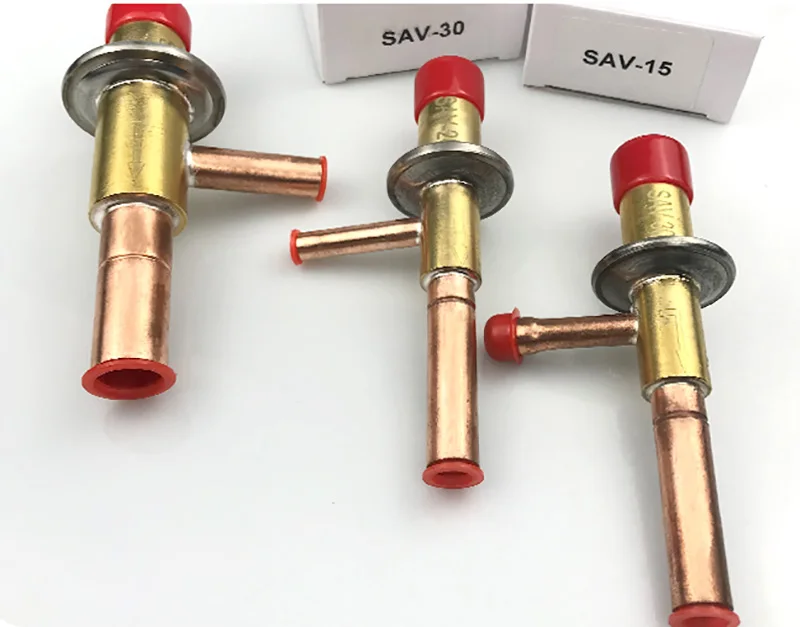

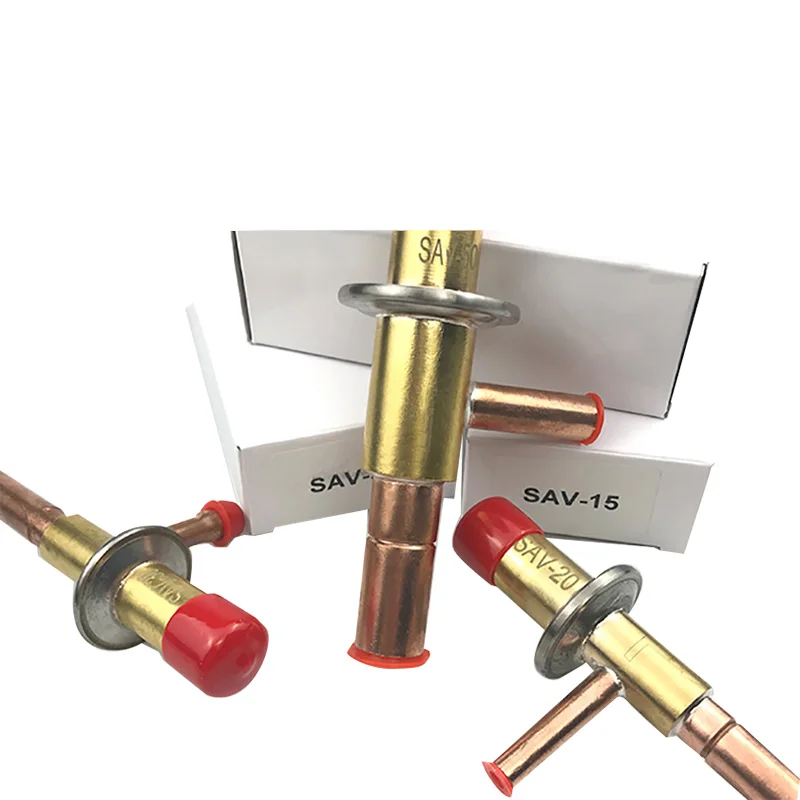

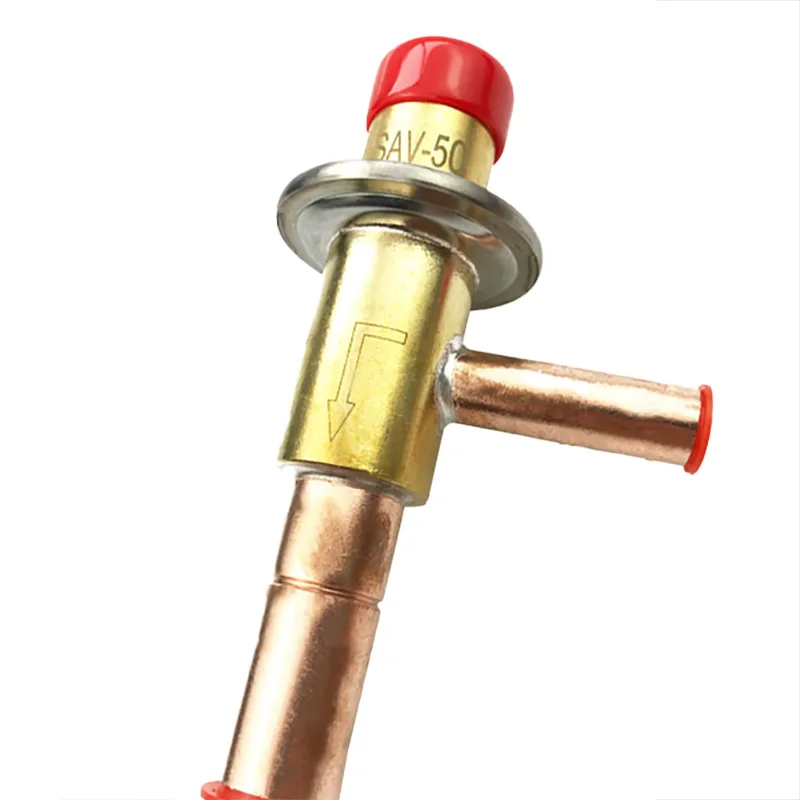

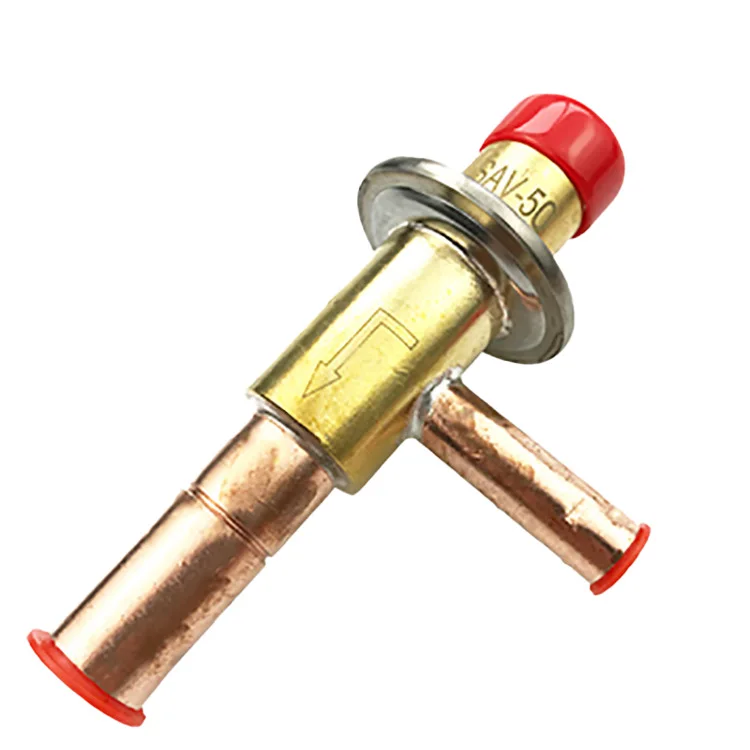

Factory direct sale SAV Model Refrigeration Parts Copper Brass Water Control Bypass Valve for Compressor welded
A valve installed on the bypass pipe of the inlet valve section to fill water and balance the water pressure before and after the in let valve.
For example, pressure reducing valve, control valve and steam trap are usually equipped with bypass pipe.The valve installed on the bypass pipe is called by-pass valve.The term bypass valve refers to the valve installed in the bypass line, but does not specifically refer to the valve type and construction.By - pass valve is also known as self - operated by - pass differential pressure valve.
For example, pressure reducing valve, control valve and steam trap are usually equipped with bypass pipe.The valve installed on the bypass pipe is called by-pass valve.The term bypass valve refers to the valve installed in the bypass line, but does not specifically refer to the valve type and construction.By - pass valve is also known as self - operated by - pass differential pressure valve.
Product Details

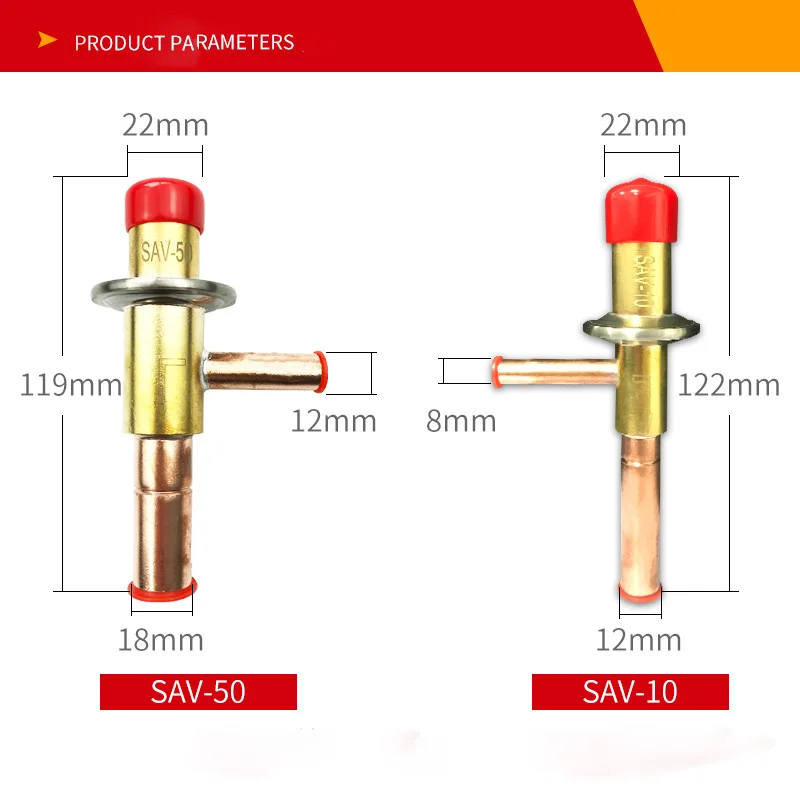

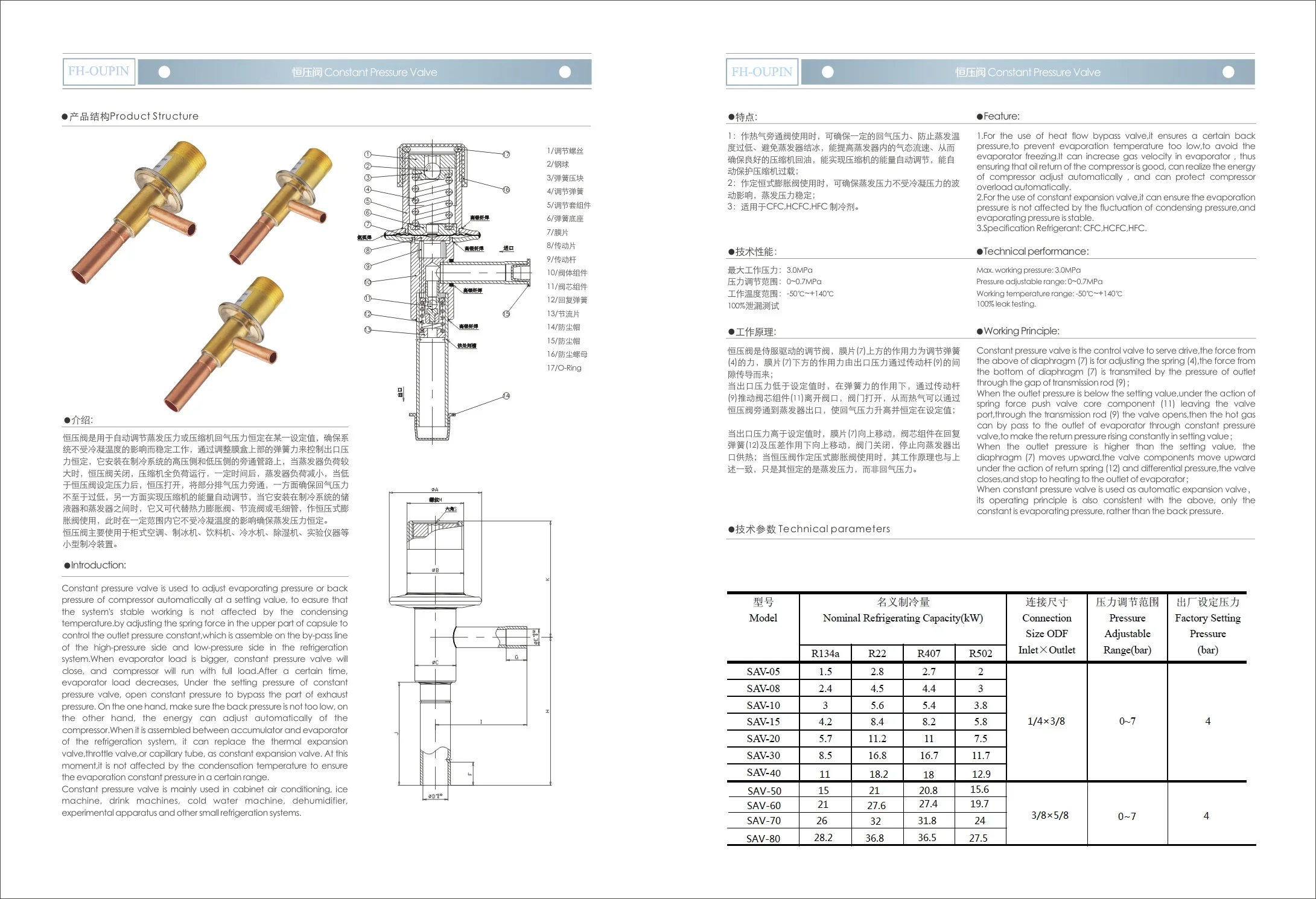

Product Parameters
Model | Interface Size(mm) | Fluid cooling capacity(kw) | Pressure Range | Pressure | ||||||
R134a | R22 | R407 | R502 | |||||||
SAV-05 | 8*10 | 1.5 | 2.8 | 2.7 | 2 | 0~7 | 4 | |||
SAV-10 | 8*10 | 3 | 5.6 | 5.4 | 3.8 | 0~7 | 4 | |||
SAV-15 | 8*10 | 4.2 | 8.4 | 8.2 | 5.8 | 0~7 | 4 | |||
SAV-20 | 8*10 | 5.7 | 11.2 | 11 | 7.5 | 0~7 | 4 | |||
SAV-30 | 8*10 | 8.5 | 16.8 | 16.7 | 11.7 | 0~7 | 4 | |||
SAV-50 | 10*16 | 21 | 27.6 | 27.4 | 19.7 | 0~7 | 4 | |||
Related Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
