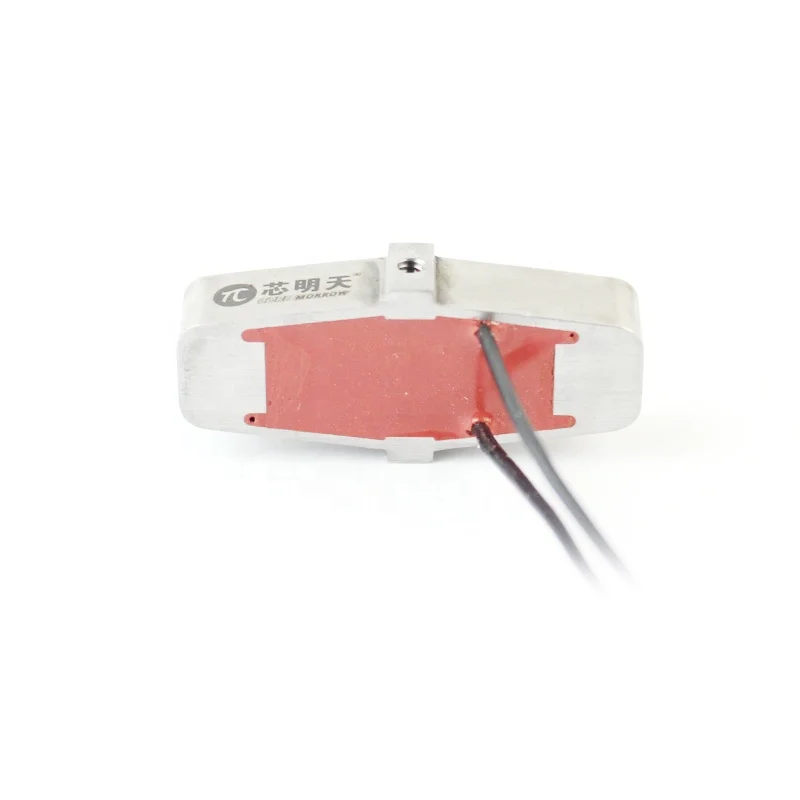

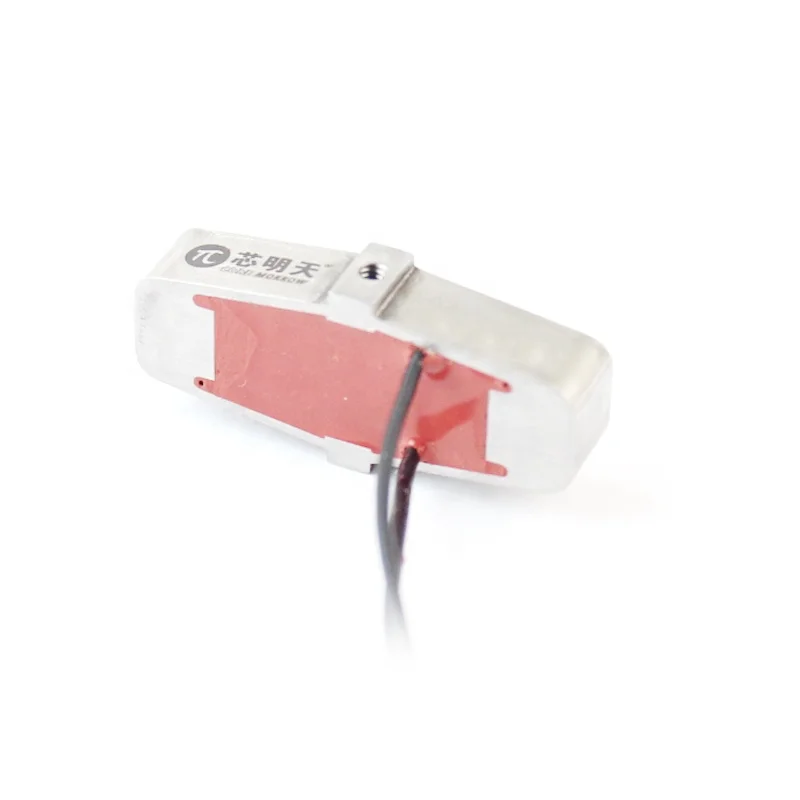

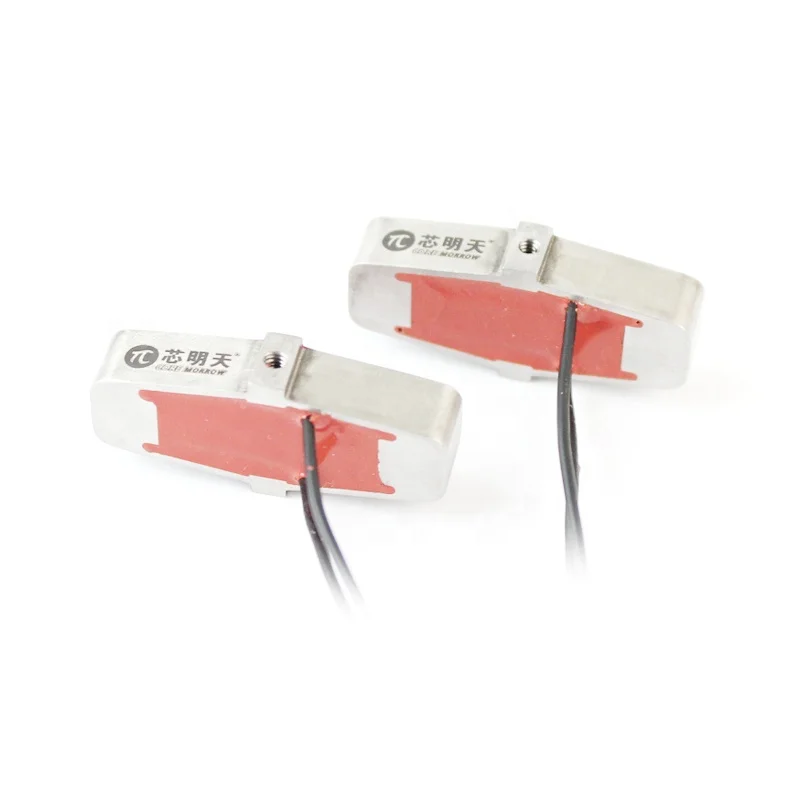

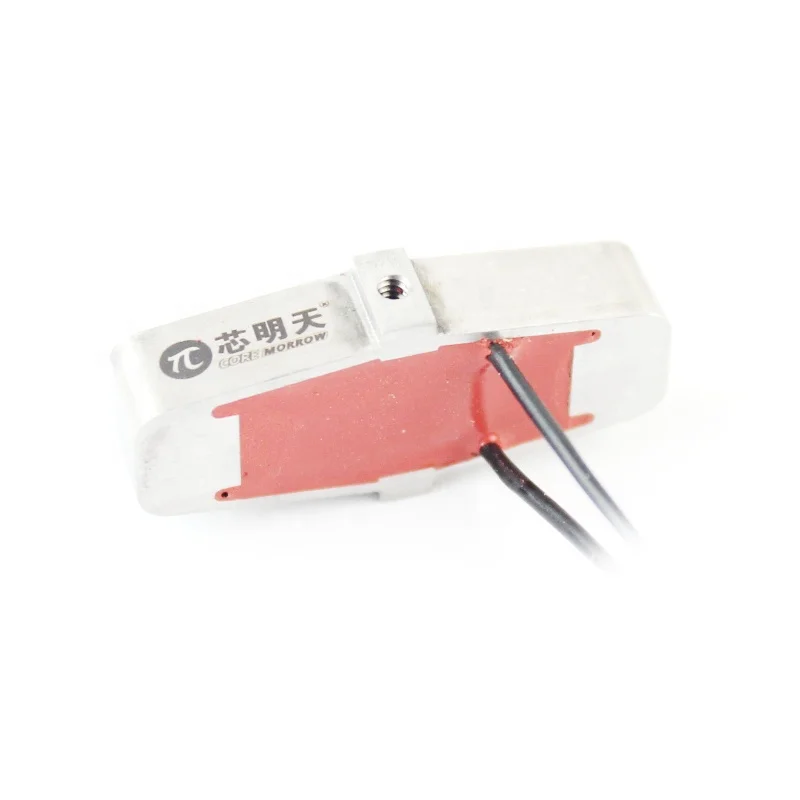

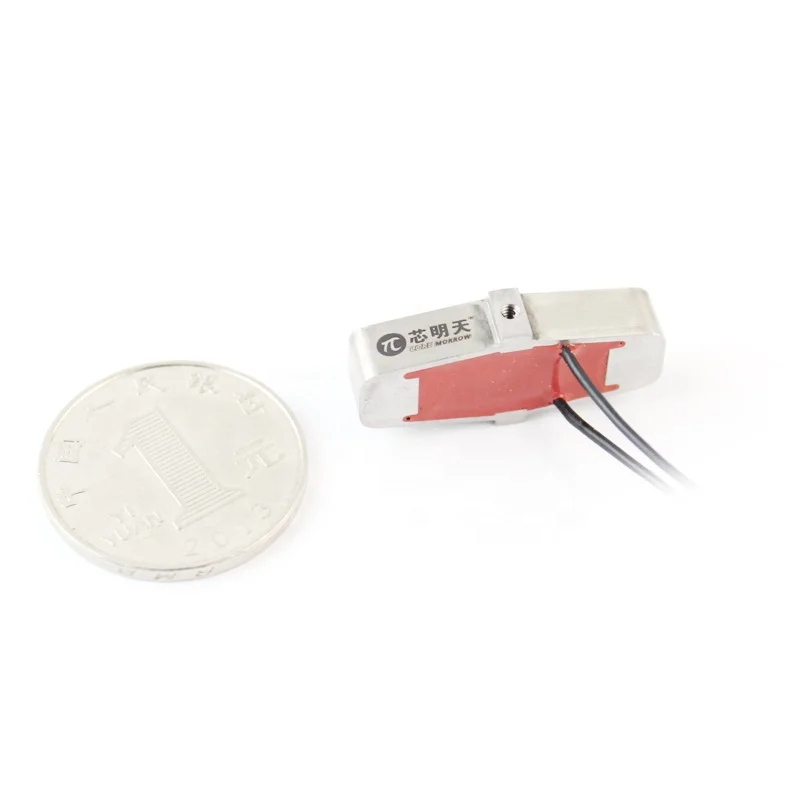

40A5 усиленный линейный движение пьезонанометр позиционер сценический пьезоусилитель усилители пьезопривод
- Category: >>>
- Supplier: Harbin Core Tomorrow Science And Technology Co. Ltd.
Share on (1600301066513):
Product Overview
Description

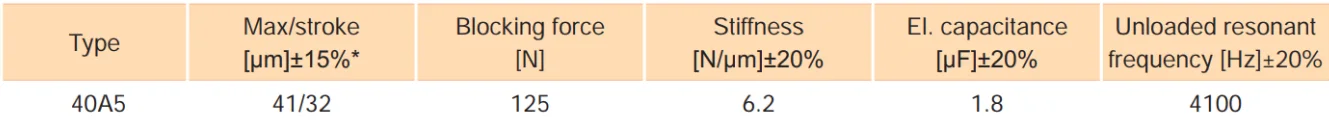

Note: Unless otherwise specified, the above parameters are measured at room temperature about 25° C.
[1] Nominal Stroke at 0~150V, Max. stroke at -20~150V. Recommended voltage 0~120V for long-term and high-reliable operation. [2] Custom ultralow temperature and ultrahigh vacuum versions are available. [3] Custom cable length and connector is available. Note: The parameters mentioned above are related to the test environment and test equipment

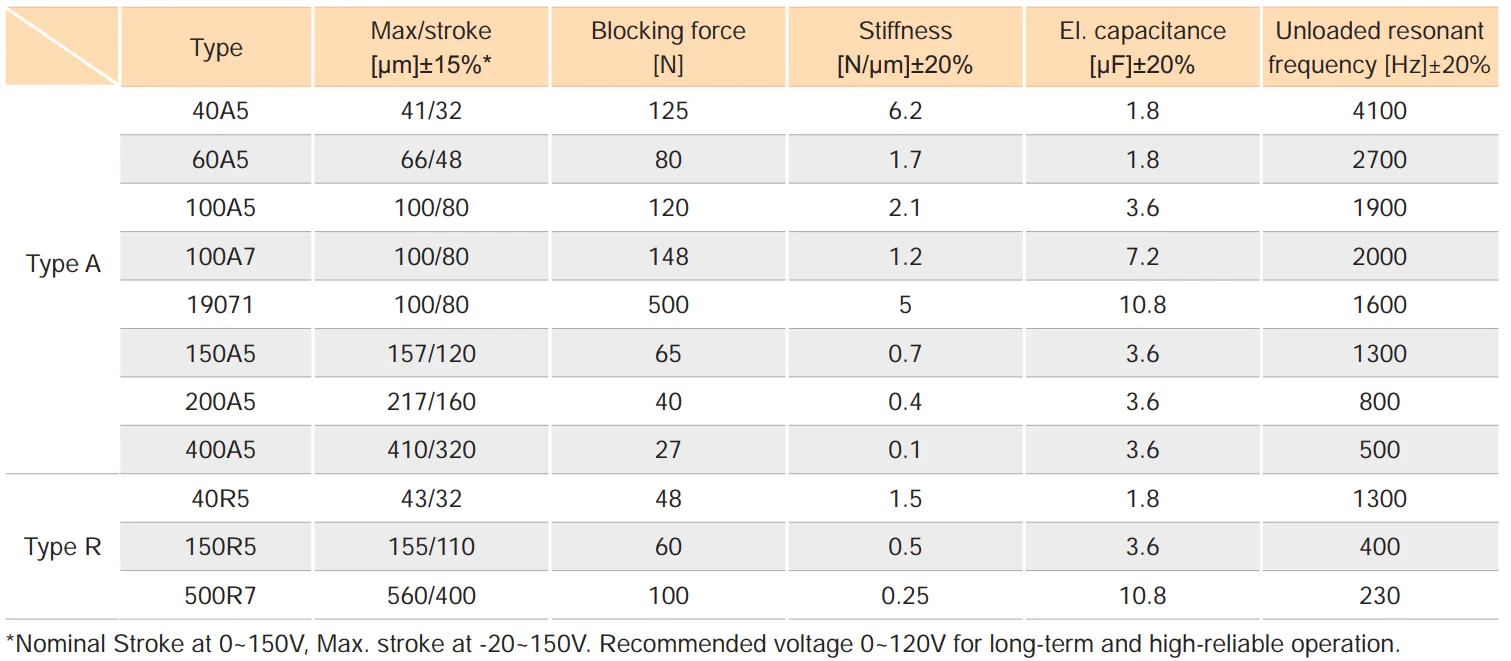

Other Models Parameters References
Introduction

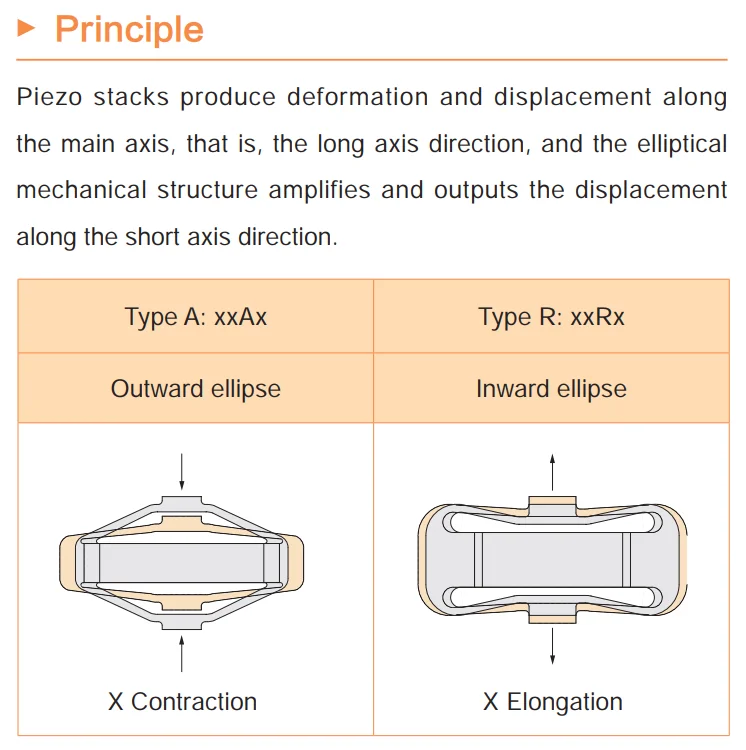

The amplified piezo actuator is an actuator that amplifies and outputs the displacement generated by low-voltage piezo stacks preloaded by a mechanical amplifying structure. The amplified structure is an mechanical shell, and its material is generally steel. In addition to providing optimized pre-tightening force for piezo stacks, it also protects piezo stacks from tensile forces that can cause irreversible or even fatal damage to piezo stacks.

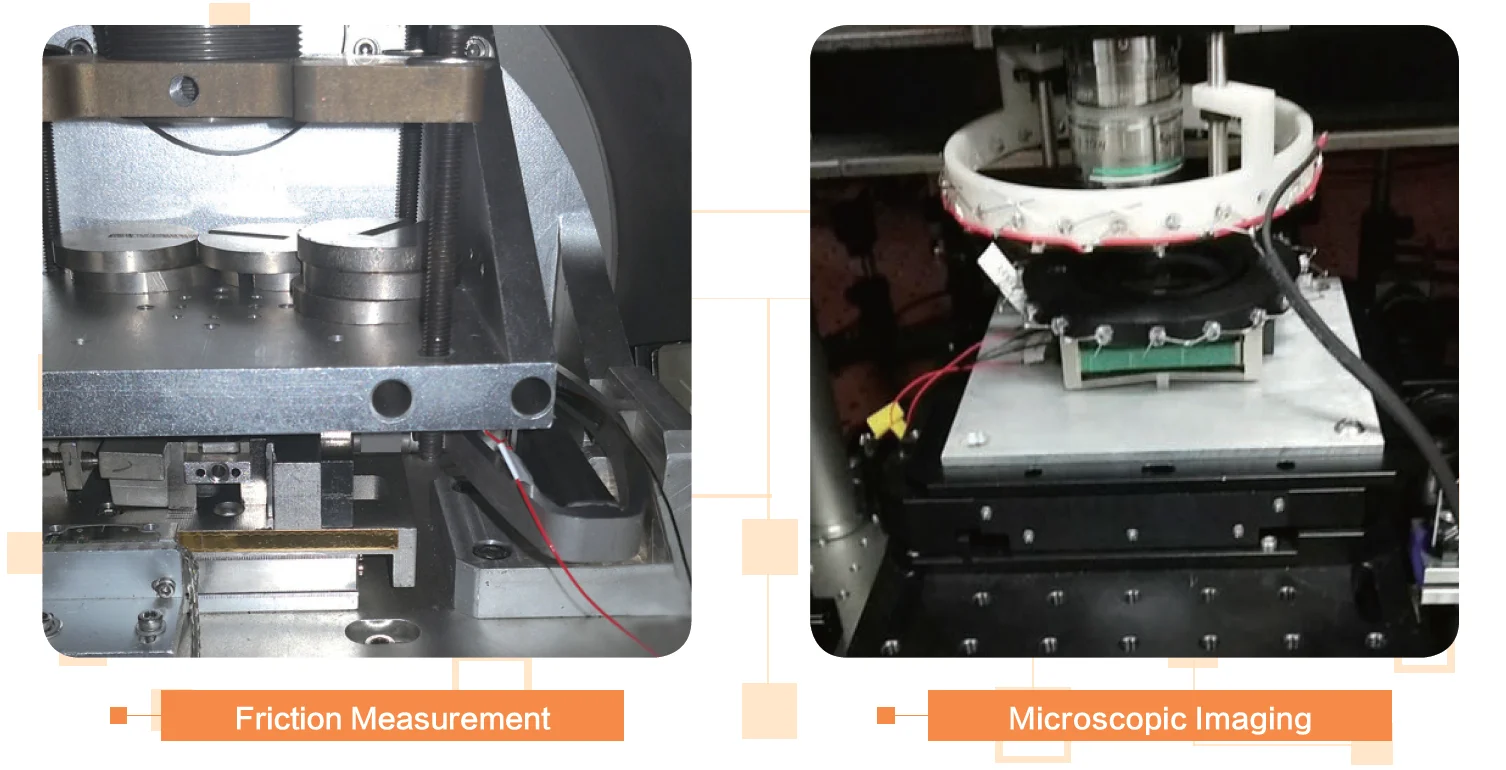

Application
• Probe scanning
• Optical mirrors positioning
• Fiber stretching
• Diamond turning
• Micro-scanning
• laser cavity tuning
• Flow measurement technology
• Inkjet technology
Characteristics
• X Elongation
• Displacement to 155μm
• Fast response
• High resonant frequency
• Various models are available
|
|
|
|
|
|
Q1.What's the payment way?
A1. T/T, western union etc.
Q2. Do you provide customized services ?
A2. Yes, we can provide customized service according to customer requirements, including parameter, size, UHV version and non-magnetic version .
Q3. What's your company MOQ?
A3. 1pcs is available.
Q4. Do you support OEM service?
A4. Yes,surely support (Print logo on the products)
Q5. Can you produce according to the samples?
A5. Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery
Q7. What is your shipping way?
A7. We support DHL, UPS, FedEx.
A1. T/T, western union etc.
Q2. Do you provide customized services ?
A2. Yes, we can provide customized service according to customer requirements, including parameter, size, UHV version and non-magnetic version .
Q3. What's your company MOQ?
A3. 1pcs is available.
Q4. Do you support OEM service?
A4. Yes,surely support (Print logo on the products)
Q5. Can you produce according to the samples?
A5. Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery
Q7. What is your shipping way?
A7. We support DHL, UPS, FedEx.
