Smart lettuce microgreens fodder farming vertical hydroponic growing 40HQ container

Share on (1600301073968):


Price:RUB 918,122.40 - RUB 2,142,285.60

Quantity:


Product Overview

Description

Strong adaptability, not affected by temperature and humidity, altitude and harsh climate; Modular design, high strength box, easy to lift, transport; Modular system integration; Modular product components; Adopt automatic water circulation system, save manpower, realize intelligent production; High strength, simple appearance and easy maintenance; With patented LED light source formula, ensure quality, significant energy saving; Adopt environmental protection and energy saving materials to achieve efficient and stable production; Production of zero pesticides, zero residue of organic vegetables, to ensure food safety.
Plant factory

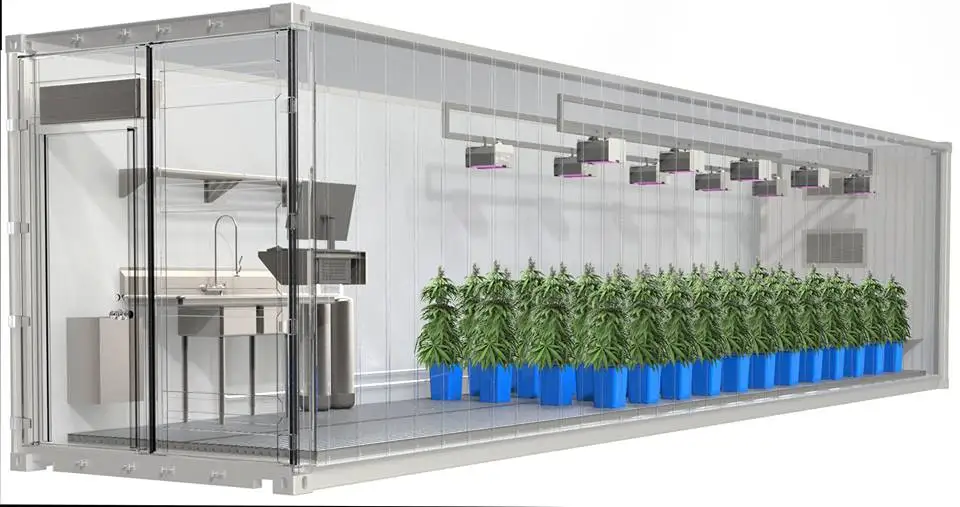

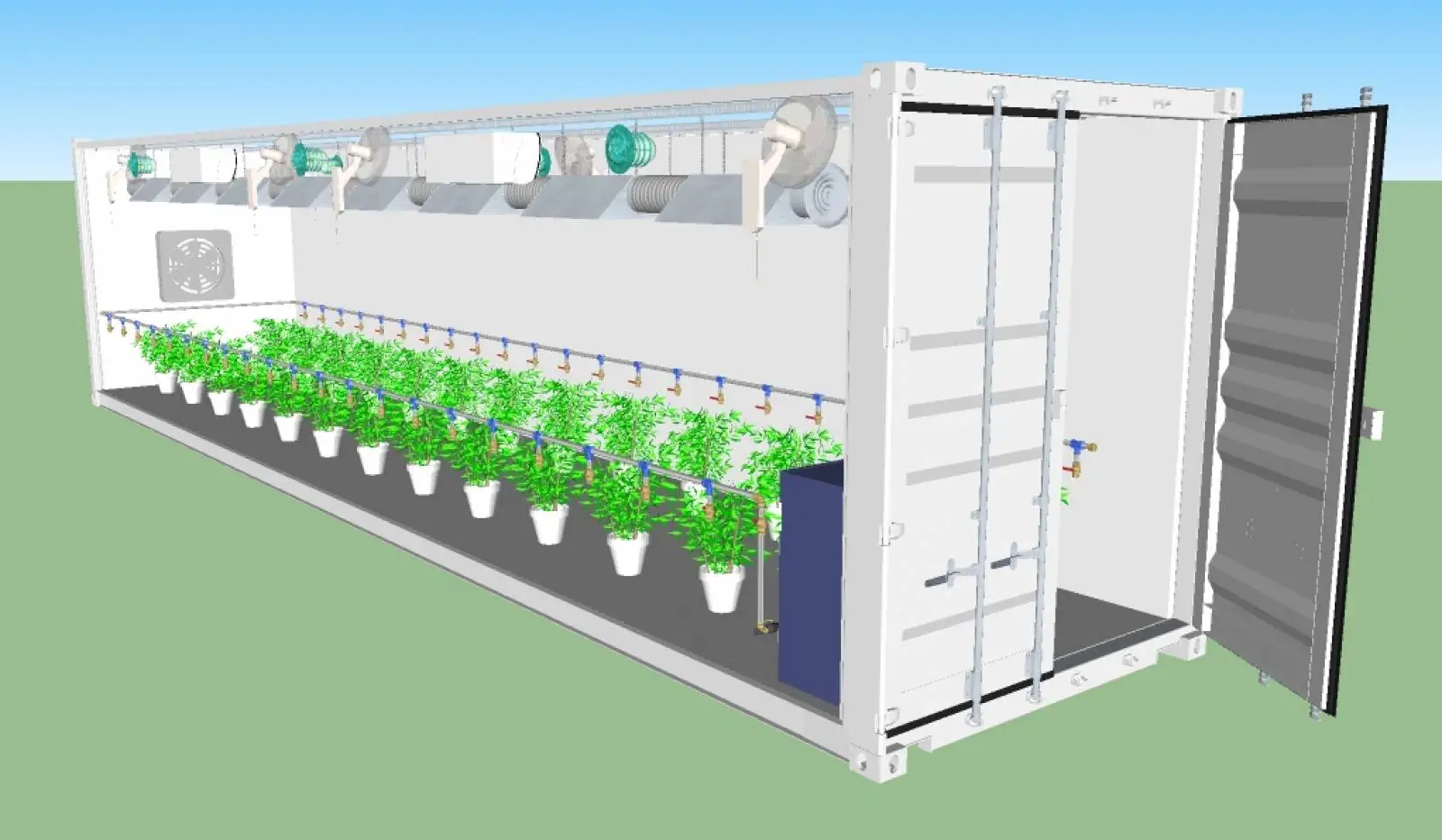

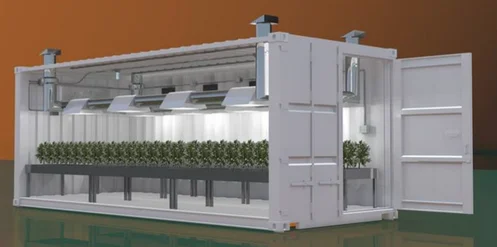

The plant factory is the integration of container facility, vertical hydroponic growing system, led light system, air control system, intelligent control system etc. It can offer the people productive and sustainable vegetables no matter how harsh the outside environment is. And it can be moved to any place according to the requirement of the client. The brand new agriculture technology is widely used to maxmize the output of vegetable in limited space to produce green, fresh, organic, no pesticide, no pollution vegetables. It is so popular for place like desert, remote area, farm etc
Specification
Item
value
Size
Large
Type
container greenhouse
Cover Material
Steel Plate
Model Number
NTS1200
Place of Origin
Shandong Province,China
Brand Name
NTS
Size
12196*2438*2896mm
Inner dimension
11585x2290x2544mm
Features
temperature climate control,LED grow lights,air system
Color
customized
Application
Lettuce, microgreens, etc
voltage
220v/380v
Product display

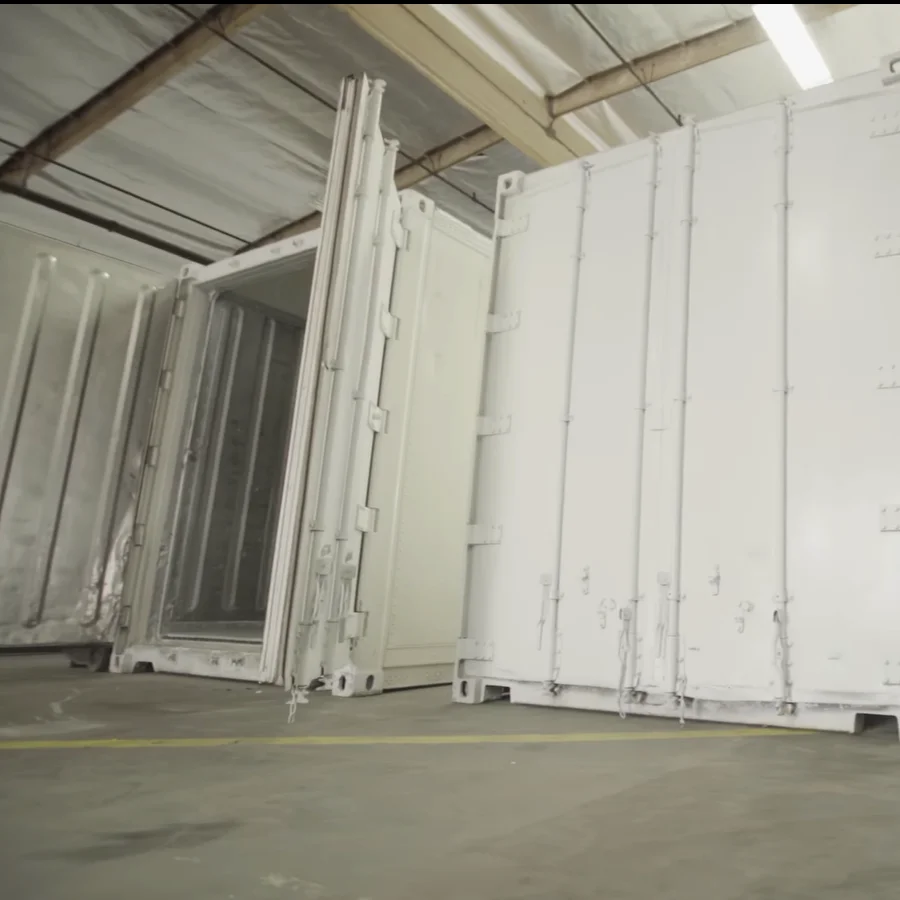

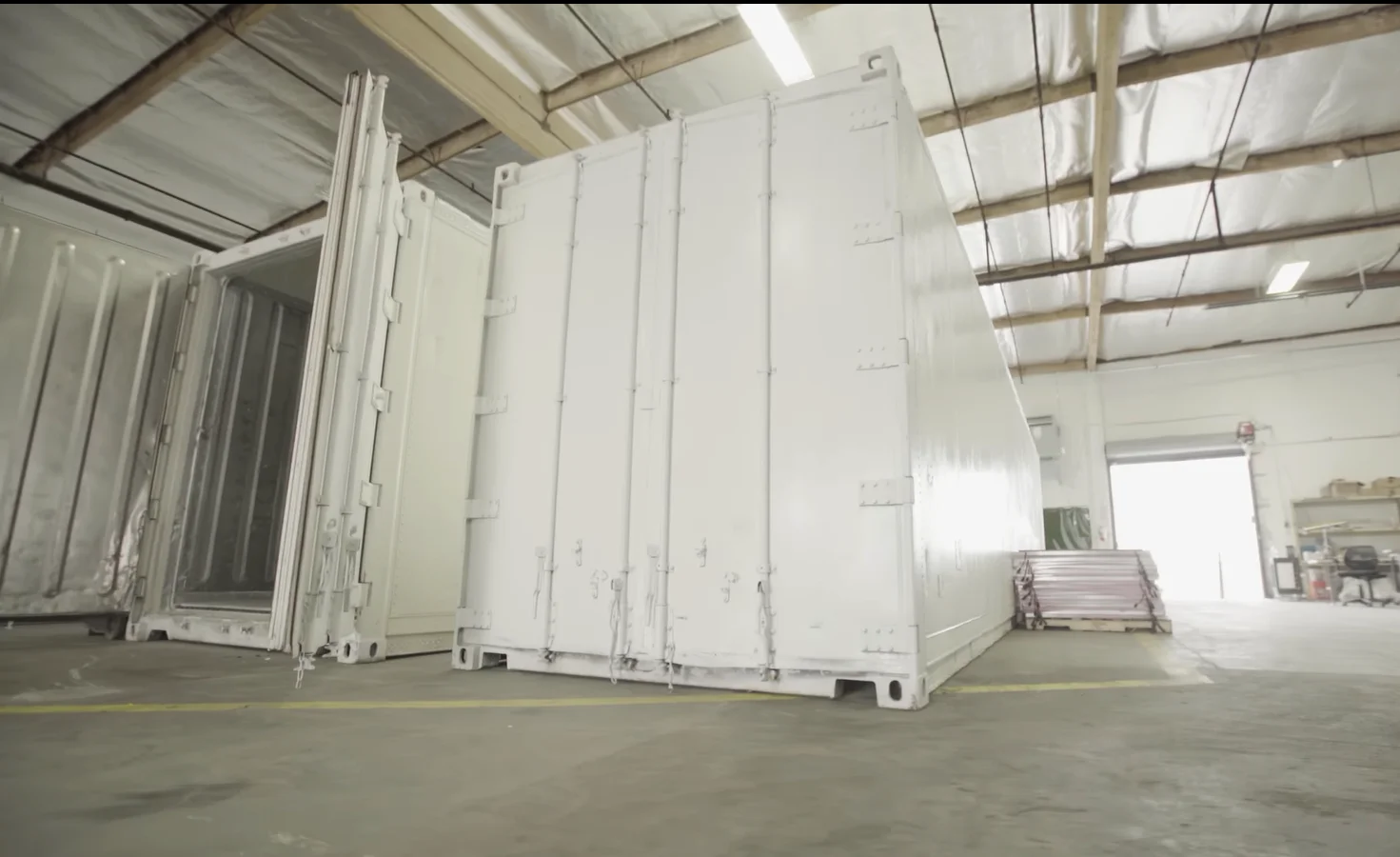

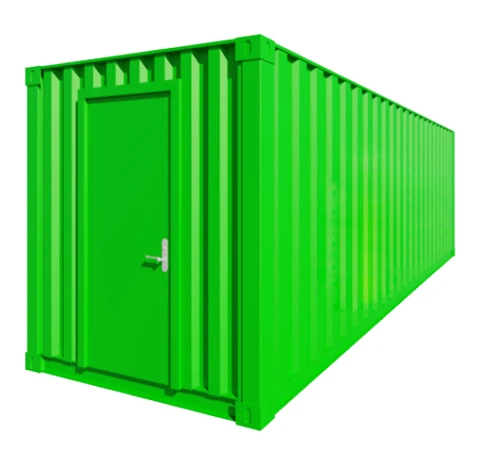

40 feet container
outter size:12192*2438*2896mm inner size:11590*2294*2674mm spray and modify fee included, good thermal insulation with 6cm thick Polyurethane sandwich

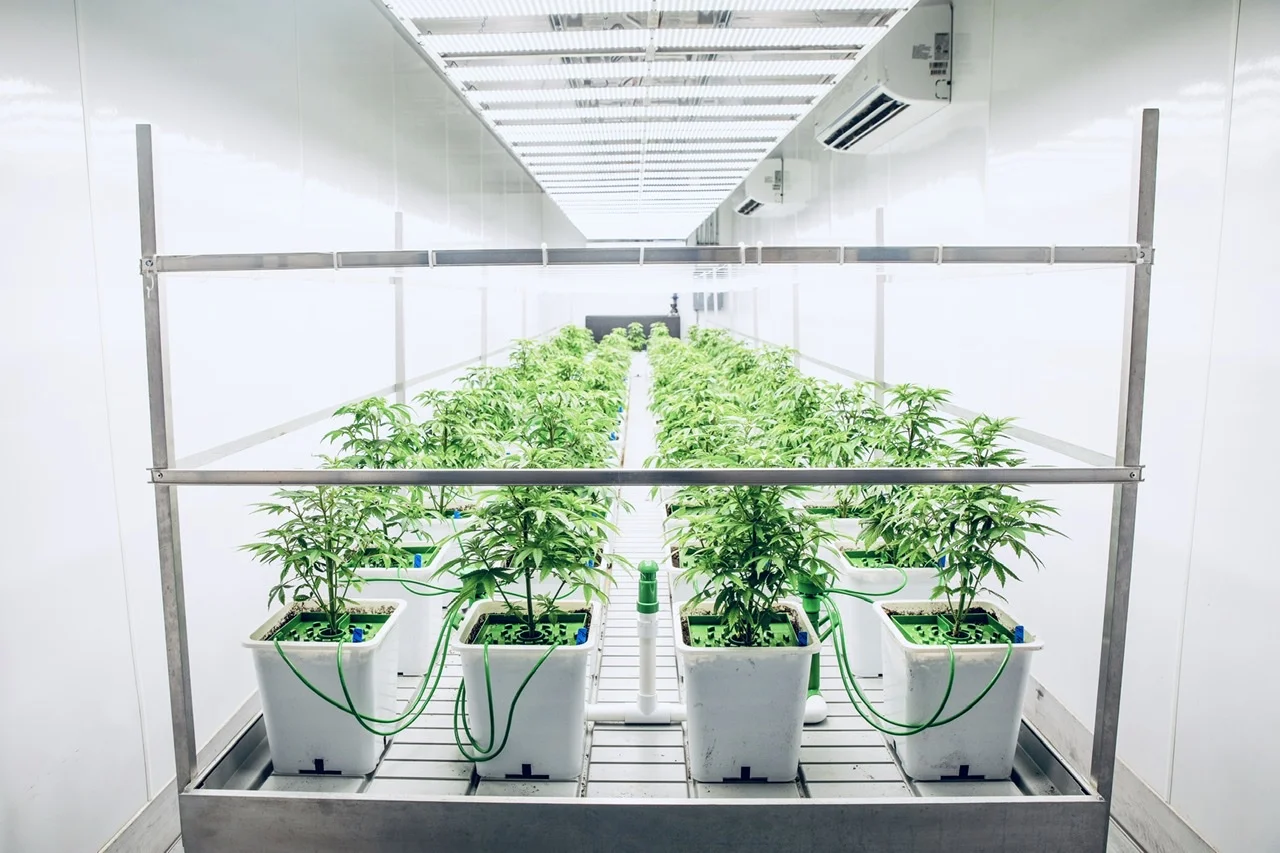

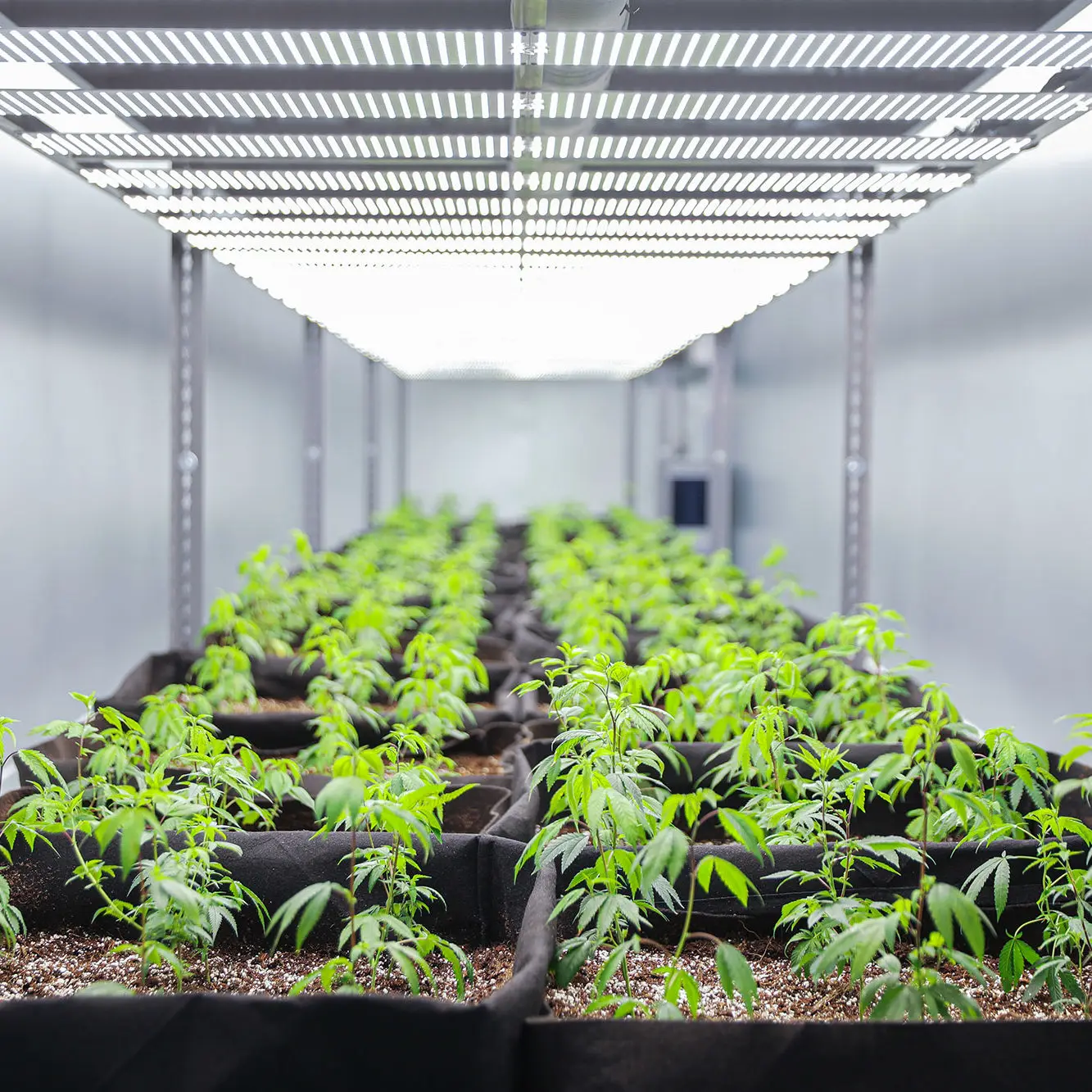

seedling and planting system
1 seedling room and 10 sets of plant cultivation modules,The seedling room is composed of 4 layers of a movable seedling rack,4 layers of growth lamp, a water pump, a water tank, and a toolbox. total of 4 layers, can raise 6000 seedlings at the same time

led growing light
1)Full spectrum , total power is 6000W.10 sets of LED light ,
1 set with 48 pieces ,1 piece is 0.6m long

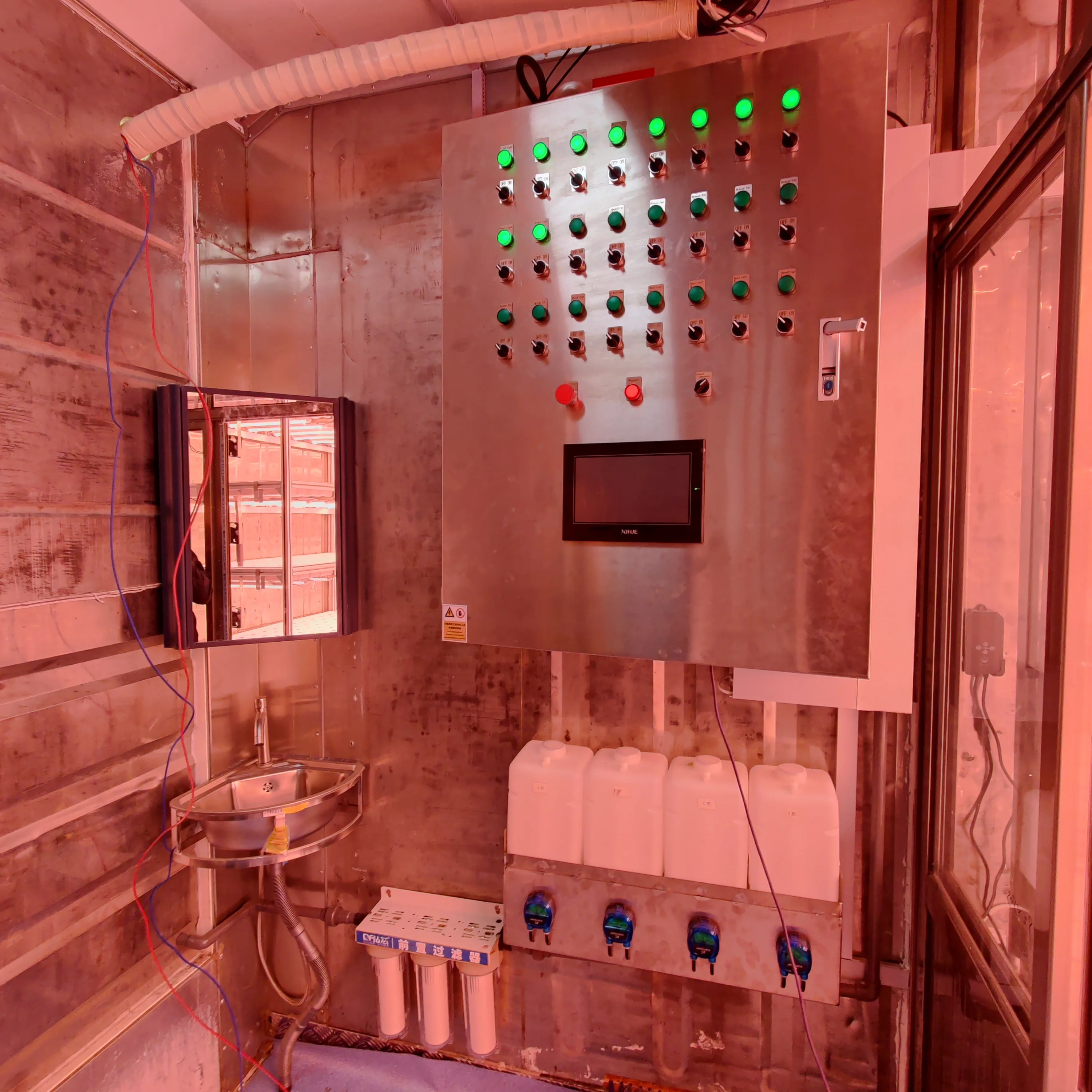

intelligent water and fertilizer system
1)4 fertilizer channels and PLC control peristaltic pump for fertilizer suction. Each fertilizer suction channel is equipped with a 10L fertilizer barrel.
2)water tank storage capacity of 2600kg.
3)12000l / h water pump, one standby water pump
4)The water tank is equipped with a water level switch, which can prevent the overflow of water and fertilizer. 5)The circulating solution in the water tank is sterilized by the pipeline UV disinfection lamp
6)water purity and treatment machine.
Air circulation system
1.The air in the container can be changed automatically within 30 minutes through the main control system.
2.If the concentration of CO2 exceeds the safe range, the air
circulation system will change air automatically
3. adjustable humidifier
4. The indoor temperature is uniform, and the temperature difference between day and night can be controlled between 6-10℃ .
Intelligent control alarm system
The intelligent control system specially developed for this product can automatically control all power equipment in the box. The
human-machine interface adopts a touch LCD panel, which can display all parameters such as temperature, humidity, CO2, etc.,
and monitor the running state of the water pump, light source and other systems.
our advantage
- No human intervention- Artificial Intelligence Driven,

- 50% More production per unit area

- Production costs are 80% less

- No technical knowledge required

- To obtain products with longer shelf life and more intense flavor

- More efficient production planning with big data analysis

- 60 % Energy-saving

- ECO-FRIENDLY Technology

- Technical support after sales

- Remote monitoring with IoT as 7/24
FAQ
Q:Are you a manufacturer?
A:Yes,we are a Original manufacturer Since 2012.

Q: How long of the lead time?
A: Yes,our lead time after 15 working days.Usually the lamp will be shipped out within 7 days. The tracking No.of your order will
be told the day after shipping. And our sales will help you to track them until they arrives at your place safely.

Q: Can LED grow light's spectrum be customized?
A: Yes.Professionnal design team do we have,our engineers will customize the ratio if you need.

Q: What's your warranty?
A: 2-3 years warranty is guaranteed by Eocpseed. Any quality problem when you get the lamp, we will fix it till you are satisfied.

Q: How do I place the order?
A: At the end of this page, you will find a blank. Send your message and our sales will reply to you very soon. Online order is
not available yet. You need to communicate with the sales about details, payment terms and other things offline.

Q: Can I have my own brand name printed on the lamp?
A: Yes, of course. Logo print is for free if you place a considerable order. Also, a custom housing is ok if you have your own
thoughts.
