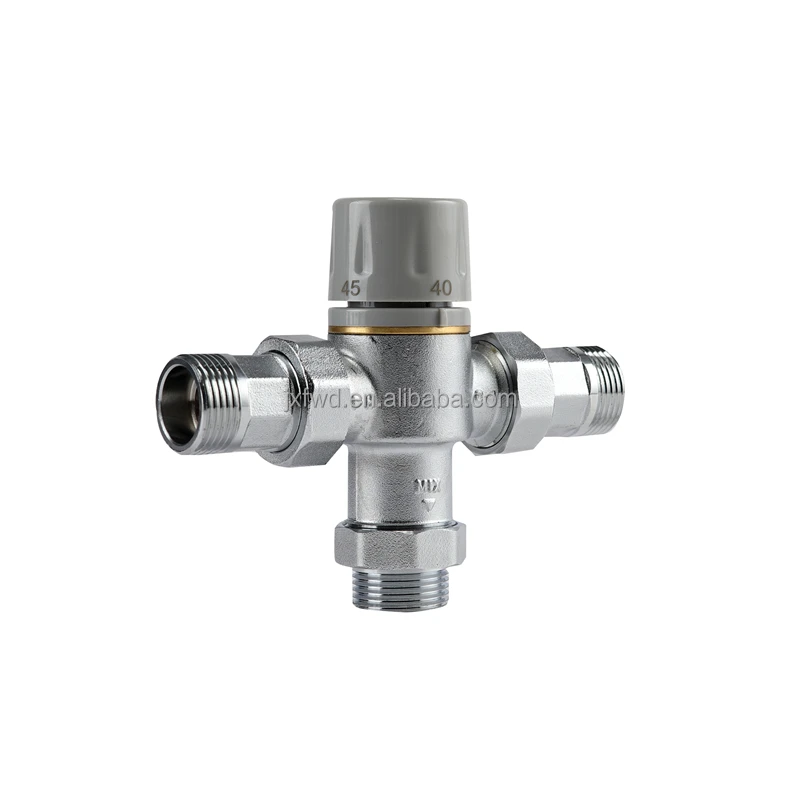

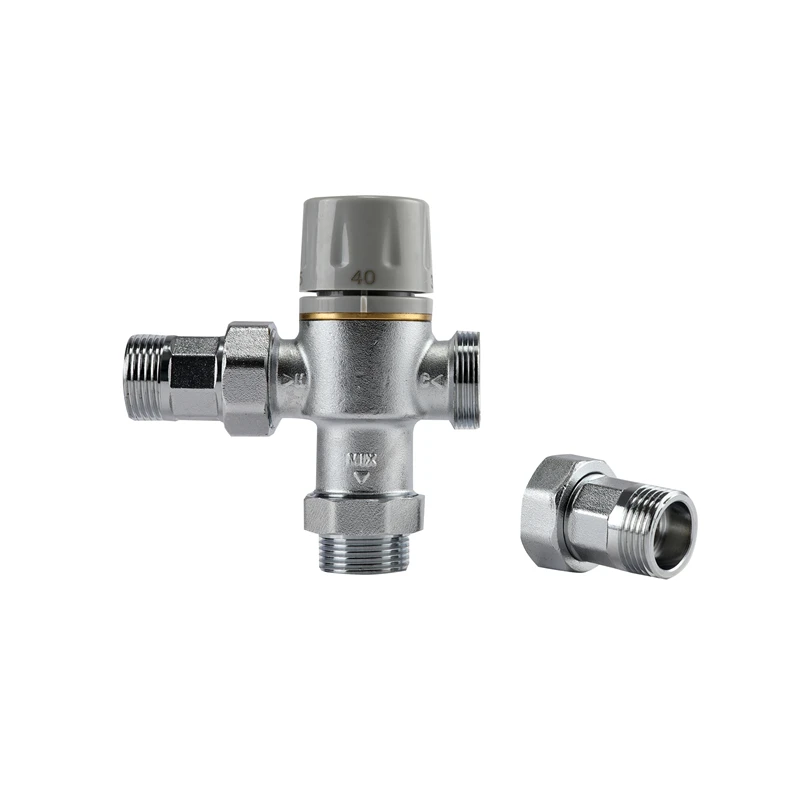

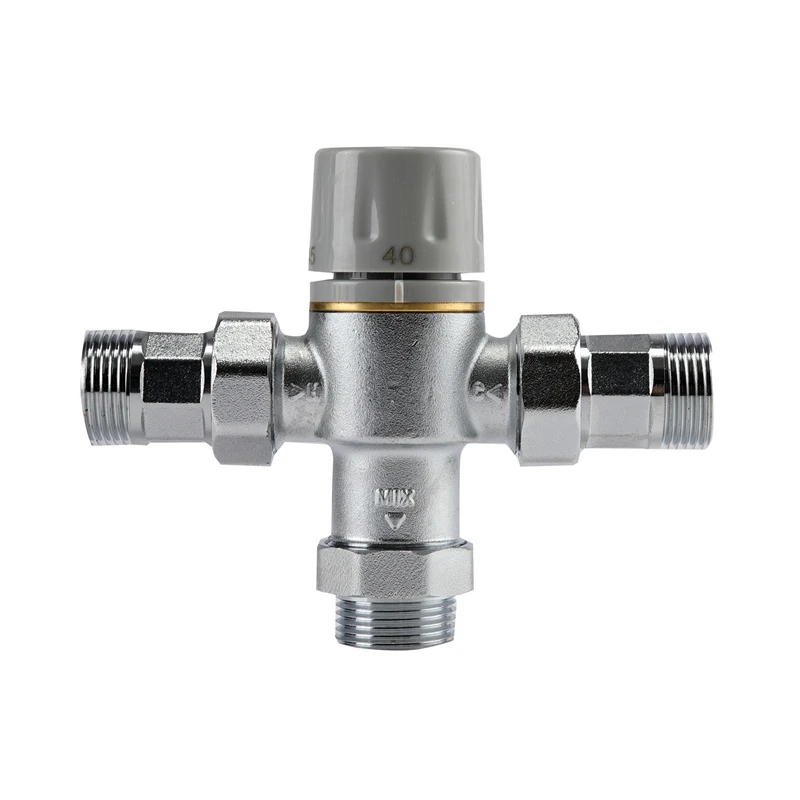

Good Price Cold Hot Water Blending Thermostatic mixing Valve
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (1600301097272):
Product Overview
Description
Product Description
910018CC Thermostatic Mining Valve
Feature:
-Thermostatic protection

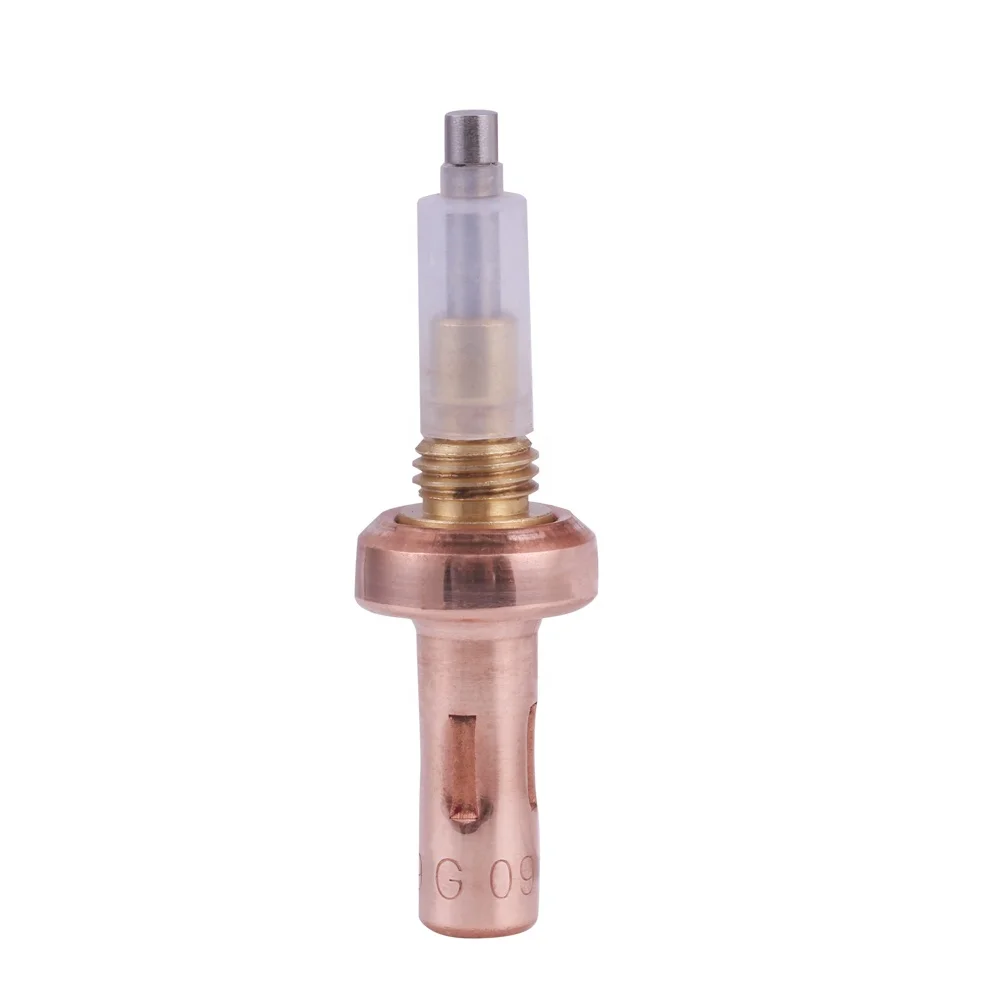

-Single piece thermostatic cartridge construction
- Automatic shut off in the event of hot or cold water failure
-High flow rate, low pressure drops
-Adjustable outlet temperature
-Temperature stability ± 2°C
-Integral Check Valves and Strainers
- Easy installation
-EN1111 EN1999 and QB2606-2006 standard
-Brass valve body
-Single piece thermostatic cartridge construction
- Automatic shut off in the event of hot or cold water failure
-High flow rate, low pressure drops
-Adjustable outlet temperature
-Temperature stability ± 2°C
-Integral Check Valves and Strainers
- Easy installation
-EN1111 EN1999 and QB2606-2006 standard
-Brass valve body
Technical Parameter:
Type | Work Pressure | Max Pressure | Cold Water | Hot Water | Mix Water | Max Flow | Connection |
DN15 | 0.1-0.5MPa | 16Bar | 4-29℃ | 60-90℃ | 30-50℃ | 24L/Min | 1/2'' |
DN20 | 0.1-0.5MPa | 16Bar | 4-29℃ | 60-90℃ | 30-50℃ | 34L/Min | 3/4'' |
DN25 | 0.1-0.5MPa | 16Bar | 4-29℃ | 60-90℃ | 30-50℃ | 75L/Min | G1'' |
DN40 | 0.1-0.5MPa | 16Bar | 4-29℃ | 60-90℃ | 30-50℃ | 130L/Min | G1 1/2'' |
DN50 | 0.1-0.5MPa | 16Bar | 4-29℃ | 60-90℃ | 30-50℃ | 180L/Min | G2'' |

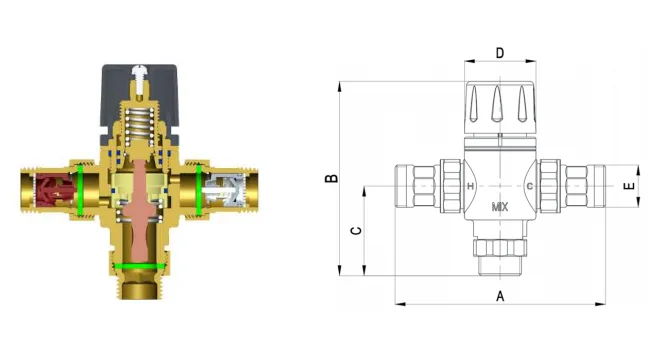

Type | A | B | C | D | E |
DN15 | 110mm[4.33''] | 108mm[4.25''] | 52mm[2.05''] | 33mm[1.30''] | G1/2'' |
DN20 | 134mm[5.27''] | 115mm[4.53''] | 60mm[2.36''] | 38mm[1.50''] | G3/4'' |
DN25 | 165mm[6.50''] | 135mm[5.31''] | 70mm[2.75''] | 45mm[1.77''] | G1'' |
DN40 | 229mm[9.01''] | 164mm[6.42''] | 90mm[3.54] | 45mm[1.77''] | G1 1/2'' |
DN50 | 260mm[10.23''] | 245mm[9.64''] | 160mm[6.30''] | 45mm[1.77''] | G2 |

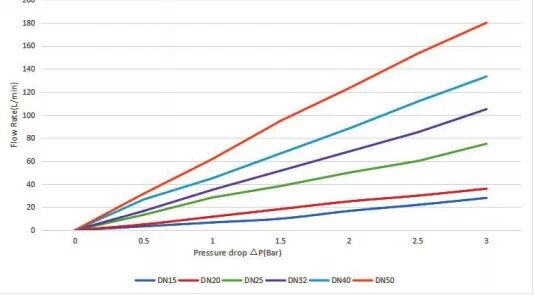

Flowing Curve
