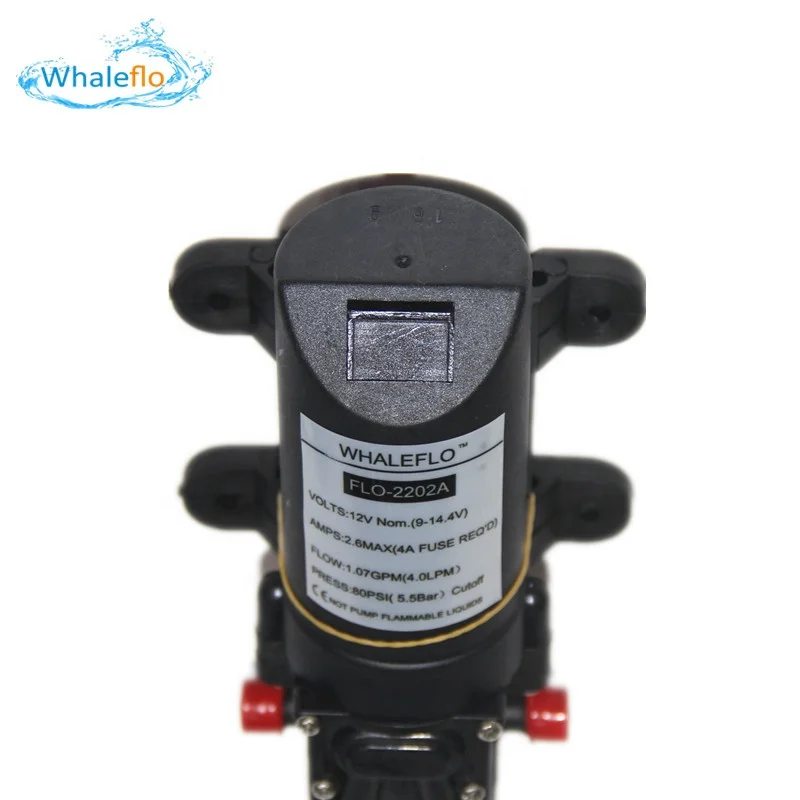

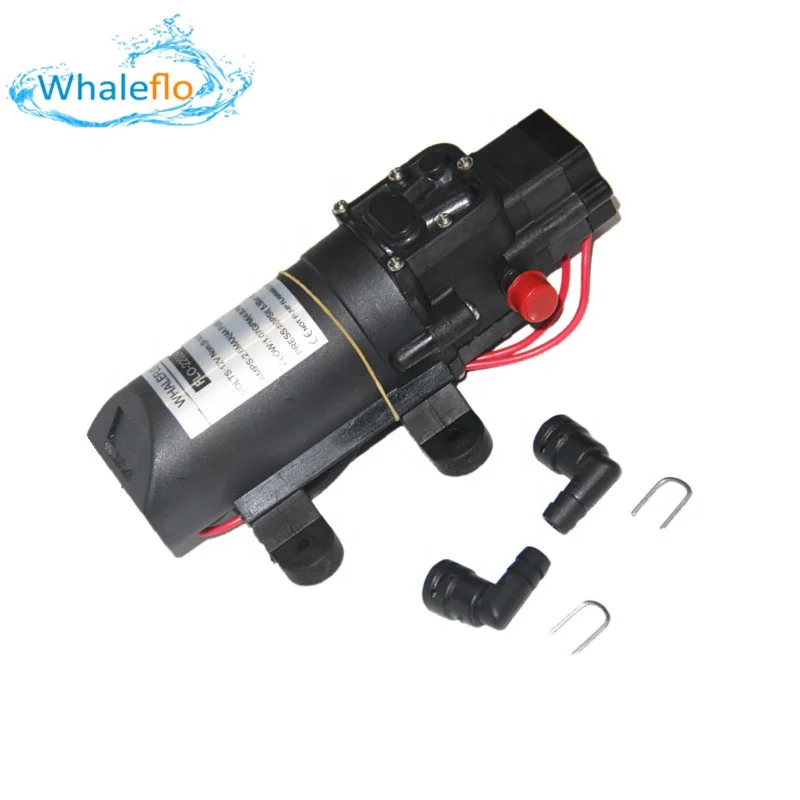

Whaleflo FLO 2201 DC 12V Self priming diaphragm pump 55PSI Pressure Demand Water Pump For Sprayer Irrigation Farm
- Category: >>>
- Supplier: Xiamen Whaleflo Industry And Trade Co. Ltd.
Share on (1600301115668):
Product Overview
Description
Whaleflo Profile
Product Description
Whaleflo Pump chamber material made of Santoprene. The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from the 4-11PH value
Self-priming ability can reach 1.2M.
Whaleflo automatic pump pressure switch serves from 35PSi to 55PSI,and outlet port size is 3/8” (9.5mm)hose barb, female thread with 1/4"BSPT(6mm) and male thread can match different requirement.
Pump duty working: working intermittently. Pump working power: battery, Sunshine energy via Solar panel.
Typical application uses are liquid transfer, spraying, filtration and dispensing, Pesticide pump, Outdoor heater.
SPECIFICATIONS
12 volt
1.8 amp power draw
2 liters per minute maximum flow
55 PSI pressure
2-meter head and 80cm draw
0.72kg weight
9.5mm hose inlet and outlet
18.5cm x 11cm x 6.5cm dimensions
Technical data
| Model | Volt(V) | Open Flow(LPM/GPM) | Demend Pressure(PSI/Bar) | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| FLO2201 | 12 | 2(0.52) | 55(3.79) | 1.8 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2202 | 12 | 3.8(1.0) | 35(2.41) | 3 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2202-1 | 12 | 4.3(1.13) | 35(2.41) | 3.5 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2203-1 | 12 | 3.1(0.82) | 70(4.83) | 2.2 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2202A | 12 | 4(1.05) | 80(5.52) | 2.6 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2401 | 24 | 2(0.53) | 55(3.79) | 0.9 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2403 | 24 | 2.6(0.68) | 70(4.83) | 1 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2402A | 24 | 4(1.05) | 80(5.5.2) | 1.3 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
FLO22 series typical application
Application
Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer
Any other pressurization system
Packaging & Shipping
| Dimension/PC | 18.5*11*6.5cm |
| Net Weight/pc | 0.64KG |
| Gross Weight/pc | 0.72kG |
| Carton Dimension(50pcs) | 56.5*38.5*36.5cm |
| One Carton weight | N.W/G.W:35/36kgs |
Company information
Our advantage
Our service
Fast delivery time and stable quality.
OEM & ODM is available.
Factory research and development water pump more than 12 years experience.
24 month after service & Fast feedback within 24 working days.
More products
NEW FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea
Q. Can I buy different types in one container?
A:Yes, you can mix different types in one container.
Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended
Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.
Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.
Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.
Q. What is your port of loading?
A: Xiamen Port.
