1000mm three sanding Rollers Wide Belt Sander Machine Wood Based Panels Machinery
- Category: >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600301130371):
Product Overview
Description
Wood Wide Belt Sanding Machine
1. Sanding belt automatic centering.
2. Pneumatic sanding pad.
3. Vacuum feeding table.
4. Brush roller cleaning the panel after sanding.
5. Pressure shoes guarantee feeding work pieces stably.
6. Japanese Omron internal bearing reduce vibration of belt.
7. Airtac & CHNT Electrical component .
8. Automatic air blower on sanding belt to prolong the life time of sanding belt.
9. Position indicator wheel ensures precise adjustment of sanding pad .
10. Digital thickness display.
11. Photoelectric control equipment which control vibrating of abrasive belt along center.
4. Brush roller cleaning the panel after sanding.
5. Pressure shoes guarantee feeding work pieces stably.
6. Japanese Omron internal bearing reduce vibration of belt.
7. Airtac & CHNT Electrical component .
8. Automatic air blower on sanding belt to prolong the life time of sanding belt.
9. Position indicator wheel ensures precise adjustment of sanding pad .
10. Digital thickness display.
11. Photoelectric control equipment which control vibrating of abrasive belt along center.
Products Description

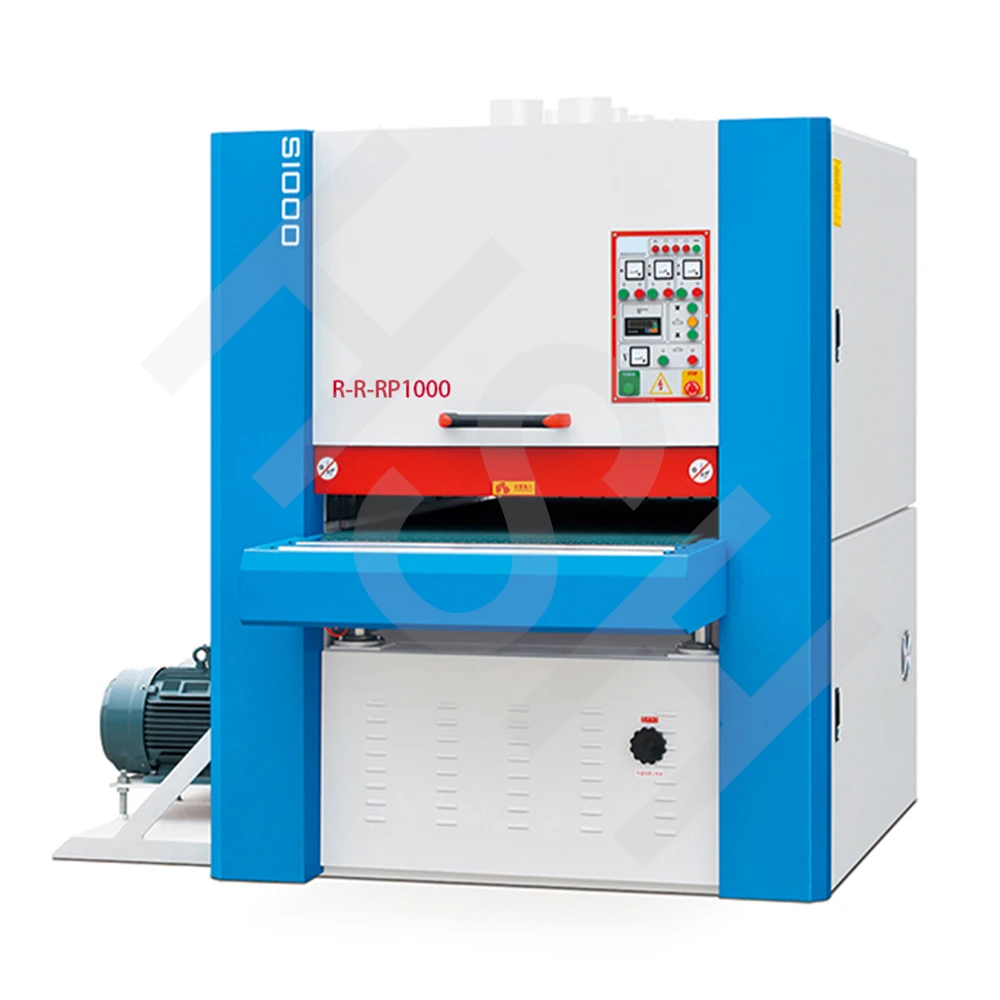

R-R-RP1000 Wide Belt Sanding Machine
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture,bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
(2) R-R-RP model: The first roller is steel roller; the second unit is 85°rubber roller with air sanding pad. R-R-RP model: The first unit is rubber roller with sanding pad; the second unit is air sanding pad.Steel roller is for calibration sanding and rubber roller is for fine polishing.
(3) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
Product Paramenters
Model | R-R-RP630 | R-R-RP1000 | R-R-RP1300 |
Max.working width | 630mm | 1000mm | 1300mm |
Min.Working length | 360mm | 500mm | 500mm |
Max.working thickness | 2.5~160mm | 3~160mm | 3~110mm |
Speed of conveyor belt | 6~30m/min | 6~30m/min | 6~30m/min |
Total motor power | 27.75kW | 38.85kW | 89.55kW |
No.1 abrasive belt power | 11kW | 15kW | 37kW |
No.2 abrasive belt power | 7.5kW | 11kW | 30kW |
No.3 abrasive belt power | 7.5kW | 11kW | 22kW |
Power of conveyor belt | 1.5kW | 1.5kW | 4kW |
Power of lifting | 0.37kW | 0.37kW | 0.55kW |
No.1 abrasive belt power | 190mm | 190mm | 240mm |
No.2 abrasive belt power | 190mm | 190mm | 240mm |
No.3 abrasive belt power | 190mm | 190mm | 210mm |
Size of abrasive belt | 650*1920mm | 1020*2000mm | 1330*2200mm |
Working pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Consumption of Compressed air | 8000m³/h | 8000m³/h | 12500m³/h |
Overall dimensions | 2200*1200* 2100mm | 1900*2000* 2100mm | 2700*2400* 2100mm |
Net weight | 1600kg | 2800kg | 4700kg |
Product Configuration

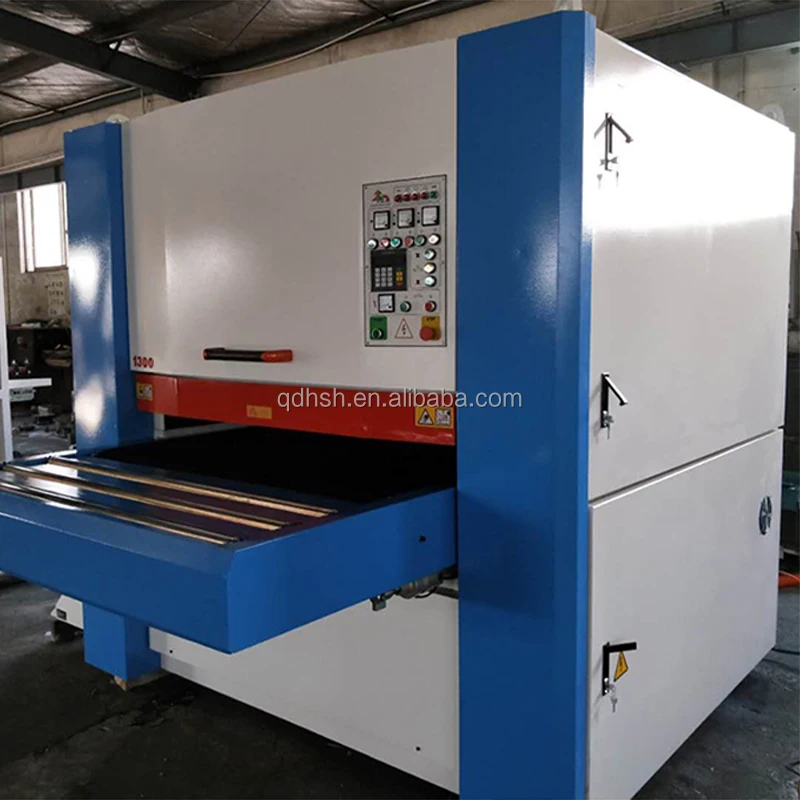

Left

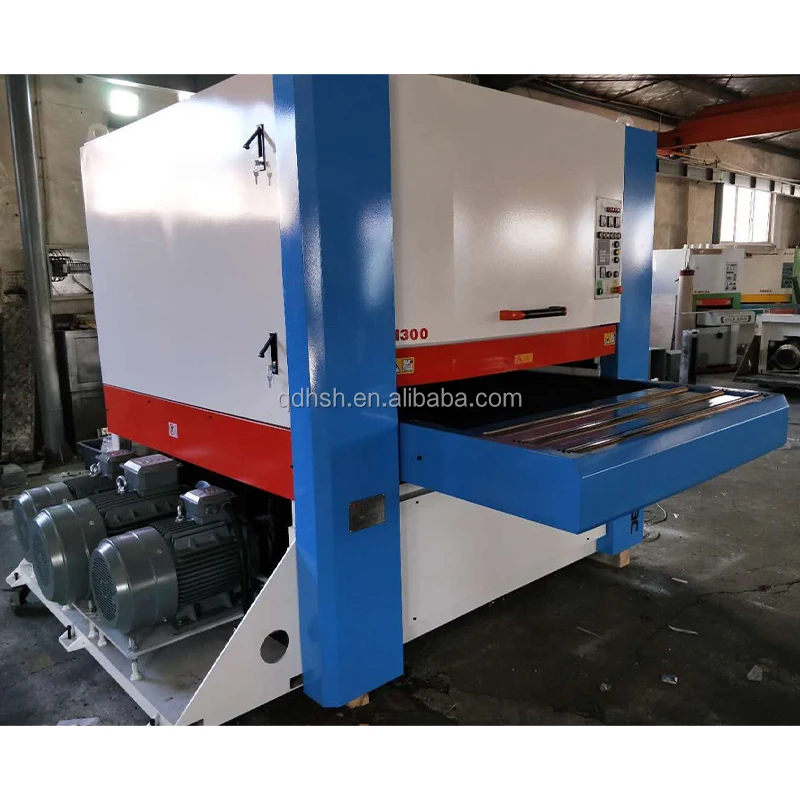

Right

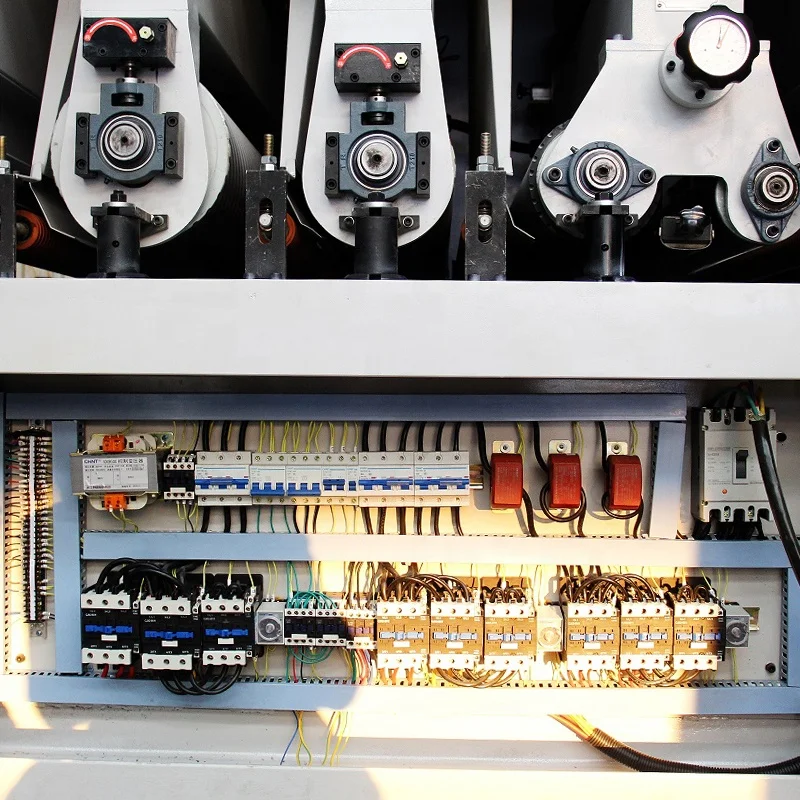

Electric Appliance

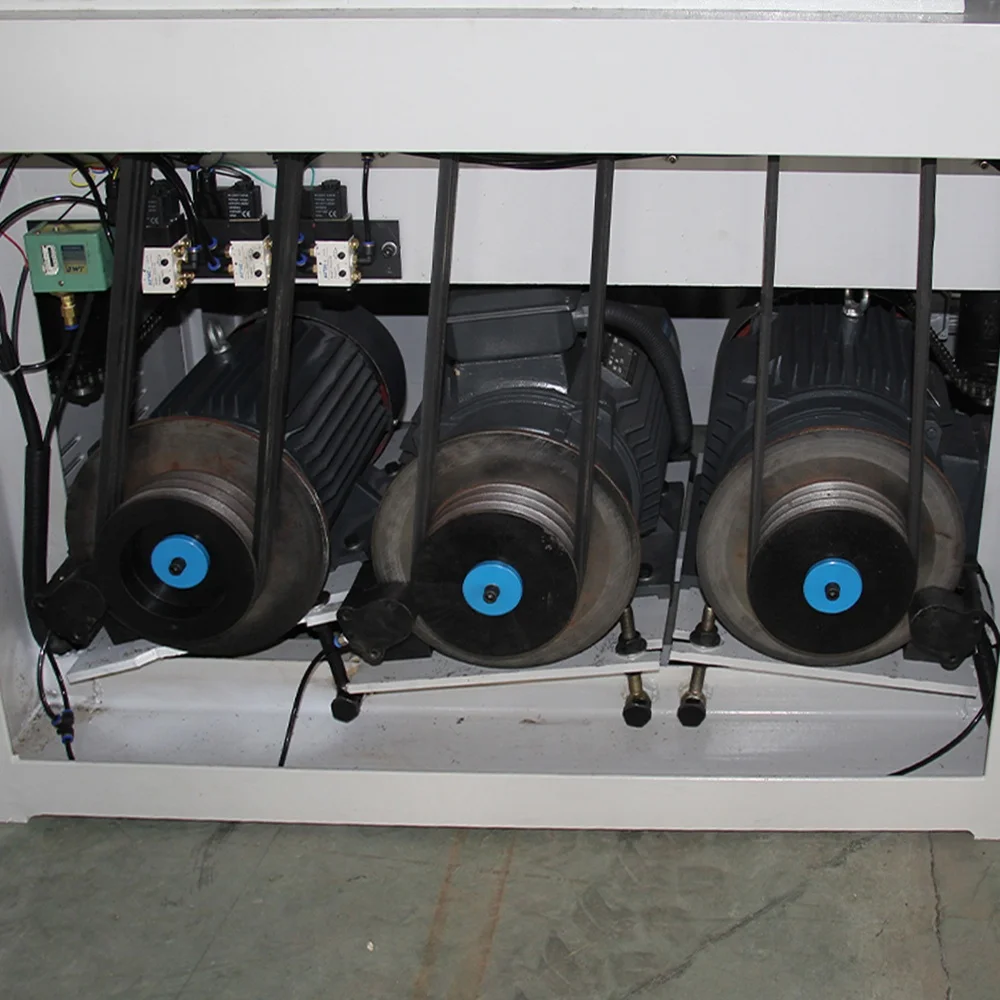

15+11+11kW Motor

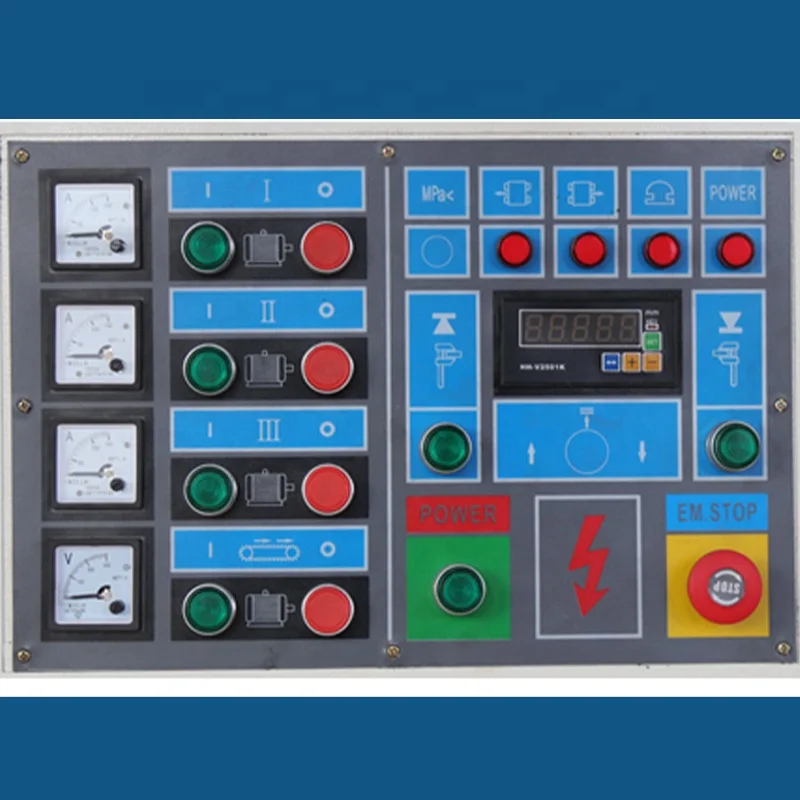

Control board
CHNT transformer
Samples After Processing

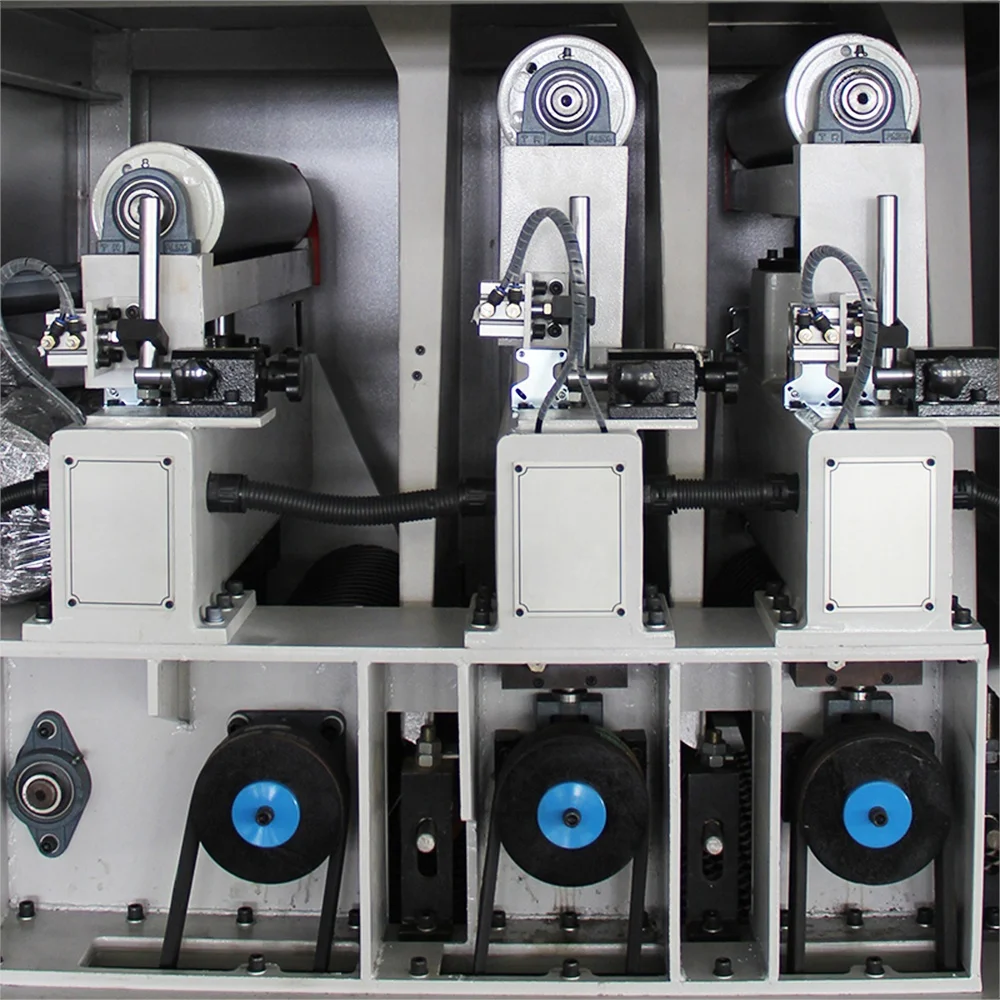

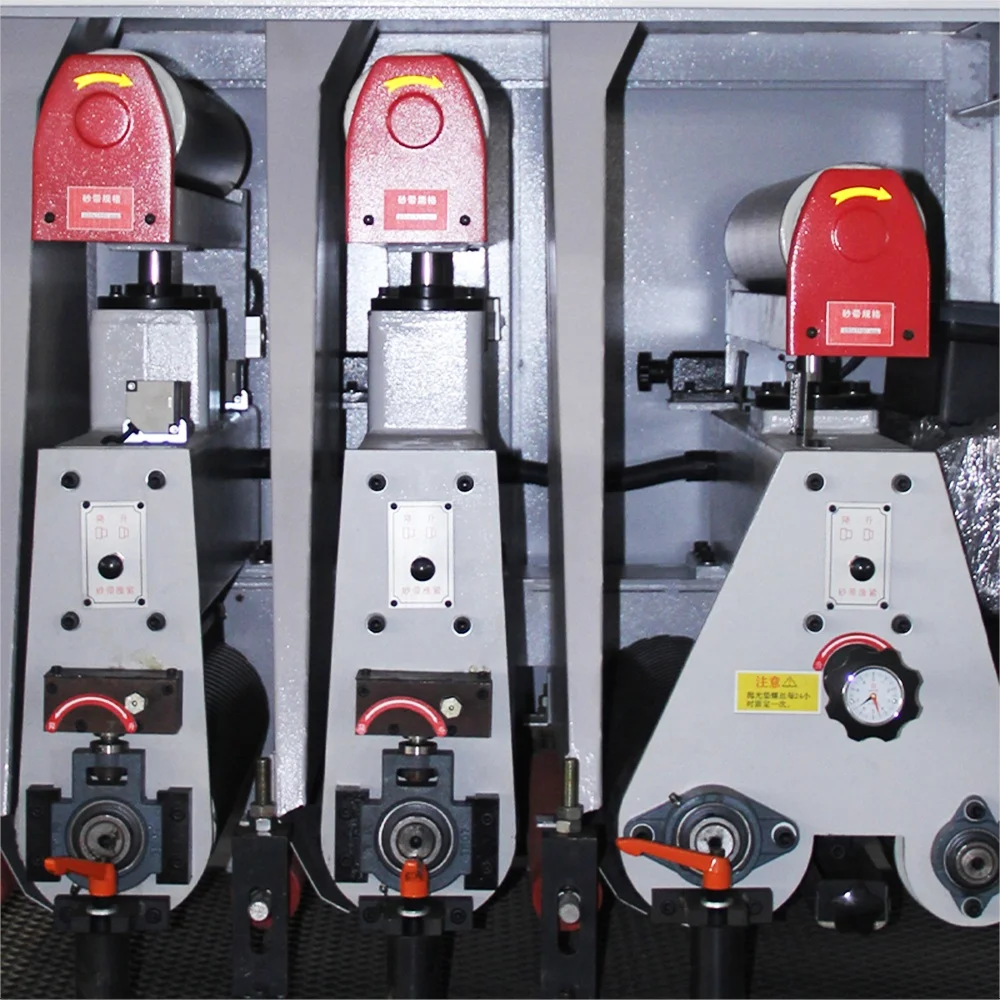

Inner structure
Similar Machine
Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
