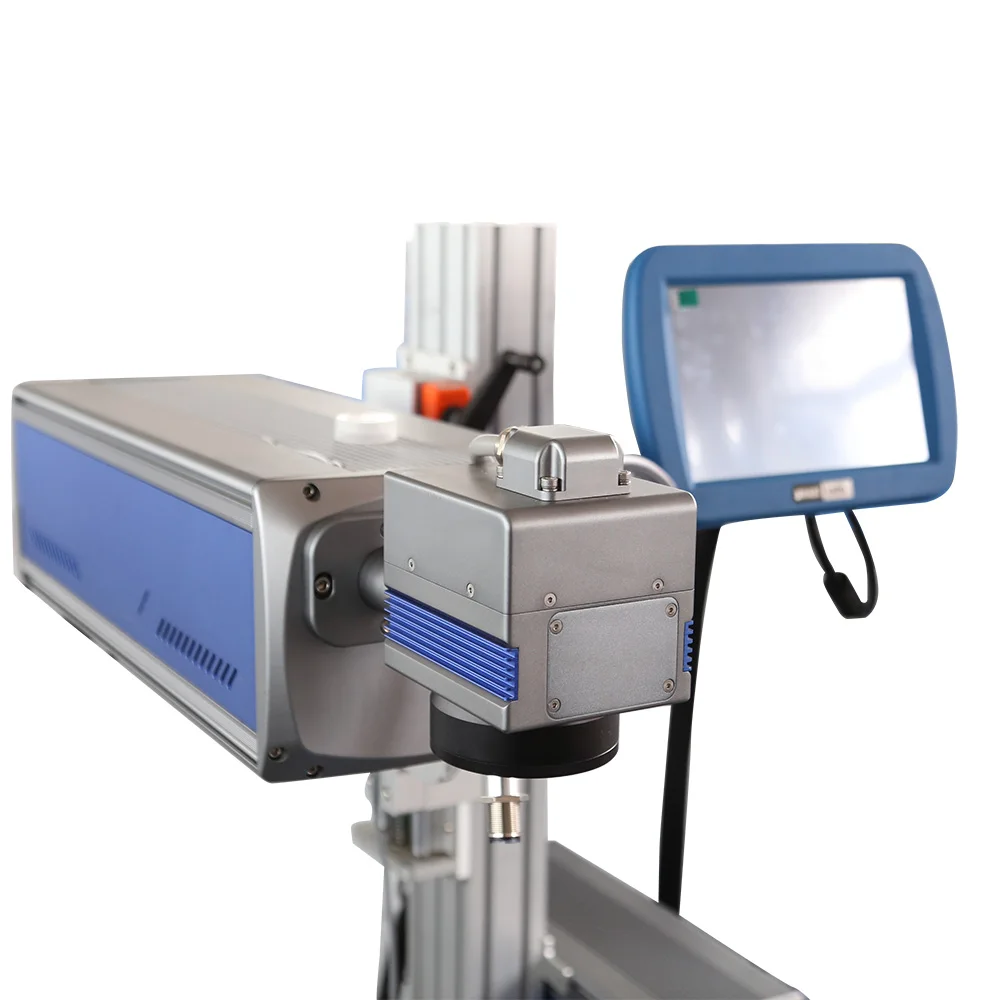

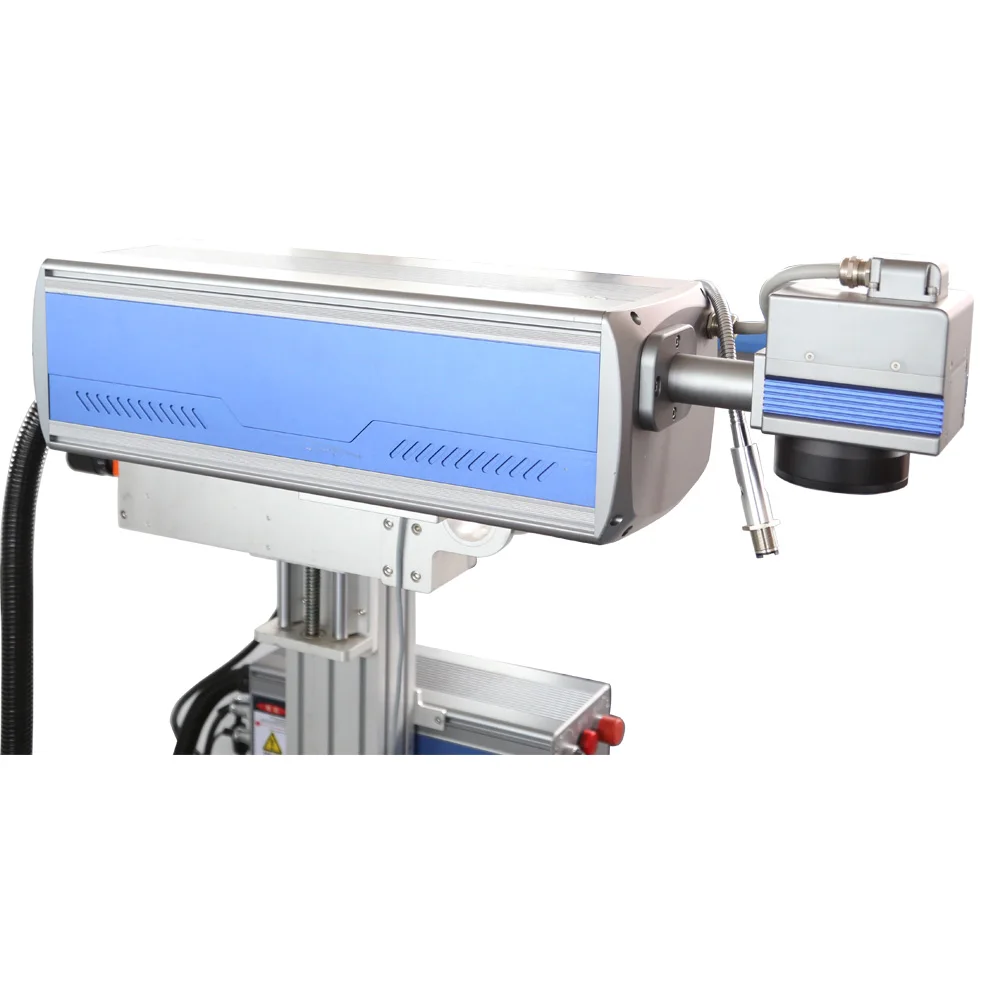

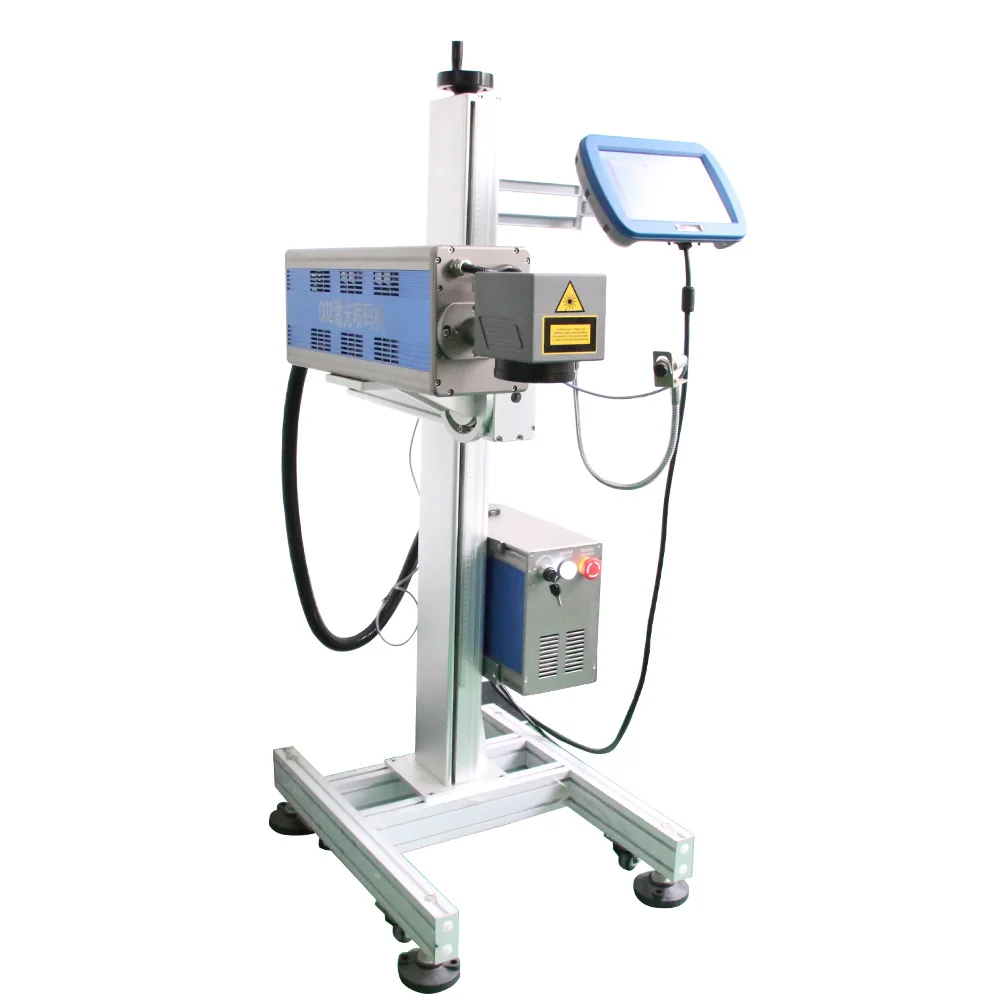

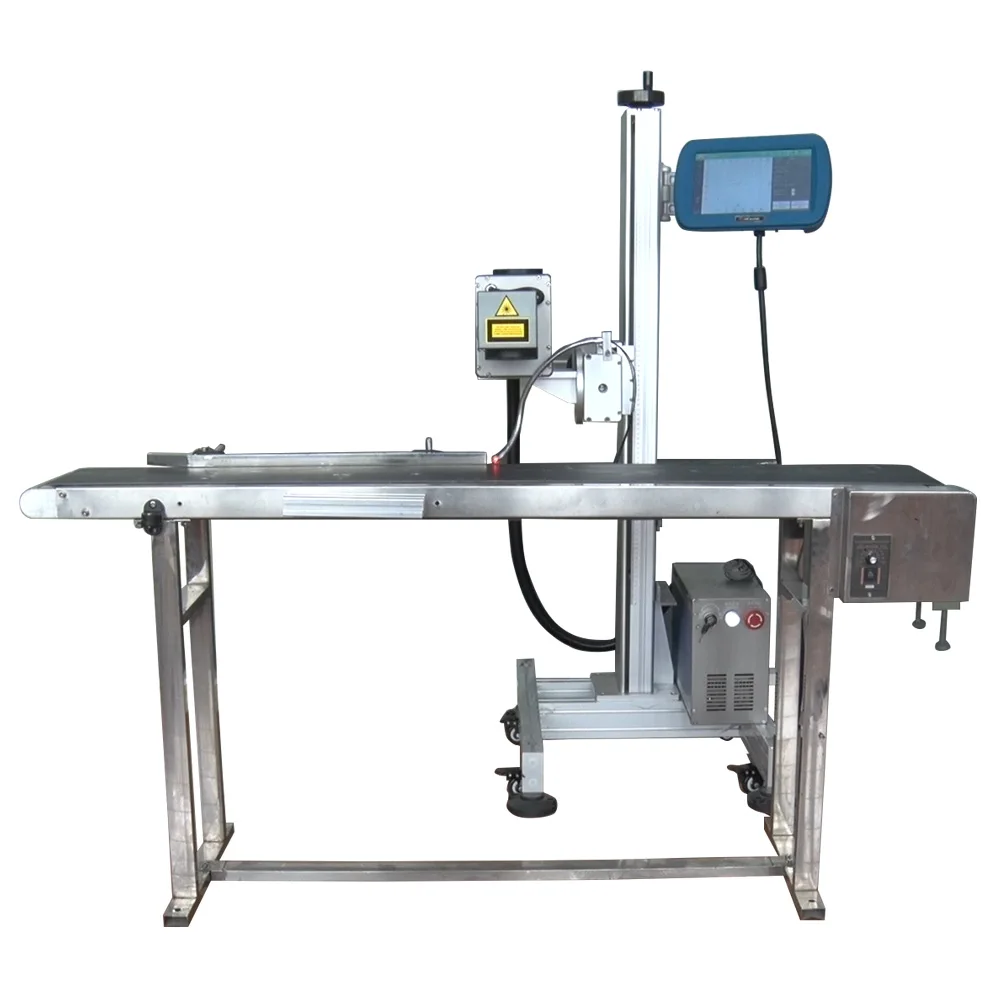

20W High speed Online Flying CO2 Laser Marking Machines for Coding Date on Cardboard Box
- Category: >>>
- Supplier: Shanghai Xiepai Machinery Equipment Co. Ltd
Share on (1600301152104):
Product Overview
Description
UV LASER MARKING MACHINE
UV laser marking machine, has adopted the world's most advanced laser technology, which has good beam quality and high precision marking results. Compact size, high speed, high repeat positioning accuracy. Life span up to 100,000 hours, can move with any workplace. Zero maintenance, no consumables, low-power, power consumption is less than 500W.
UV laser technology is the multi-functionality and capacity of engraving over different materials, including non-metal materials. This technology could also apply to the automatization system like rotary engraving, linear guide engraving, conveyor engraving system and Camera Capture System.
PRODUCT PARAMETER OF UV LASER MARKING MACHINE | ||
Laser Power | 3W 5W 10W 20W (Optional) | |
Laser wavelength | 355nm | |
Beam Quality | <1.2 | |
Laser Q-switched frequency | 20KHz ~ 100KHz | |
Pulse Width | <20ns@50khz | |
Operating temperature | 18-40 degrees | |
Cooling method | Water cooling | |
Position Mode | Infrared Position | |
Repeat accuracy | ± 0.003mm | |
Machine power consumption | 1.2KW | |
Electricity demand | 110V / 220V-50Hz / 60Hz (optional) | |
Applicable to the surface processing or coating film processing of most metal and non-metal materials, such as hardware, ceramics, glasses and watches, PCs, electronic devices, various instruments, PCB boards and control panels, nameplate display boards, plastic glass, crystal Surface and internal carvings of products. | Applicable to the surface processing or coating film processing of most metal and non-metal materials, such as hardware, ceramics, glasses and watches, PCs, electronic devices, various instruments, PCB boards and control panels, nameplate display boards, plastic glass, crystal Surface and internal carvings of products. | |
ADVANTAGES OF UV LASER MARKING MACHINE:
1.Extremely small focal spot and high marking speed.
2. Small heat-affected zones, which can make super fine marking.
3.Long life, stable performance, low power consumption.specially.
4.Equipped with precision grating digital display ruler, multi-position processing, more accurate positioning.
5.High quality: good beam quality, good light mode, and stable power.
4.Equipped with precision grating digital display ruler, multi-position processing, more accurate positioning.
5.High quality: good beam quality, good light mode, and stable power.
6.Apply more widely on different special materials.
FAQ
1: What’s the package?
-- We have 3 layers of package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2:Will the package damaged during transportation?
-- Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
3: How to install and run the machine?
-- Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user’s manual along with the machine. 95% customers can learn by themselves.
4: How can I do if the machine goes wrong?
-- If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
5: How about delivery and payment methods?
-- Sample Lead time: 3 working days after receiving the deposit.
-- 1-5 sets: 3-10 working days after the start of production.
-- More than 5 sets: to be confirmed.
Usually, we have stocks and could ship to you as soon as possible.
6: What's the payment terms?
-- We have 3 layers of package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2:Will the package damaged during transportation?
-- Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
3: How to install and run the machine?
-- Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user’s manual along with the machine. 95% customers can learn by themselves.
4: How can I do if the machine goes wrong?
-- If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
5: How about delivery and payment methods?
-- Sample Lead time: 3 working days after receiving the deposit.
-- 1-5 sets: 3-10 working days after the start of production.
-- More than 5 sets: to be confirmed.
Usually, we have stocks and could ship to you as soon as possible.
6: What's the payment terms?
-- 50% deposit, the rest of 50% will be paid before shipment.
7: How can we pay for the order?
-- Payment method: T/T, Alibaba Trade Assurance, Western Union, etc.
8: Can the price be negotiated?
-- The indicator price is for retail. The price could be negotiated if the quantity is more than 2 sets.
8: Can the price be negotiated?
-- The indicator price is for retail. The price could be negotiated if the quantity is more than 2 sets.
