suntech Customized Great Quality Universal Fabric Inspection Machine
- Category: Textile Finishing Machines >>>
- Supplier: Zhejiang Strength Machinery Co. Ltd.
Share on (1600301169841):
Product Overview
Description
Product Description

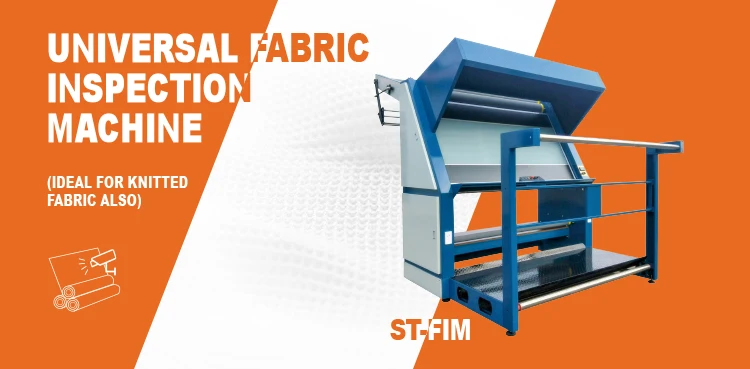

Suntech Universal Fabric Inspection Machine (Ideal for Knitted Fabric Also)
ST-FIM is suitable for a wide range of fabrics, from tension-sensitive lycra fabrics to stable woven, technical and upholstery materials.
Technical Specifications
Speed: | 0-40m/min |
Fabric Width: | 1.8-4.0 meters |
Dimensions(L*W*H): | 2500*3500*2750mm(For model ST-FIM-180 only) |
Weight: | 800kgs(For model ST-FIM-180 only) |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Main Technical Features
●End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
●Full Width Fabric Inspection- With 30 degree fixed angle inspection screen.
●Full Width Fabric Inspection- With 30 degree fixed angle inspection screen.
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Available for different Fabric Input and Output Presentation like plait to roll, roll to roll etc.- Synchronize with other production operations.
●Available for different Fabric Input and Output Presentation like plait to roll, roll to roll etc.- Synchronize with other production operations.
Machine Drawing
Product packaging
Options
