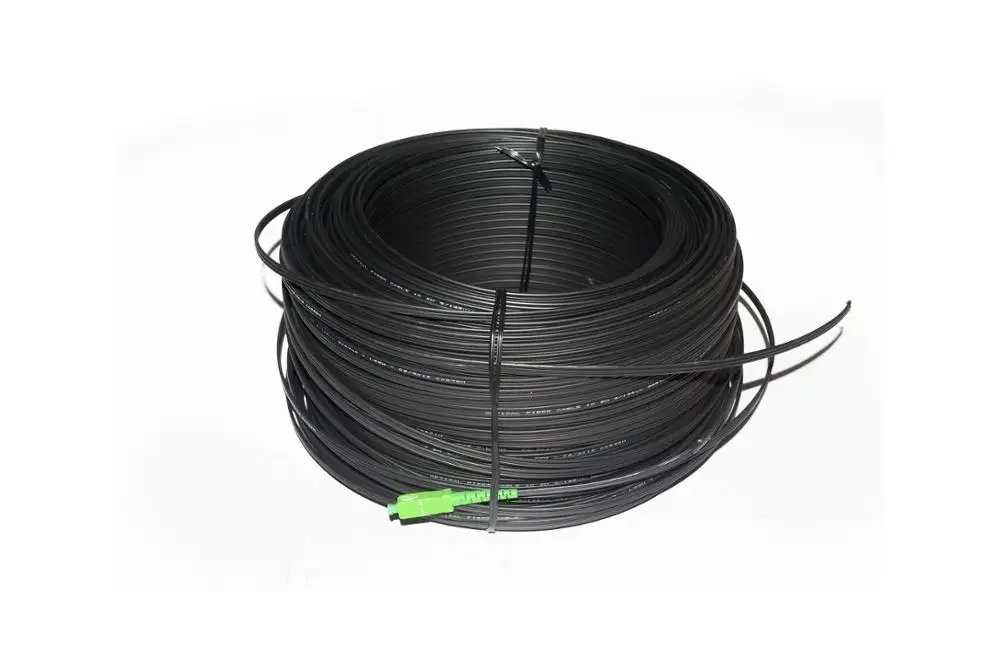

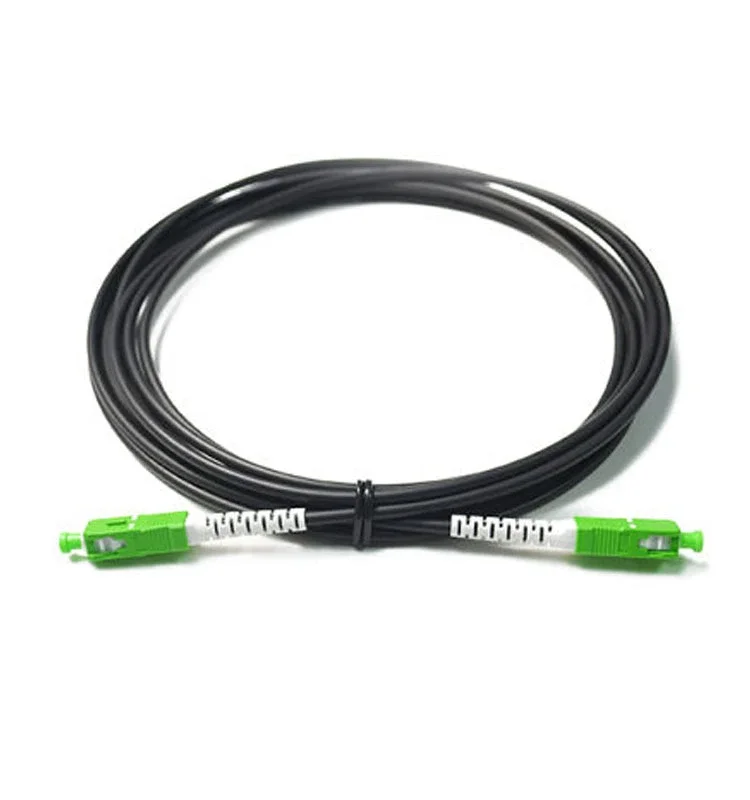

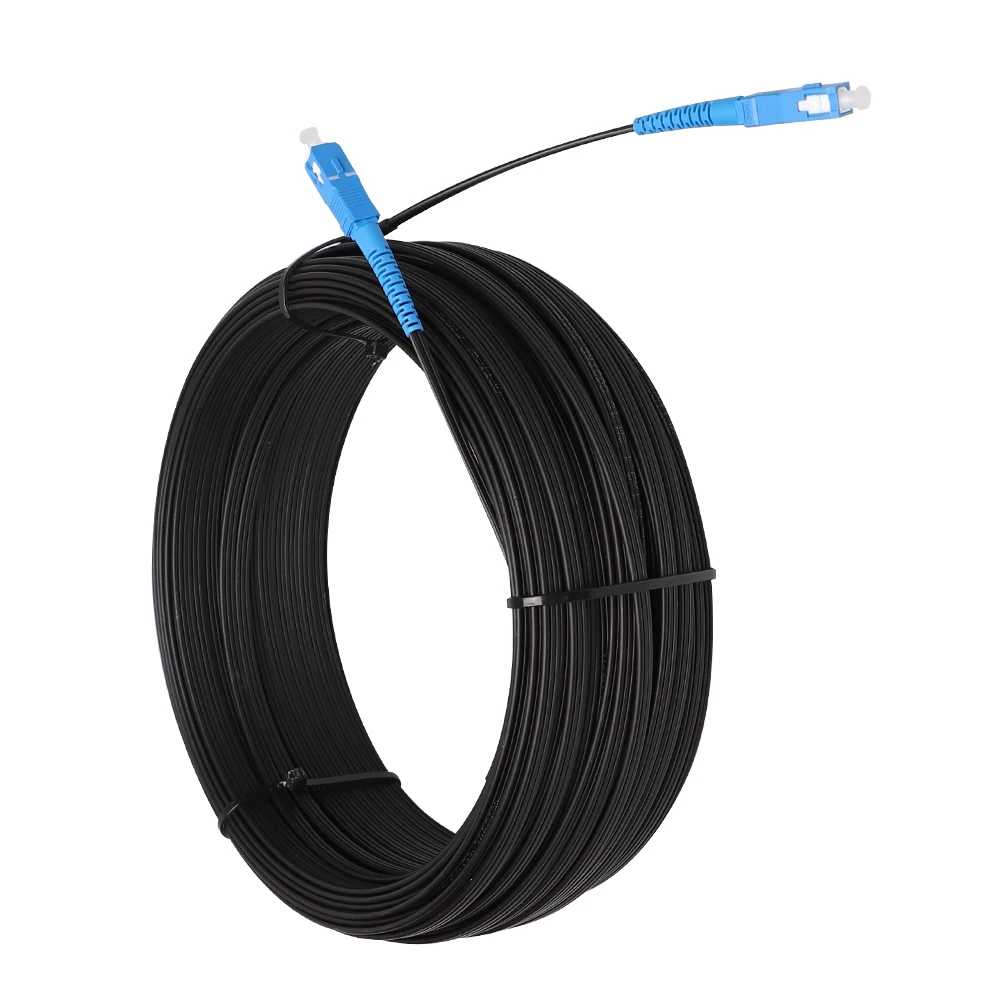

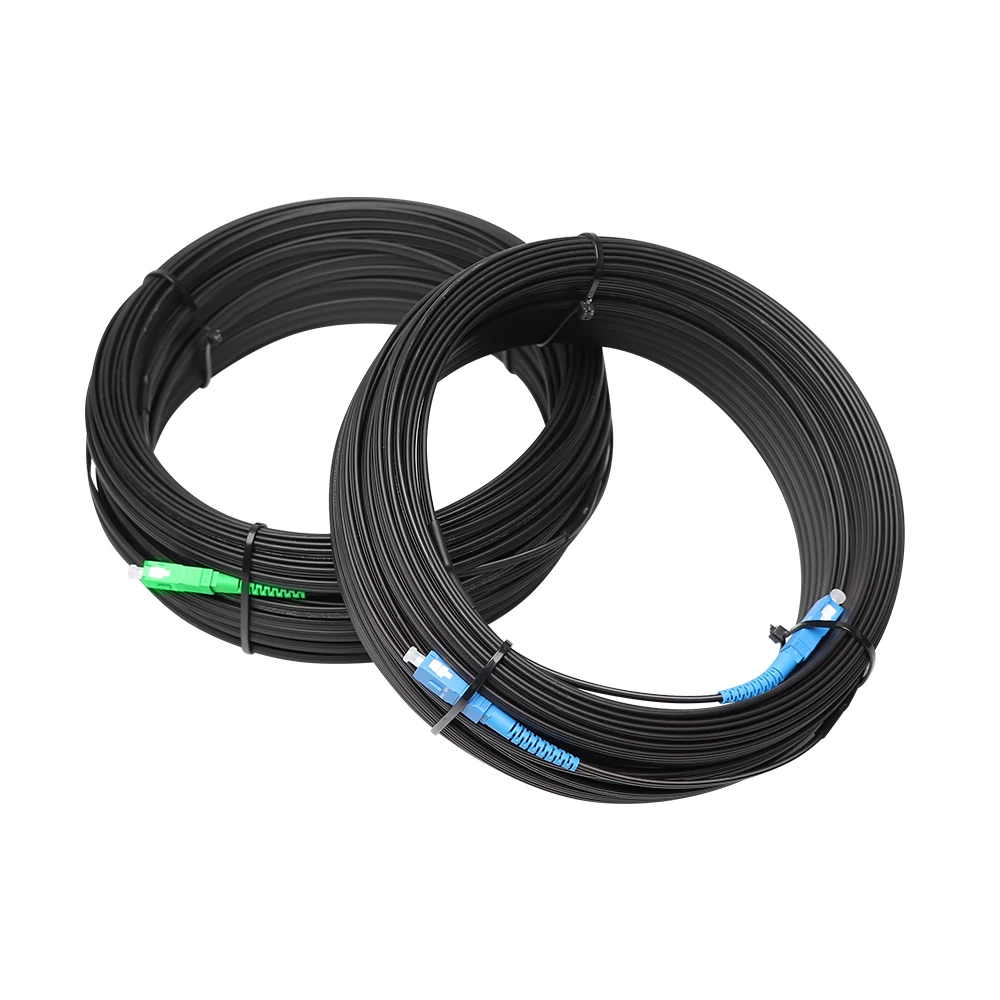

SC UPC APC Single Mode G657A2 Simplex 1core Indoor outdoor FTTH Drop fiber optic Patch cord
FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building. FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling. FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.
APPLICATION
FTTH network for indoor and outdoor Local Area Network and Building Cabling Network Interconnect between instruments, terminal box and communication
FEATURES
Low insertion loss, high return loss Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm Connector Types: LC, FC, SC,ST for option Fiber Mode: G652D, G.657A1, G657A2, G657B3 Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC Compliant to IEC standard
Specification:
Connector
SC
UPC
Cable Diameter (mm)
Indoor FTTH Drop Cable
2.0x3.0
Insertion Loss(dB)
≤0.2
Return Loss (dB)
≥50
Cable Diameter (mm)
2.0mm, 3.0mm
Durability(dB)
1000matings, <0.3
Interchangeability (dB)
<0.2
Operating temperature (℃)
-40~+85
Single mode
Multi mode
Surface Type
UPC
APC
UPC
APC
Insert loss
≤0.3dB
≤0.2dB
≤0.3dB
≤0.2dB
Return loss
≥55dB
≥65dB
≥25dB
≥35dB
Operating Wavelength
1310nm,1550nm
850nm
Repeatability
≤0.1dB
≤0.1dB
Working Temperature
-40℃ ~ +75℃
Service Life
>1000 mating cyles
Order Information

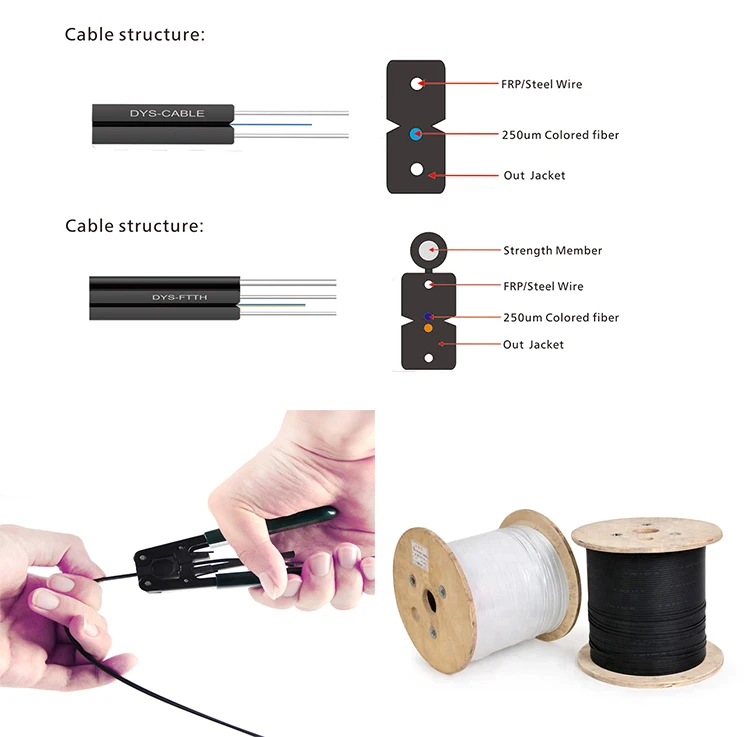

Cable Material: PVC, LSZH (LSOH), OFNR Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 3.0*2.0mm, 5.0*2.0mm.. Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G OM3(50/125um) Polishing: PC, UPC, APC. Length: 0.2m, 0.3m,.... 100m

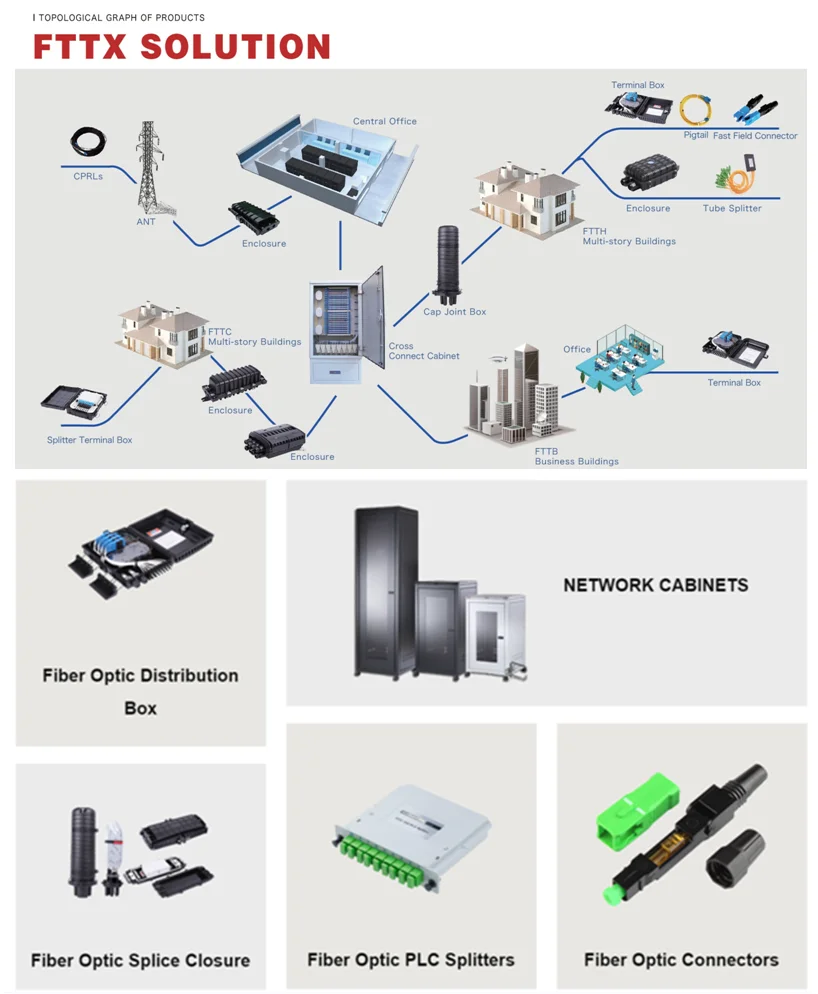

Application
Packaging & Shipping
Our Services

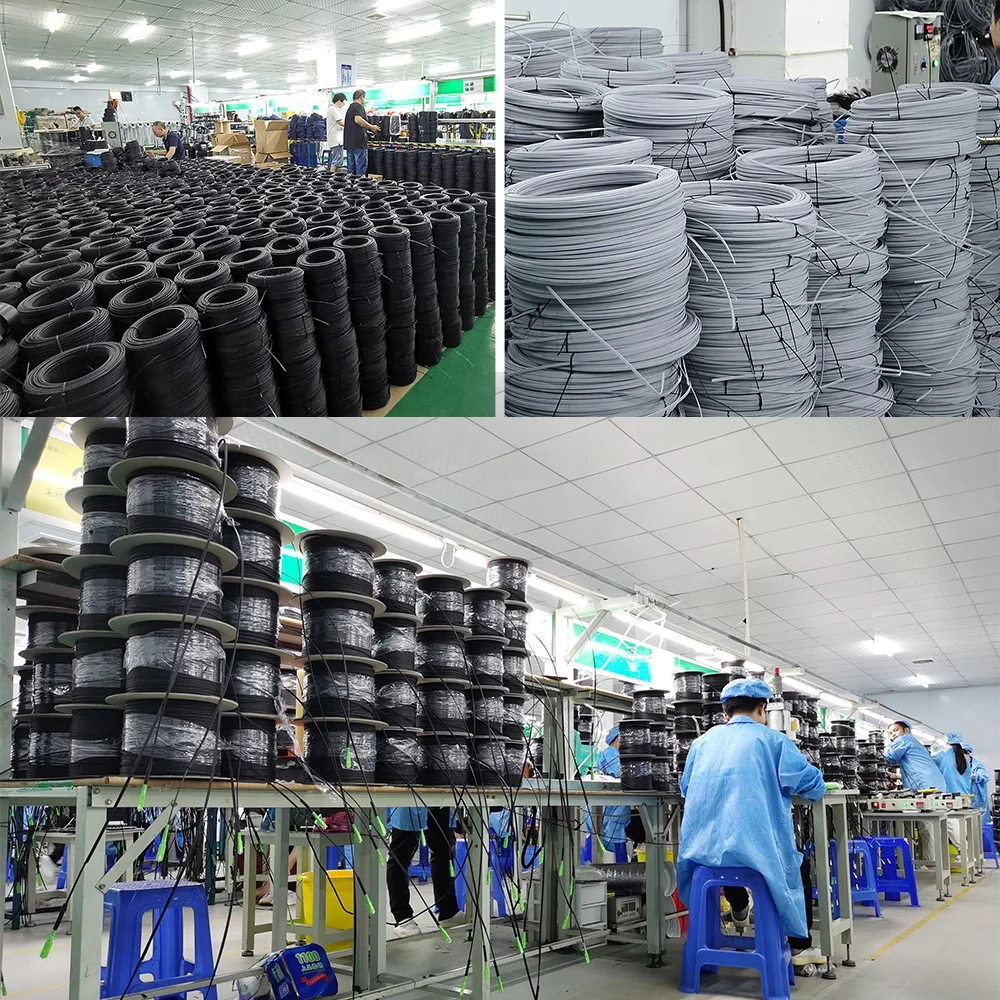

Company Information
FAQ
Can I have a sample order for this product?
We welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-7 days, mass production needs 2-4 weeks.
Do you have any MOQ limit for sample order?
Low MOQ, 1pc for sample checking is available.
What’s the life time for your products?
Normally it is 20 years.
How do you ship the goods and how long does it take to arrive?
Samples ship by DHL, UPS, FedEx or TNT, etc. It usually takes 3-5 days to arrive. Large order by Airline and Sea shipping.
How to proceed an order for the product?
Firstly let us know your requirement or application.
Secondly We quote according to your requirement or our suggestion.
Thirdly customer confirms the samples and places formal order.
