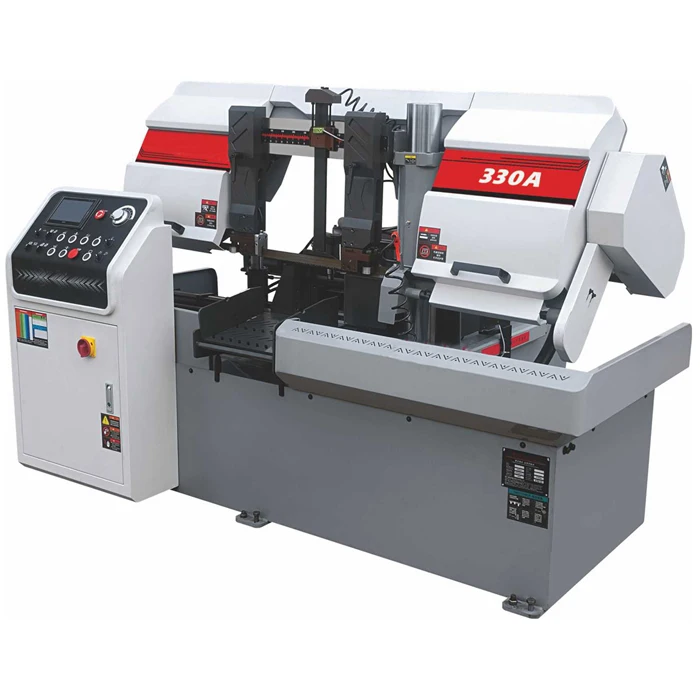

Double Column Horizontal Metal Band Sawing Machine CH-330HA metal cutting machine model 330A
- Category: Band Saw Machines >>>
- Supplier: Shanghai,Ants,Machine,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Maximum sawing size | R：330 Q：330*330 | main motor power | 4kW | ||||
Band saw blade specifications | 34×1.1×4115 mm | Hydraulic motor power | 0.75kW | ||||
Band saw blade cutting speed | 18/30/50/70 m/min | Cooling pump power | 0.06W | ||||
Band saw blade feed speed | Stepless speed regulation 500mm × 10 times | work feeding | Hydraulic | ||||
machine weight | 2322kgs | machine size（LxWxH） | 2500×2260×1620 | ||||
* Extreme sawing: φ300 45 # solid bar material Sawing time: 4 minutes 5 seconds
* CH-330HA Extreme sawing: φ300 45 # solid bar material Sawing time: 6 minutes 42 seconds
* CH-330HA Extreme sawing: φ300 45 # solid bar material Sawing time: 6 minutes 42 seconds

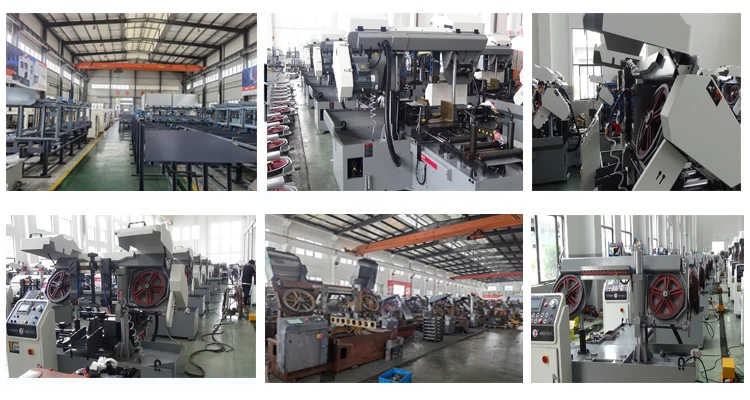

ANTS Machine Factory
ANTS Machine Package
ANTS Machine Certificate
