Automatic galvanized wire welded wire mesh machine for construction
- Category: >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (1600301256115):
Product Overview
Description
Machine Introduction

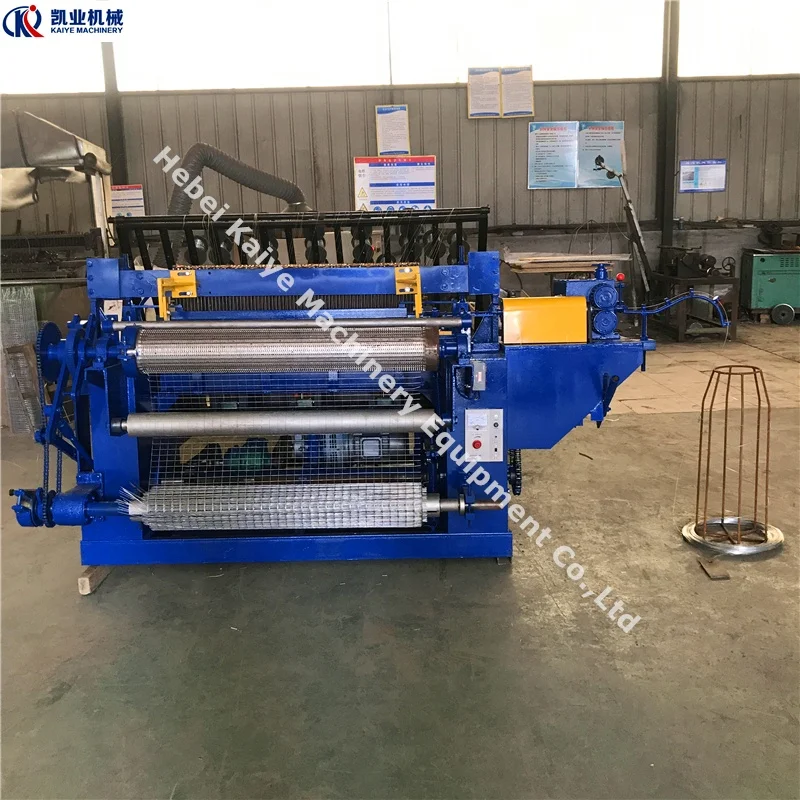

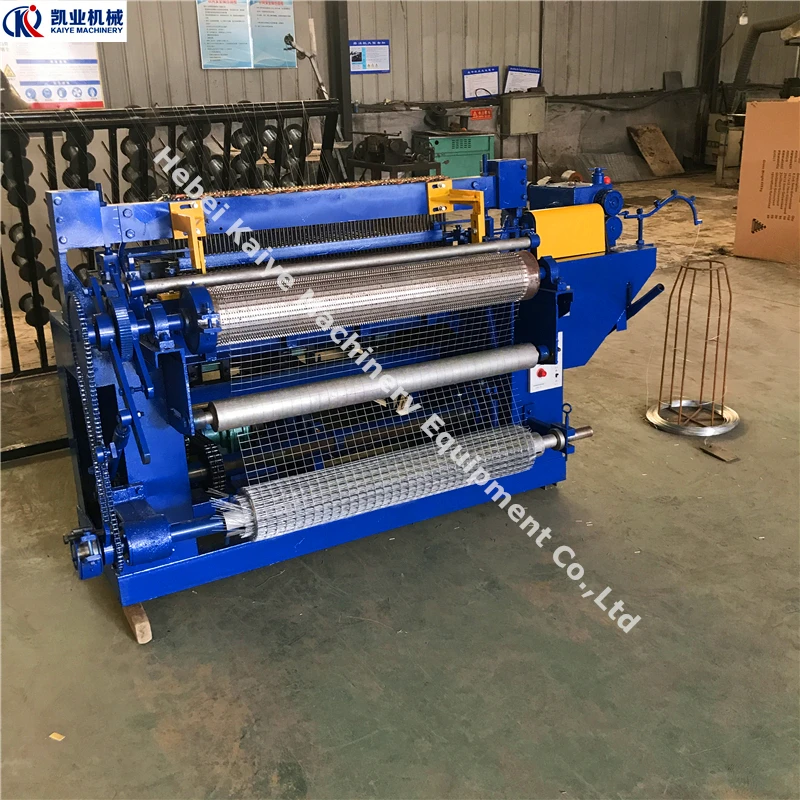

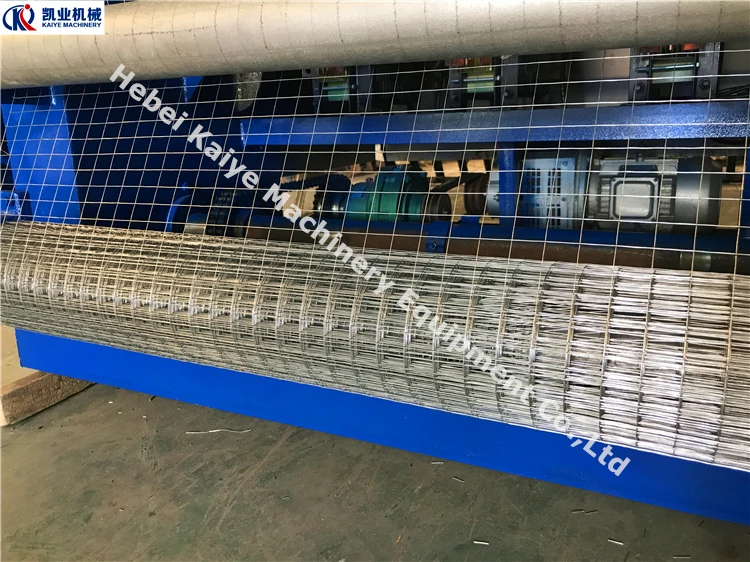

Automatic roll mesh welded wire mesh machine
Welded wire mesh machines is used for making roll type welded wire mesh, usually use thinner wire.this kind of roll wire mesh is characterized by flat mesh surface, uniform mesh, firm welding joints, good local machining performance, stability and good corrosion resistance the commonly used wires are galvanized wire, hot-dip galvanized wire, black iron wire, etc.
It is widely used in industry, mining, agriculture, construction, transportation, such as the animal fence, window guard, channel fences and decorations.
Our welded wire mesh machine can be customized as customer required different specification.
It is widely used in industry, mining, agriculture, construction, transportation, such as the animal fence, window guard, channel fences and decorations.
Our welded wire mesh machine can be customized as customer required different specification.
Mechanical advantages:
1 ➤ Both line wire and cross wires are fully automatic wire feeding through the wire reel.
2 ➤ The mesh roll length can be set by the control panel.
2 ➤ The mesh roll length can be set by the control panel.
3 ➤ You can produce two rolled wire mesh at the same time, just adjust the cutter position.
4 ➤ We can easily adjust the welding current when we need to weld different wire diameters.
5 ➤ Machinery can be equipped with flat mesh system if you need to produce flat wire mesh.
6 ➤ We can set the output on the counter, and the machine will stop automatically after production.
4 ➤ We can easily adjust the welding current when we need to weld different wire diameters.
5 ➤ Machinery can be equipped with flat mesh system if you need to produce flat wire mesh.
6 ➤ We can set the output on the counter, and the machine will stop automatically after production.
Machine Specification
Model | KY-DHW-1200 | KY-DHW-1500 | KY-DHW-1800 | KY-DHW-2100 |
Mesh width | Max.1200 mm | Max.1500 mm | Max.1800 mm | Max.2100 mm |
Mesh hole size | 1/2" (12.7 mm) 3/4" (19.05 mm) 1" (25.4 mm) 2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm) 1" (25.4 mm) 2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm) 1" (25.4 mm) 2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm) 1" (25.4 mm) 2" (50.8 mm) |
Wire diameter | 0.4 mm~0.7 mm 0.7 mm~1.3 mm 1.1 m~2.0 mm | 0.6 mm~1.0 mm 1.0 mm~1.4 mm 1.4 mm~2.0 mm | 0.7 mm~1.2 mm 1.2 mm~-1.4 mm 1.4 mm~2.0 mm | 0.7 mm~1.2 mm 1.2 mm~1.5 mm 1.5 mm~2.0 mm |
Welding speed | 60-150 Times/min | 60-120 Times/min | 60-100 Times/min | 60-100 Times/min |
Transformer | 60KVA*4 75KVA*4 100KVA*4 | 60KVA*5 75KVA*5 100KVA*5 | 60KVA*6 80KVA*6 100KVA*6 | 60KVA*7 80KVA*7 100KVA*7 |
Dimensions | 2.8 X 1.6 X 1.65 m | 3.2 X 1.6 X 1.65 m | 3.5 X 1.6 X 1.65 m | 3.8 X 1.6 X 1.65 m |
Weight | 3400 KG | 3700 KG | 4000 KG | 4500 KG |
Machine Features

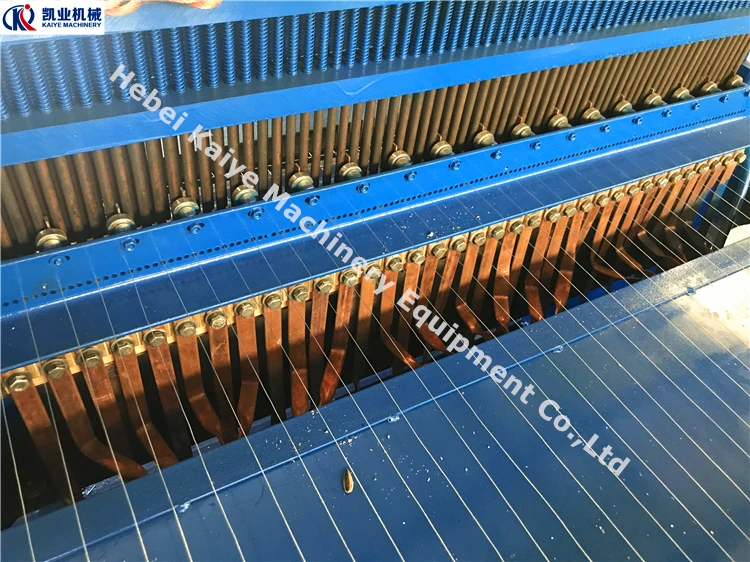

Welding electrodes
The welding electrode is different from ordinary copper. It uses high chromium copper alloy, which can significantly increase the service life of the electrode.

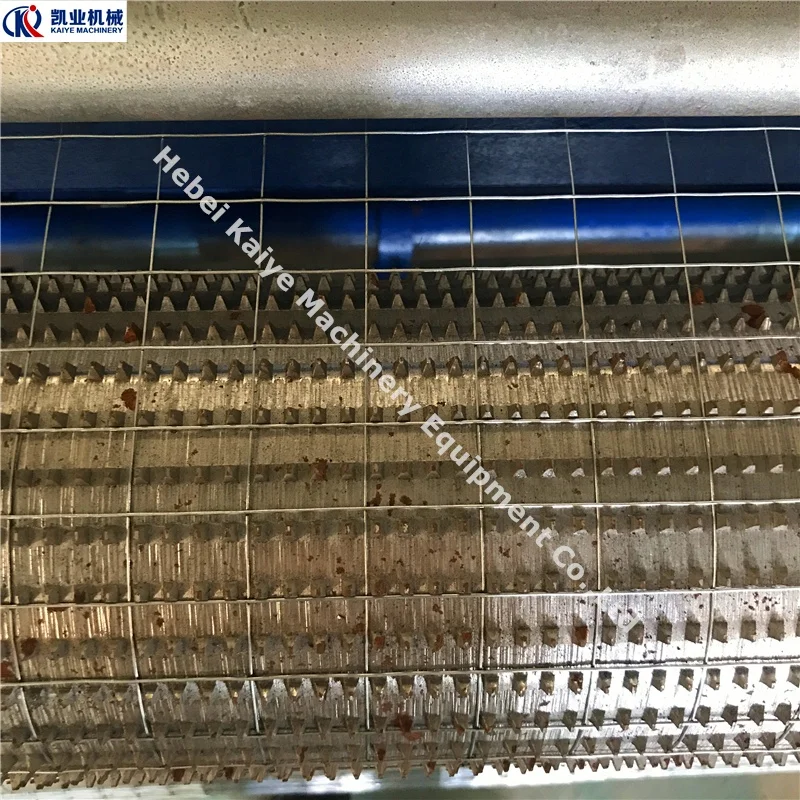

Cross wire feeding system
The cross wire feeding system uses high-speed straightening drum to ensure low noise and stable temperature for long-term operation.
Control button
The main machine is equipped with a control button, which can stop in time when the machine fails, so as to reduce the waste of wire mesh.
Current control
The main machine is also equipped with an ammeter. We can adjust the current at any time according to the different welding wire diameter.
Cutter
The cutter is equipped at the edge and middle of the wire mesh to ensure that the edge of the wire mesh is very neat, and two rolls of mesh can be produced together.
Flat wire mesh system
Our machinery can produce rolled wire mesh. If customers need it, we can also increase the device for producing flat wire mesh.
Machinery can produce rolled wire mesh and flat wire mesh.

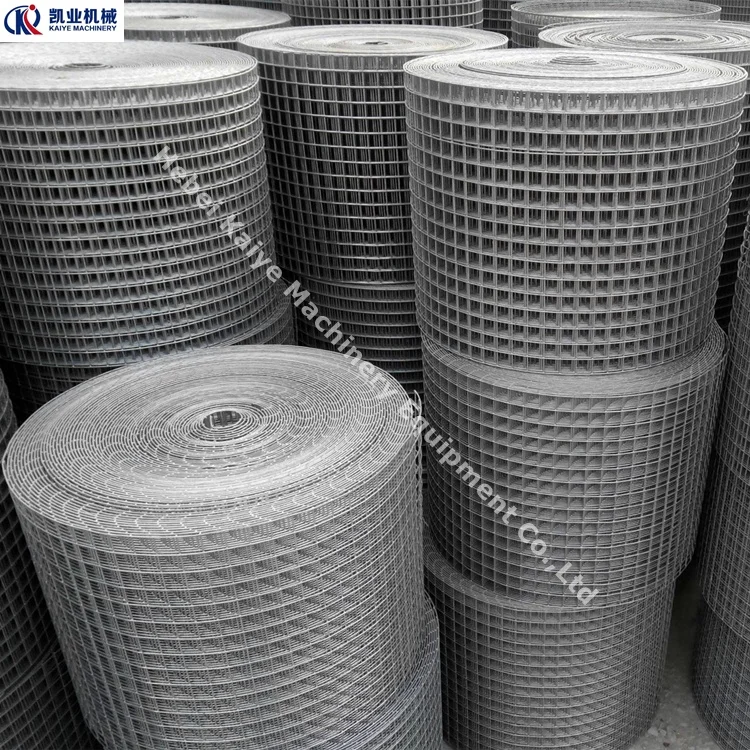

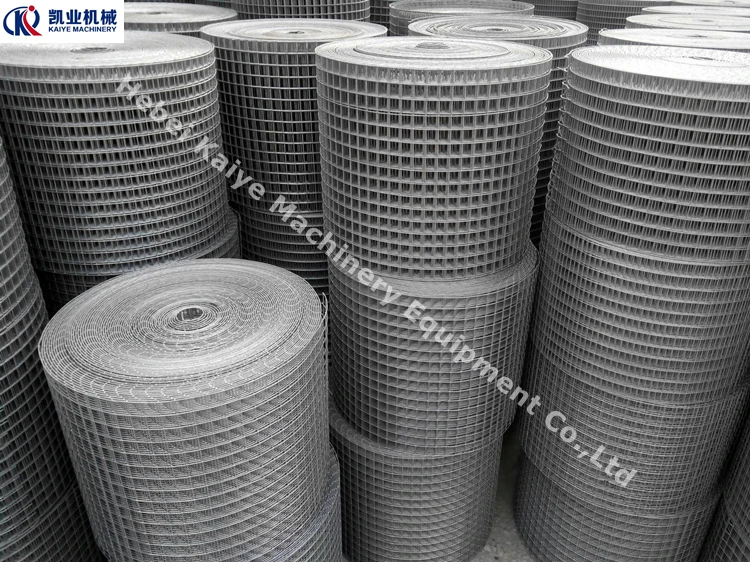

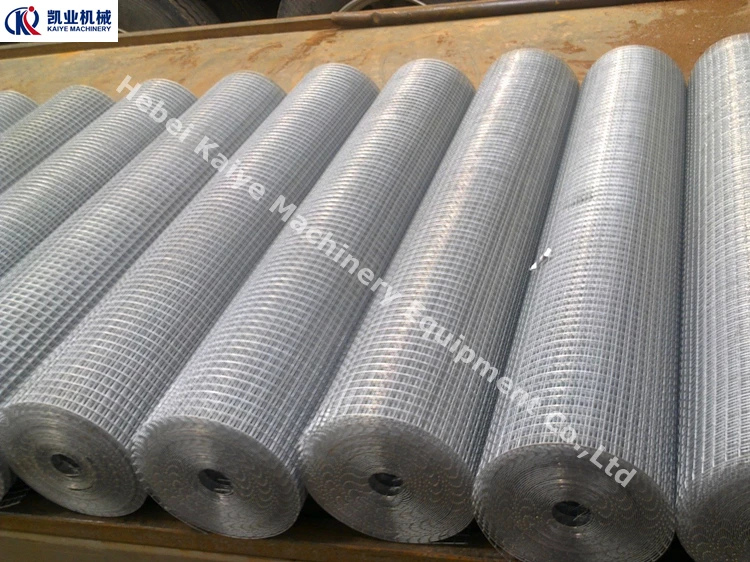

(rolled wire mesh)

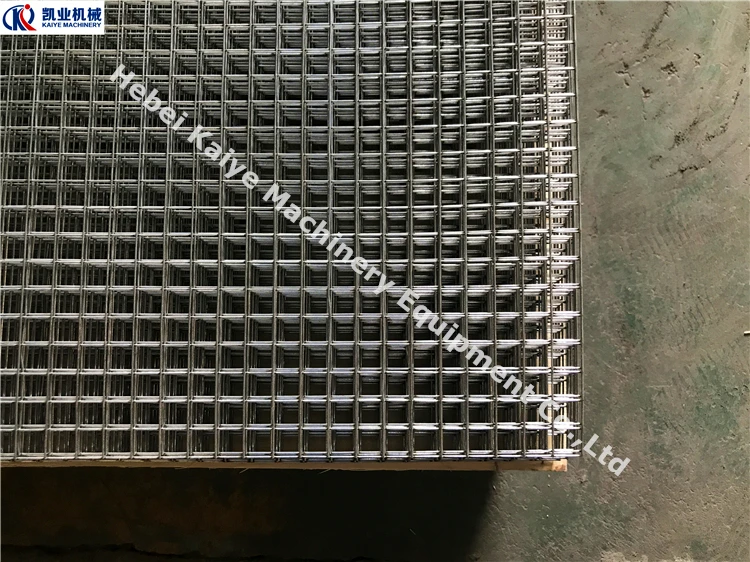

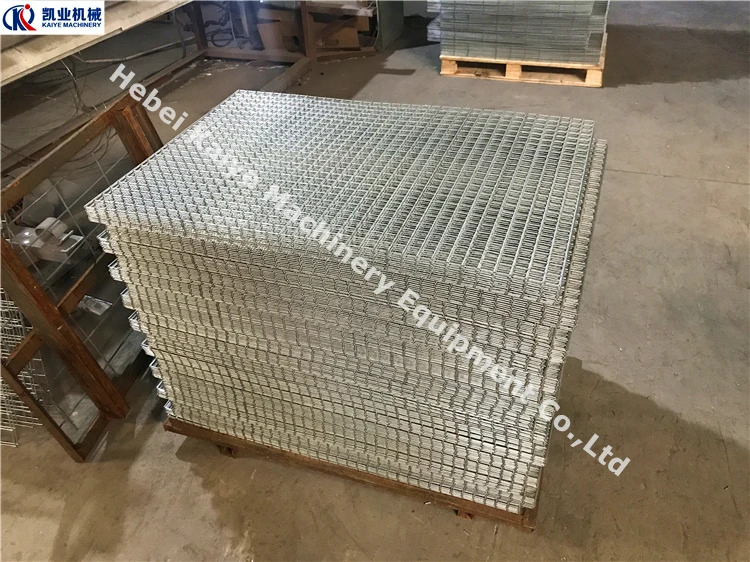

(Flat wire mesh)
Auxiliary Machinery

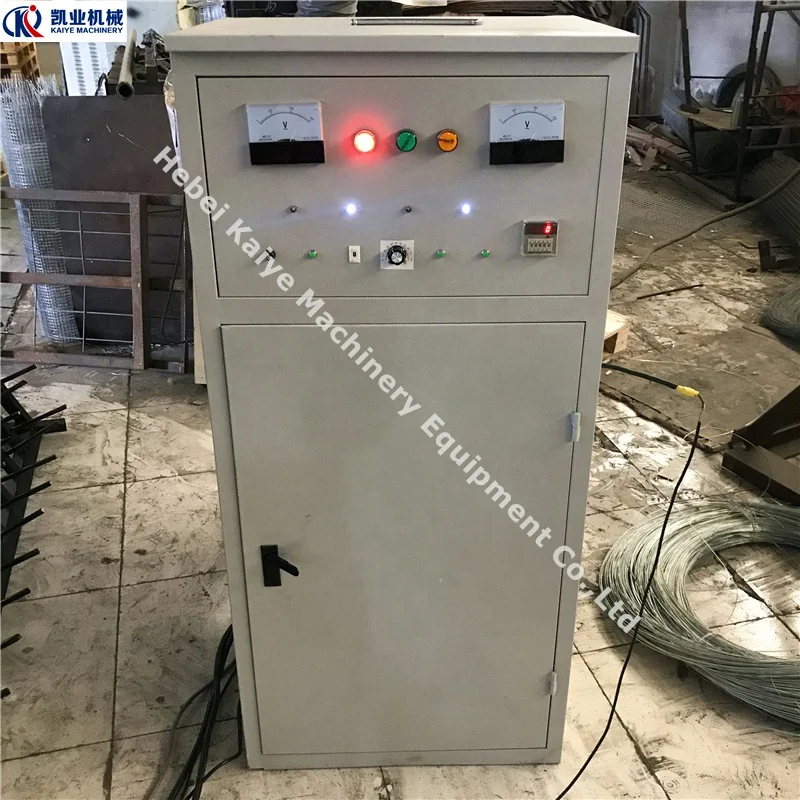

Electric control cabinet

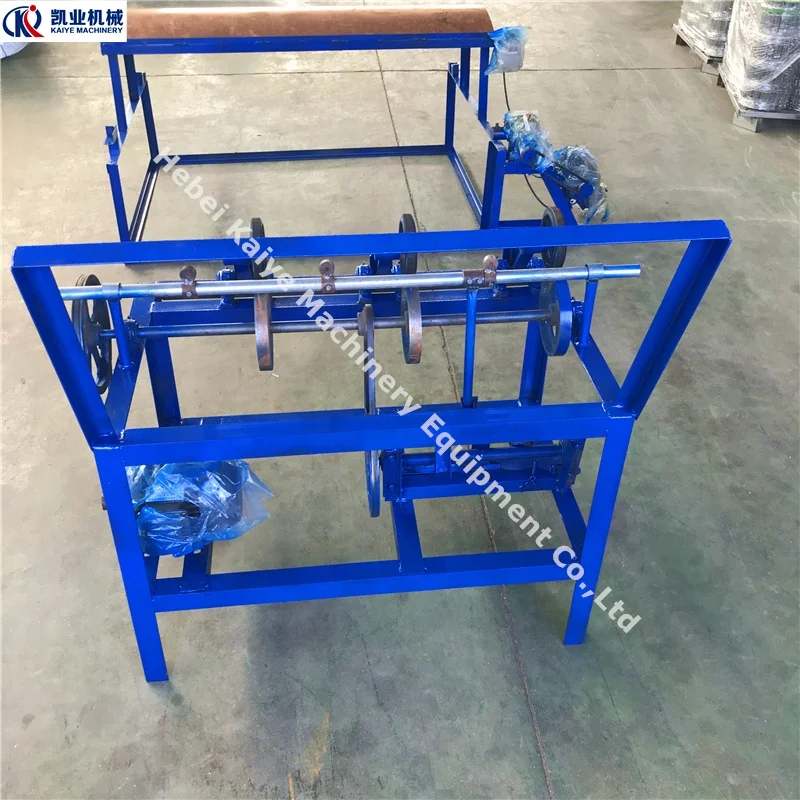

Wire rolling machine

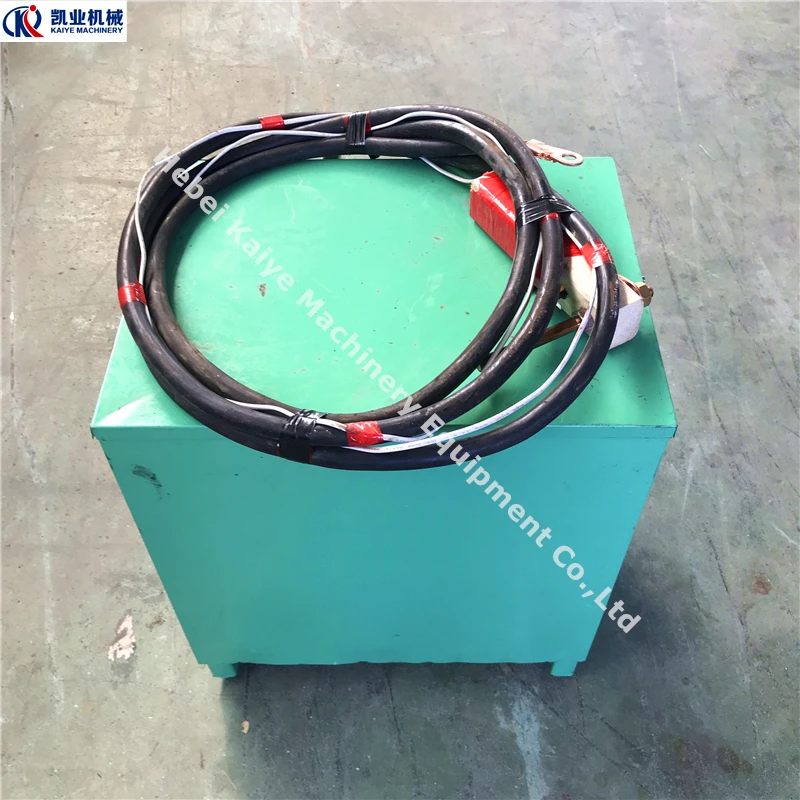

Repair welding machine

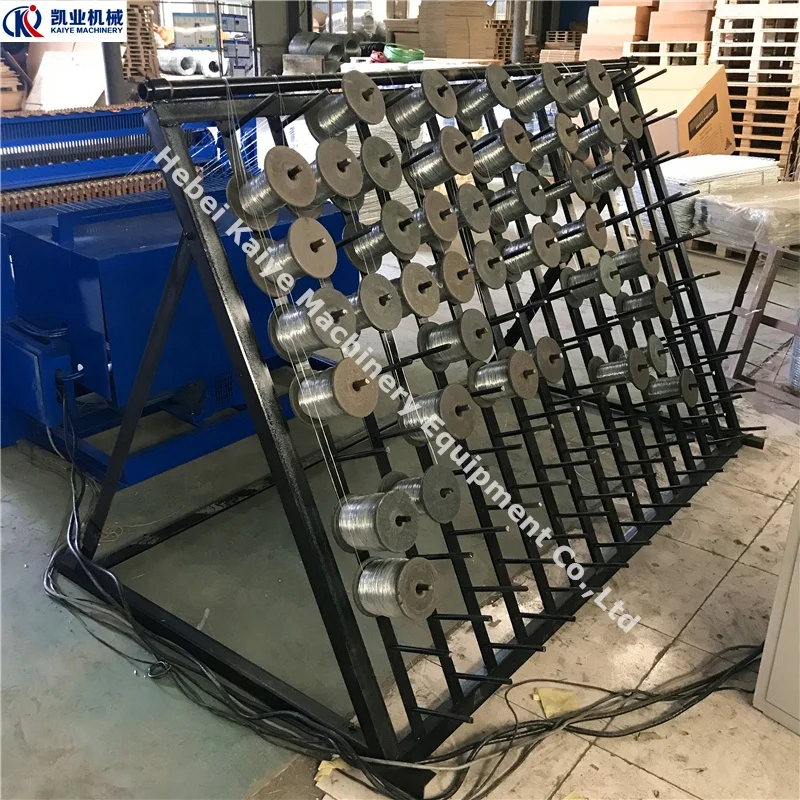

Bobbin pay off rack

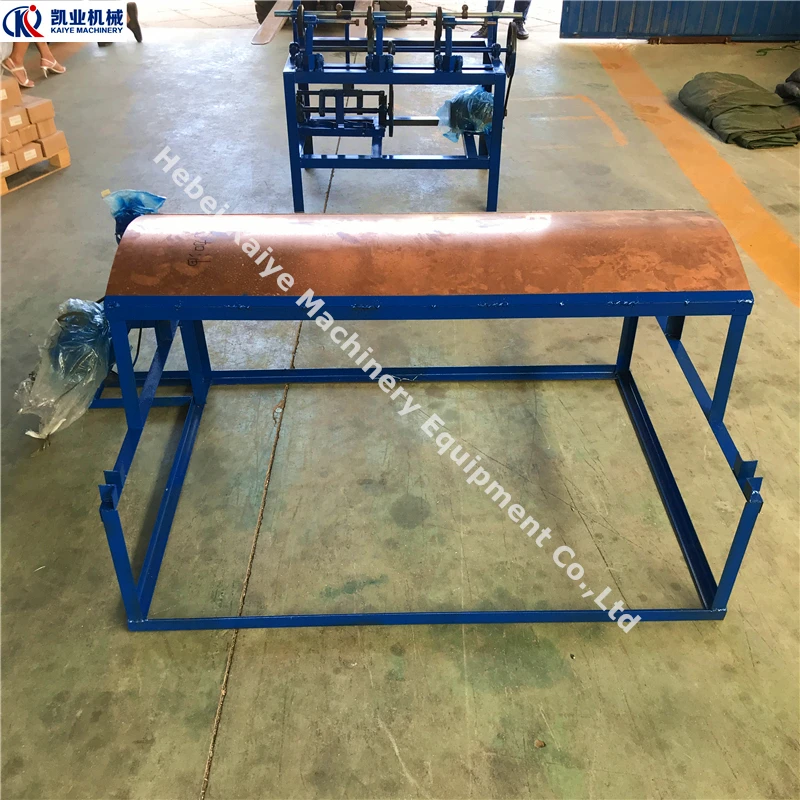

Mesh repair table

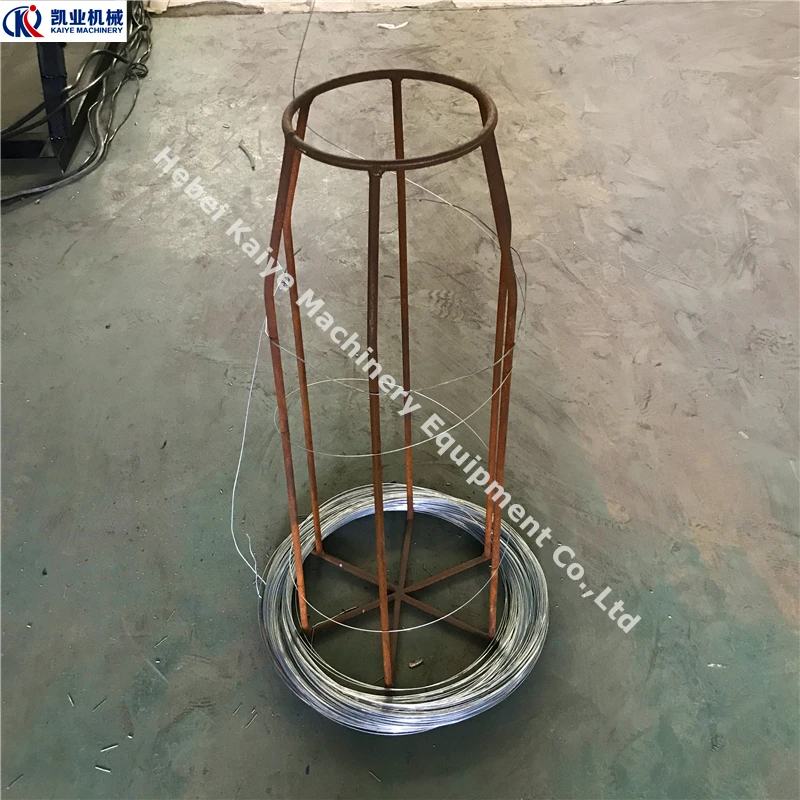

Wire pay off rack
Packaging & Shipping
The main parts of the machine are placed in the container and fixed in the container by steel wire to ensure stability.
Some small accessories are placed in wooden boxes and then in containers.
Company Information
Factory History
Hebei Kaiye Machinery Equipment Co., Ltd.was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel
processing and distribution center and other fields.
processing and distribution center and other fields.

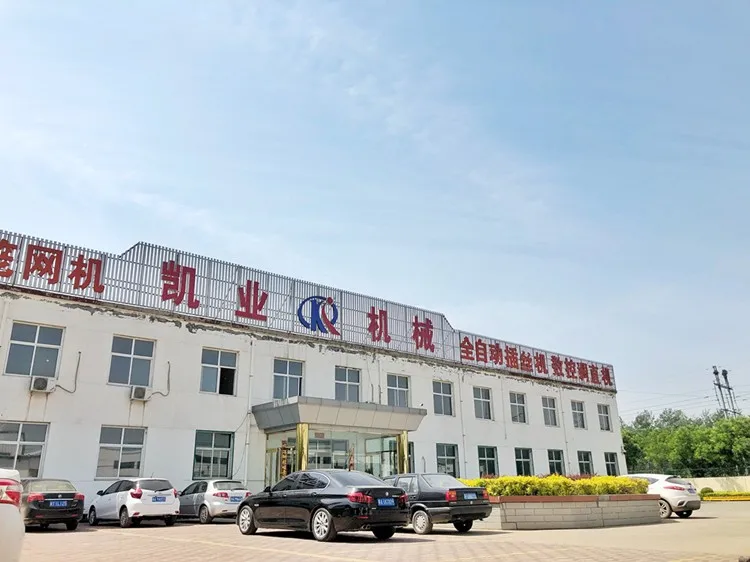

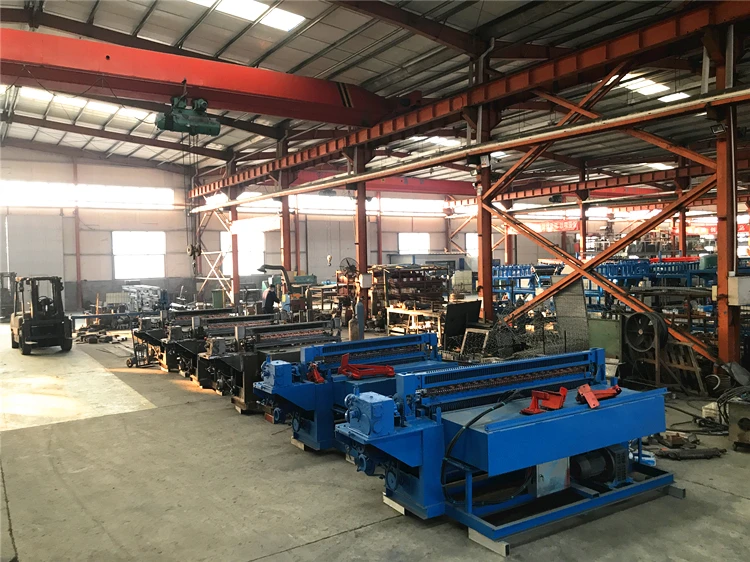

Factory Scale
Our factory covers an area of 12000 square meters, with raw material workshop, machining center workshop, mechanical assembly workshop, mechanical testing workshop.Our main products: wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine, wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine .
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology
is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Customer and Market
Customers come from all over the world
The company's machinery and equipment sell well in China, and are exported to nearly 100 countries and regions such as Romania,Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
If you are interested in our products, please contact us now.
