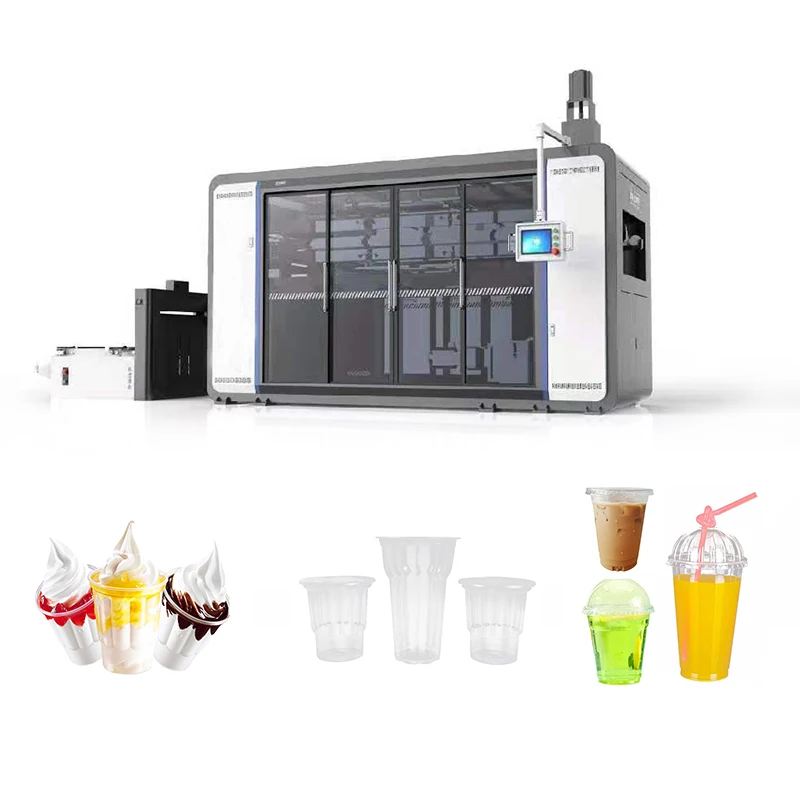

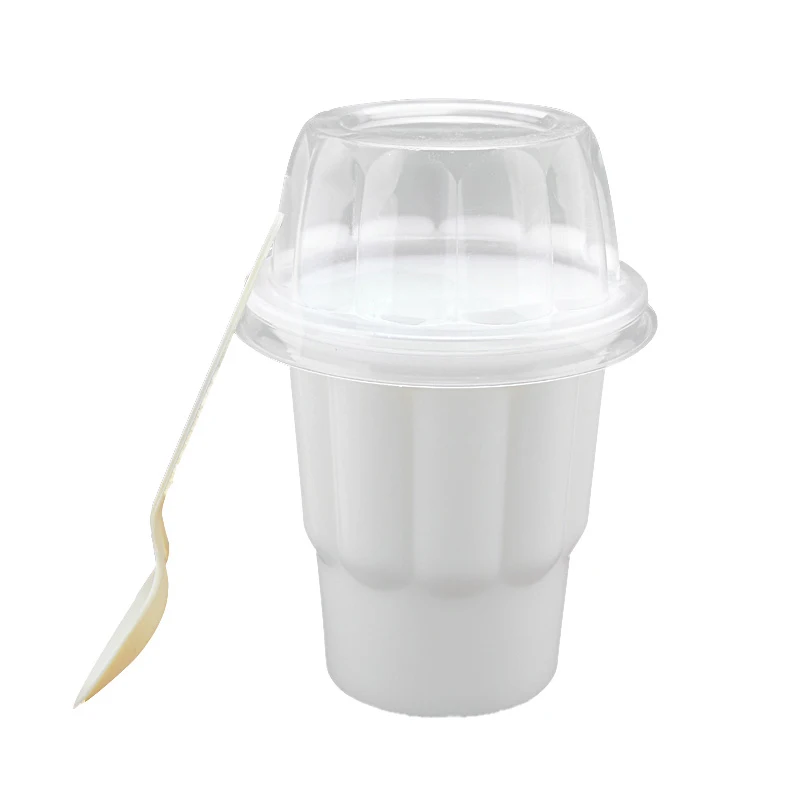

Термоформовочная Машина из ПП пластика, машина для изготовления стаканов для мороженого

 PP Plastic Thermoforming Machine Ice Cream Cup Full Servo Plastic Cup Making Machine

A. Product Application

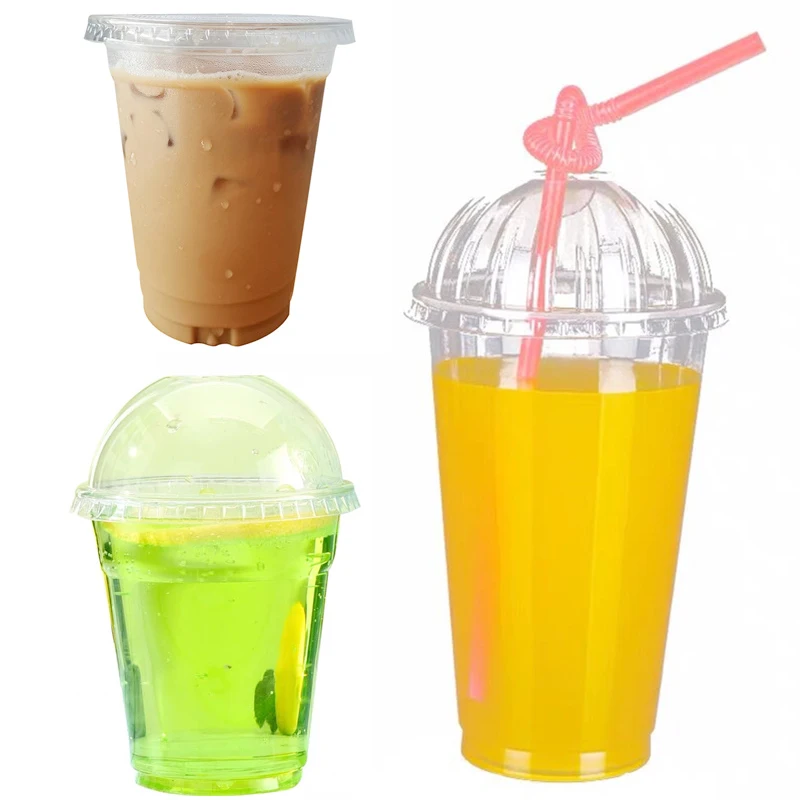

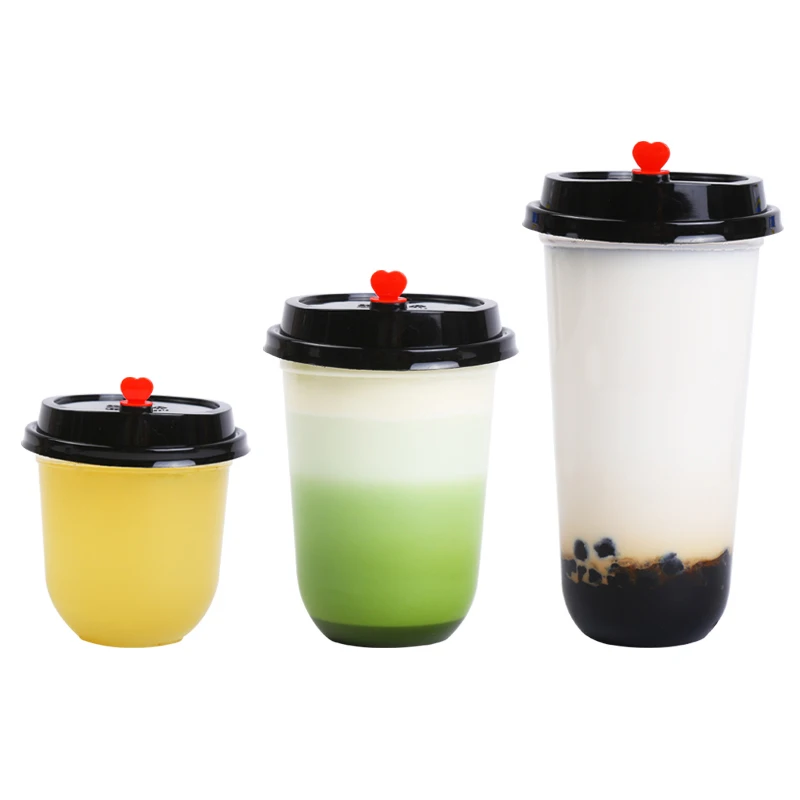

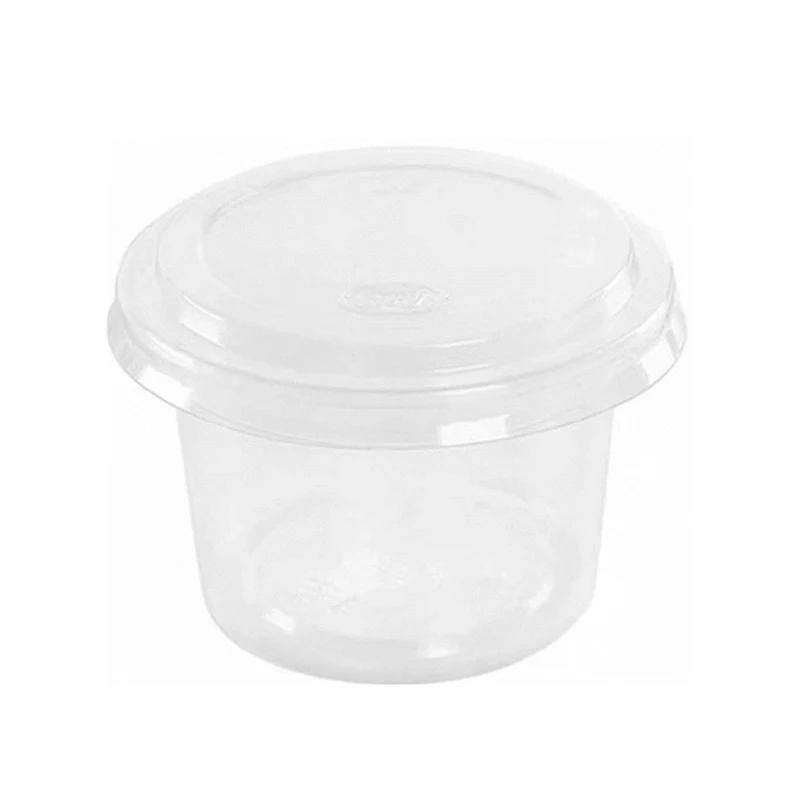

Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.

B.Product Feature

1. Standard square tube frame with 100*100, mould is casted steel and

    upper mould is fixed by nut.

2. Opening and closing mould driven by eccentric gear connecting rod.

    Driving power by 15KW (Japan Yaskawa) servo motor, American KALK

    Reducer,main axis use HRB bearings.

3. Main pneumatic component use SMC(Japan) magnetic.

4. Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.

5. Stretching device uses 11KW Siemens servo.

6. Lubrication device is fully automatic.

7. Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.

8. Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace,            upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11

    pcs heating pads vertically and 8 pcs heating pads horizontally.(specification of heating pad is 85mm*245mm);

    Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable and

    also protect the heater pads.

9. Air filtration uses triplet, blowing cup can adjust airflow.

10. Folding mould is consist of fixed upper plate,flexible mid plate and 4 pillars with surface hard chrome plating

      45#.

11. Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.

12. Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.

13. Toping cups is controlled by AirTAC (Taiwan) cylinder.

Waste Edge Winding Device

1. On-line winding

2. Reducer with 0.75KW motor (1pc)

C. Product Parameter

Electric Control

D. Product Display
