Automatic China Manufacturer transformer Coil width 1600 Mono layer low voltage Cu strip foil winding machine
- Category: >>>
- Supplier: Jiangxi Hongjun Environmental Protection Technology Co. Ltd.
Share on (1600301275068):
Product Overview
Description
Production Description
Main Technical Diameters | ||||||||||||||||
BRJ-1600-1 Automatic foil winding machine | ||||||||||||||||
No. | Model | BRJ-1600-1 | BRJ-1400-1 | BRJ-1200-1 | BRJ-1000-1 | BRJ-800-1 | BRJ-600-1 | BRJ-400-1 | ||||||||
1 | Coil Width | 1600 | 1400 | 1200 | 1000 | 800 | 600 | 400 | ||||||||
2 | coil form | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | ||||||||
3 | Coil material | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | ||||||||
4 | Foil thickness (mm) | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | Cu:0.3～2; Al:0.5～2.2: | ||||||||
5 | loading tube length | 1650 | 1450 | 1250 | 1050 | 850 | 650 | 650 | ||||||||
6 | bearing cylinder loading (Max) | 3500kg | 3500kg | 3000kg | 3000kg | 2500kg | 2000kg | 2000kg | ||||||||
7 | expansion force | 12000N | 10000N | 9000N | 8000N | 7000N | 6000N | 6000N | ||||||||
8 | Expanding pressure | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | ||||||||
9 | way of rectifying | automatic | automatic | automatic | automatic | automatic | automatic | automatic | ||||||||
10 | winding speed | 0～24 RPM | 0～24 RPM | 0～24 RPM | 0～24 RPM | 0～24 RPM | 0～24 RPM | 0～24 RPM | ||||||||
11 | work torque (Max) | 12000N | 10000N | 9000N | 8000N | 7000N | 6000N | 6000N | ||||||||
12 | wind power | 18.5 KW | 15 KW | 15KW | 11 KW | 11 KW | 11 KW | 11 KW | ||||||||
13 | welding way | TIG | TIG | TIG | TIG | TIG | TIG | TIG | ||||||||
1.Application

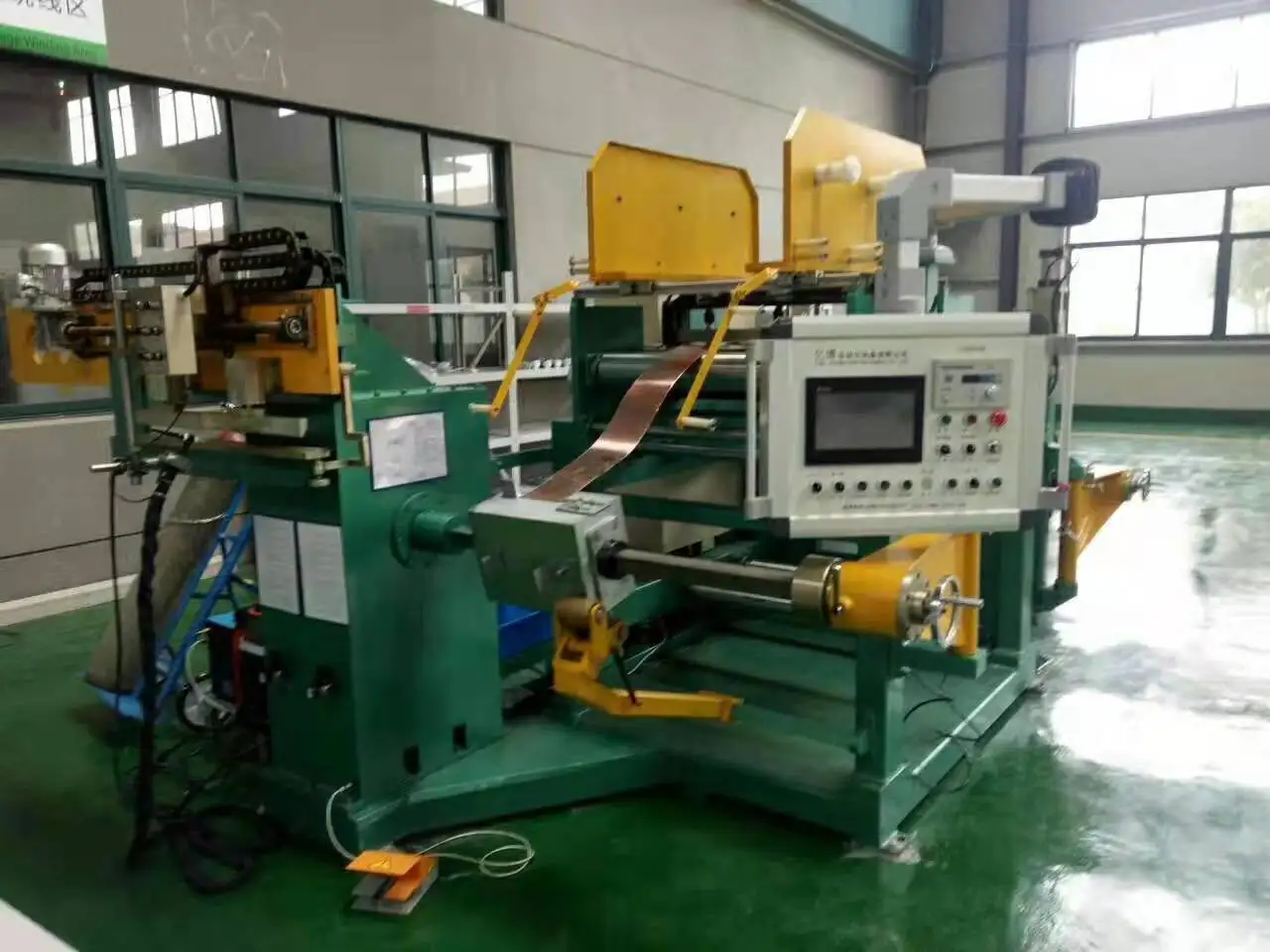

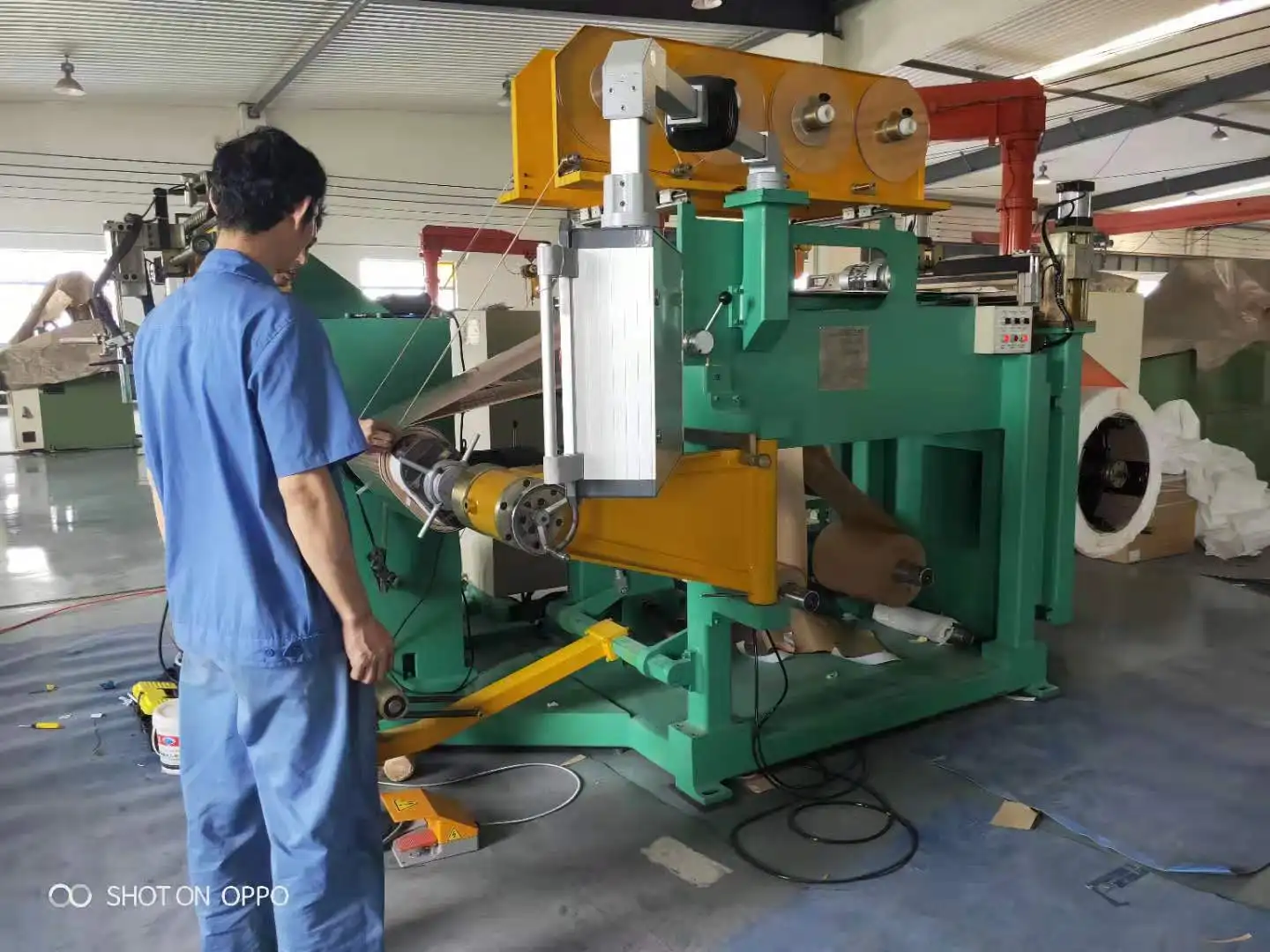

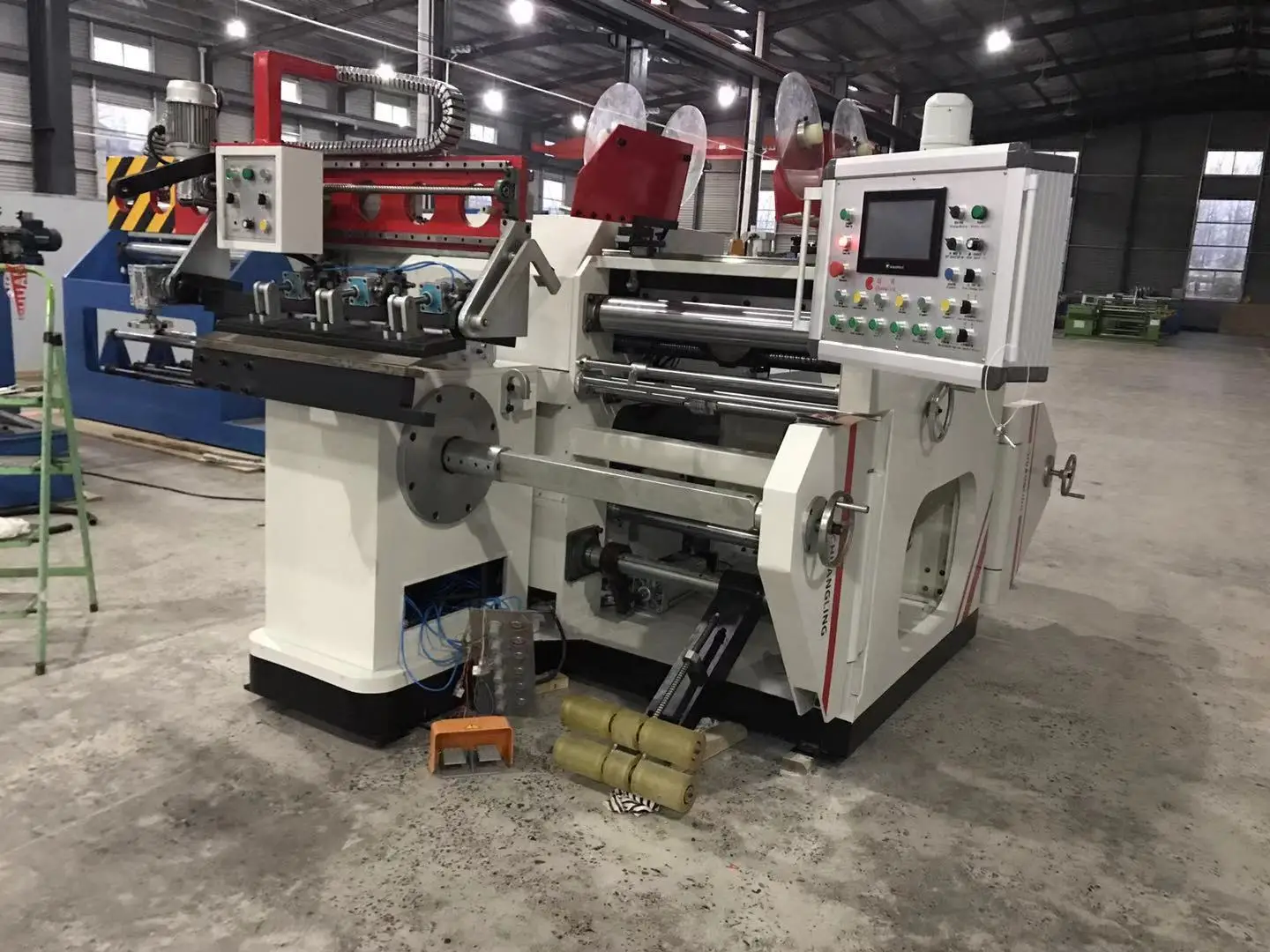

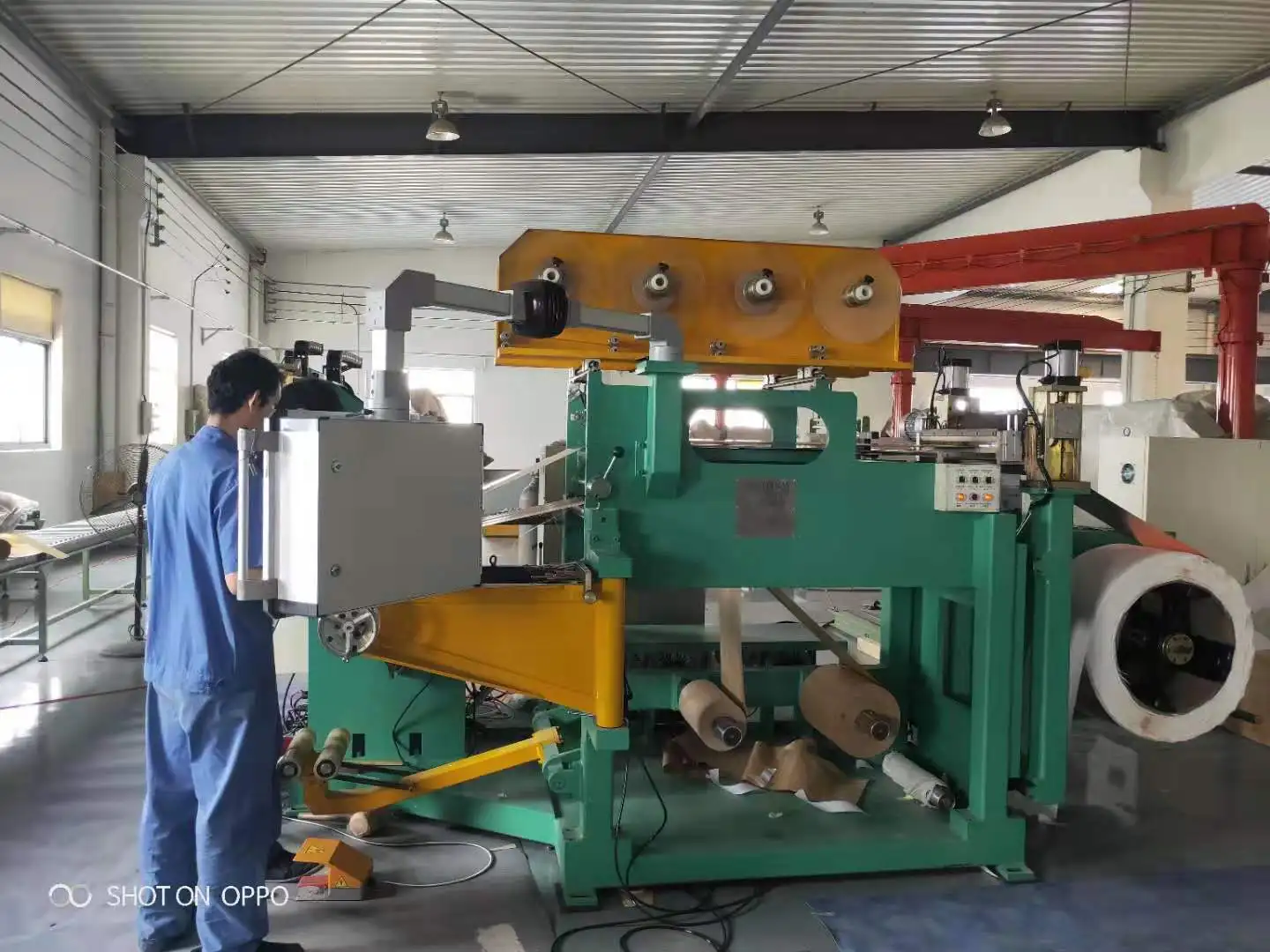

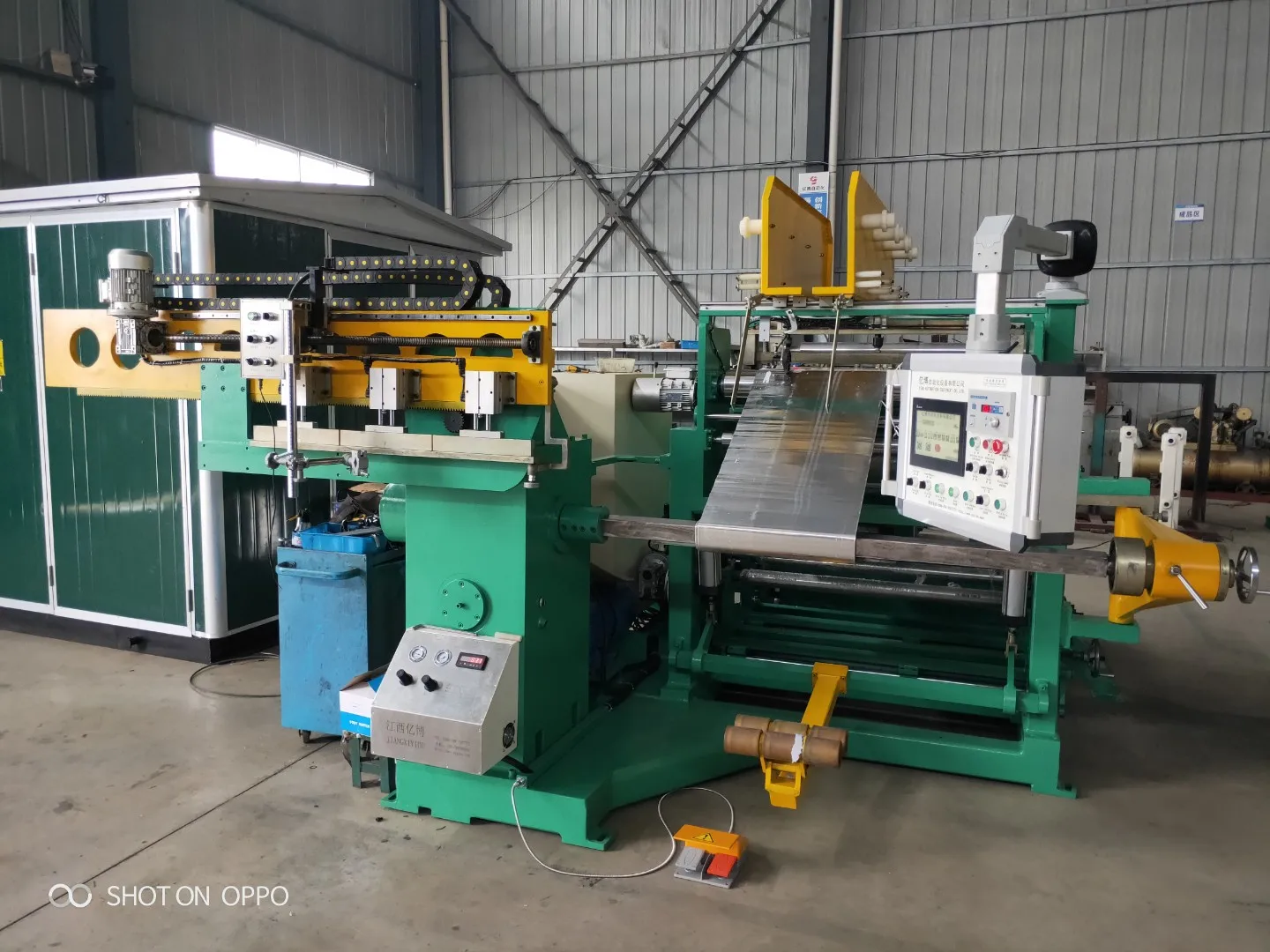

BRJ-1600-1 Semi-automatic two Uncoiler device foil coil winding machine is used for winding transformer low Voltage coil .
2. features:
1 )Tension system, the machine by uncoiling tension, compare with the traditional passive tension can guarantee the stability of the whole process of winding tension.
2) adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3 )Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4) Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5) Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part:
1. Uncoiling and rectifying device: (1 sets)
2. Charging and wool pressing device;(1 sets)
3. Cleaning device; (1sets)
4. Deviation correction sensor device;(1 sets)
5. Sheering device; (1 sets)
6. insulation layer and winding device: (1sets)
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set (ac/dc argon arc welding machine/cooling water tank)
9. Winding device;(1sets)
10. Winding and pressing device;(1sets)
11. Layer insulation unwinding device; (2 sets)
2. features:
1 )Tension system, the machine by uncoiling tension, compare with the traditional passive tension can guarantee the stability of the whole process of winding tension.
2) adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3 )Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4) Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5) Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part:
1. Uncoiling and rectifying device: (1 sets)
2. Charging and wool pressing device;(1 sets)
3. Cleaning device; (1sets)
4. Deviation correction sensor device;(1 sets)
5. Sheering device; (1 sets)
6. insulation layer and winding device: (1sets)
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set (ac/dc argon arc welding machine/cooling water tank)
9. Winding device;(1sets)
10. Winding and pressing device;(1sets)
11. Layer insulation unwinding device; (2 sets)
