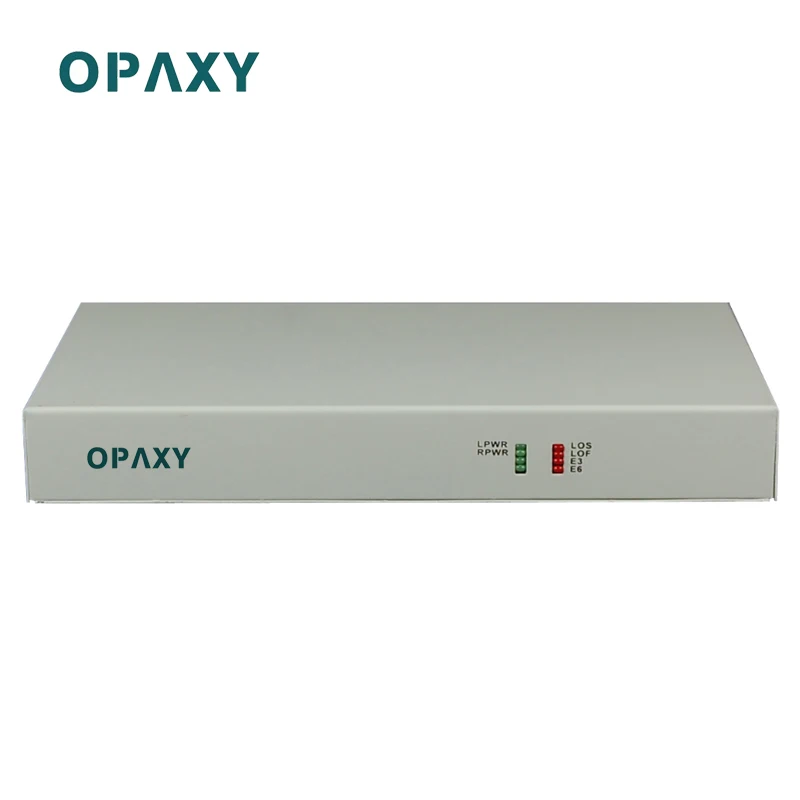

Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots 2Fe Fiber Mux
Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots+2Fe Fiber Mux
Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots+2Fe Fiber Mux
Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots+2Fe Fiber Mux
Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots+2Fe Fiber Mux

Based On Proprietary Integrated Circuit Desktop Tpye 8*Pots 2Fe Fiber Mux

Share on (1600301294537):


Price:$158.00

Quantity:


Product Overview

Description



Product Description




This series is based on the company's proprietary research on VLSI, developed point optical transmission equipment. This product provides 1~8channel telephone; two* Fast Ethernet interface, support VLAN division. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.






Features
 Based on proprietary integrated circuit;
1 ~ 8channel voice access, support caller ID function and reverse polarity billing functions;
2* Ethernet interface, the rate of 10M / 100M, full / half duplex adaptive, two* Ethernet can be set to logical isolation;
Voice port supports FXO and FXS port, EM2/4 audio interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
Support Telephone Number mutual function of each site;
optical port unrepeated transmission distance of up to 2 to 120 km;
Data interface provide the lightning-protection function，which can reach the IEC61000-4-5 (8/20μs), CM (6KV)
multiple power mode options: AC220V, DC-48V / DC24V, etc;
DC-48V / DC24V power supply with automatic polarity detection function, when installed without distinction between positive and negative.


Specification




Model
OP-O8R4/FCP-S8R4
Functional Description
8*POTS（FXO/FXS/2 wire Vioce）+2*FE Ethernet Over Fiber，Desktop Type
Port Description
One Fiber interface；8*POTS；2*FE
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Dimension
Product Size: 136X131X31mm(WXDXH)
Weight
1 KG


Fiber
Multi-mode Fiber
50/125um, 62.5/125um
Maximum transmission distance:
5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)
Wave Length:
 820nm
Transmitting power:
-12dBm (Min) ~-9dBm (Max)
Receiver sensitivity:
-28dBm (Min)
Link budget:
16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance:
40Km
Transmission distance:
40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length:
1310nm
Transmitting power:
-9dBm (Min) ~-8dBm (Max)
Receiver sensitivity:
-27dBm (Min)
Link budget:
18dBm
FXS Phone Interface
Ring voltage:
75V
Ring frequency:
25HZ
Two-line Impedance:
600 Ohm (pick up)
Return loss:
40 dB
FXO Switch Interface
Ring detect voltage:
35V
Ring detection frequency:
 17HZ-60HZ
Two-line Impedance:
600 Ohm (pick up)
Return loss:
 40 dB
EM 2/4 Line
AD:
0dB
DA:
-3.5dB
Two/Four-line Impedance:
600 Ohm
Return loss:
20 dB
Ethernet interface(10/100M)
Interface rate:
10/100 Mbps, half/full duplex auto-negotiation
Interface Standard:
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability:
4096
Connector:
RJ45, support Auto-MDIX
