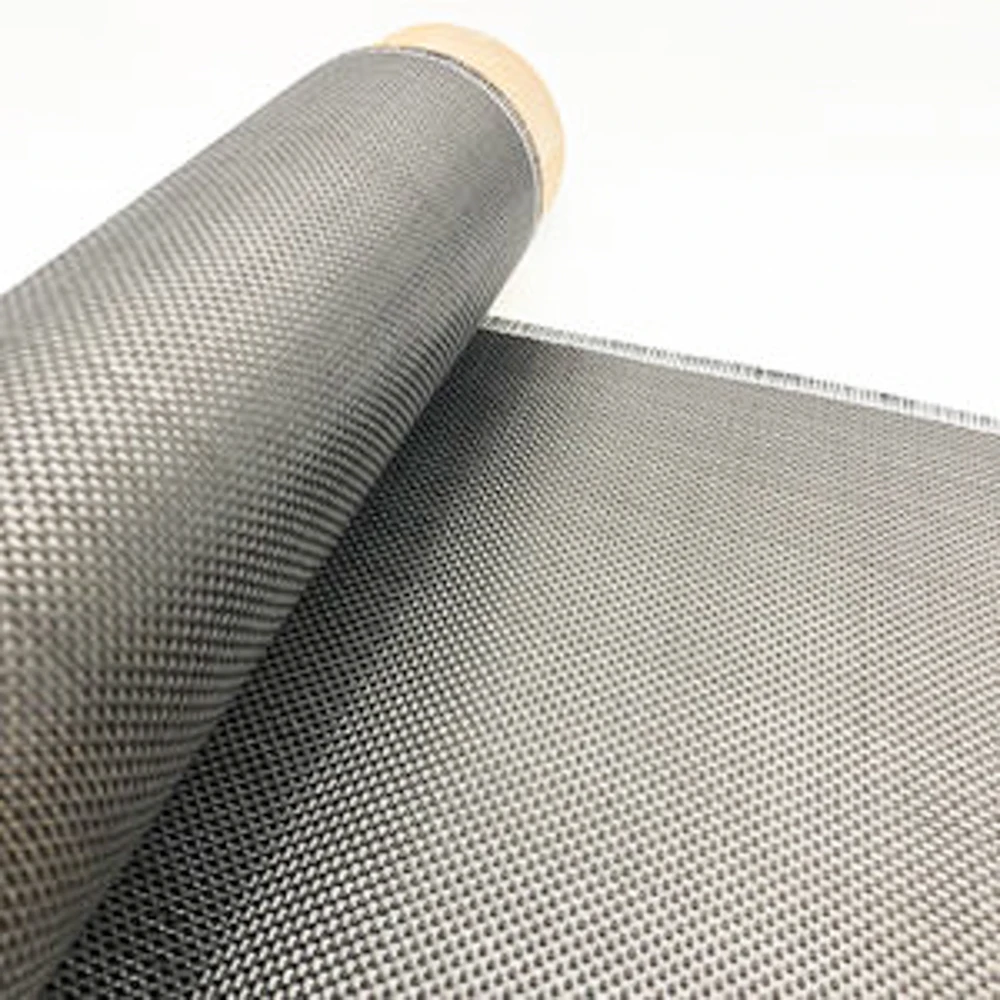

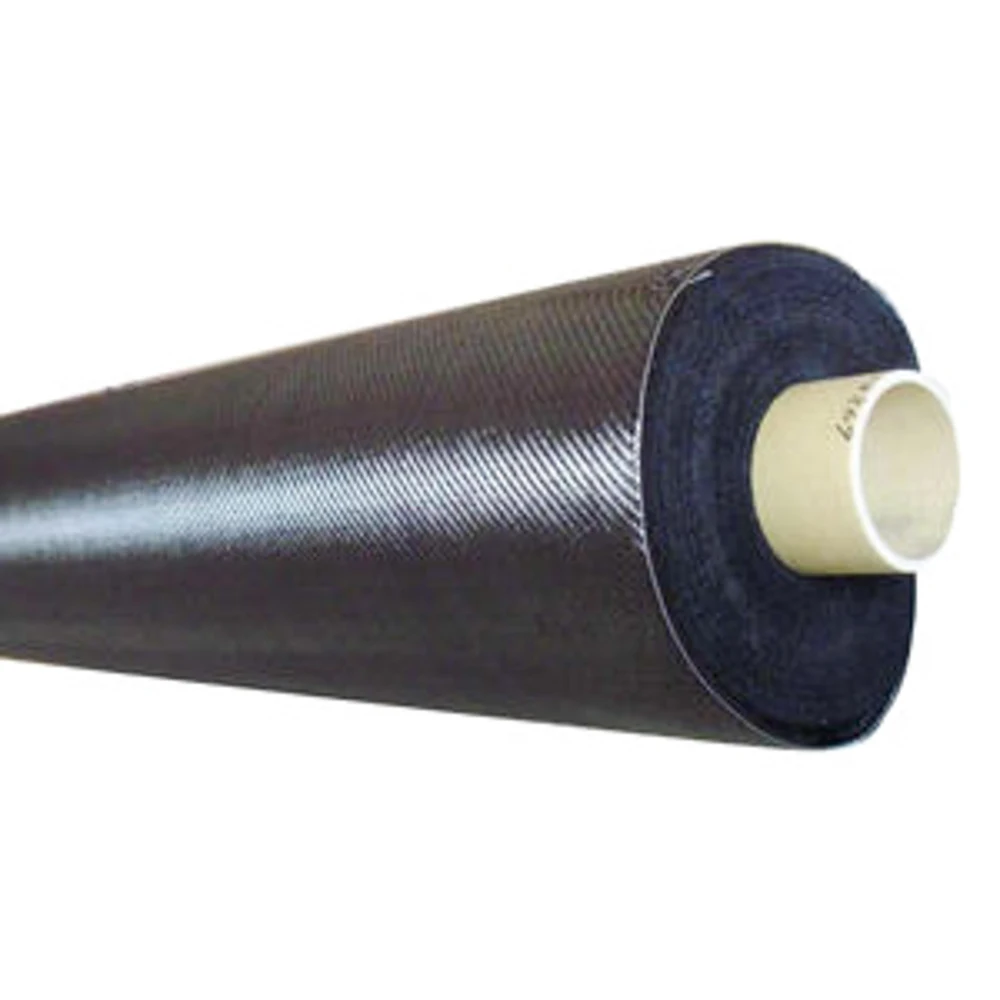

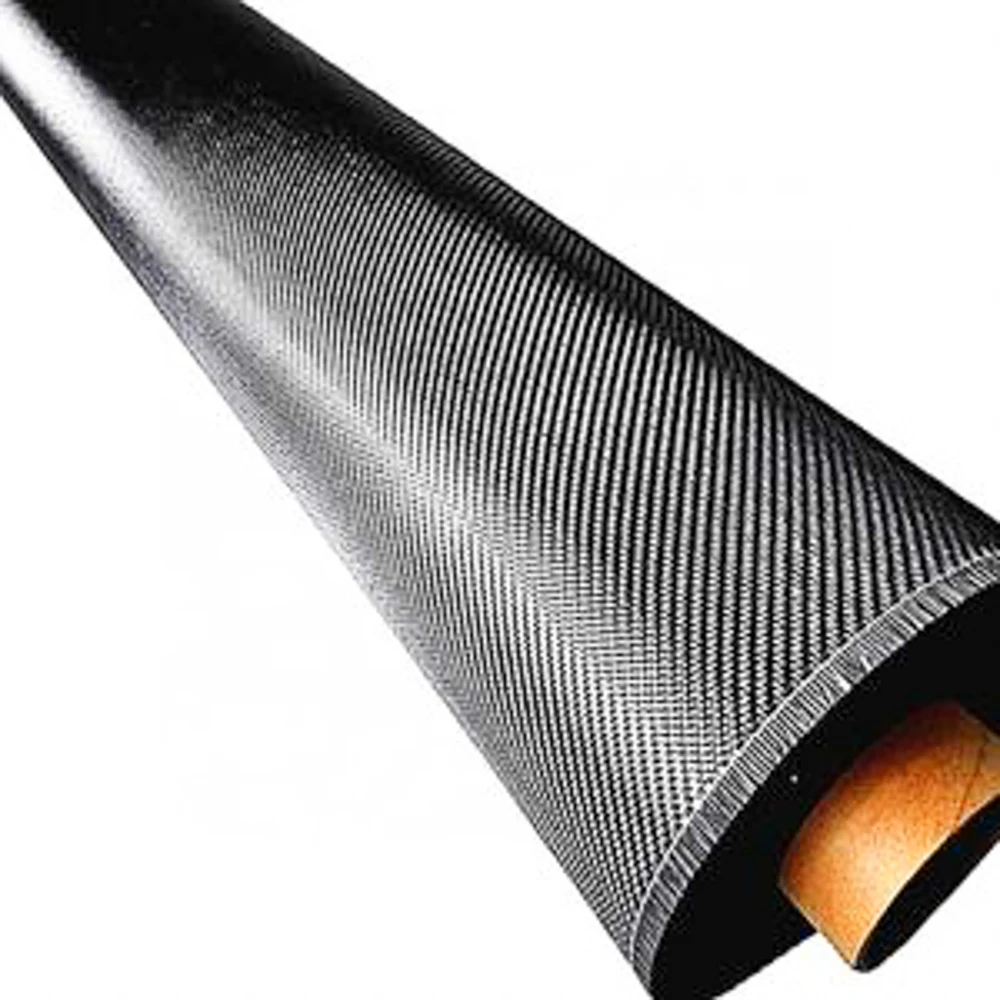

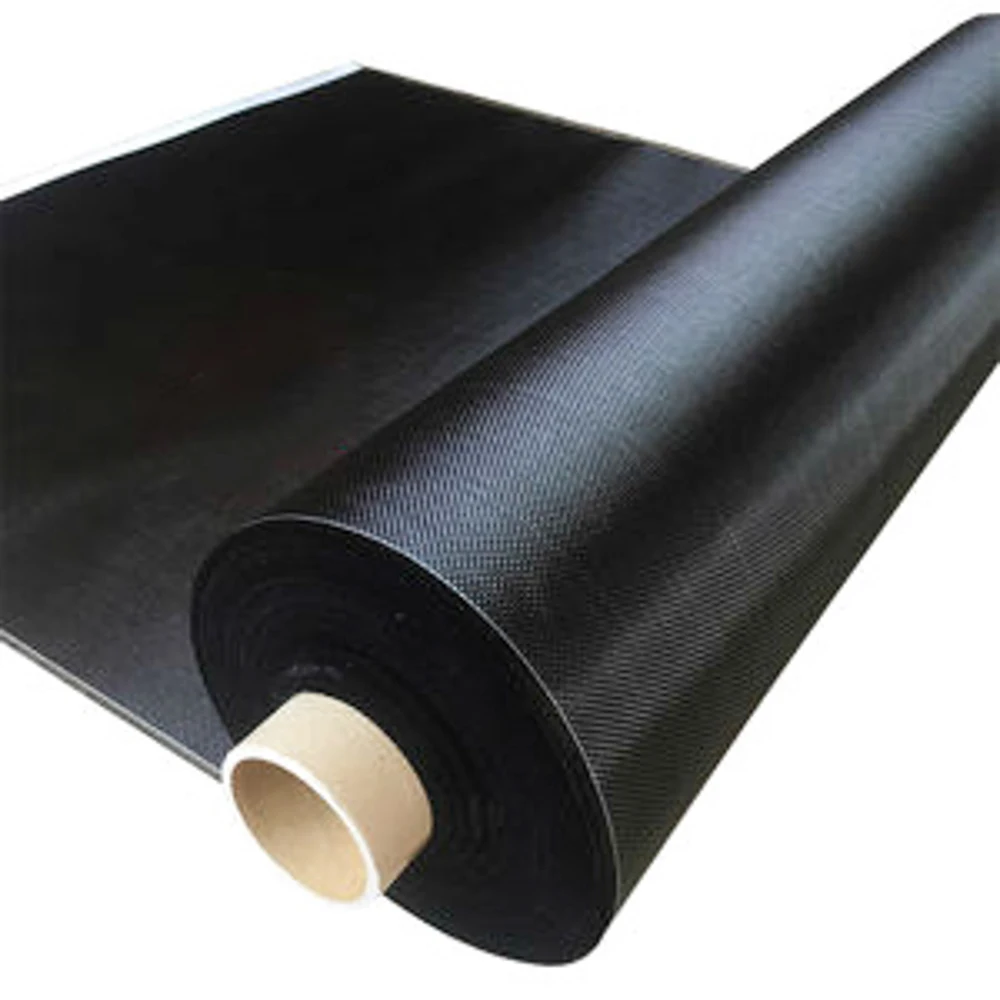

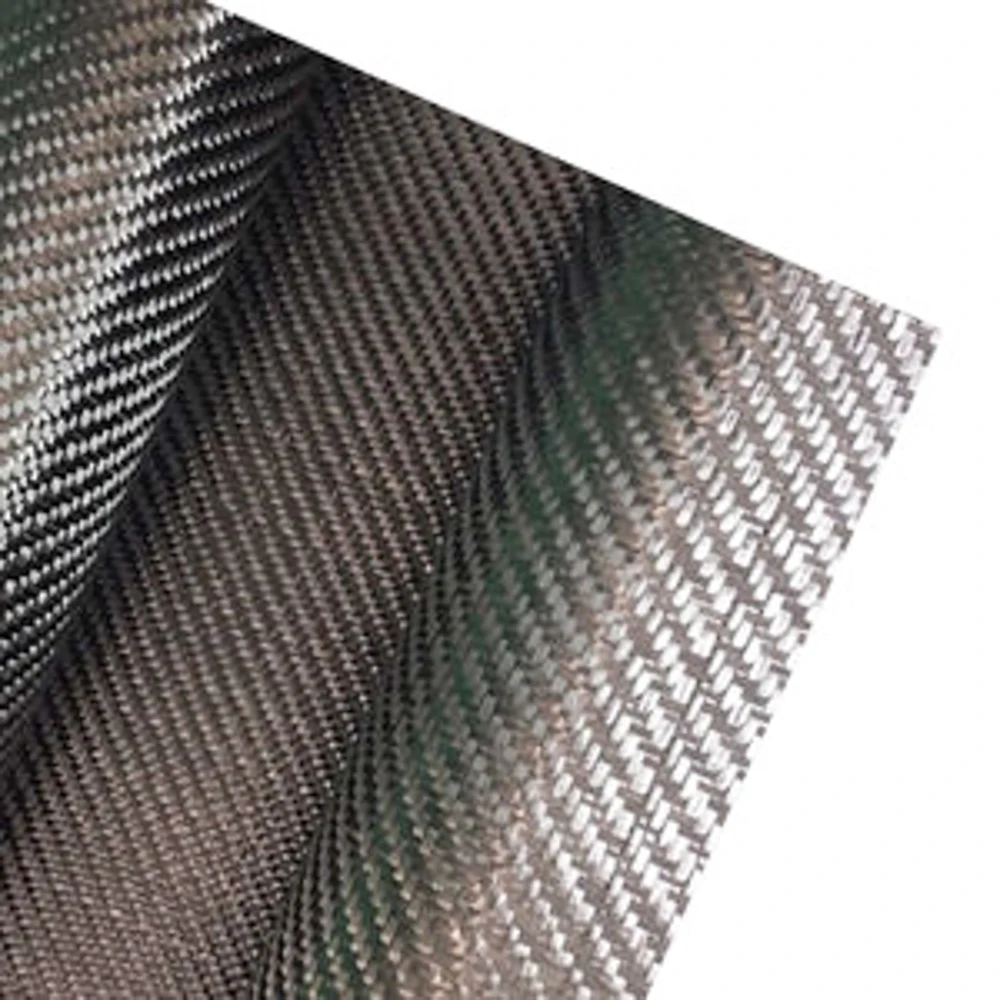

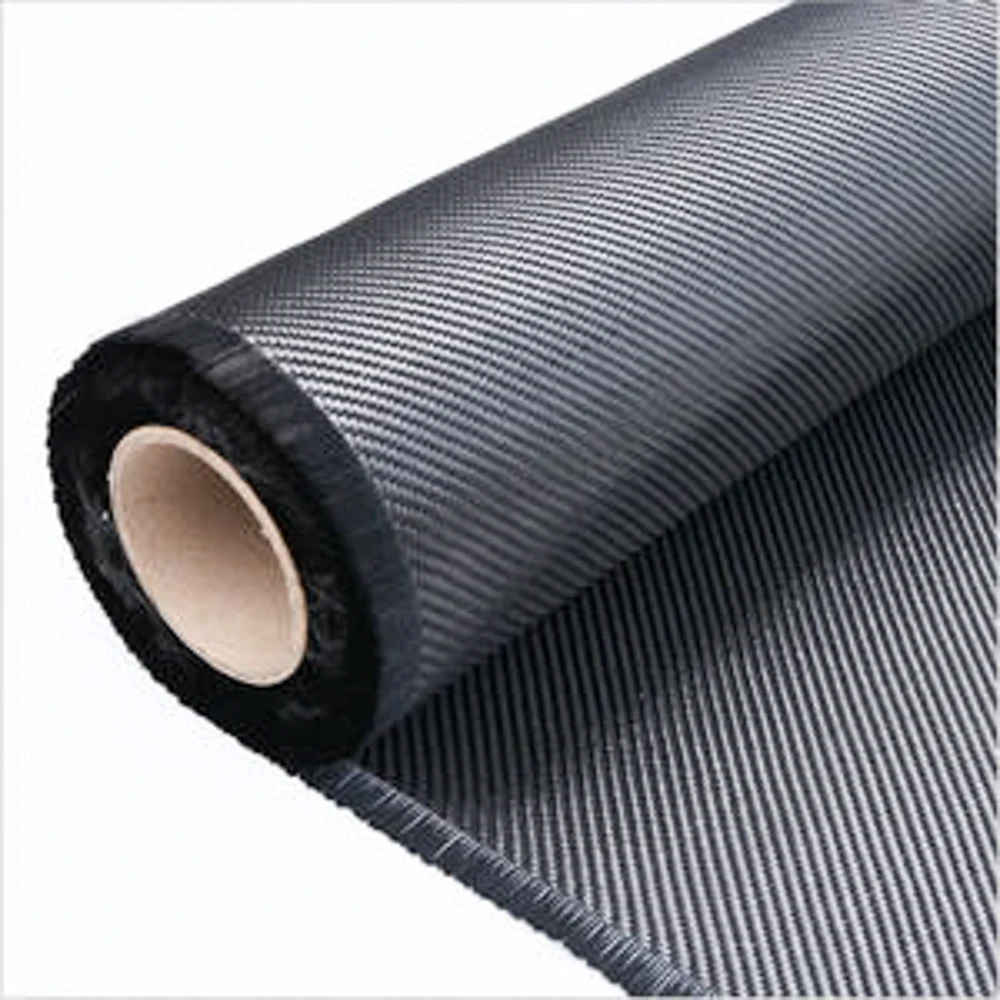

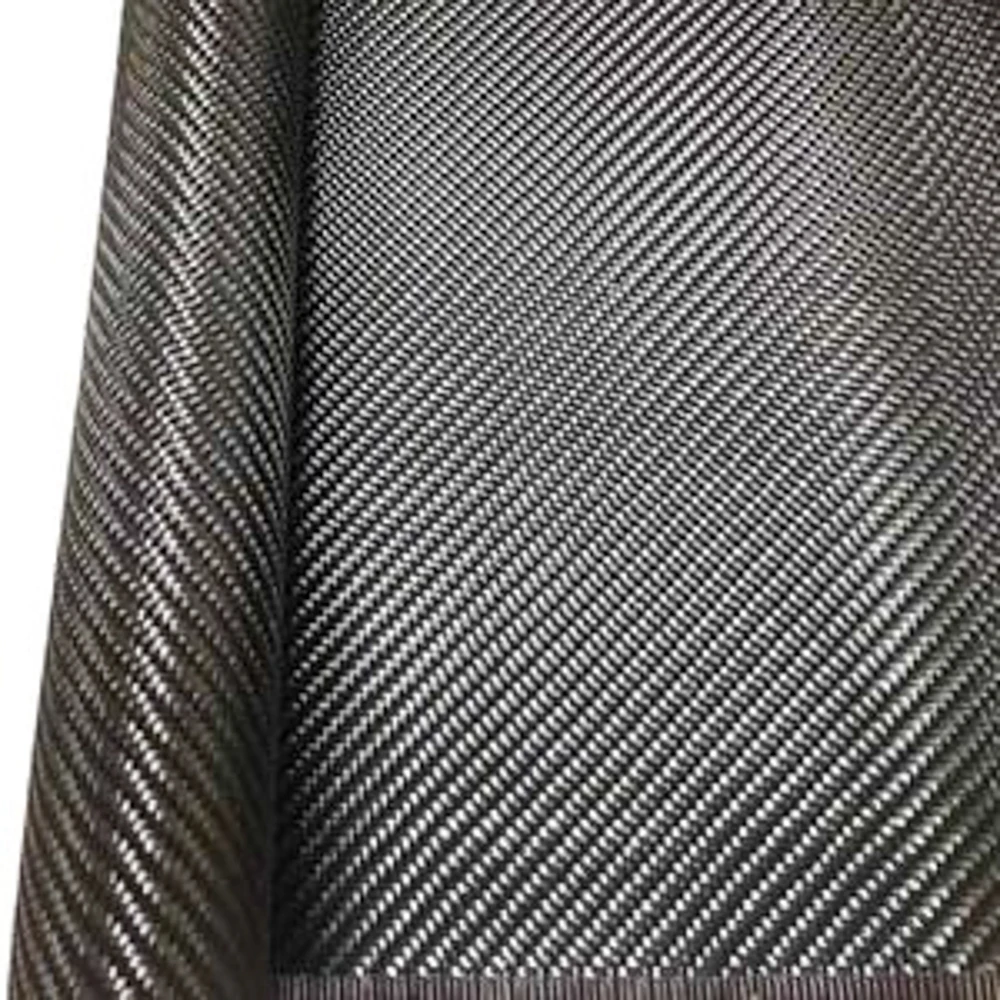

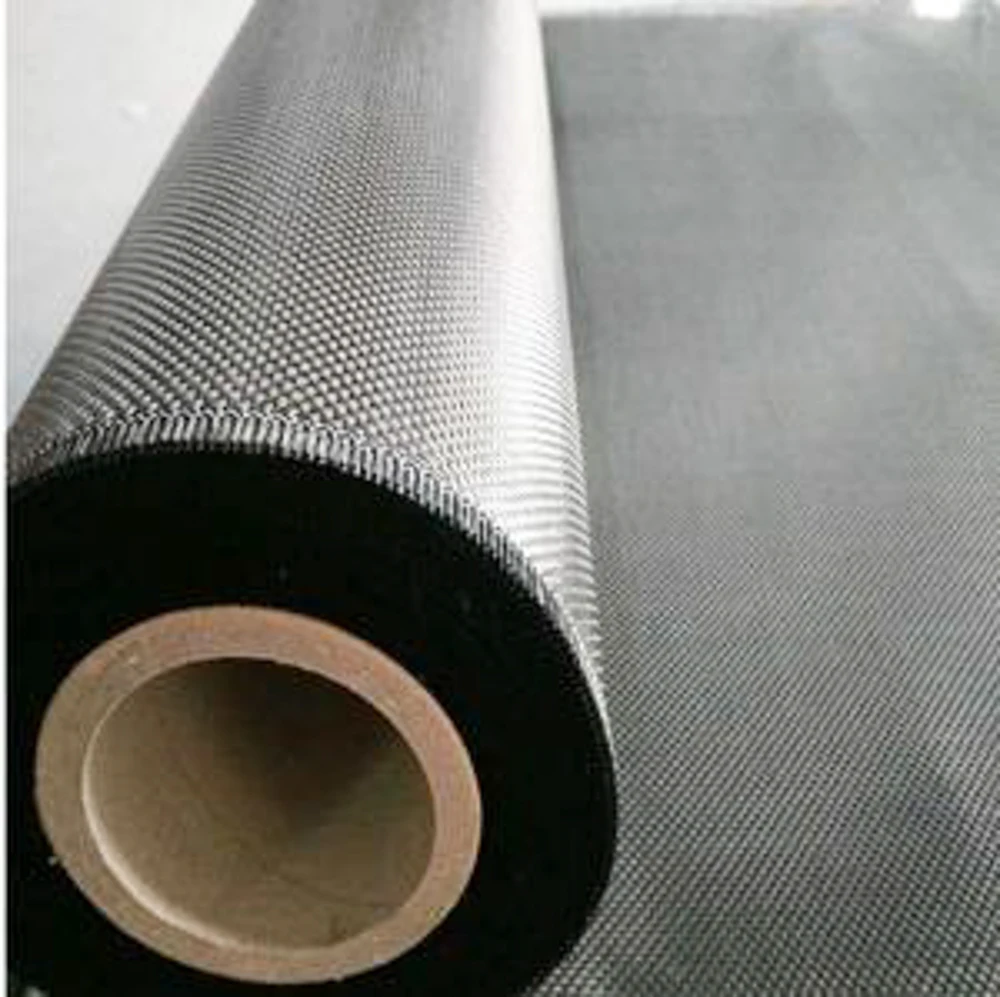

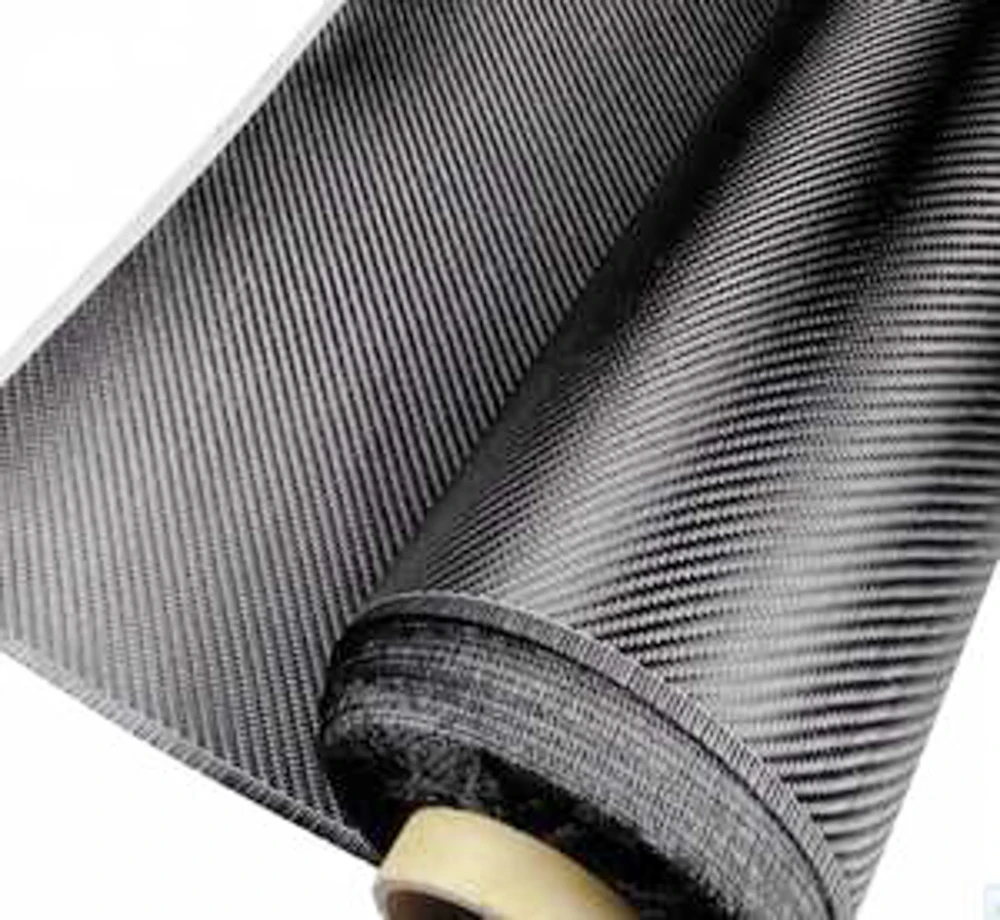

Carbon Fiber 3k 6k 12k black twill weave carbon fiber fabric
- Category: >>>
- Supplier: Jiangyin Shenfei Knitting Co. Ltd.
Share on (1600301314186):
Product Overview
Description
Product Description
Carbon fiber cloth is an excellent solution when looking for a high-performance ultra-strong fabric or when a thin yet durable material is desired. Can be bonded with epoxy or polyester resin systems.
Specifications:
Color: Carbon Black (Natural)
Weight: 480g/m2
Material: 12K Carbon Fiber
Trimmed on long edges and packaged folded (see pictures)
Package Contents:
1x 12K plain carbon fiber fabric
Technical Parameters
Product No | Glass | Weight (g/m2) | Density(end/cm) | Input Yarn | Weave | ||
|
|
| Warp | Weft | Warp | Weft |
|
SFP200 | Carbon | 200 | 5 | 5 | 3k | 3k | Plain |
SFT200 | Carbon | 200 | 5 | 5 | 3k | 3k | Twill |
SFT245 | Carbon | 245 | 6.1 | 6.1 | 3k | 3k | Twill |
SFUD200 | Carbon | 199 | 2.4 | 1.9 | 12k | Glass Yarn | Plain/UD |
SFUD300 | Carbon | 296 | 3.6 | 1.9 | 12k | Glass Yarn | Plain/UD |
SFP400 | Carbon | 400 | 2.5 | 2.5 | 12K | 12K | Plain |
Product No | Overall Density | +00 (g/m2) | +450 (g/m2) Roving Density | 900 (g/m2) Roving Density | -450 (g/m2) | (g/m2) Chop Density | (g/m2) | Material |
SFUDL150 | 170 | 154 | / | 10 | / | / | 6 | Carbon 12k |
SFUDL300 | 319 | 303 | / | 10 | / | / | 6 | Carbon 12k |
SFBX300 | 306 | / | 150 | / | 150 | / | 6 | Carbon 12k |
SFBX400 | 406 | / | 200 | / | 200 | / | 6 | Carbon 12k |
SFBX600 | 606 | / | 300 | / | 300 | / | 6 | Carbon 12k |
SFLT300 | 306 | 150 | / | 150 | / | / | 6 | Carbon 12k |
SFLT400 | 406 | 200 | / | 200 | / | / | 6 | Carbon 12k |
SFLT600 | 606 | 300 | / | 300 | / | / | 6 | Carbon 12k |
SFQX800 | 806 | 200 | 200 | 200 | 200 | / | 6 | Carbon 12k |
Factory
Application
Packaging & Shipping
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs about 35 days.
Q3. Are you a factory or trading company?
A. We are a professional manufacturer. We are warmly welcome clients from worldwide to
visit our factory and cooperate with us.
Q4. Is it OK to print my logo on carton?
A: Yes. Please inform us formally before our production and confirm the design.
