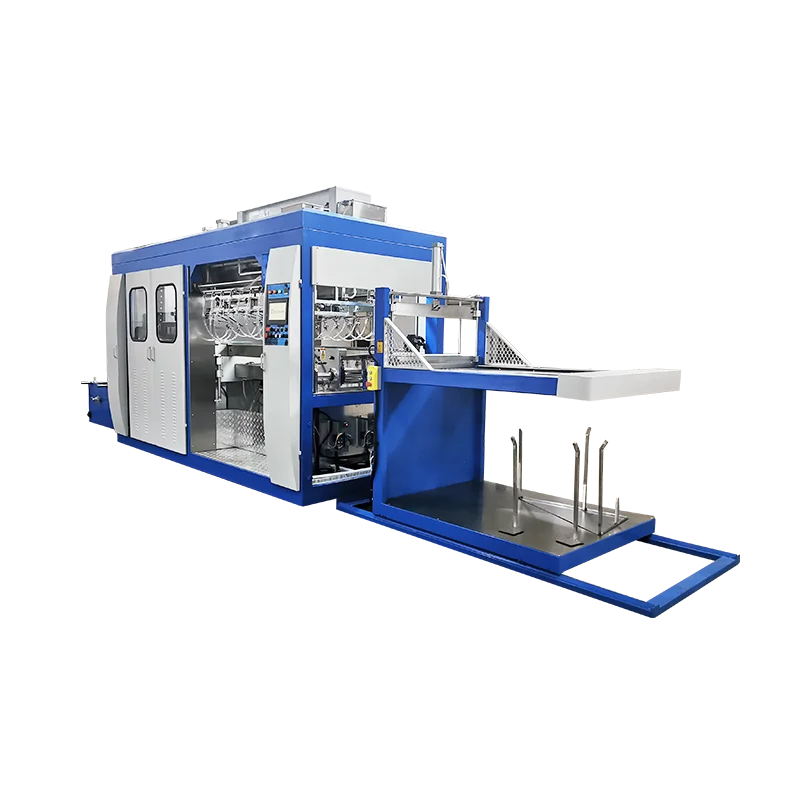

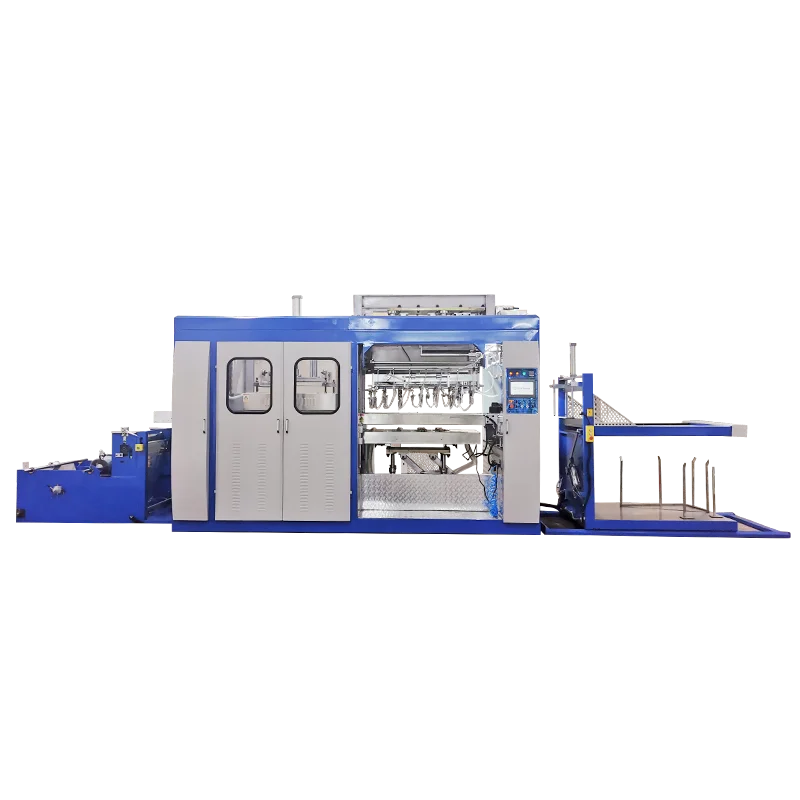

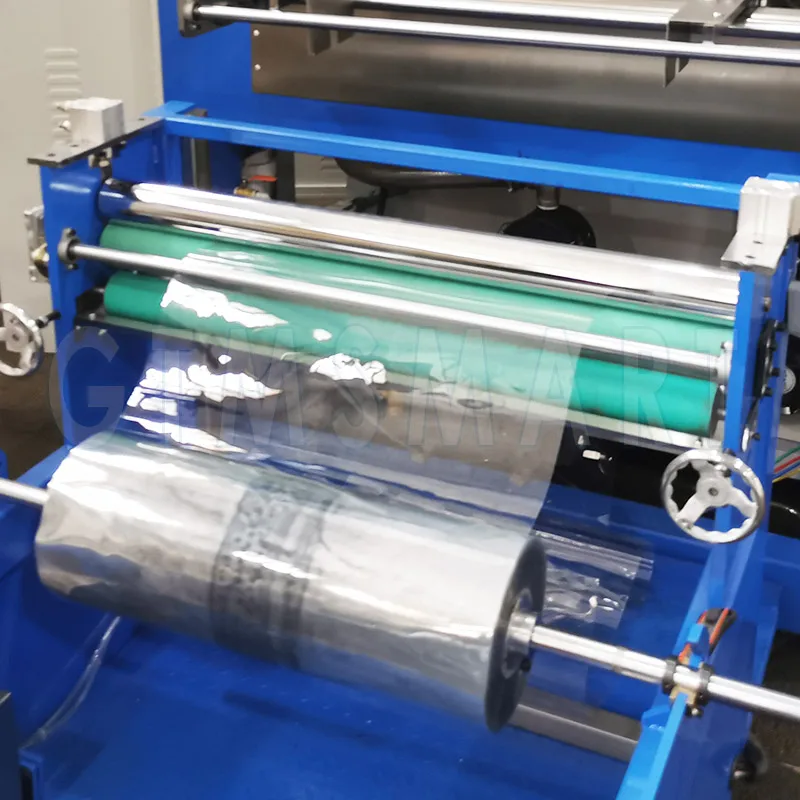

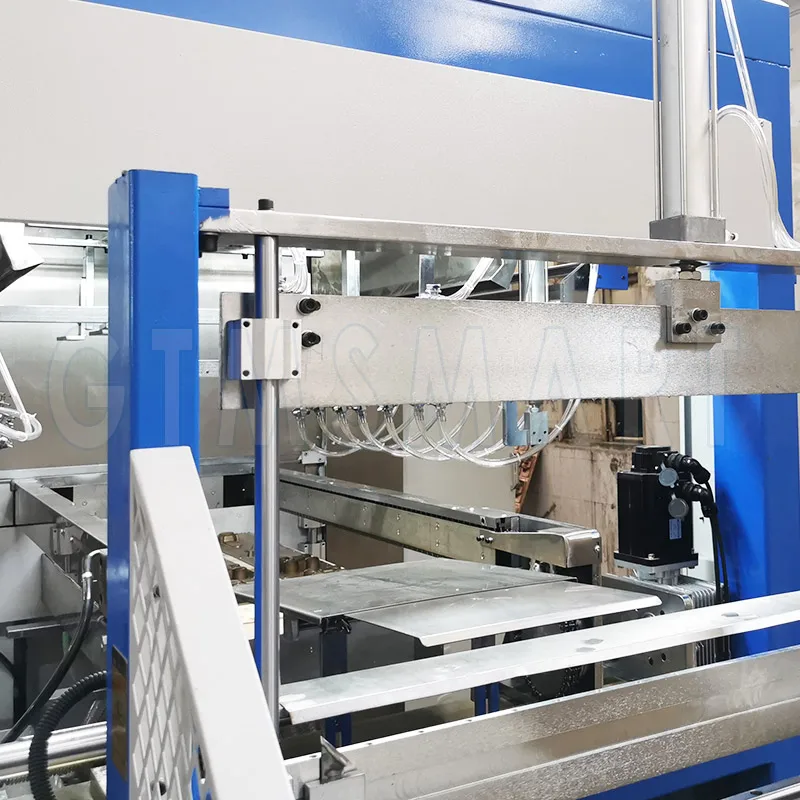

PLC Automatic PS Food Container Disposable Plastic vacuum Forming Machine




A. Thermo plastic Vacuum Forming Machine Description
Vacuum forming, also known as thermoforming, vacuum pressure forming or vacuum molding, is a procedure in which a sheet of heatedplastic material is shaped a certain way.

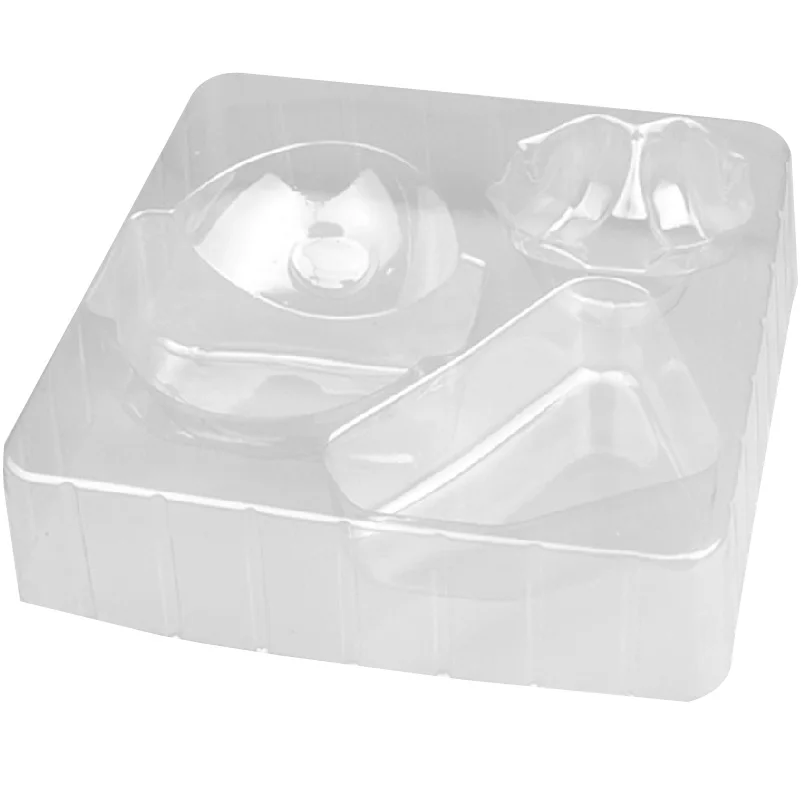

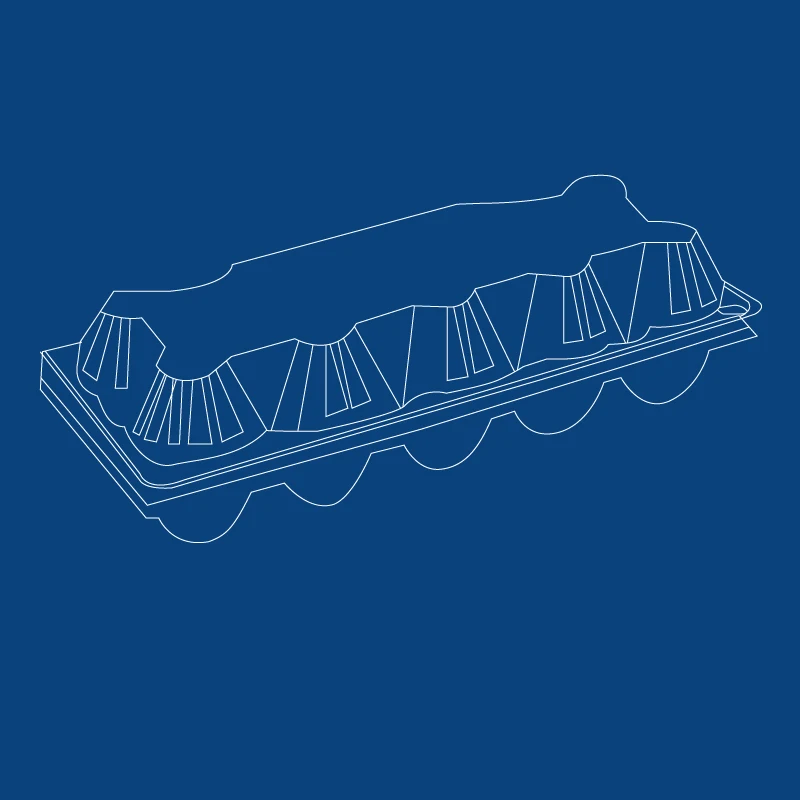

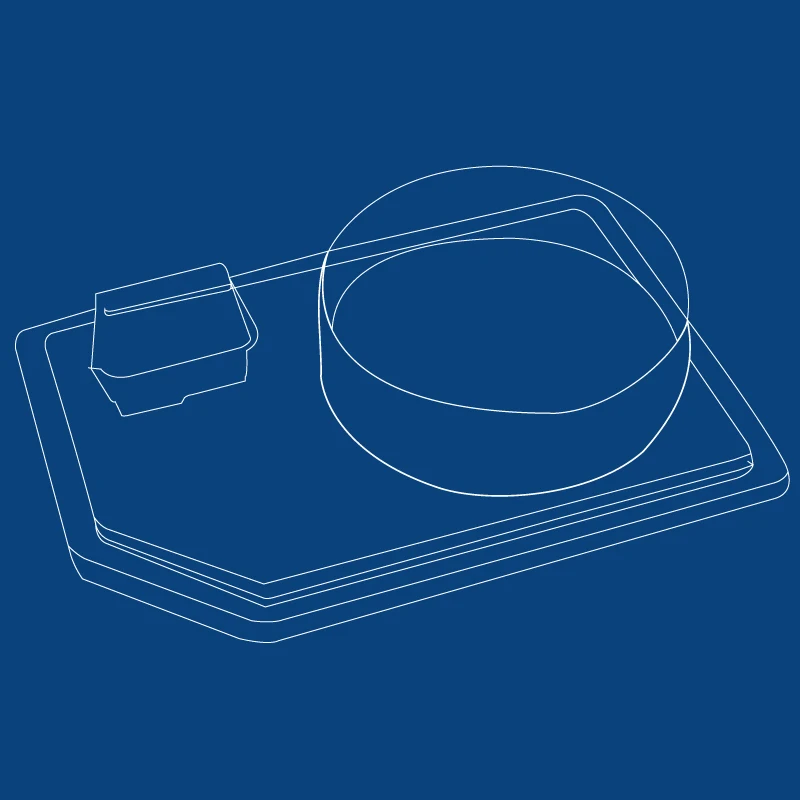

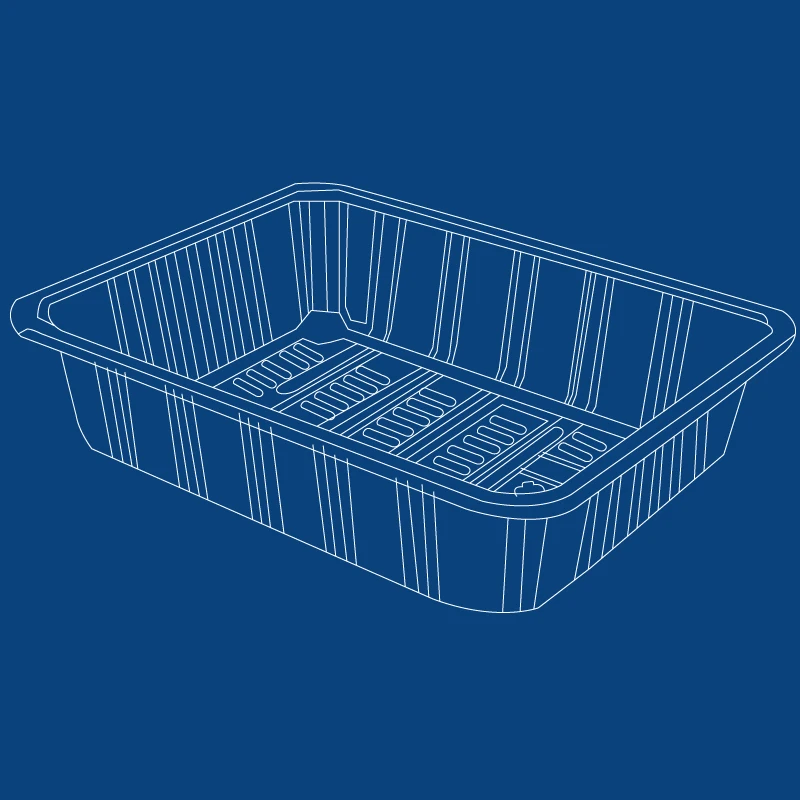

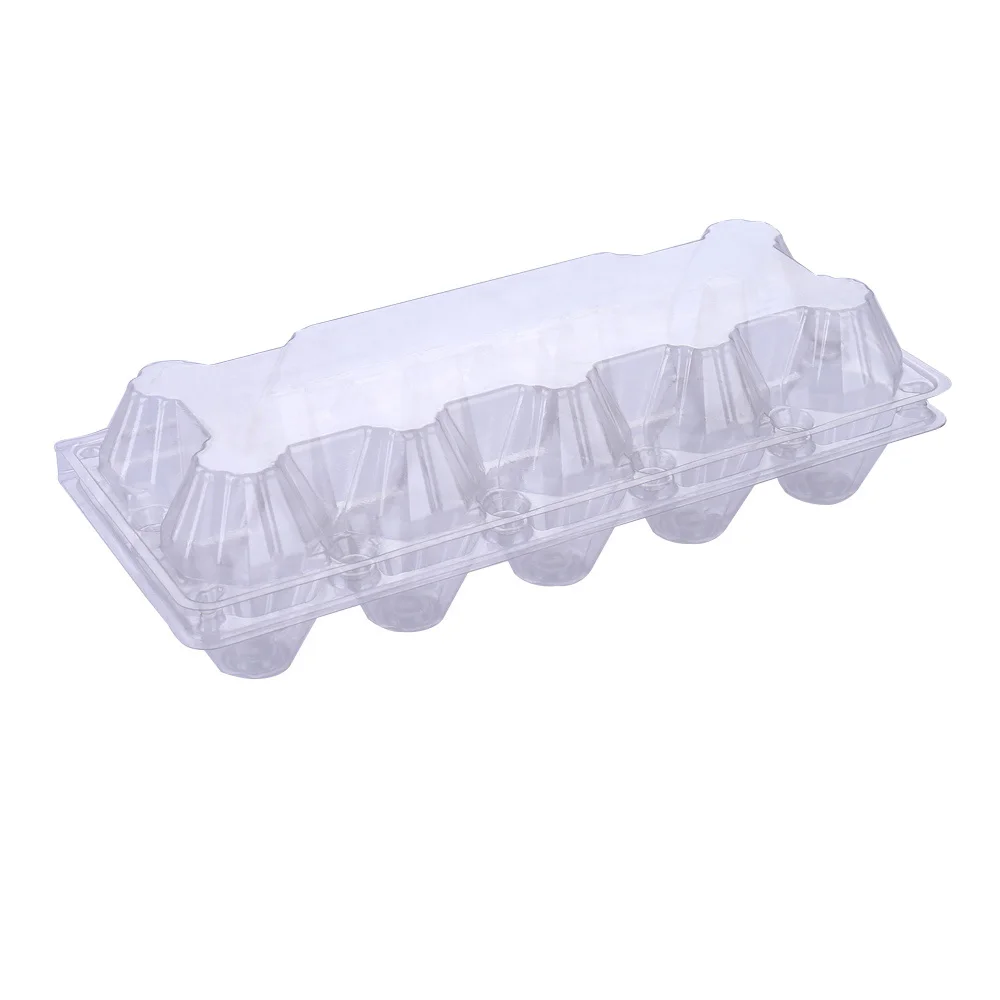

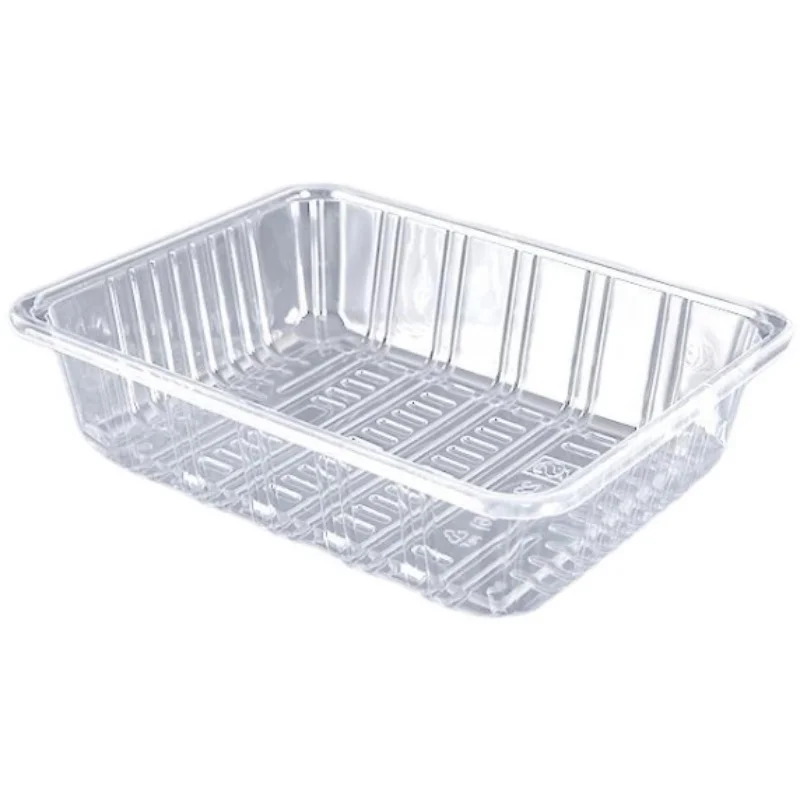

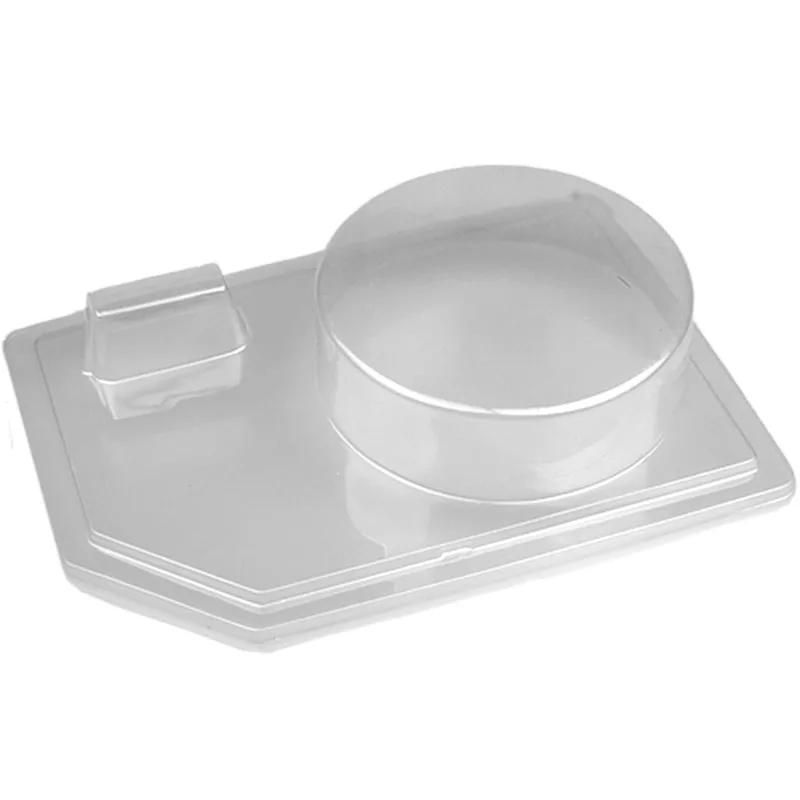

PLC Automatic Plastic vacuum Forming Machine: Mainly for the production of variety plastic containers ( egg tray, fruit container,
package containers, etc) with thermoplastic sheets, such as APET, PETG, PS, PSPS, PP,PVC,etc.

B. Product Advantages
1. This Vacuum Forming Machine Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be more stable and precision.

2. Human-computer interface with high definition contact-screen, which can monitor the operation situation of all parameter setting.

3. The Plastic vacuum forming machine Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and maintenance.

4. The pvc vacuum forming machine can store several product parameters, and the debugging is quick when producing different products.


Product Paramenters


Model
HEY05A                  HEY05B
Control
Air Cylinder             Servo
Forming Area（L*W）
1350*760 mm
Option Customized Forming Area（L*W）
1220*760/900mm, 1350*900mm, 1500*760/900mm
Whole Machine Power
Max. 50kw
Heating Power
Max. 40kw
Average Power Consumption
About 25kw
Heating Method
Infrared-radiation Heating
Work Frequency
4-24 times/min
Forming Height
Max. 240mm (Male Mould), Max. 200(Female Mould)
Sheet Thickness
0.1-2.5 mm
Sheet Width
450-800mm
Air Compressor
0.6-0.7 Mpa
Air Supply Quantity
1.5-2 m3/min
Vacuum Flow Rate
100 m3/hour
Power
3kw
Ultimate Vacuum
5mbar
Water Supply
350kg/h
Power Supply
Three Phase Four Lines 380V 50/60HZ
Machine Dimensions
8900*1800*2600mm
Whole Machine Weight
Around 4500 kg

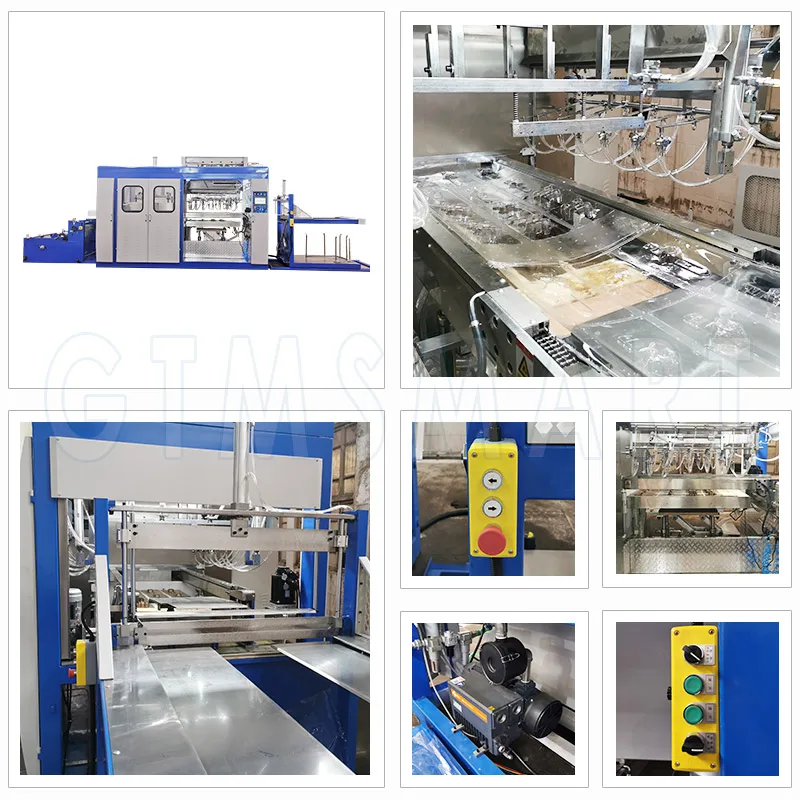

Product Image
