Product Description


 MiWi S-350-15 China Manufacture OEM SMPS 15v 350w led power supply



  • Input voltage selected by switch

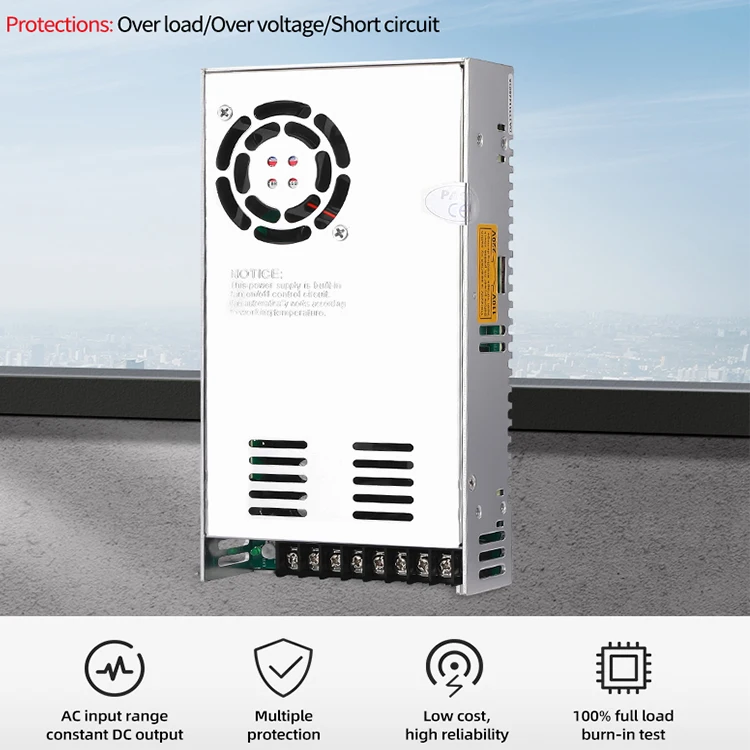

  • Protection: short-circuit/ over-load/ over-voltage protection

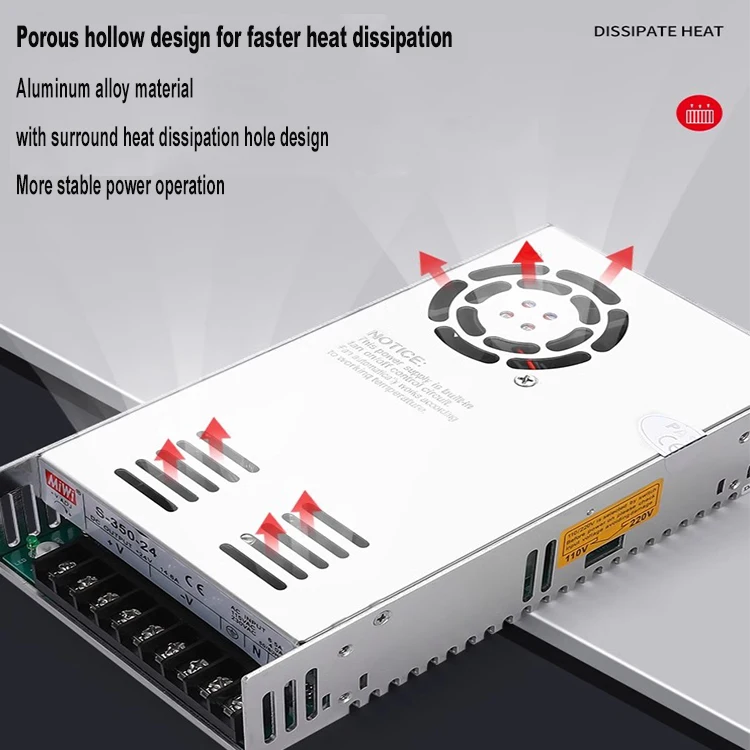

  • Built-in cooling DC fan

  • 100% full load burn-in test

  • Cooling fan ON-OFF auto control

  • 1 year warranty










































































































































































































ModelS-350-5VS-350-7.5VS-350-12VS-350-13.5VS-350-15VS-350-24VS-350-27VS-350-48V
DC Output Voltage5V7.5V12V13.5V15V24V27V48V
Iutput Voltage Error± 2%± 2%± 1%± 1%± 1%± 1%± 1%± 1%
Rated Output Current50A40A29A25.8A23.2A14.6A13A7.3A
Output Current Range0-50A0-40A0-29A0-25.8A0-23.2A0-14.6A0-13A0-7.3A
Tripple and Noise150mVp-p150mVp-p150mVp-p150mVp-p150mVp-p150mVp-p200mVp-p200mVp-p
Iniet Stability± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%
Tolerance Voltage± 1%± 1%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%
DC Output Power250W300W348W348.5W348W350.4W351W350.4W
Efficiency73%76%74%79%78%81%82%83%

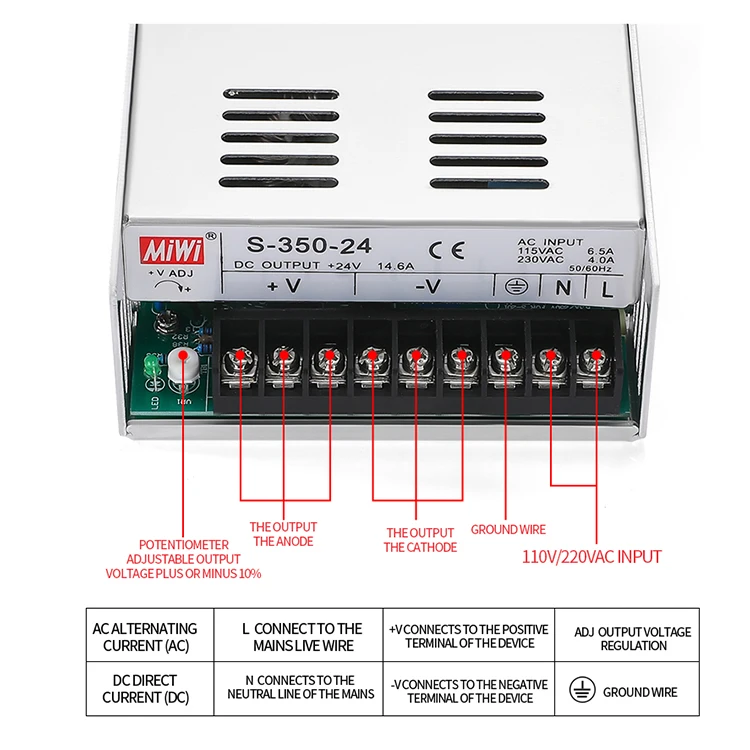

Adjustable Range


 for DC Voltage


4.5-5.6V6-9V10-13.2V12-15V13.5-18V20-26.4V26-32V40-56V

AC Input Voltage


Range


90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current6.5A/115V    4A/230V
AC Inrush CurrentCold-Start Current: 25A/115V, 50A/230V
Leakage Current<3.5mA/240VAC
Overload Protection105%~150%   Type: Cut Output, Reset: Auto Recovery

Over Voltage


Protection


…………

High Temperature


Protection


…………

Temperature


Coefficient


± 0.03% /℃ (0~50℃)
Start, Rise, Hold time200ms, 100ms, 20ms
Vibration10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation ResistanceInput and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms

Working Temperature


and Humidity


`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH

Storage Temperature


 and Humidity


`20℃~+85℃, 10%~95%RH

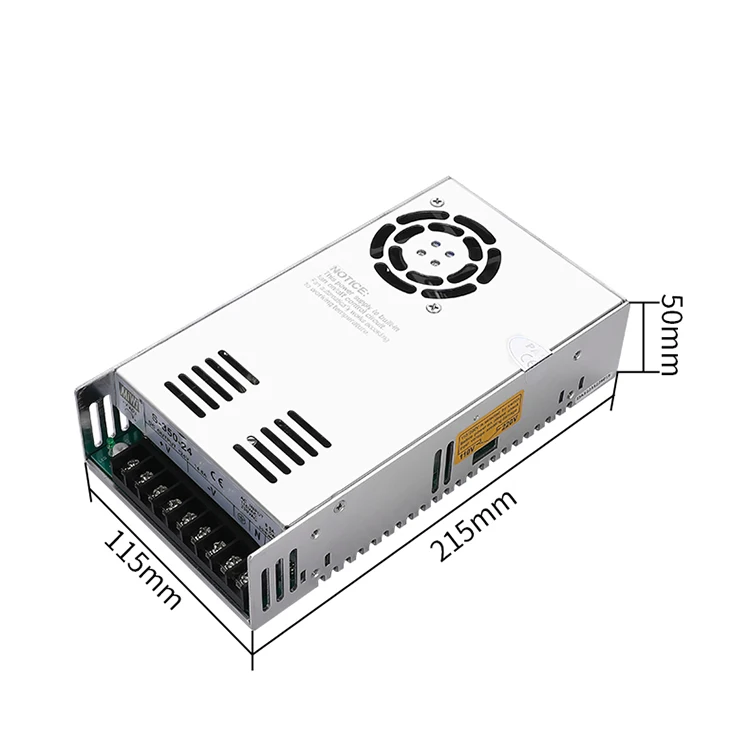

Overall Dimension215*115*50 mm
Weight1.15 kgs
Safety StandardsCE
EMC StandardsMeet FCC Part 15J Conduction class B
Note1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. C3.4 must be knocked down,
