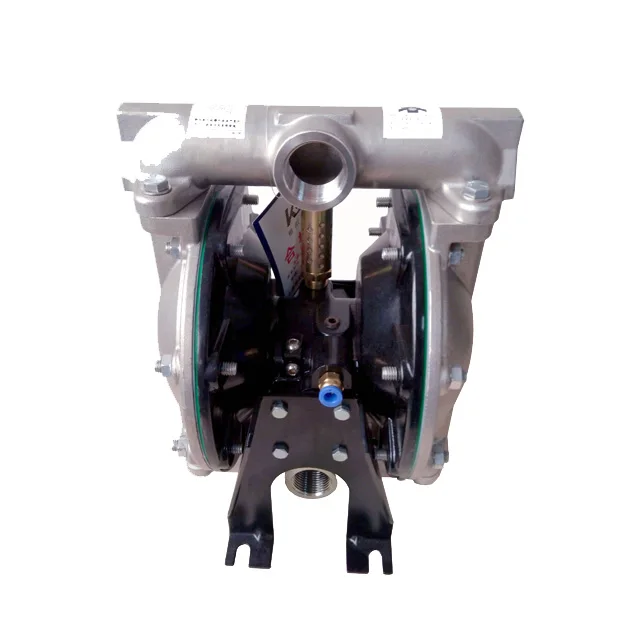

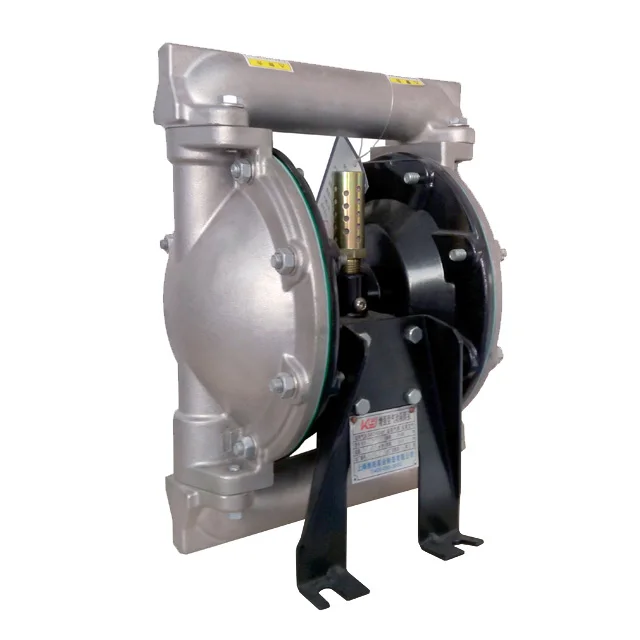

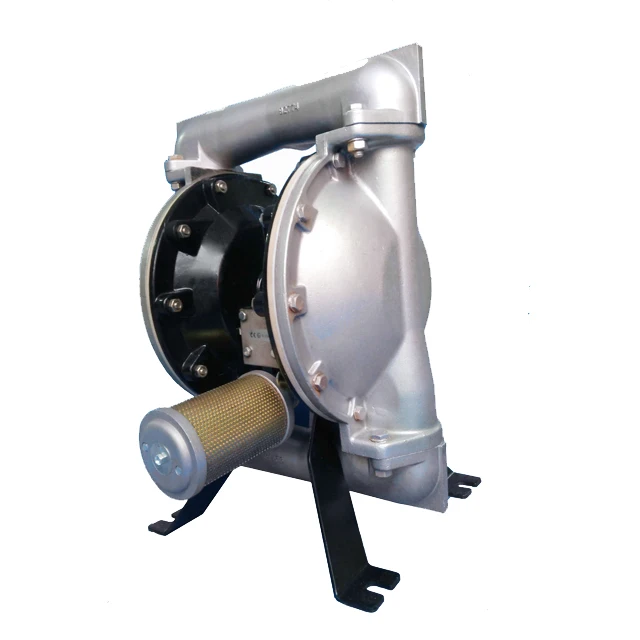

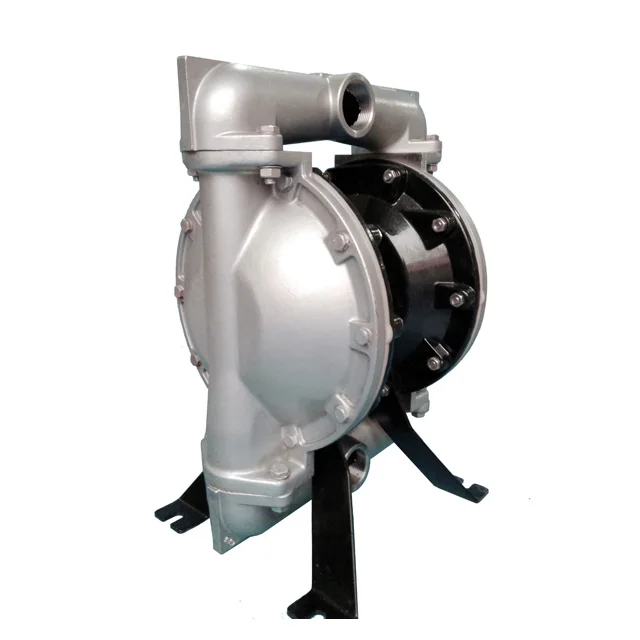

KY 1.5 Inch Diaphragm High Pressure Pneumatic Diaphragm Pump For Water Treatment

Product Overview

Description









KY enhanced stainless steel pneumatic diaphragm pump is the latest domestic pneumatic diaphragm pump developed by Shanghai kaiyang pump industry. This series of pumps in the pump body and gas distribution equipment have revolutionary improvements, with no dead point, high efficiency, large flow and other characteristics. Widely used in pharmaceutical, sewage treatment, food, chemical, automobile, paint and other industries. The pump is made of cast iron, aluminum alloy, 304 stainless steel, etc. The diaphragm is made of shantou rubber and teflon.

KY enhanced pneumatic pumps diaphragm pump, gas distribution device further innovated, the intermediate and isolation row into one; The supporting shaft and the supporting slide block are changed into one production, and the supporting air exchange device of the slide valve is added, which greatly improves the air utilization efficiency and avoids the crash and shutdown caused by unstable air pressure. To truly achieve a non - crash, its pulse is also significantly reduced, and automatic mechanical equipment to achieve a seamless connection. The overall structure of the KY pneumatic diaphragm pump is more optimized, the pump chamber and the main road are significantly strengthened, and the self-priming function and flow head are greatly improved (maximum flow rate /54 cubic/h, maximum lift 80m). The customer becomes the superflow pneumatic diaphragm pump and filter press special pneumatic pumps diaphragm pump.





Model	Size	Flow	Max. pressure	Suction		particles	Weight(KG)
Unit	Inch	l/min	Bar	Dry	Wet	mm	Fluoro plastic	Alum inum	Stainless  steel	Polypr opylene
KY-15	1/2	40	7	3m	6m	1.6	3.2	5	7	2.8
KY-25	1	133/196	8.3	4m	7m	3.2	12	8	15	9.5
KY-40	1-1/2	340/465	8.3	4m	7m	6.4	39	22	40	27
KY-50	2	651	8.3	4m	7m	6.4	40	32	60	28
KY-80	3	897	8.3	4m	8m	9.5		45	100
KY261-X10	1	133	8.3	5m	8m	3.2		8	14
KY261-X15	1-1/2	197	8.3	5m	8m	5		18	18
KY261-X20	2	378	8.3	5m	8m	6.4		42	44





 1. Firstly, the stainless steel material has strong pressure tolerance and is the best choice for some diaphragm pumps with high pressure demand;
2. Free from rust and pollution, which greatly protects the cleanliness of medium. It is an excellent choice for some medical units, food processing enterprises and beverage industry.
3. It is doomed to be safe and quiet if it is powered by air.
4. Don't worry about the danger caused by wires and engines
5. Simple structure, convenient installation and maintenance, and the pump conveying medium will not touch the valve.
6. Roomy flow with good passing performance, allowing the maximum particle diameter up to 10 mm. When pumping mud and impurities, there is little wear on the pump;
7. It can deliver relatively sticky liquid (the viscosity is below 10000 mm);
8. The head and flow can be adjusted stepless through the opening of the air valve (the air pressure is adjusted between 2-/8.3bar).
9. Easy to use, reliable to work, simply open and close the gas valve, and the pump will stop running automatically when the pipeline overpressure
10. No irrigation water is required. The suction range is up to 7 meters, the head reaches 83 meters, and the outlet pressure is up to 8bar
11. Pumps diaphragm pump has no rotating parts, no shaft seal, and the medium pumped by the diaphragm is completely separated from the moving parts and workpiece media of the pump. The medium transported will not leak outward.
12. Can make a variety of pump materials with good corrosion resistance





1. Suitable for the transportation of high, medium and low viscosity various acids, bases and corrosive fluids, benzene, ketones, esters and other solvents in chemical industry. The range of flow and pressure adjustment is wide because compressed air is used as power.
2. Applicable to the transportation of all kinds of fluids in the flammable and explosive environment, because the pneumatic diaphragm pump of kai Yang brand does not generate electric spark in the work, and does not generate and accumulate heat;
3. It is suitable for conveying all kinds of precious liquid, high harm, high corrosiveness and other dangerous materials in fine chemical industry. Because there is no dynamic sealing structure of the pneumatic diaphragm pump of kaiyang brand, it is completely separated from the outside world, and there is no material leakage;
4. Suitable for harsh working conditions, such as waste water containing solid particles in oil fields, mines and construction sites, without blockage, overload or leakage of electricity;
5. Suitable for conveying various materials in portable and mobile situations, without foundation, with small footprint and simple and economical installation;
6. It is suitable for conveying high purity and clean materials, because KY enhanced pneumatic pumps diaphragm pump does not need lubrication, and there is no worry about lubricant contaminating materials. Transportation of pharmaceutical intermediates and products, laboratory chemicals, etc.;

7. It is suitable for fluid transportation with unstable chemical properties, because the shearing force of pneumatic diaphragm pump of kai Yang brand is extremely low, which does not damage the material structure. For example, transport of photosensitive materials, flocculation, crystallization, explosives, etc.
8. Automatic batch pumping and metering function;
9. Applicable to feed pump used as board frame and chamber filter press.







                                          F A Q

Q1: what is the packaging of your product?

Answer: standard exports plywood box or carton to be decided according to specific product.

Q2: how about the quality and service of your company?

Answer: we are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.

Q3: what kind of diaphragm pumps do you produce?

Answer: my company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.

Q4: can your company guarantee our healthy cooperation?

Answer :1. Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services

2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.

Q5: when is your delivery time?

A: most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
