Fast Heating Aerosol Generator STG 10 DOP ASME N509

Product Overview

Description

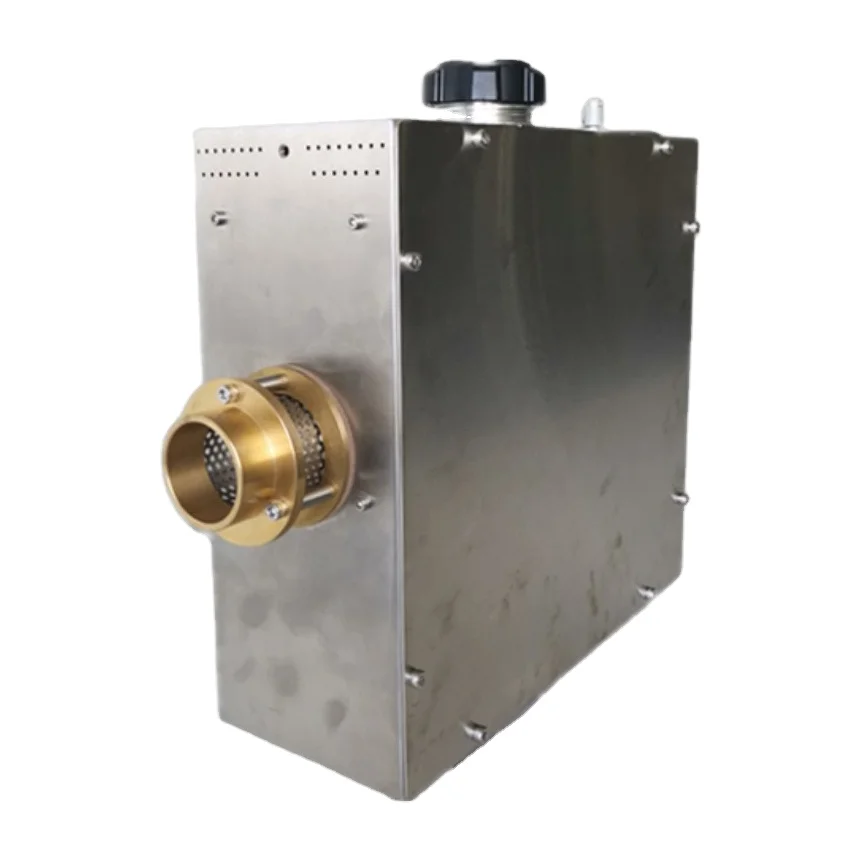

STG-10 Aerosol Generator Thermal With Fast Heating In 1 Minute



STG-10 aerosol generator thermal adopts the principle of evaporation and condensation, with a particle size distribution range of 0.1~0.3um, high concentration, continuous stability, suitable for various small air purification units and large clean room air conditioning purification systems (flow range 14 ~ 2000m3/Min).



Features of aerosol generator

• High-concentration aerosol output.


• It can be applied to various specs of air conditioning purification system flow rate.


• Fast heating in 1 minute.


• Many types of aerosols can be used.


• Sturdy, small and light, easy to carry.


• Safe operation and use.


• It has a wide range of applications and can be applied (but not limited to) the nuclear industry, medical institutions, pharmaceutical companies and other filter certification agencies.

The specification of aerosol generator

Principle	Heating evaporation
Aerosol type	PAO, DOP, DOS etc.
Heating or cooling time	1 ~ 2 min
Flow rate	14 ~ 1983m3/Min
Max. concentration of aerosol	100ug/L @200m3/Min 10ug/L @2000m3/Min
Aerosol size distribution	ANSI/ASME N509/510 standard
Aerosol type	DOP, PAO -4, DOS etc.
Power	2A@220VAC 50/60Hz
Size	430(W) X 120(H) X 360(D)
Weight	7.8KG





Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.



Sujing instrument is an ISO 9001:2015 Registered Company
