80 5000ML 24G Work head Digital display Laboratory High Shear Dispersion homogenizer

Product Overview

Description

Product Description:

The dispersing homogenizer is driven by a high-speed motor, which is suitable for mixing low to medium and high viscosity liquids or distributing materials in liquid media, breaking tissue cells, etc. Drive output and working head positioning integrated structure, the operating state is more stable; the working head is made of high-quality stainless steel, and the experimental application area is wide; the operating speed micro-processing control, with real-time compensation for speed changes caused by load changes and power fluctuations, and constant speed Reliable; built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a certain period of time; the speed is steplessly adjusted to meet the requirements of the experiment to revise the operating speed at any time. The digital display speed is intuitive, and the experimental data collection is convenient; the running timing control ensures the effective control of the experimental time.

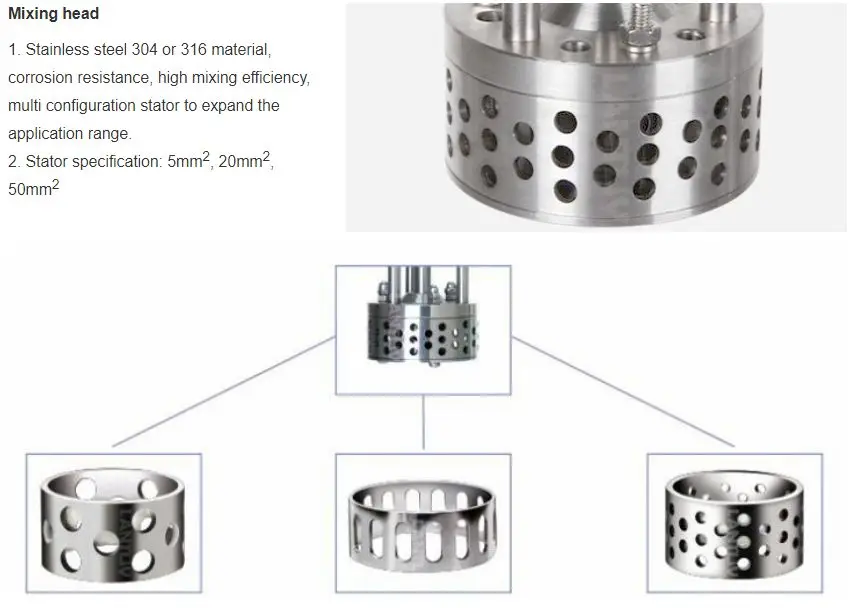

Detailed Photos:





Product Parameters

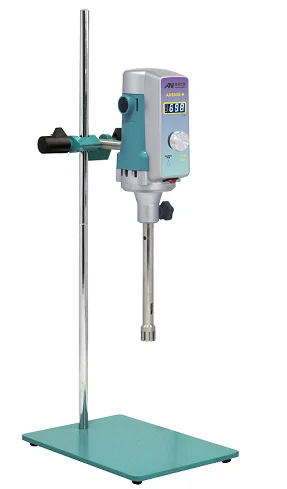

Model	AD500S-H+24G Work Head Suit
Rated voltage	220±10 % VAC
Rated frequency	50/60 Hz
Input power	850 W
Output power	500 W
Rated torque	17.1 N.cm
Work mode	S1(Continuous)
Operation control mode	Combined control knob
Speed range	2000~28000 rpm
Speed control	Continuously Adjustable, Stepless
Speed display	LED, indicator bar
Timing control range	NO
Dynamical Speed detection function	Yes
Speed memory function	Yes
Overload protection function	Yes
Peak torque of the stirring head	17.0 N.cm
Maximum line speed of the rotor	20.5 m/s
Stirring head material	AISI 316
Size of the mixer (TxBx H)	215 x310x 720 mm
Net weight	8.7kg

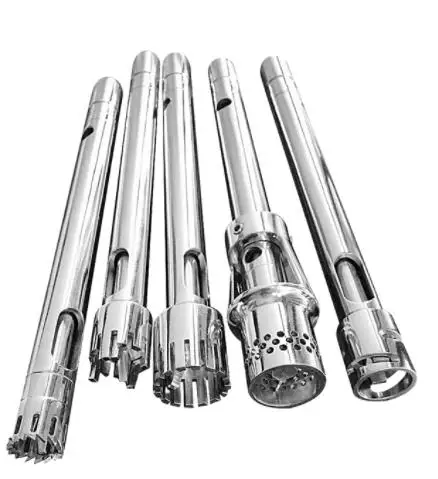

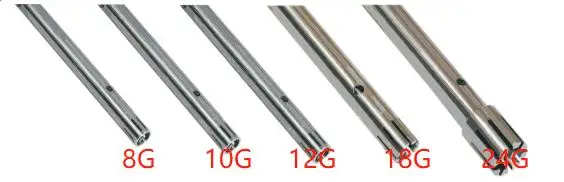

Parameter of working shaft:



 After Sales Service:

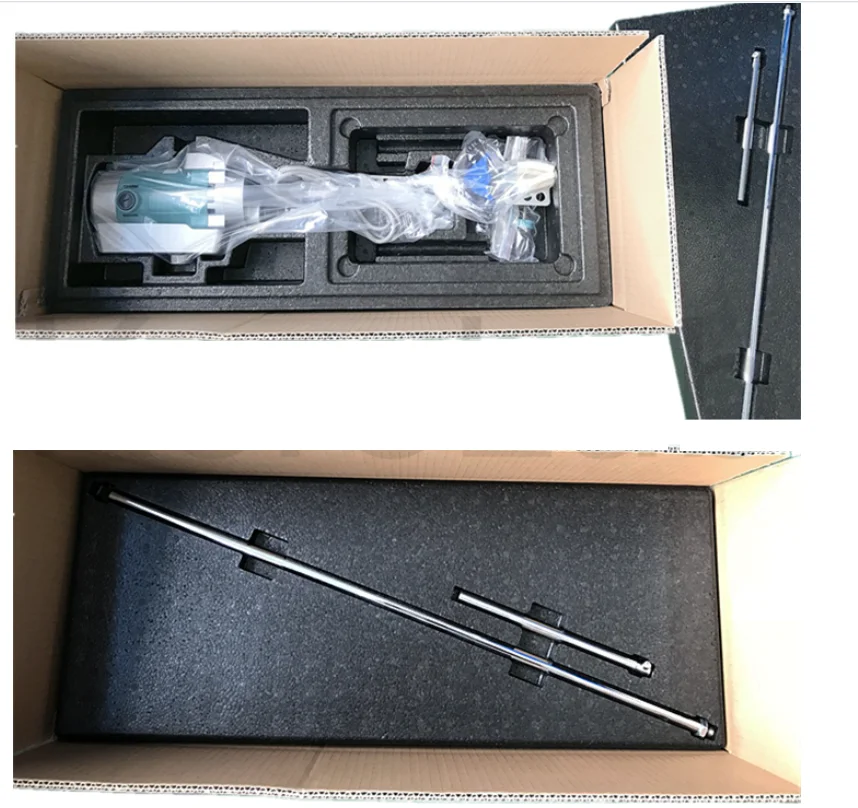

 Packaging &Shipping:
