Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh.Most types of metal, including precious and specially produced metals, can be expanded.
Expanded Metal Mesh Production Process:

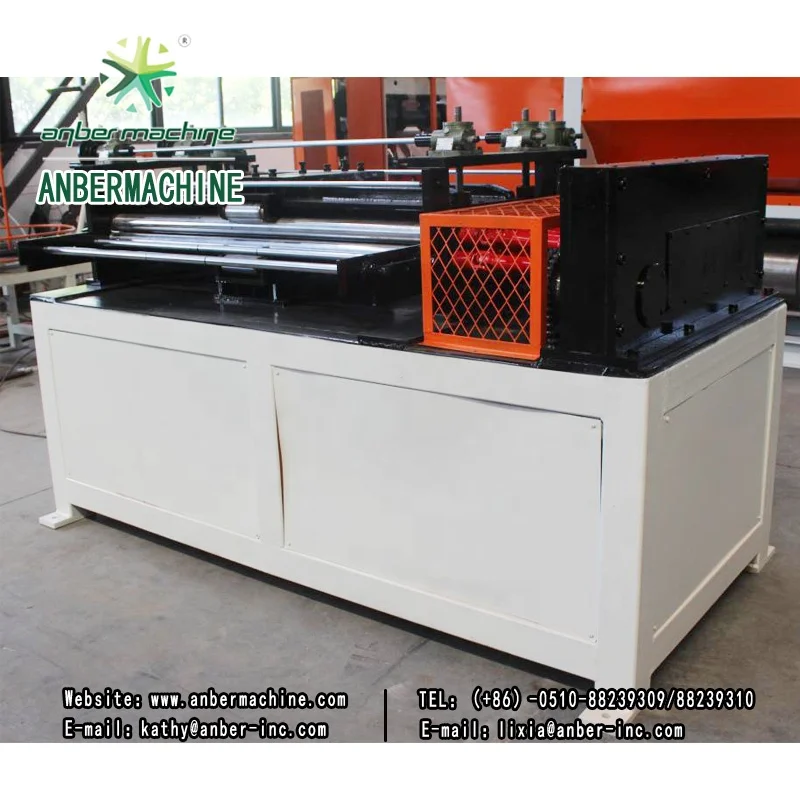

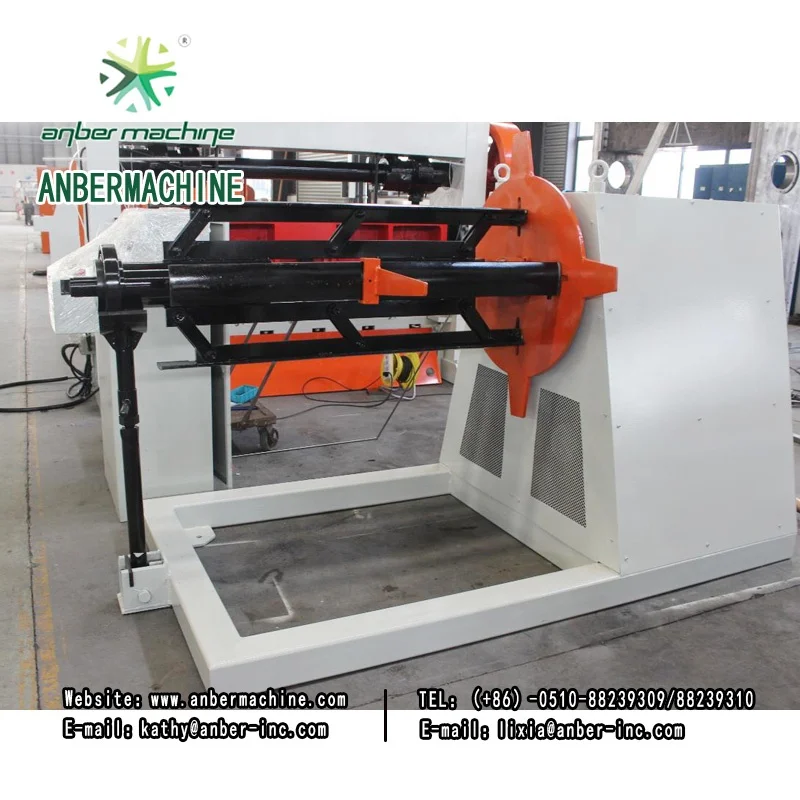

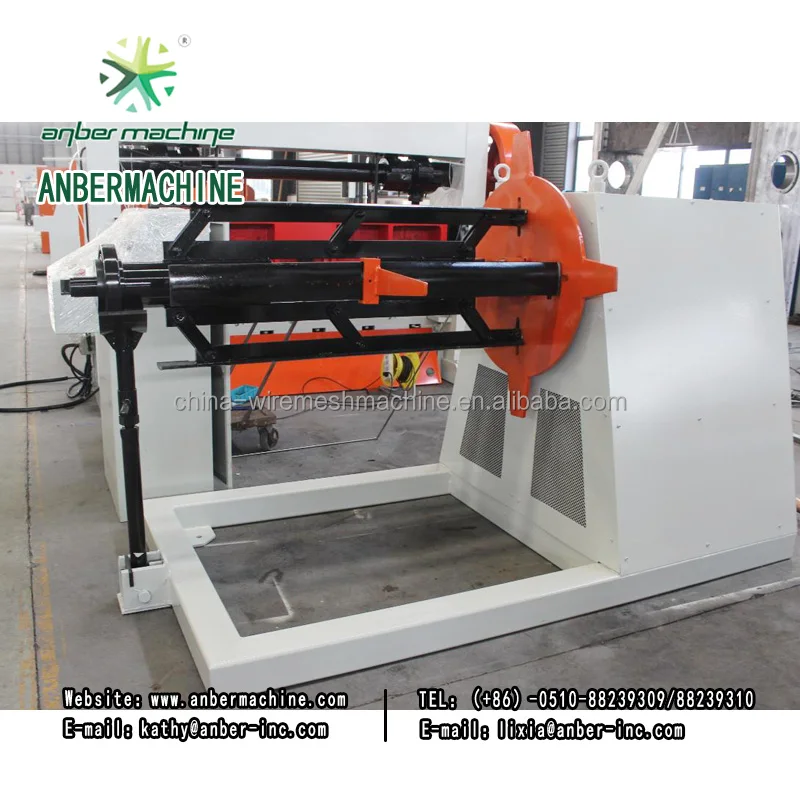

1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
Main Technical Parameters:

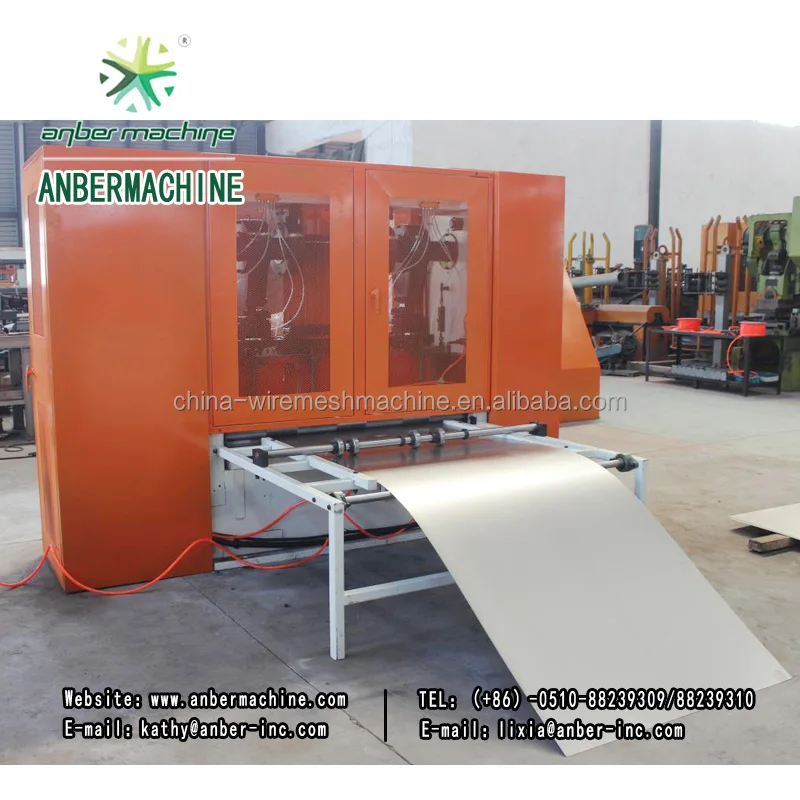

Model: ABE-1.5-1250
Expanding force: 25T
Max. Coil width: 1250mm
Thickness of steel coil: Max. 1.5mm
Expanding speed: Max. 300 strokes/minute, mesh and sheet product can be 200 strokes/minute

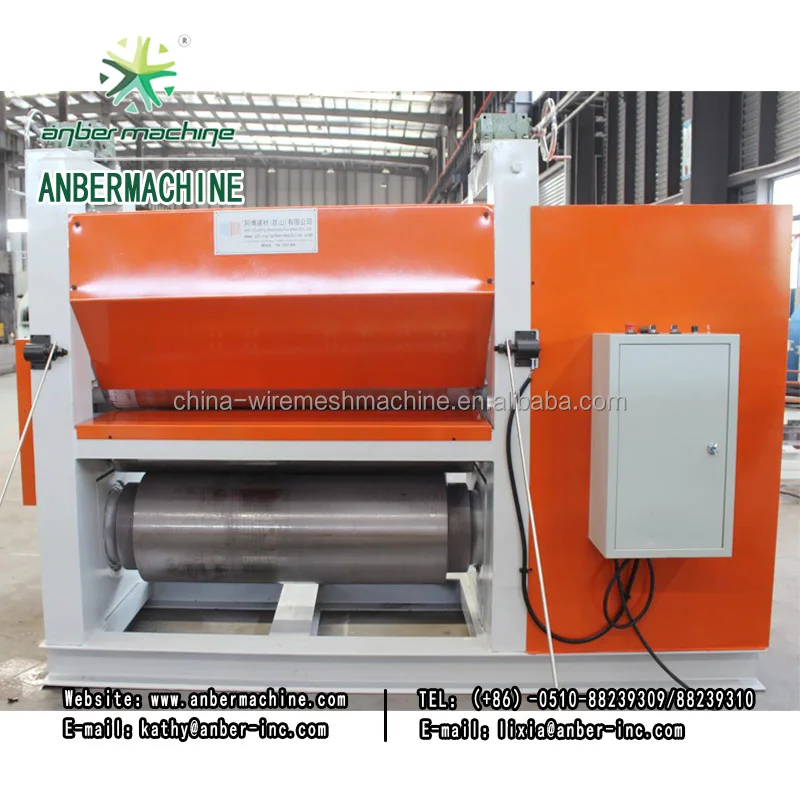

The flattening machine is an auxiliary equipment for the expanded metal mesh machine. For the expanded mesh, the flattening machine not only flattens the lap joint of the steel mesh, but also makes the surface of the stencil smooth and beautiful, and at the same time, can eliminate the internal force generated during the weaving process, thereby improving the stencil Steely.
Main Technical Parameters flattening machine:
Model: ABE-FYP1250
Max. Expanded mesh width: 1250mm
Roller length: 1350mm
Roller quantity * diameter=2*280+2*450mm
Hardness of roller: HRC53
Roller material: alloy steel
Adjusted method: worm and gear+hand wheel
Motor power: 11kw, speed adjustable system
Overall size of machine(L*W*H): about 3220*1200*2100mm
Machine weight: about 7 tons
Contact us
Packaging & Shipping
Our Services
Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment. To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
ABO- EXHIBITION
From 2013, we ABO have attend many fairs, like
"IBS&KBIS 2016" in Las Vegas, 2016 BIG5 in Dubai, we will attend annual fair to show our new type.
Here is the fair show.
ABO-CERTIFICATE
For metal beads and lath, we ABO have got many certificate,
1, rib lath sliting device patent,
2, multi angle beads slitting and rollforming patent,
Within one week after machine arrival your factory.
2. How many days will you finish installing?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
