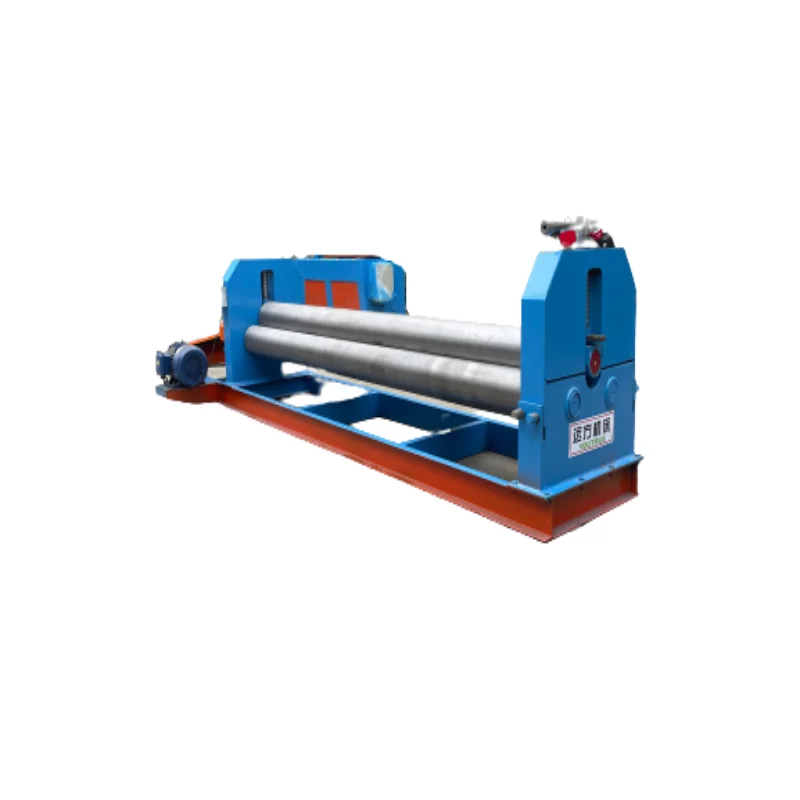

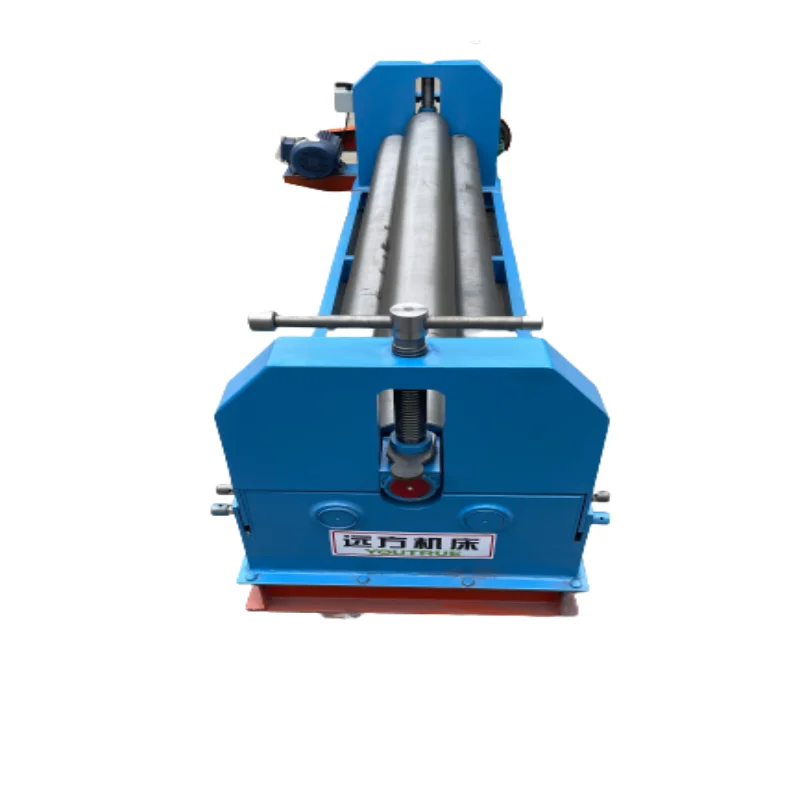

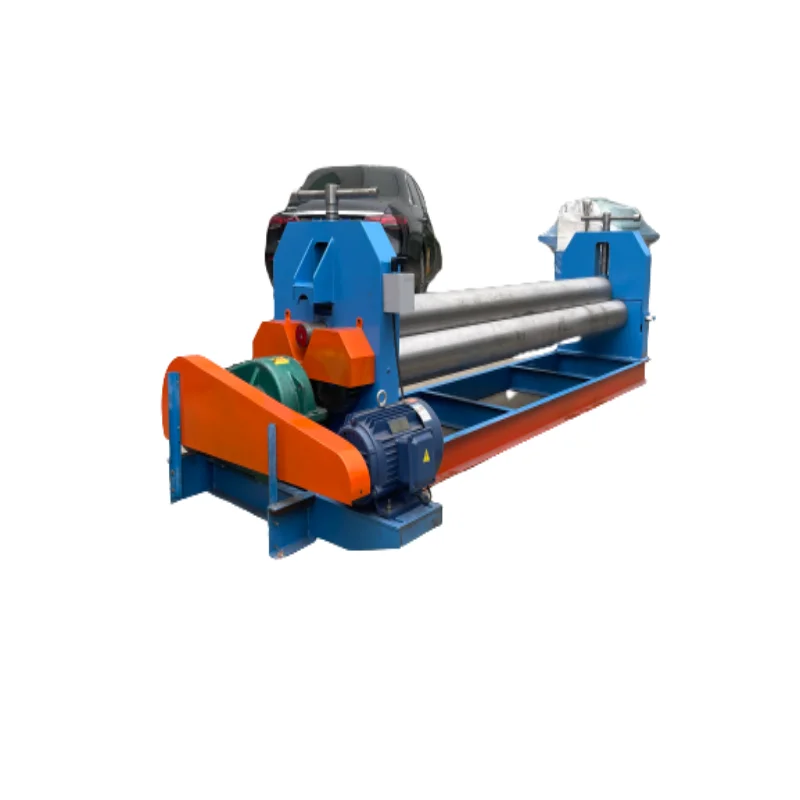

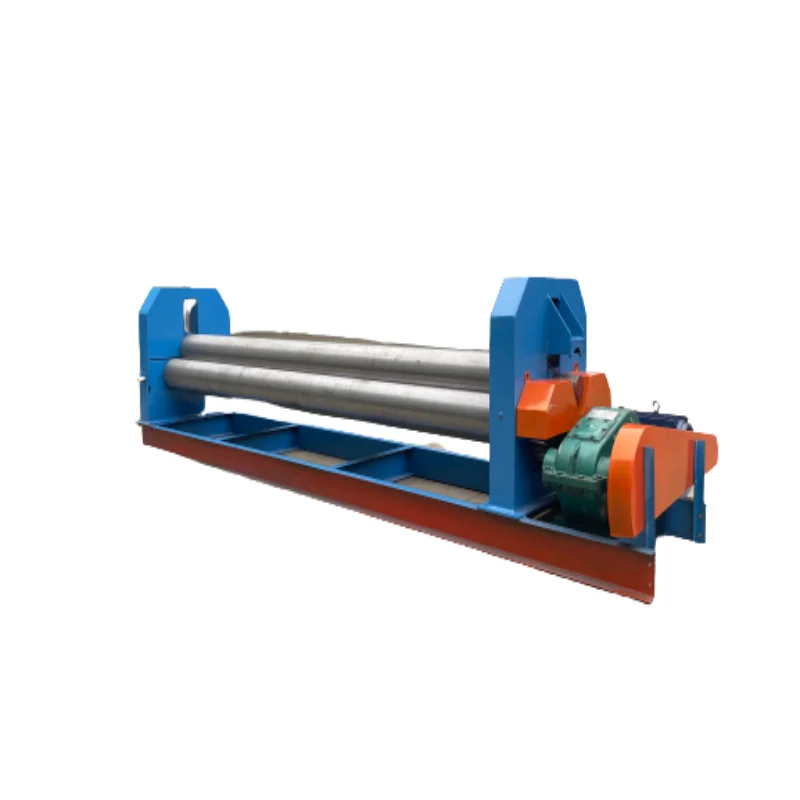

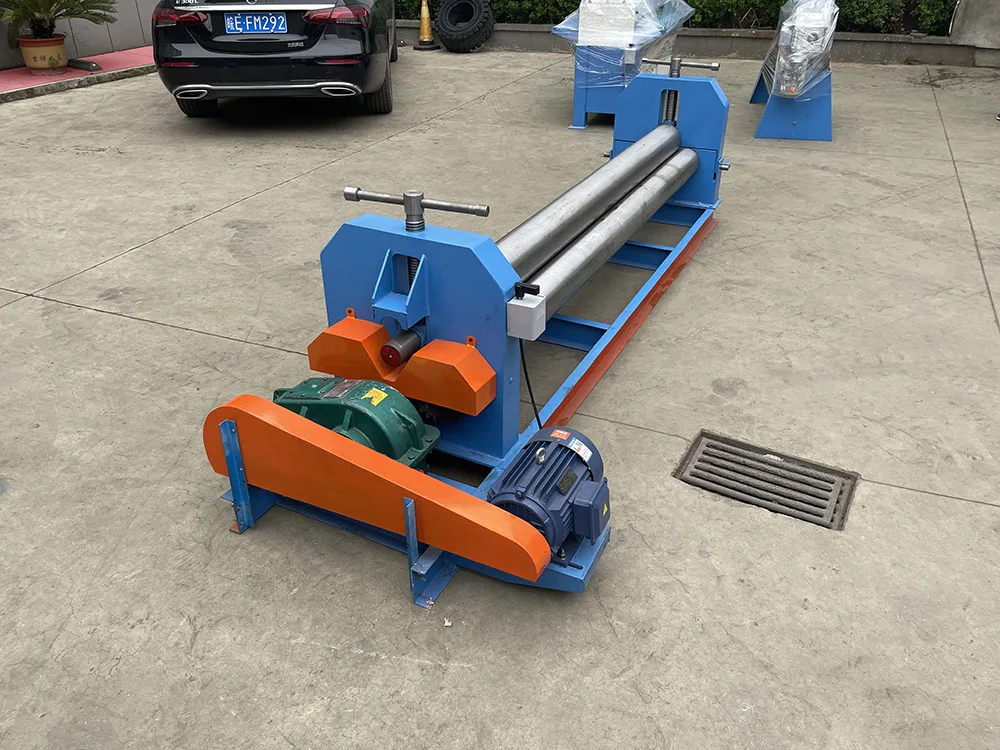

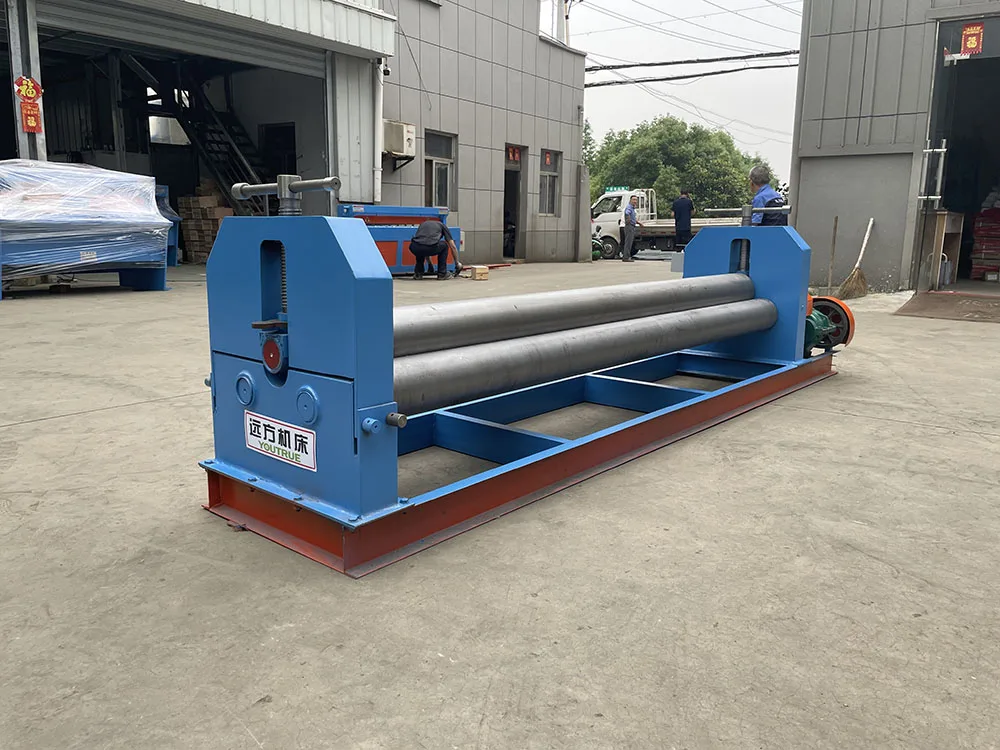

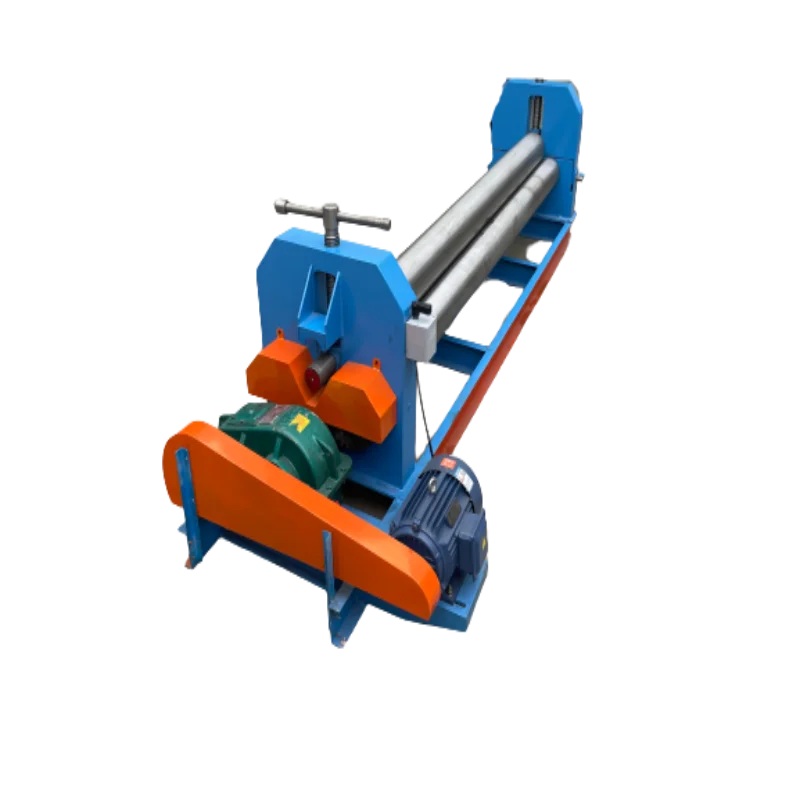

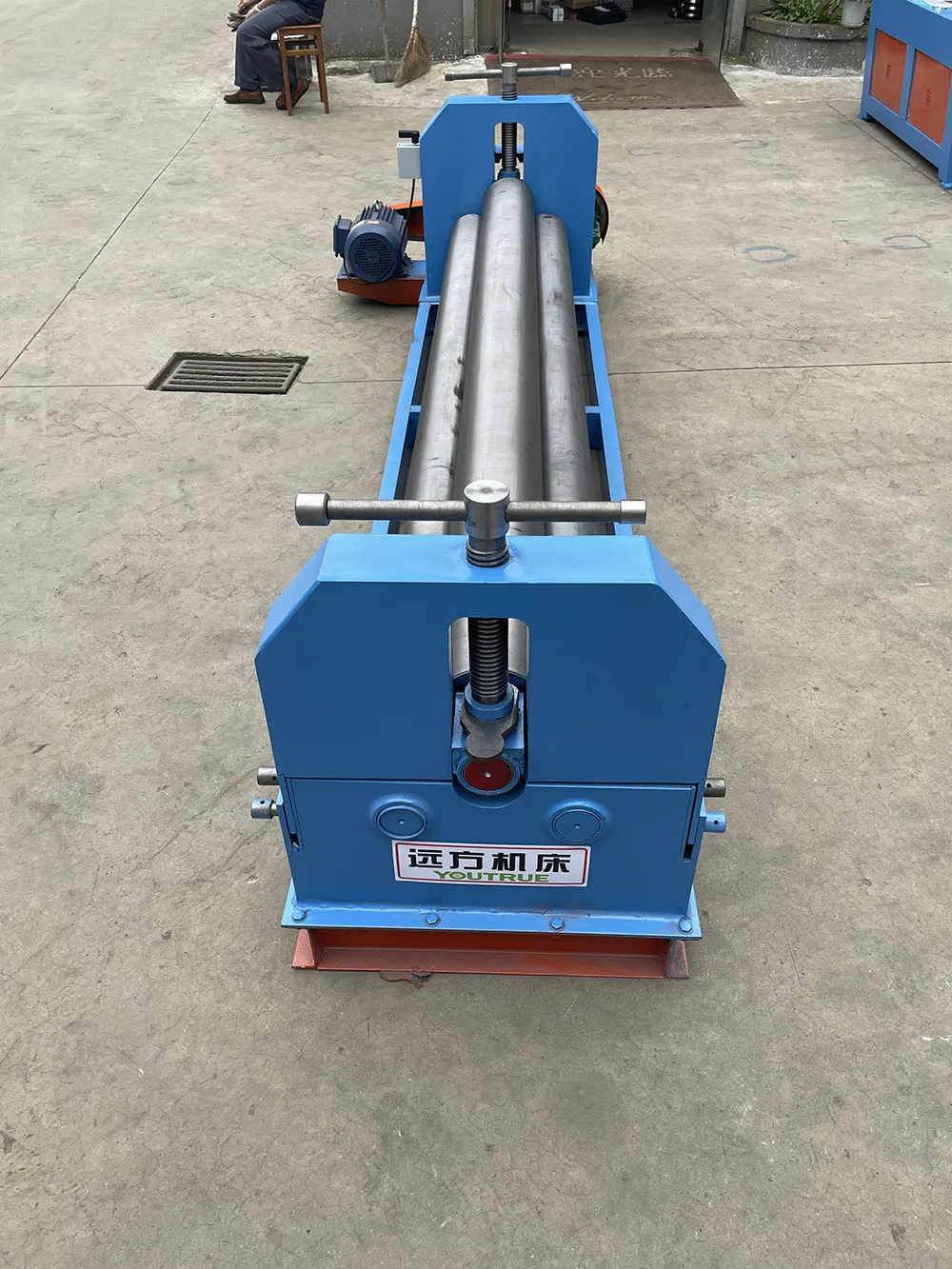

electric 3 rollers type metal roller plate rolling machine 1000mm for rolling
- Category: >>>
- Supplier: Anhui Yuanfang Machine Tool Manufacturing Co. Ltd.
Share on (1600301399136):
Product Overview
Description
Products Description
Electric Mechanical Plate Rolling Machine
The use of the overall frame welding and annealing treatment;
Three-roller symmetric structure; driven by screw lever and turbine worm, the upper roller moves in vertical direction in the center symmetrical position between the lower two rollers; As the main drive roller for rotary motion, two lower rollers are engaged with the output gear of the reducer to provide torque for rolling plate.
The machine is compact, easy operation and maintenance; besides, the roller is suitable for installation of profile dies for easy rolling of various profiles.
Easy-to-use removable console.
Two sets of digital output for easy positioning of two lower rollers.
Upper roller lifting motion principle: auxiliary motor and auxiliary reducer drive the worm and turbine under lateral bearing seats to move, consequently rotate the screw nut on the turbine to lift screw lever.
Unloading device: when finishing rolling work, the upper roller rises up, the pull rod on the end of upper roller holding the roller, then disconnects the left bearing seat namely tiltable bearing seat and extracts the pin shaft, turnover the tiltable bearing seat, finally, the finished ferrule will be released from the other end of the upper roller.
Three-roller symmetric structure; driven by screw lever and turbine worm, the upper roller moves in vertical direction in the center symmetrical position between the lower two rollers; As the main drive roller for rotary motion, two lower rollers are engaged with the output gear of the reducer to provide torque for rolling plate.
The machine is compact, easy operation and maintenance; besides, the roller is suitable for installation of profile dies for easy rolling of various profiles.
Easy-to-use removable console.
Two sets of digital output for easy positioning of two lower rollers.
Upper roller lifting motion principle: auxiliary motor and auxiliary reducer drive the worm and turbine under lateral bearing seats to move, consequently rotate the screw nut on the turbine to lift screw lever.
Unloading device: when finishing rolling work, the upper roller rises up, the pull rod on the end of upper roller holding the roller, then disconnects the left bearing seat namely tiltable bearing seat and extracts the pin shaft, turnover the tiltable bearing seat, finally, the finished ferrule will be released from the other end of the upper roller.
Details Images
Roller
■ Forged material for the Solid Roller
■ Hardened treatment for whole roller
■ good wear resistance, long working life,
Main Drive and rolling
■ High quality,all copper core,main motor is changed by reducer, the working roller is driven by the gear.
■reverse switch is convenient for rolling plate operation.
Product Paramenters

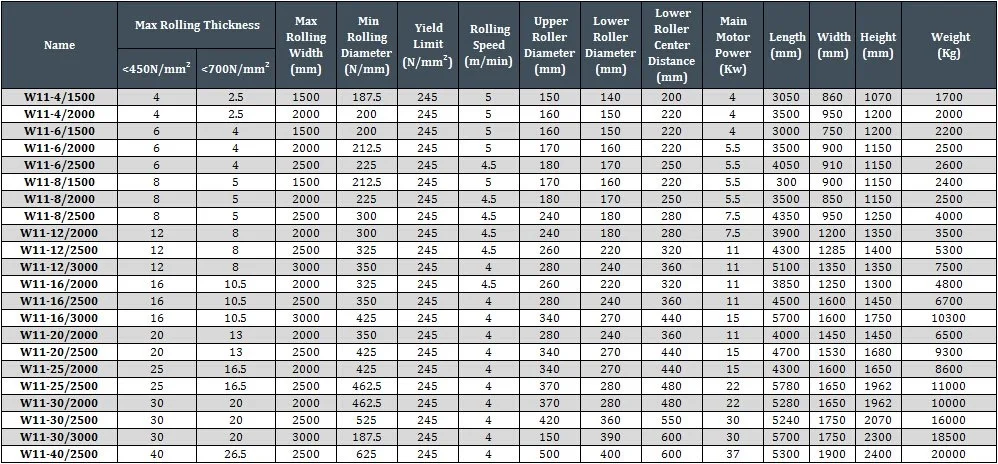

Technical parameter
