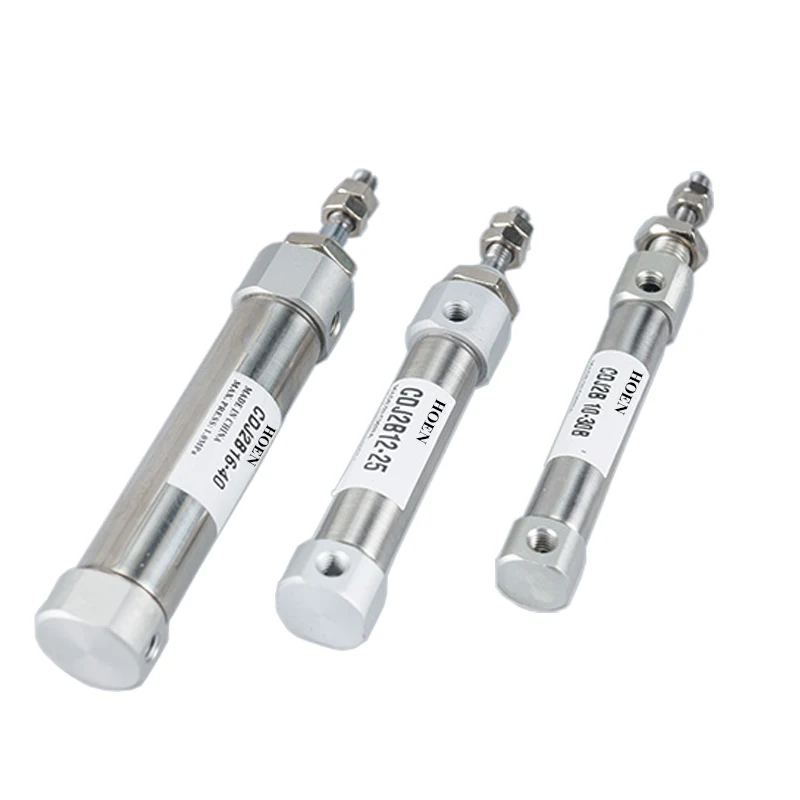

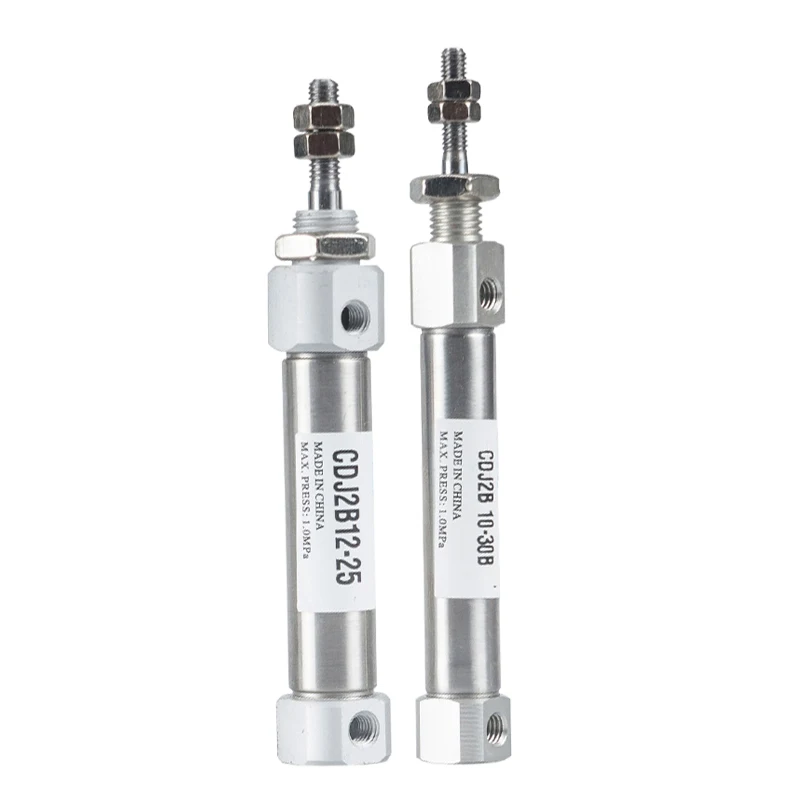

CDJ2B Series Mini Pneumatic Air Cylinder Spring Return Single Acting Stainless Steel Mini Air Cylinder
- Category: Cylinders >>>
- Supplier: Wenzhou Haoen Pneumatic Hydraulic Co. Ltd.
Share on (1600301403729):
Product Overview
Description
Product Description
Specification
Bore size[mm] | 6 | 10 | 16 | ||||
Action | Single acting spring return | ||||||
Fluid | Air | ||||||
Proof pressure | 1 MPa | ||||||
Max. operating pressure | 0.7 MPa | ||||||
Min. operating pressure | Rubber bumper | 0.12 MPa | 0.06 MPa | ||||
Air cushion | --- | 0.1 MPa | |||||
Ambient and fluid temperature | Without auto switch: -10 to 70℃(No freezing) With auto switch: -10 to 60℃(No freezing) | ||||||
Cushion | Rubber bumper | Rubber bumper/Air cushion | |||||
Lubrication | Not required(Non-lube) | ||||||
Rubber bumper | 50 to 750 mm/s | ||||||
Air cushion | --- | 50 to 1000 mm/s | |||||
Rubber bumper | 0.012J | 0.035J | 0.090J | ||||
Air cushion (Effective cushion length) | --- | 0.07J (9.4mm) | 0.18J (9.4mm) | ||||
