Digital Charpy and Izod Impact Testing Machine, Impact Test Apparatus, Izod Charpy Impact Tester with LCD Display HT 5 50D CM
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600301415593):
Product Overview
Description
Digital Charpy and Izod Impact Testing Machine, Impact Test Apparatus, Izod Charpy Impact Tester with LCD Display HT-5-50D-CM
Introduction
The cantilever beam impact tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. It is a common equipment for quality inspection by scientific research institution, universities and non-metallic materials manufacturers. It has the feature of simple structure, easy operation and high test accuracy
Standards:
ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"
GB/T1043 "Rigid Plastic Charpy Impact Test Method"
JB/T8762 "Plastic Charpy Impact Testing Machine"
JB/T8761 "Plastic Izod Impact Testing Machine"
GB/T18743 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"
GB/T1043 "Rigid Plastic Charpy Impact Test Method"
JB/T8762 "Plastic Charpy Impact Testing Machine"
JB/T8761 "Plastic Izod Impact Testing Machine"
GB/T18743 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)
Features

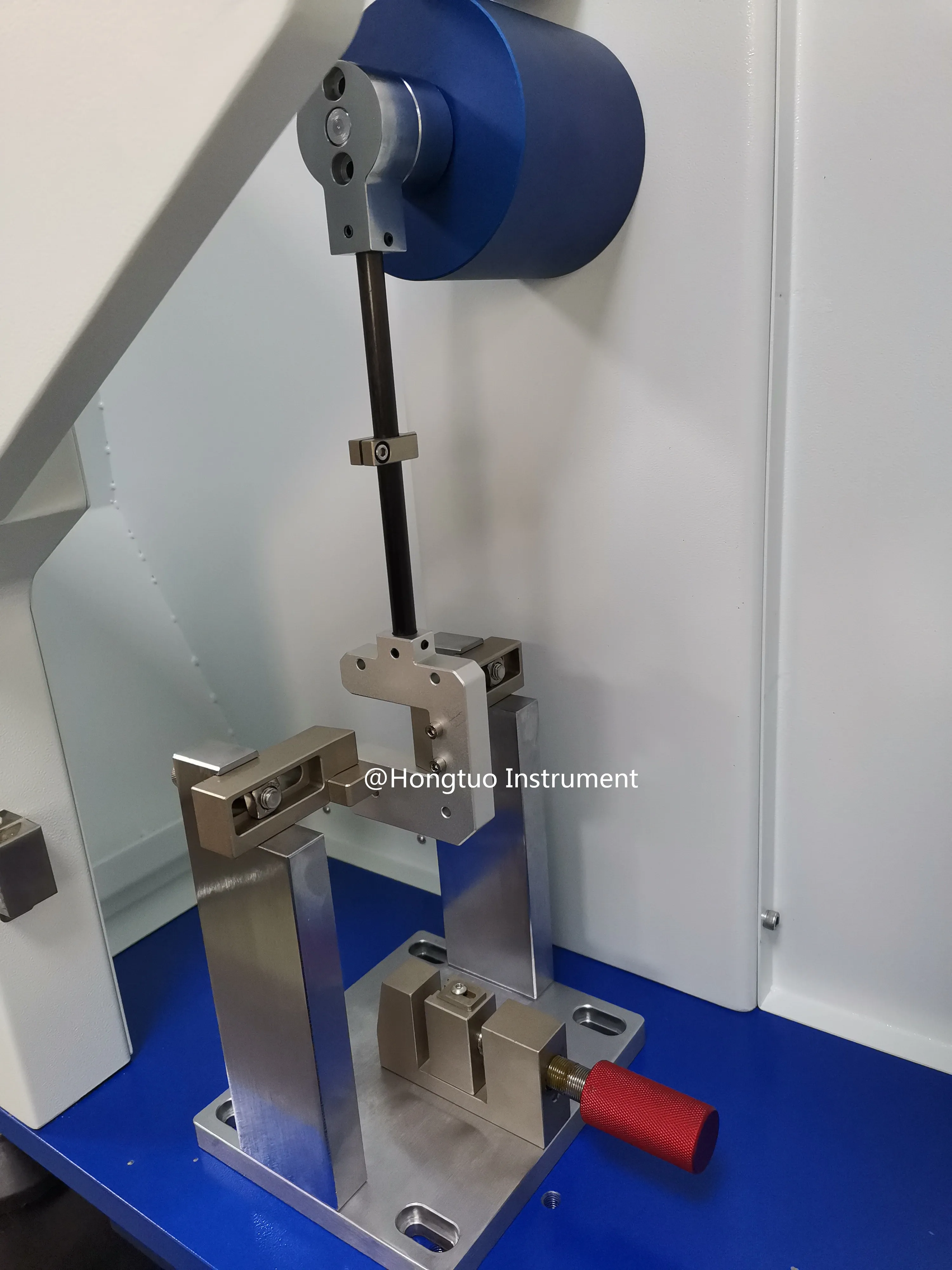

1.Integrated impact of Izod and Charpy, no need to disassemble the fixture and sample holder;

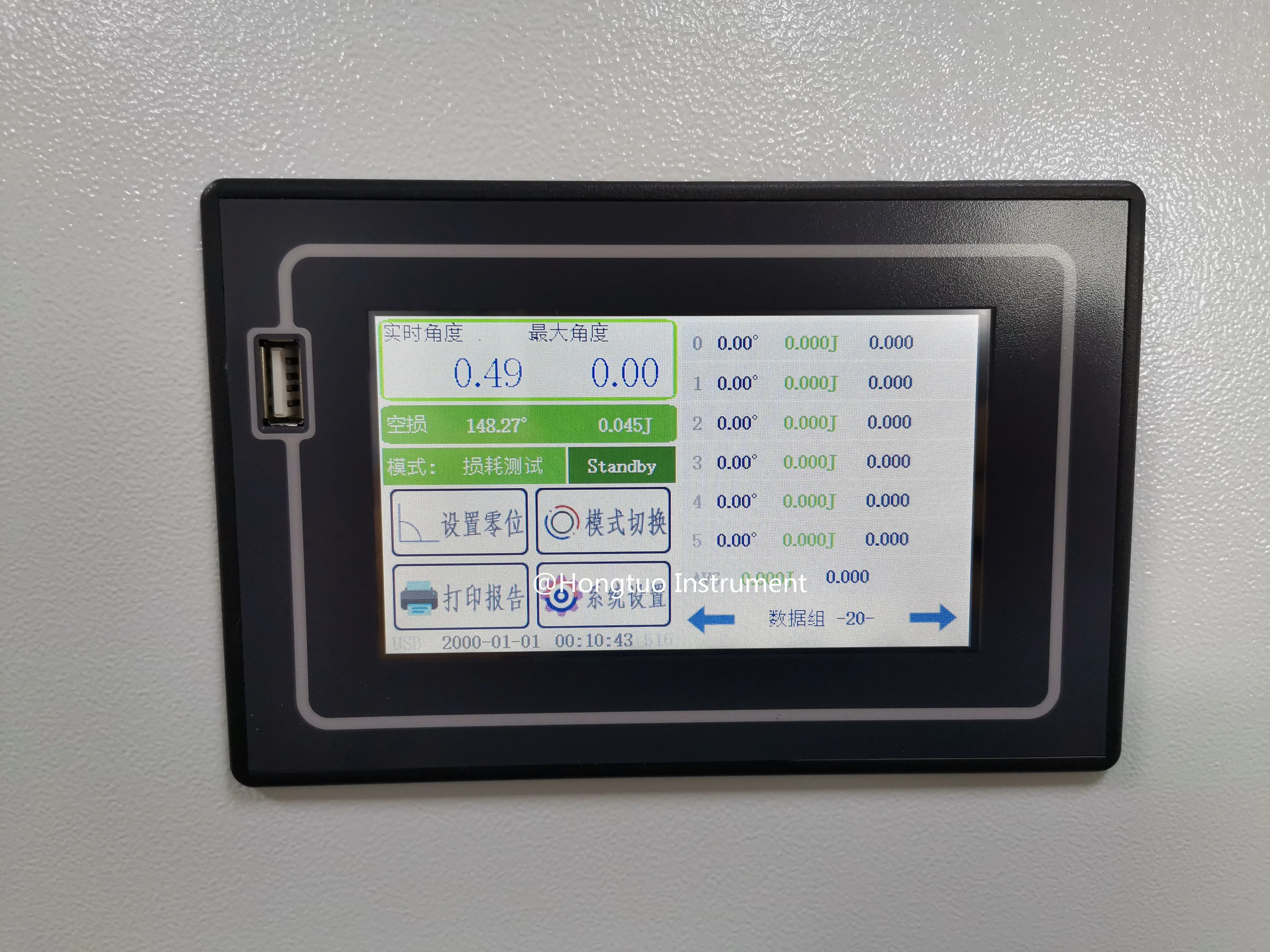

2.High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately;

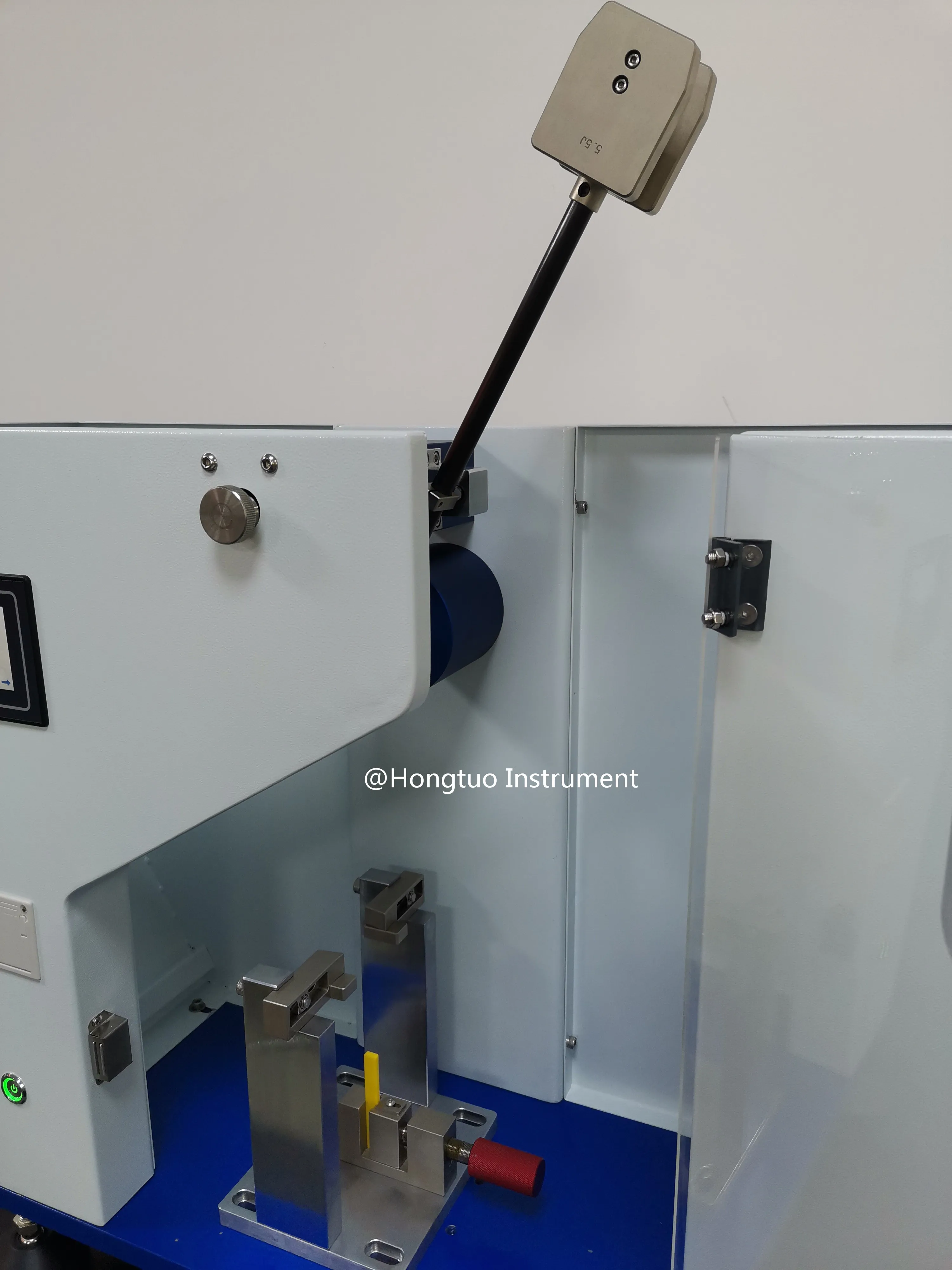

3.On the impact pendulum, carbon fiber pendulum is used to improve the rigidity of the material, and concentrate the impact mass on the center of mass of the pendulum, so as to achieve no vibration impact test and increase the service life;
4.Adopt Imported high-resolution digital encoder, and the angle test accuracy is higher and more stable;
5.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
6.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
7.Optional Chinese and English operating interface, test results can be selected in J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units;
8.Equipped with a brake device, greatly improving safety and testing efficiency.
2.High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately;
3.On the impact pendulum, carbon fiber pendulum is used to improve the rigidity of the material, and concentrate the impact mass on the center of mass of the pendulum, so as to achieve no vibration impact test and increase the service life;
4.Adopt Imported high-resolution digital encoder, and the angle test accuracy is higher and more stable;
5.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
6.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
7.Optional Chinese and English operating interface, test results can be selected in J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units;
8.Equipped with a brake device, greatly improving safety and testing efficiency.
Specification
Model | HT-5D-CM | HT-50D-CM | HT-5-50D-CM | ||
Izod pendulum energy | 1J, 2.75J, 5.5J | 11J, 22J | 1J, 2.75J, 5.5J, 11J, 22J | ||
Charpy pendulum energy | 1J, 2J, 4J, 5J | 7.5J, 15J, 25J, 50J | 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J | ||
Charpy impact speed | 2.9m/s | 3.8m/s | 2.9m/s(≤5J), 3.8m/s(≥7.5J) | ||
Charpy pendulum center distance | 230mm | 395mm | 230mm(≤5J), 395mm(≥7.5J) | ||
Izod impact speed | 3.5m/s | ||||
Izod pendulum center distance | 335mm | ||||
Pendulum angle | 150° | ||||
Measurement accuracy | ±0.1% | ||||
Resolution | 0.03% | ||||
The distance from the izod impact blade to the upper plane of the jaw | 22mm±0.2mm | ||||
Izod edge fillet radius | R=0.8mm | ||||
Charpy impact edge fillet radius | R=2mm±0.5mm | ||||
Charpy impact blade angle | 30°±1° | ||||
Charpy impact edge fillet radius | R=1mm±0.1mm | ||||
Charpy impact support front angle | 5° | ||||
Charpy impact support rear angle | 10° | ||||
Output mode | Printout or U-disk output | ||||
Supply voltage | 110~230VAC 50/60Hz | ||||
Appearance size (L*W*H) | 85cm*37cm*65cm | 106cm*37cm*78cm | 106cm*37cm*78cm | ||
Weight | About 80kg | About 100kg | About 120kg | ||

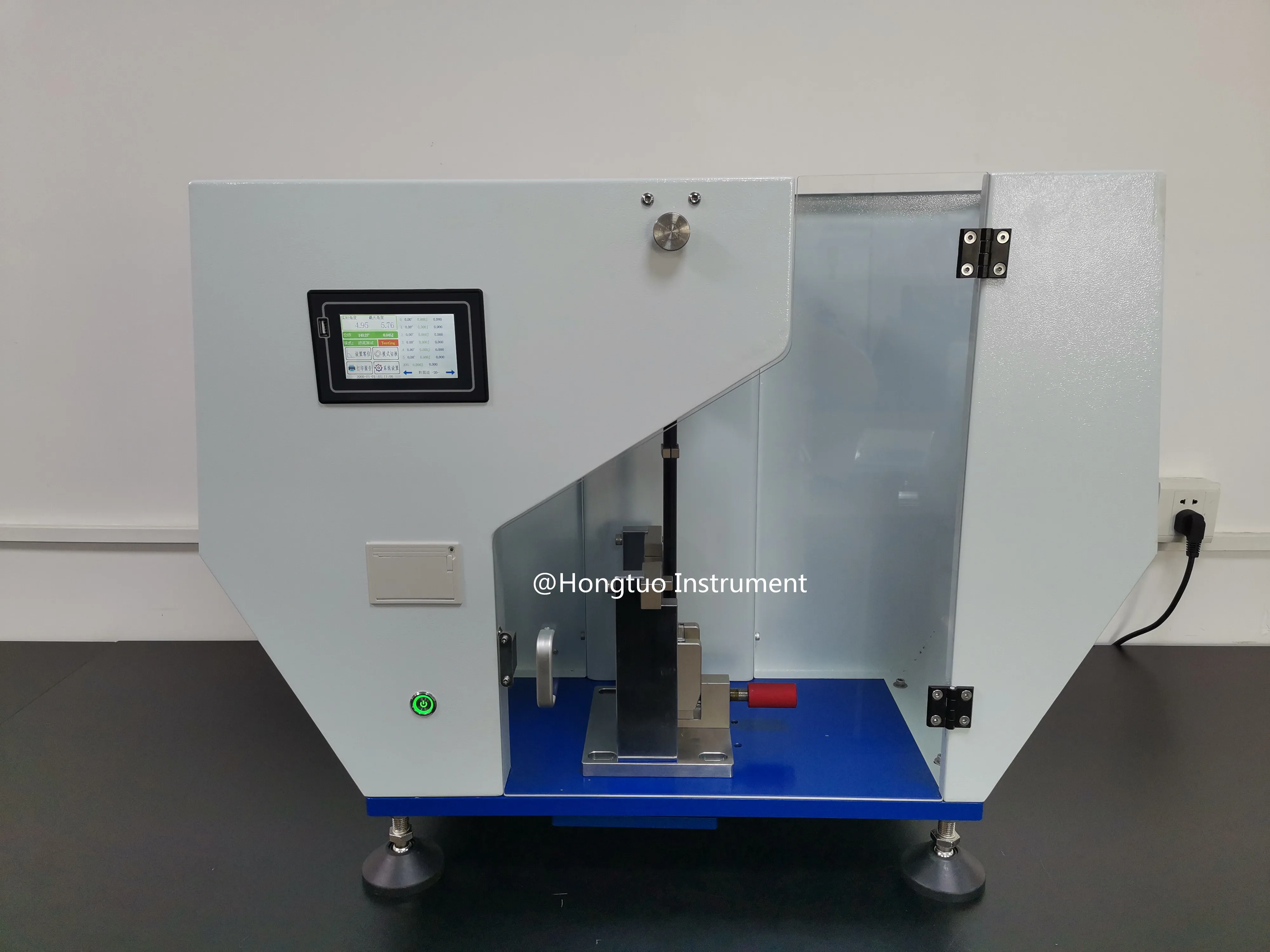

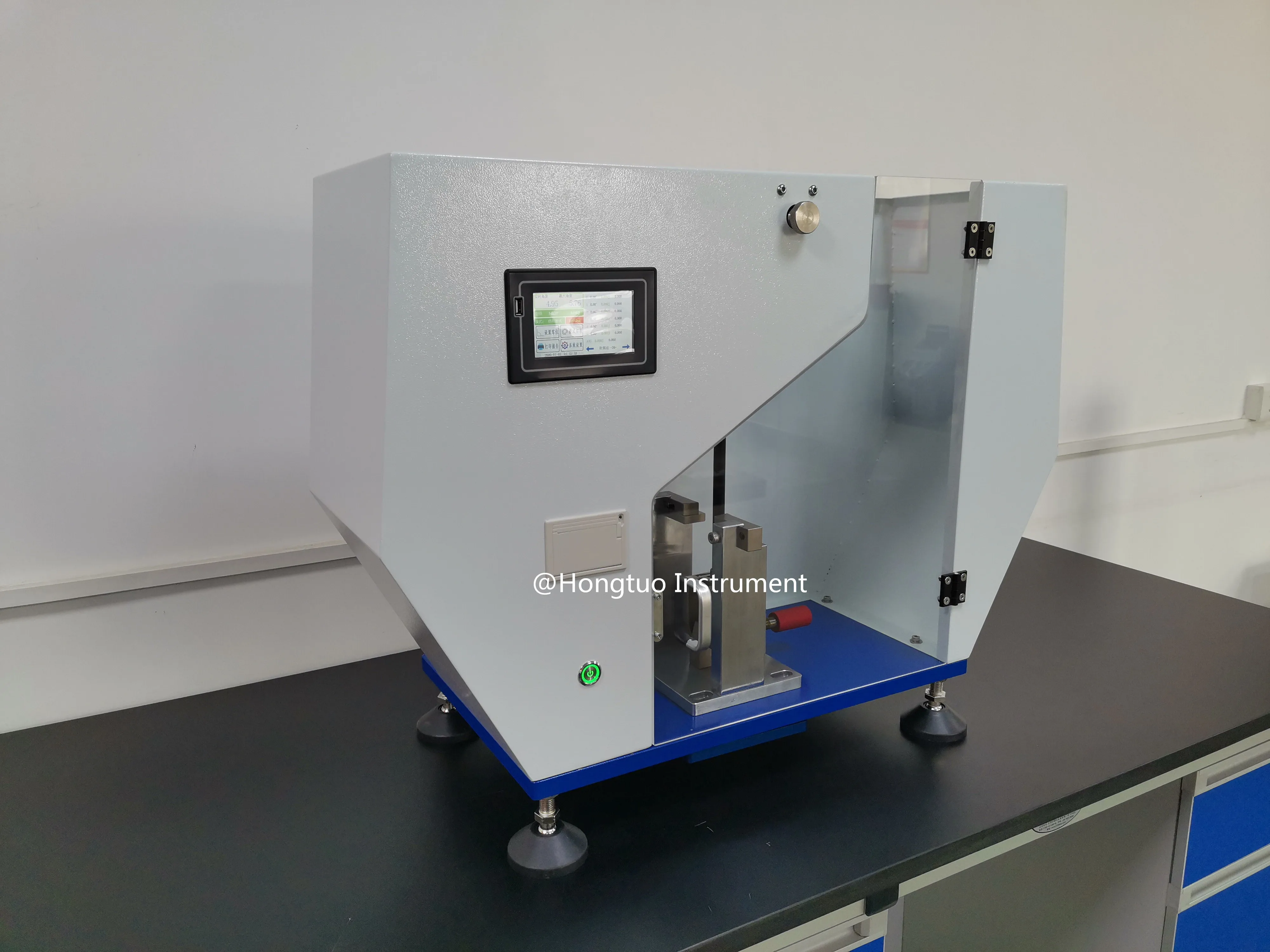

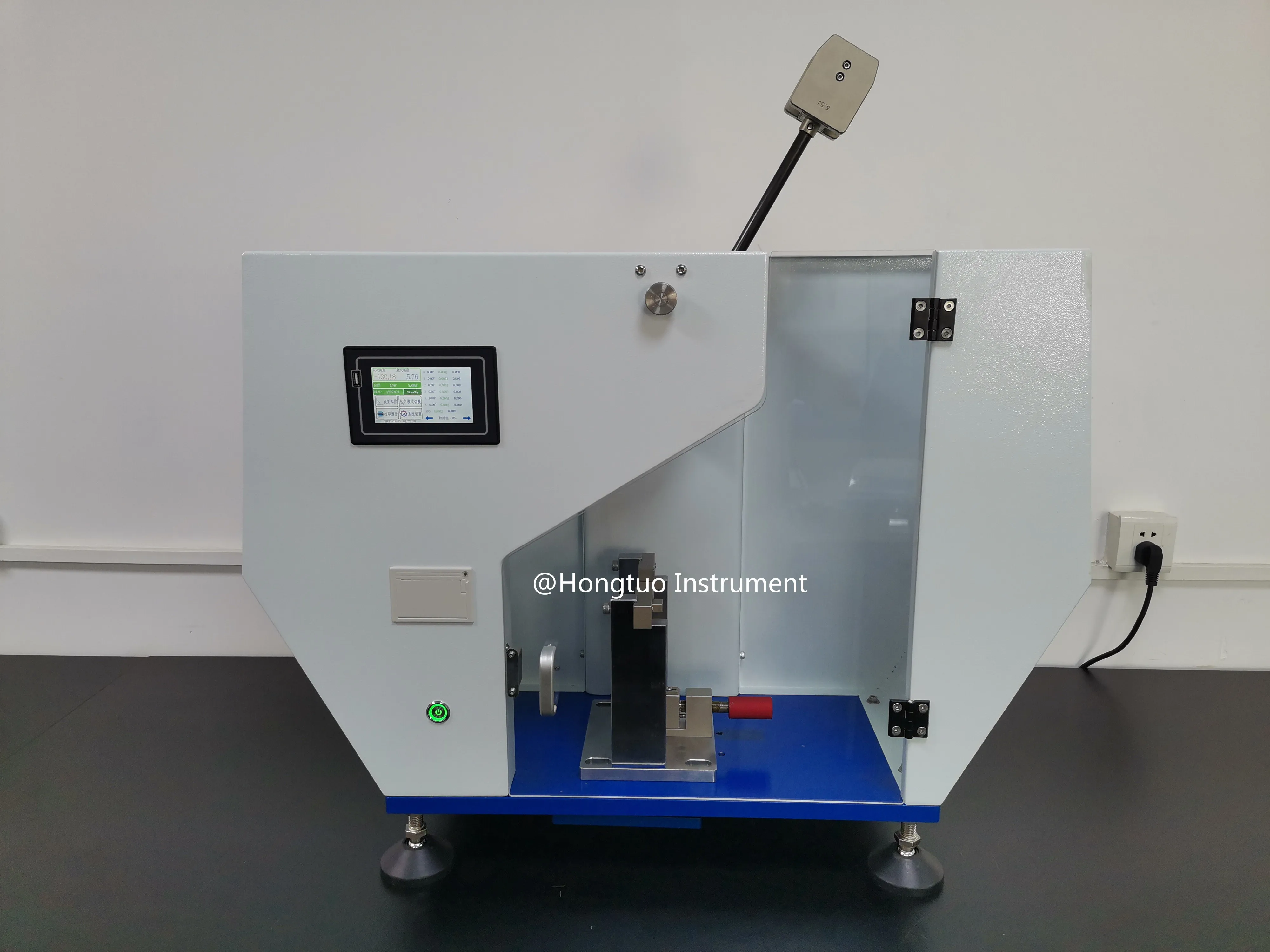

Details Images
Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
FAQ
1.Quality Insurance
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
