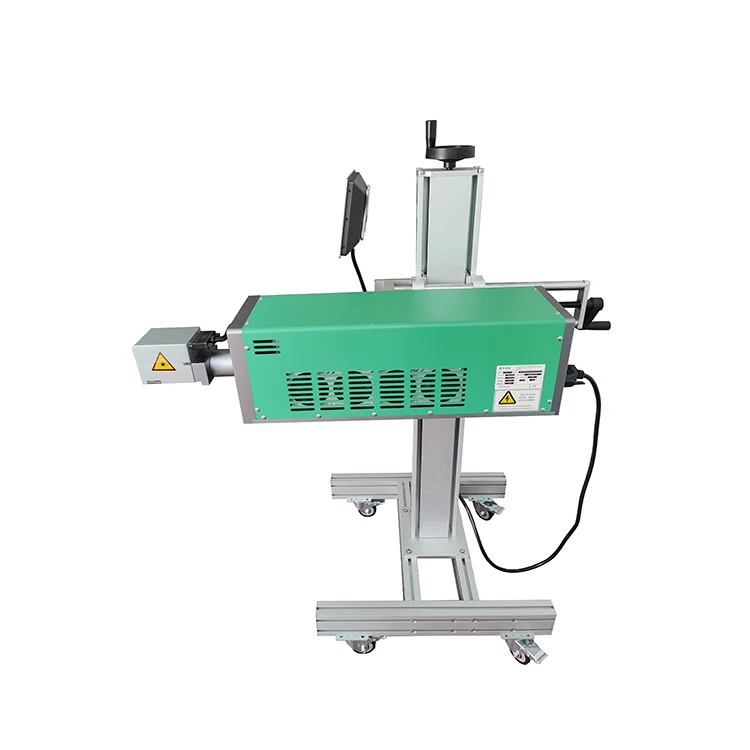

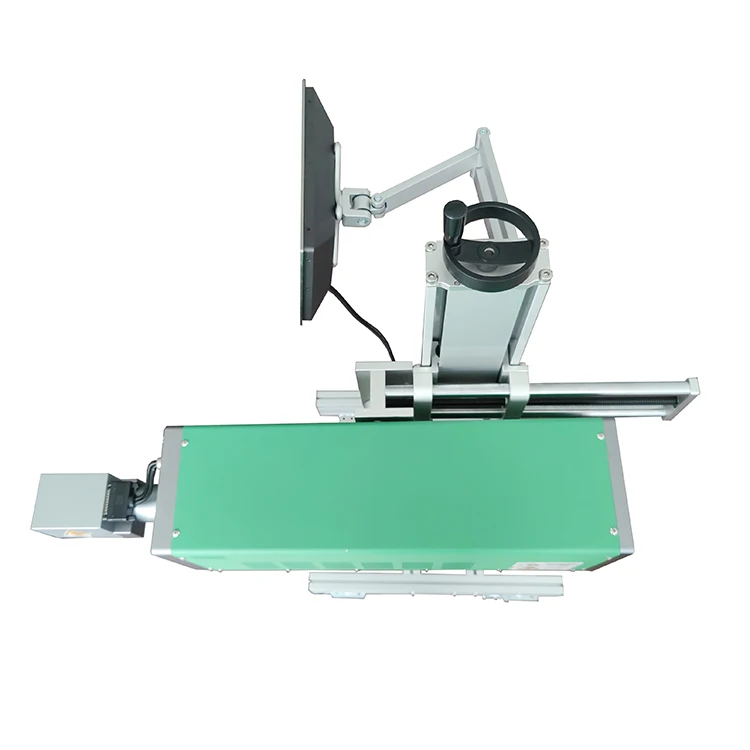

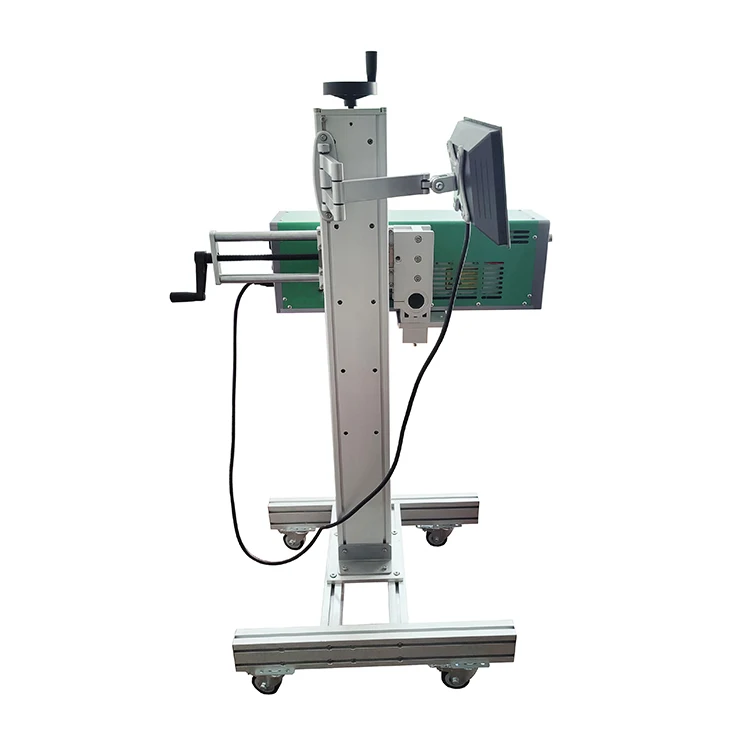

cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine
cable wire 20w 30w 50w large format co2 laser marking machine

cable wire 20w 30w 50w large format co2 laser marking machine

Share on (1600301423549):


Price:$2,142.00 - $2,676.00

Quantity:


Product Overview

Description



Products Description







Product introduction

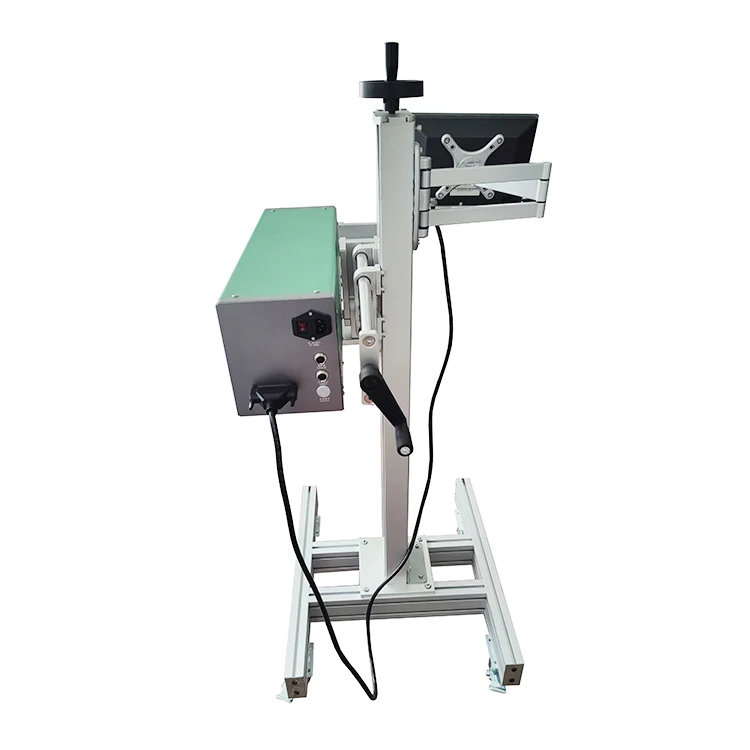

CO2 laser marking machine can be used for marking logo, serial number, bar code and other patterns on any non-metal materials such as plastic, mobile cover & charger, consume electronics housing and etc.




Technical specification
 Product name
cable wire 20w 30w 50w large format co2 laser marking machine
Material of the machine
Anodic alumina structure + spraying
Laser

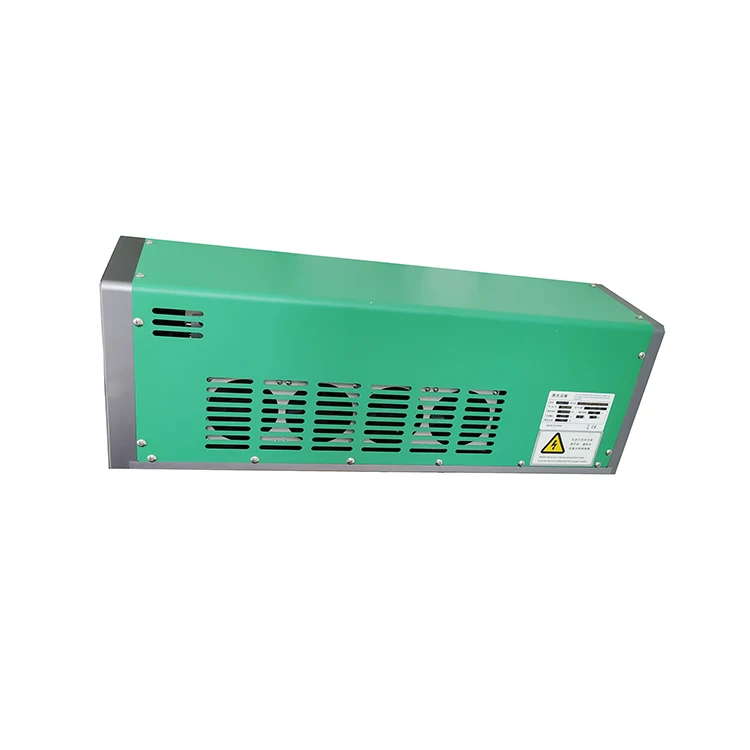

Sealed Metal Radio Frequency Carbon Dioxide Laser Generator
Continuous output power
≥30W
Laser wavelength
10.6um/10.2um/9.3um
Deflection mirror
High-precision two-dimensional scanning system
Marking speed
≤12000mm/s
master control
10.1 inch External Controller
operating system
Linux System
Cooling system
Room temperature air cooling (no compressed air required)
Focus Lens
Focus 150 mm
Marking type
Dot matrix and vector integrated machine (can play both dot matrix and vector)
Minimum line width
0.03mm
Repeated positioning accuracy
0.01mm
Marking range
90mm×90mm (optional) Optional maximum range: 450mm×450mm
Positioning mode
Red light positioning, focusing
Number of engraved character lines
Arbitrary Lines within Marking Range
Line Speed
0-130m/min (depending on material)
Typeface
Standard font libraries in English, numerals, traditional Chinese, etc.
File format
BMP/DXF/HPGL/JPEG/PLT
Bar code
CODE39, CODE128, CODE126, QR, KNOWLEDGE CODE
Power Supply
220V
Electrical Consumption
800W
Net weight of machine
24.8kg
Outline dimensions
Light path：800mm×175mm×200mm
Environmental requirements
External temperature 0-45 C;Humidity < 95%;Non-condensing;No vibration
Logistics Packaging Weight
Complete machine: 26kg;Bracket: 25kg
Logistics Packaging Size
Complete machine: 950mm×500mm×370mm;Support: 1100mm×280mm×250mm










Applicable Industry:
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons etc.





Company Profile

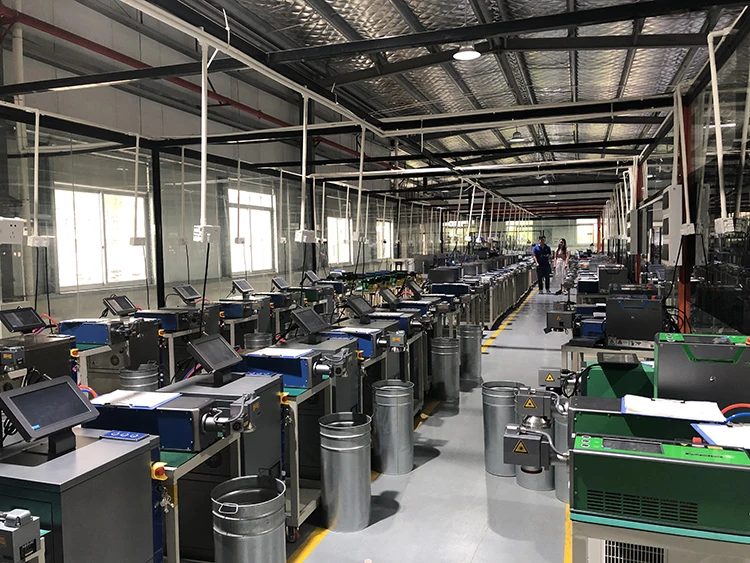

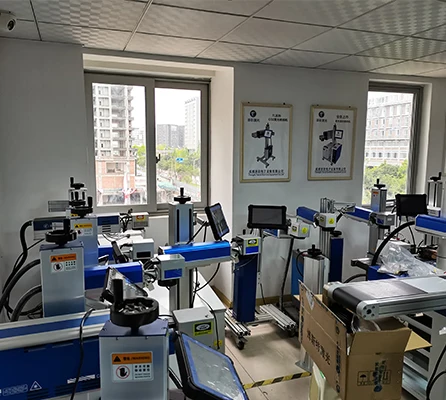

Located in Chengdu, Sichuan Province, China, the hometown of giant panda, Chengdu Linservice Industrial Inkjet Printing Technology Co., Ltd. has become a leader in the product identification industry with its strong technical strength, complete production equipment, strict quality testing, mature manufacturing.

As a professional inkjet printer product provider, it has professional technology and product resources and focuses on the product identification and safety of the enterprise. With more than nearly 20 years of service experience in the identification industry, it provides safe, assured and reliable product identification for all sectors of society, especially in the association and traceability application of industrial identification.




Exhibition




Partner


Our partner
Linservice has been a qualified supplier of P & G (China) Co., Ltd. for many years. The well-known customers include: P & G (China), Lafarge (China), Coca Cola, unified enterprise, Wuliangye Group, Jiannanchun Group, Luzhou Laojiao group, Tsingtao Beer Group, China Resources Lanjian group, Di'ao pharmaceutical group, China Biotechnology Group, Sichuan ChuanHua group, Lutianhua group, Sichuan Tianhua group, Zhongshun group, Chengdu new hope group, Sichuan Huiji food, Sichuan Liji group, Sichuan Guangle group, Sichuan coal group, Sichuan Tongwei group, Sichuan xingchuancheng group, Sichuan Jiahua group, Yasen building materials, Chongqing beer group, Chongqing Zongshen electric appliance group, Guizhou Hongfu group, Guizhou saide group, Guiyang snowflake beer, Guizhou Deliang prescription pharmaceutical, Yunnan Lancangjiang beer group, Kunming Jida Pharmaceutical Group, Kunming
Jinxing Beer, There are hundreds of enterprises in Yunnan Wuliang zangquan, Gansu Jinhui liquor group, Gansu Duyiwei Co., Ltd., including food, beverage, pharmacy, building materials, cable, chemical industry, electronics, tobacco and other industries.

The products have been also exported to more than 30 countries, such as the United Kingdom, Russia, Saudi Arabia, the United Arab Emirates, Poland, Ukraine, India, Korea, Singapore, Brazil and Peru.


FAQ


1. How to guarantee quality?
From production to sale, the machine is checked at every step to ensure that the final equipment is in order.
2. Can you guarantee the safety in transit?
It can ensure the safety in transit. Our packing is very strict.3.Will you provide after-sale technical service?
We will provide 24 hours after-sales service, we will also have technical staff to answer your questions
4. Can I repair it if it breaks down?
Can repair
5. Where can these devices be used?
Our products cover printing and packaging, food and beverage, chemical building materials, pharmaceutical, tobacco, daily chemical, automotive and aerospace manufacturing and many other industries.
6. How do I know if your machine works well?
Before delivery, we have tested each machine and adjusted it to the best condition. If you have special production conditions, we will adjust to the corresponding state for you.
