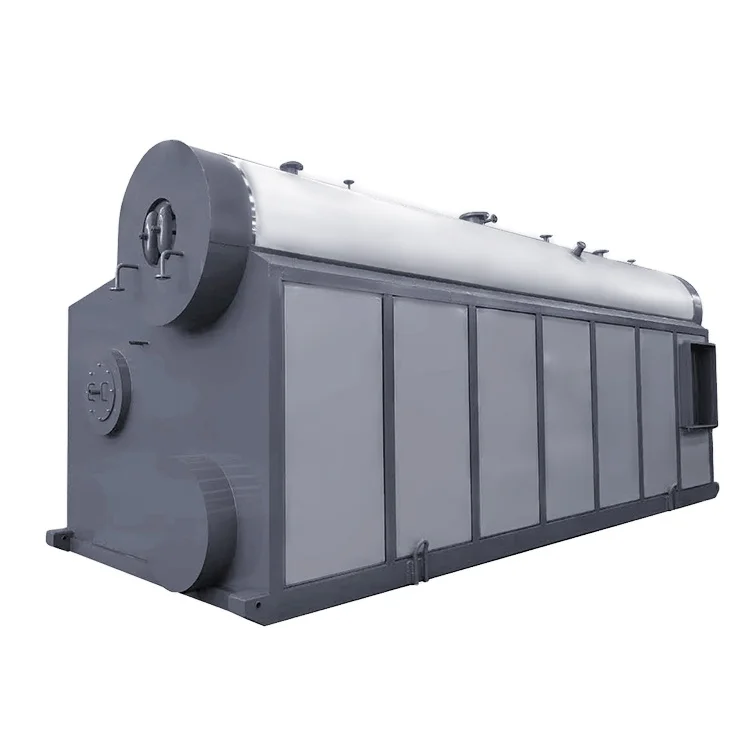

Manufacture Szs Boiler Steam Boiler SZS Double Drums Horizontal Waste Oil Natural Gas Steam Boiler
- Category: >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600301472796):
Product Overview
Description

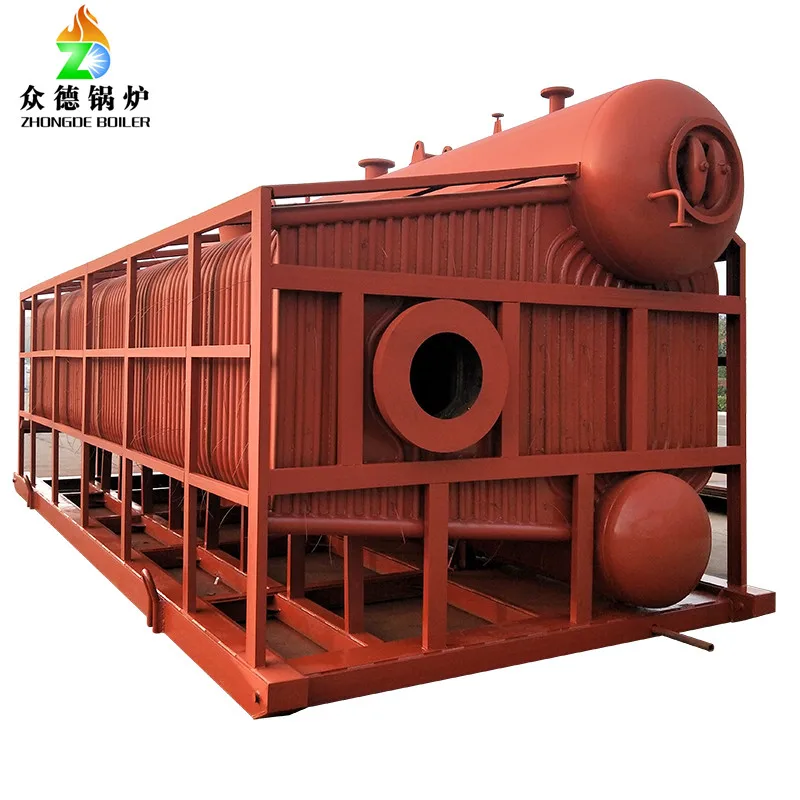

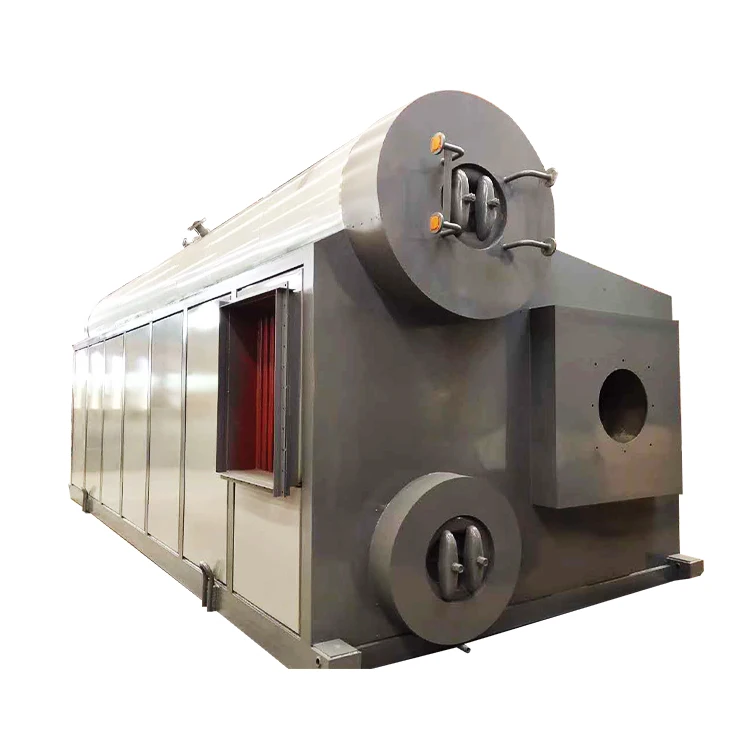

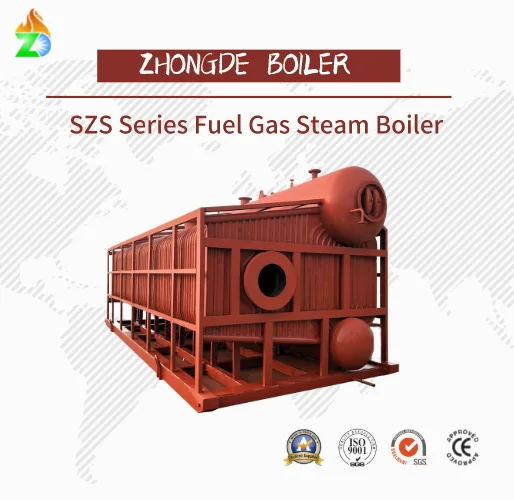

SZS series gas oil water tube boiler

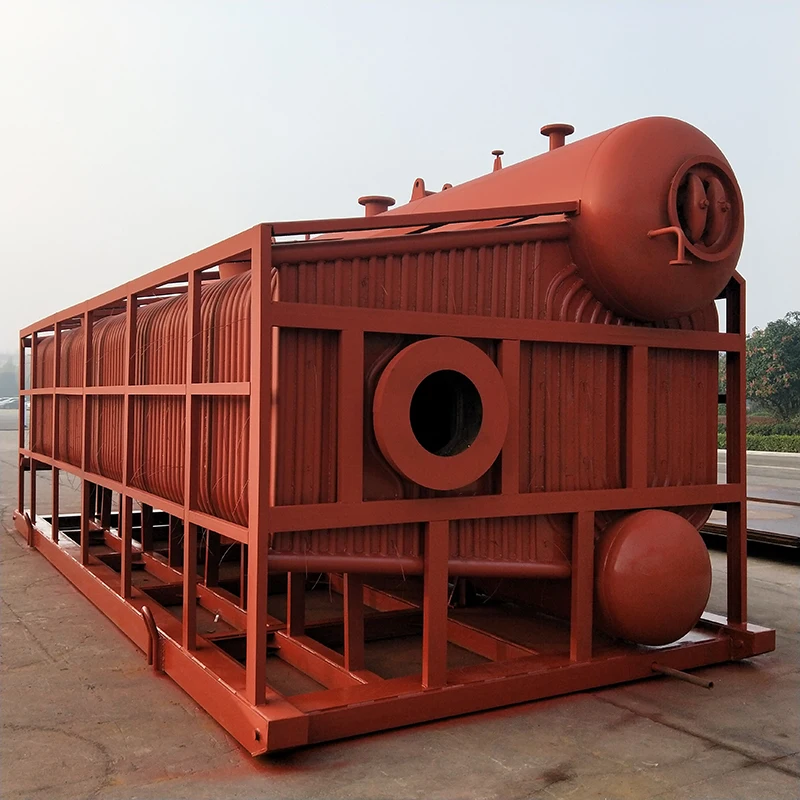

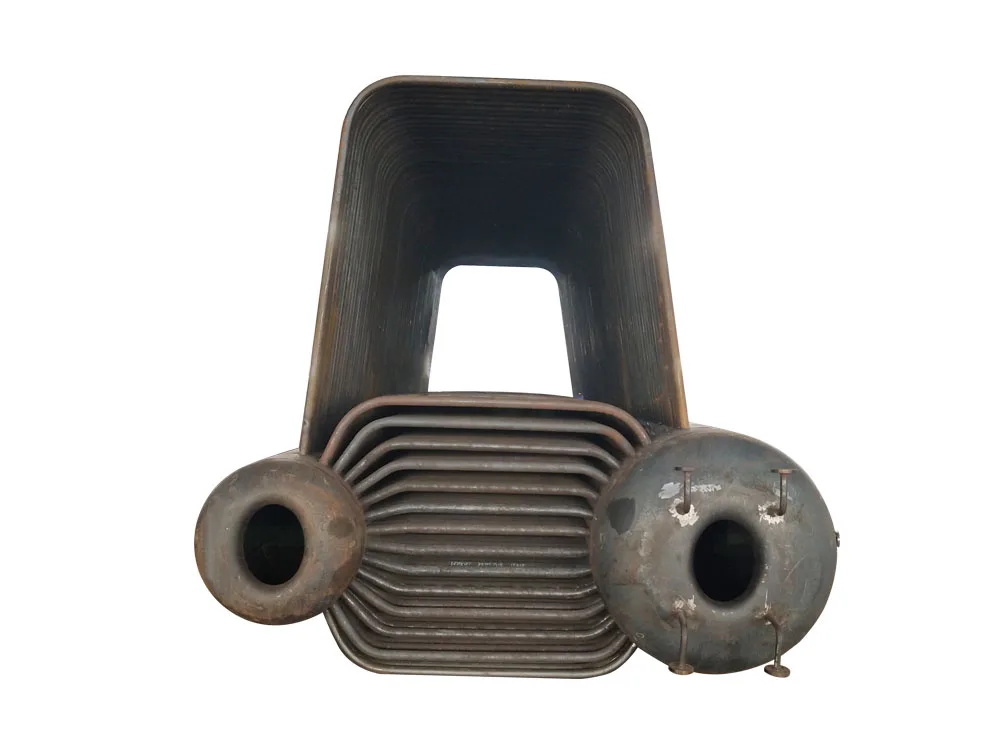

The structure of SZS series boilers is D-type arrangement of upper and lower double drums. The convection heating surface is composed of dense membrane wall water pipes between the drums. It has the characteristics of high thermal efficiency, large heat absorption area, strong overload capacity, safe and stable operation.
Model number | SZS10-1.25-Y.Q | SZS15-1.25-Y.Q | SZS20-1.25-Y.Q | SZS25-1.25-Y.Q | SZS30-1.25-Y.Q | SZS35-1.25-Y.Q |
Rated evaporation（t/h） | 10 | 15 | 20 | 25 | 30 | 35 |
Rated steam pressure（MPa） | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Rated steam temperature（℃） | 194 | 194 | 194 | 194 | 194 | 194 |
Length（mm） | 7060 | 8680 | 9395 | 10795 | 10795 | 11795 |
width（mm） | 3340 | 3340 | 3600 | 3600 | 3870 | 4070 |
height（mm） | 3396 | 3416 | 3616 | 3816 | 4016 | 4216 |
SZS series steam boiler can be widely used in various industrial heating processes due to its high heating temperature, low working pressure and energy saving. Such as petrochemical industry, synthetic fiber industry, textile printing and dyeing, plastic rubber, paper industry, wood industry, building materials, machinery industry, food industry, electrical equipment, coking industry, metal and foundry industry, detergent industry, fat and coating industry, carbon Vegetarian industry.
Selling Units:Single item
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity

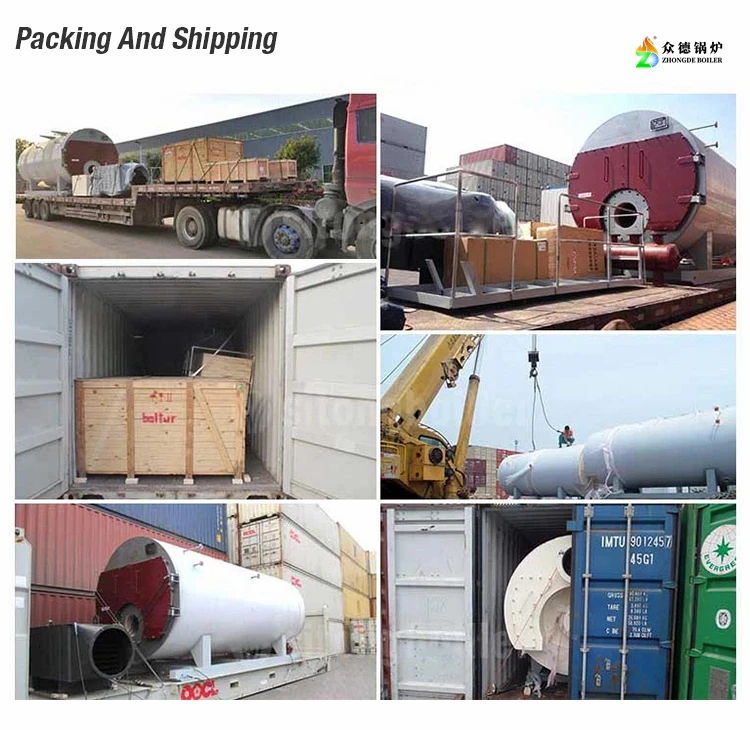

Package Type:customized
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Pre-sale service:
24 hours customers service online.Professional technical support.Offer factory inspection service.
On-sale service:
Equipped with full range of original parts.Assured quality,on-time delivery.Overseas Engineer Installation Team.
After-sales service:
Two years warranty period.Overseas after-sale facility agencies.Technical team visits customers quarterly.
24 hours customers service online.Professional technical support.Offer factory inspection service.
On-sale service:
Equipped with full range of original parts.Assured quality,on-time delivery.Overseas Engineer Installation Team.
After-sales service:
Two years warranty period.Overseas after-sale facility agencies.Technical team visits customers quarterly.
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
1. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficien.
2. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
3.What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler.
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficien.
2. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
3.What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler.
