Printable Self Adhesive Magnetic Rubber Sheet Vinyl PVC Flexible Magnet In Roll
- Category: >>>
- Supplier: Shanghai Taixiong Magnetic Industrial Co. Ltd.
Share on (1600301499241):
Product Overview
Description

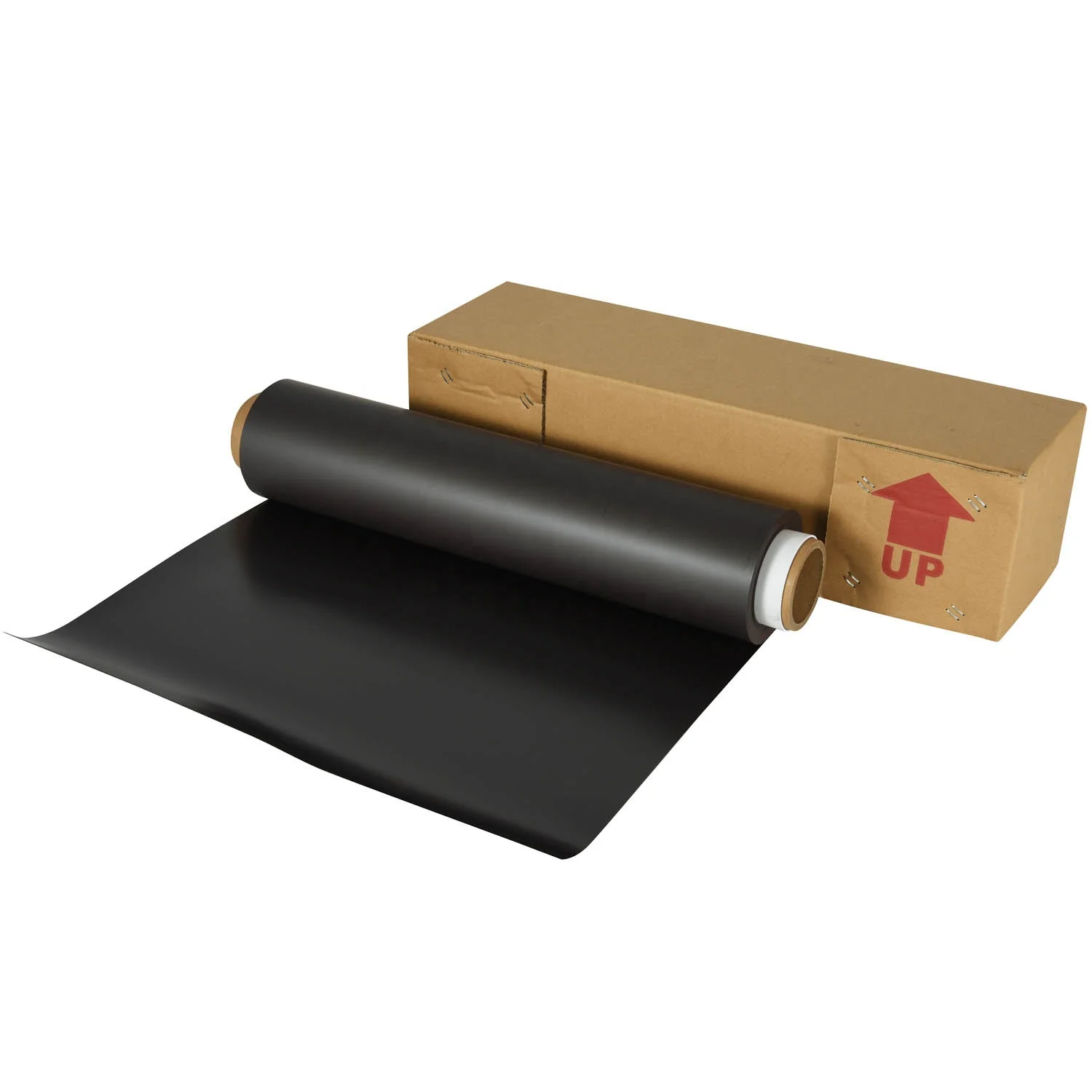

Flexible Rubber Magnet Roll
-Flexible rubber magnet made of ferrite magnet powder,compound rubber and other materials.
-By extruding, rolling or injecting, the combination can be made into soft, plastic and flexible magnets with different shapes
which are depend on the request of clients.
Material | Flexible Rubber Magnet | Coating | Plain Brown,PVC,Self-adhesive,etc | ||
Thickness | 0.3mm-2.0mm | Quality | Guaranteed | ||
Width | 300mm-1520mm | Printing | CMYK Printing | ||
Standard | ROHS CA65 ISO9001 | Shape/Design/Size | OEM&ODM | ||
Magnetizing | single multi polar magnetizing normal magnetizing thickness direction magnetizing two sides magnetizing | Surface | •UV glossy matte •PP film •USA 3M adhesive •Screen Printing | ||
Package | Individual package. Custom package is accepted | Feature | Waterproof,Dustproof, Anti-scratch,Radiation protection | ||
Delivery | Sample Time:3-5 Days Bulk Time:10-15 Days | Usage | Industrial Use,Fridge Magnets, Magnetic Car Sign,Advertisement banner,etc | ||
The Normal Thickness :0.3mm (12mil)0.4mm (15mil)0.5mm (20mil)0.7mm (27.6mil)0.76mm (30mil)1.5mm(60mil)
Isotropic material: weak magnetism, used on iceboxes, presswork and marketing and promotion premiumsAnisotropic material: strong magnetism, used in such applications as micro-motors and magnet toys.
Production process: batching → mixing → extrusion / calendering / injection molding → processing → magnetization → inspection→packaging
Working Temperature: -26℃ to 80℃ (-15℉ to 176℉)
Remark:the common packing for roll material is 30m/roll or 50m/roll; it also depends on the specific width and thickness of the product as well as the shipping terms.
Product Paramenters
Magnetic Performance
Grade | Max magnetic energy | Remanence Magnetism | Coercivity | Intrinsic Coercivity | ||||||||
(BH)MAX | BR | HCB | HCB | |||||||||
MGOE | KJ/M3 | KGS | MT | KOE | KA/M | KOE | KA/M | |||||
Isotropic | 0.5-0.7 | 4.0-5.6 | 1.5-1.7 | 150-170 | 1.2-1.4 | 95-111 | 1.9-2.0 | 151-159 | ||||
Anisotropic | 1.3-1.6 | 10.4-12.8 | 2.3-2.6 | 230-260 | 2.1-2.3 | 167-183 | 2.4-3.5 | 191-278 | ||||
Hot Sale Performance
Thinkness （mm) | Width (mm) | Length (m) | Weight (kg) | Magnetic Force(g/cm2) | Magnetic Surface(Gs) | ||||
Isotropic | An-isotropic | Isotropic | An-isotropic | ||||||
0.3 | 1270 | 15 | 23 | ≥12 | ≥15 | 185 | 205 | ||
1200 | 15 | 22 | |||||||
610 | 30 | 22 | |||||||
0.4 | 1200 | 15 | 28 | ≥18 | ≥20 | 225 | 310 | ||
610 | 30 | 28 | |||||||
0.5 | 1200 | 15 | 35 | ≥25 | ≥45 | 240 | 330 | ||
610 | 30 | 35 | |||||||
0.6 | 1200 | 10 | 28 | ≥30 | ≥52 | 260 | 340 | ||
610 | 20 | 28 | |||||||
0.8 | 1200 | 10 | 37 | ≥42 | ≥75 | 300 | 430 | ||
610 | 15 | 28 | |||||||
1.0 | 1200 | 10 | 46 | ≥51 | ≥85 | 320 | 480 | ||
610 | 15 | 35 | |||||||
Contact us to get more size performance details.
Product Show

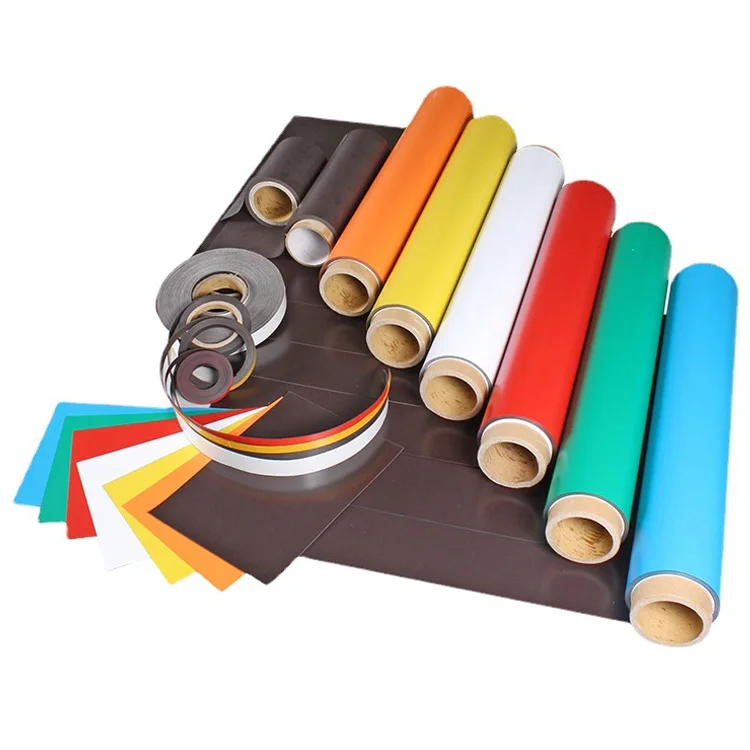

Flexible Rubber Magnet Roll
*Strong Magnetized
* Custom Die Cut Sheet Rolls
* Custom Die Cut Sheet Rolls
* Easy to Die Cut
* Meet International Material Safety Standards
*No blocking
*No heavy metal and hazardous chemical
Different Laminations are Available:
* Indoor/ Outdoor Pressure Sensitive Adhesives
* White Vinyl (Matt/ Gloss) for Printing
* Colored Vinyl (Matt/ Gloss)for Printing
* White Vinyl (Matt/ Gloss) for Printing
* Colored Vinyl (Matt/ Gloss)for Printing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
Certifications
FAQ
Q: What are the factors that determine the price?
A: Performance, size, quantity are major
Q: How can I confirm the right performance?
A: The flexible magnet is usually divided into two kinds of isotropic and an-isotropic. If can not confirm it is isotropic or an-isotropic, please send us your required magnetic force
Q: What's the magnetic force?
A: Usually, the magnetic force means the magnetic surface gauss and the pull force per square centimetre
Q: What's the difference between the isotropic and an-isotropic?
A: The an-isotropic magnetic force is 30% more than isotropic, and the price will be 80% more expensive comparing with isotropic
Q: Can I have a sample before mass production?
A: Yes, we are honored to provide samples.
Q: Are your products eco-friendly?
A: Yes. Confirm with ROHS, EN71, Phthalates, halogen-free
Q: What's the bulk delivery time?
A: Usually it is about 15-18 days
A: Performance, size, quantity are major
Q: How can I confirm the right performance?
A: The flexible magnet is usually divided into two kinds of isotropic and an-isotropic. If can not confirm it is isotropic or an-isotropic, please send us your required magnetic force
Q: What's the magnetic force?
A: Usually, the magnetic force means the magnetic surface gauss and the pull force per square centimetre
Q: What's the difference between the isotropic and an-isotropic?
A: The an-isotropic magnetic force is 30% more than isotropic, and the price will be 80% more expensive comparing with isotropic
Q: Can I have a sample before mass production?
A: Yes, we are honored to provide samples.
Q: Are your products eco-friendly?
A: Yes. Confirm with ROHS, EN71, Phthalates, halogen-free
Q: What's the bulk delivery time?
A: Usually it is about 15-18 days
