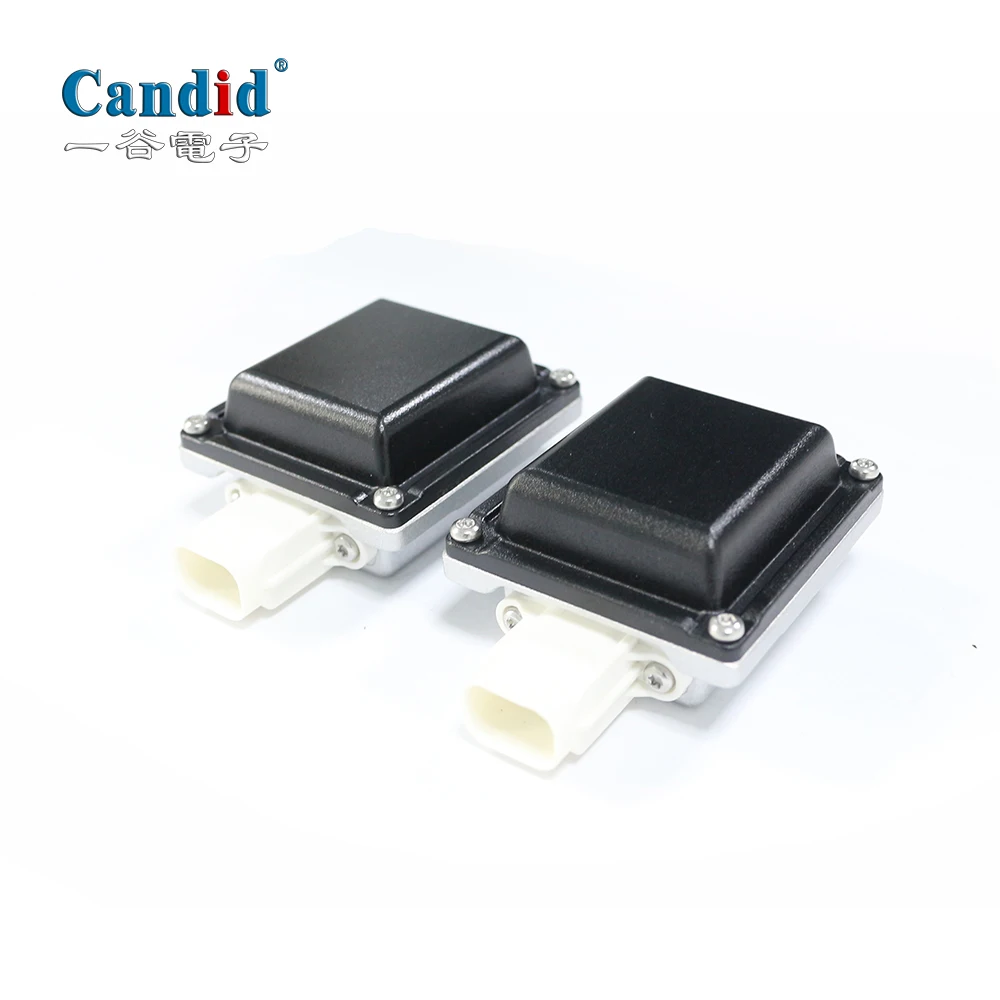

Candid 24Ghz blind spot detection system BSD radar universal for all car
- Category: >>>
- Supplier: Shanghai Aoxian Electronic Technology Co. Ltd.
Share on (1600301500256):
Product Overview
Description
OEM quality 24Ghz Vehicle detection radar safety system
What is 24Ghz BSD ?
BSD(Blind Spot Detection) System: BSD warn the driver against collisions that may occur due to a lane change manoeuvre. BSD will not take any automatic action to prevent possible collisionsare but detect vehicles to the rear and sides to let driver to confirm the driving situation.
| specification | | | | |||
| No | ITEM | DESCRIPTION | | |||

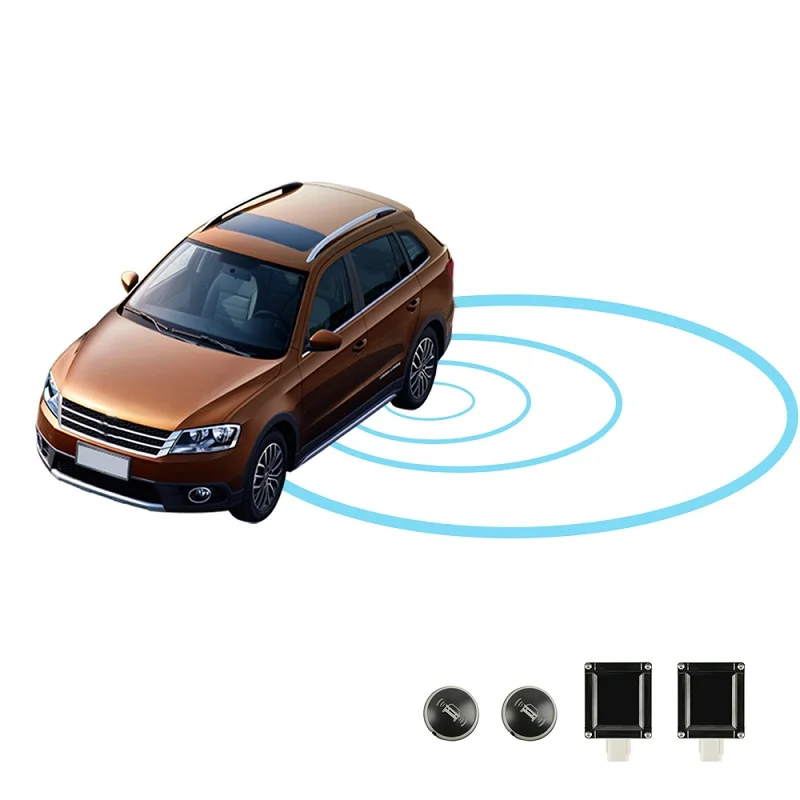

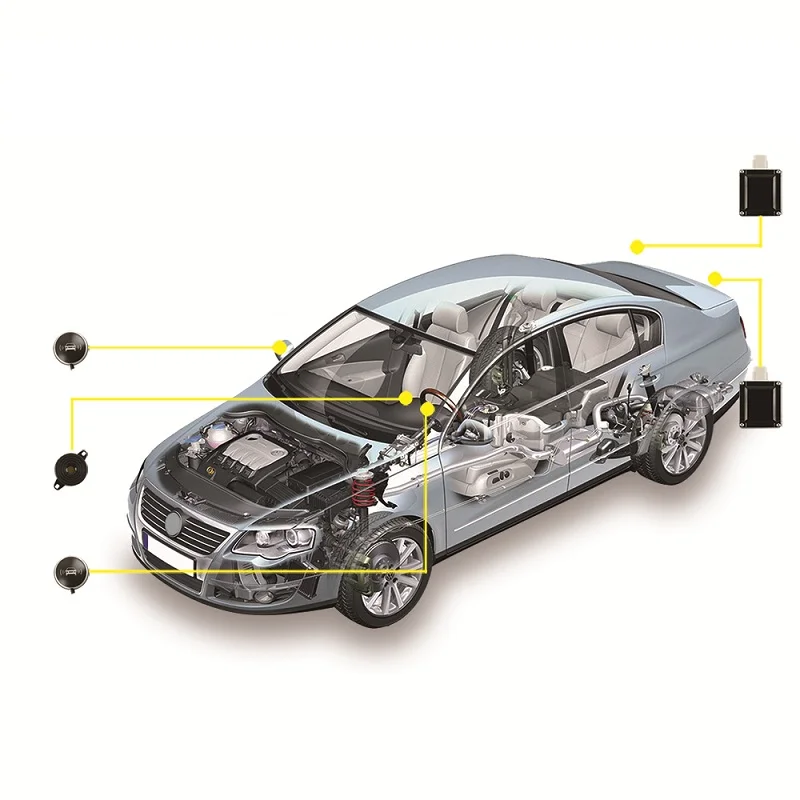

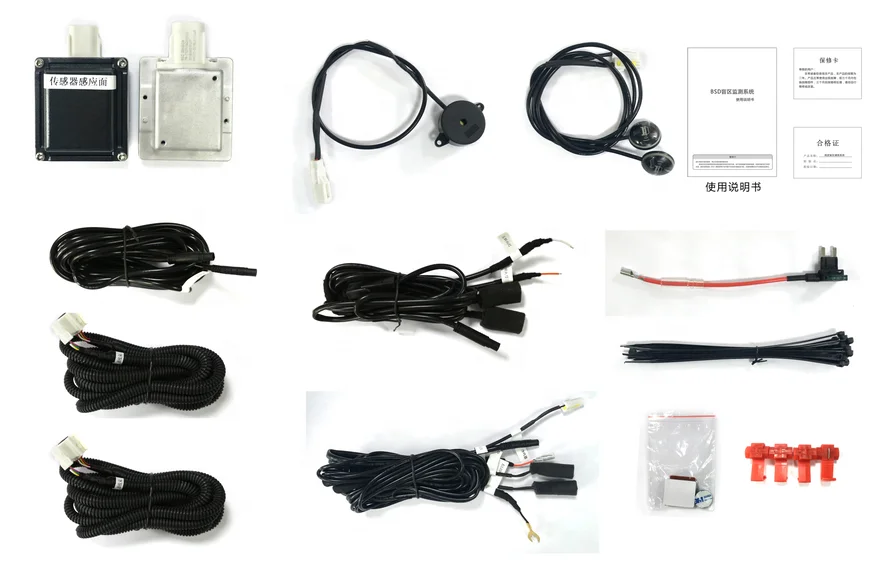

| 1 | The system configuration | 2pcs Radar sensor；2pcs LED； 1pcs buzzer；cables | | |||
| 2 | standard | ISO17387:2008 | | |||
| 3 | Range accuracy | ±0.25m（Typical) | | |||
| 4 | Maximum range of detection | truck：0.3m～15m; | | |||
| 5 | | automobile：0.3m～15m; | | |||
| 6 | | motorbike：0.3m～10m; | | |||
| 7 | | pedestrian ：0.3m～7m; | | |||
| 8 | Alarm range | 0.3m~15m | | |||
| 9 | System alarm accuracy | automobile：≥98% | | |||
| 10 | | motorbike：≥95% | | |||
| 11 | | pedestrian ：≥95% | | |||

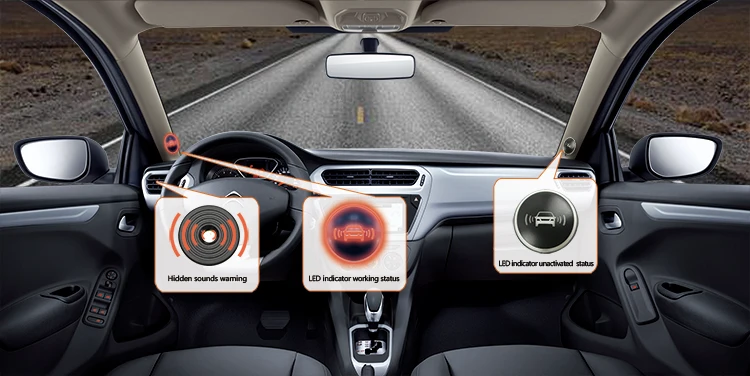

| 12 | type of alarm | type 1: LED flashing | | |||
| 13 | | type 2:LED flashing + buzzing | | |||
| 14 | waterproofing grade | IP6K7K | | |||
| 15 | current consumption | ≤ 160mA ＠12VDC | | |||
FAQ

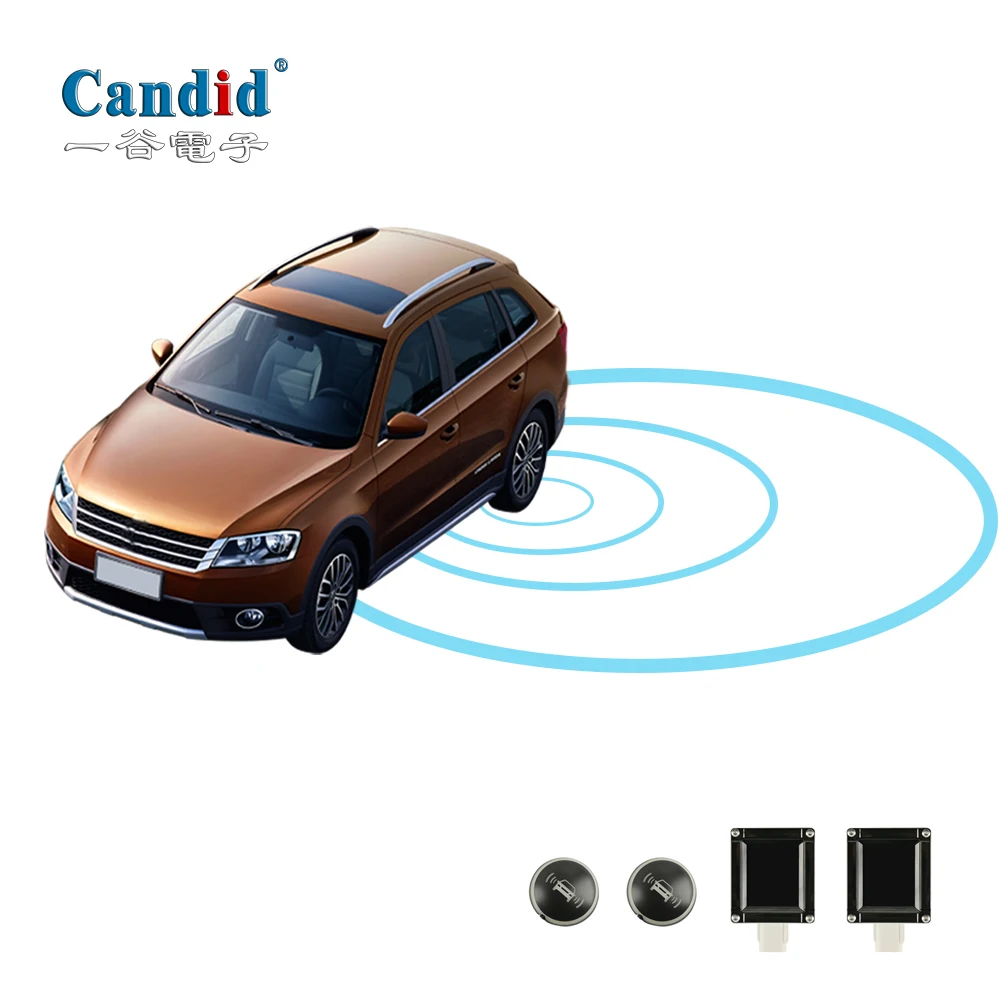

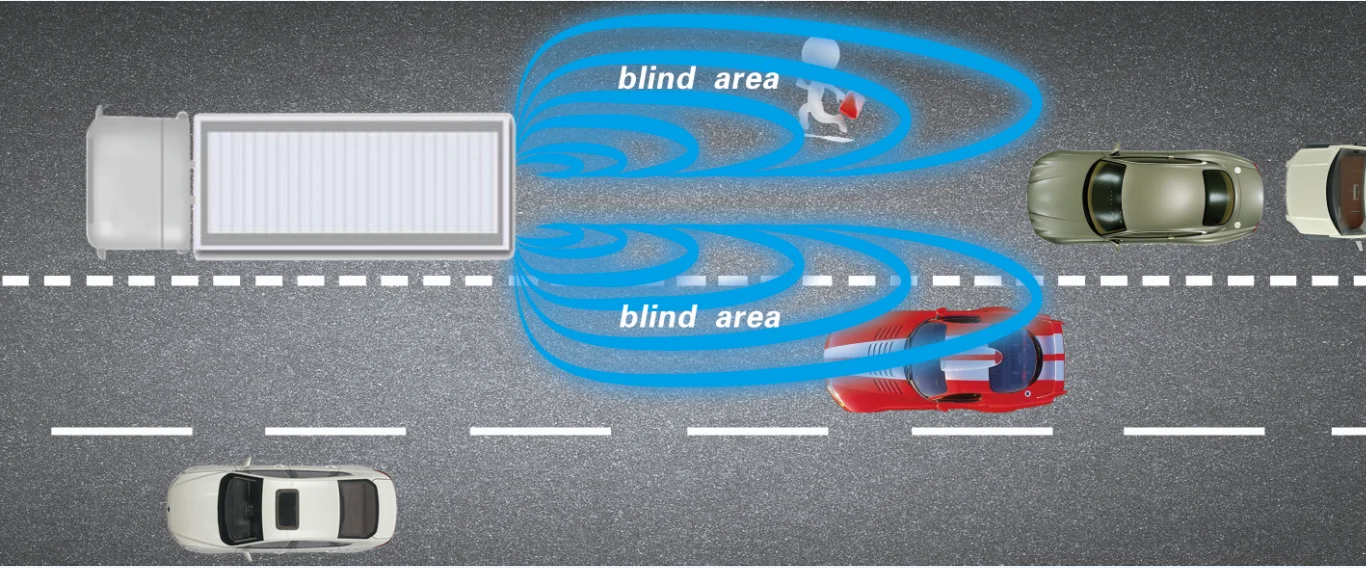

1. What is BSD? BSD(Blind Spot Detection) System: BSD warn the driver against collisions that may occur due to a lane change manoeuvre. BSD are intended to supplement the vehicle’s interior and exterior rear-view mirrors. BSD are intended to detect vehicles to the rear and sides of the subject vehicle (see Figure). When the subject vehicle driver indicates the desire to make a lane change, the system evaluates the situation and warns the driver if a lane change is not recommended. The system will not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle remains with the driver.

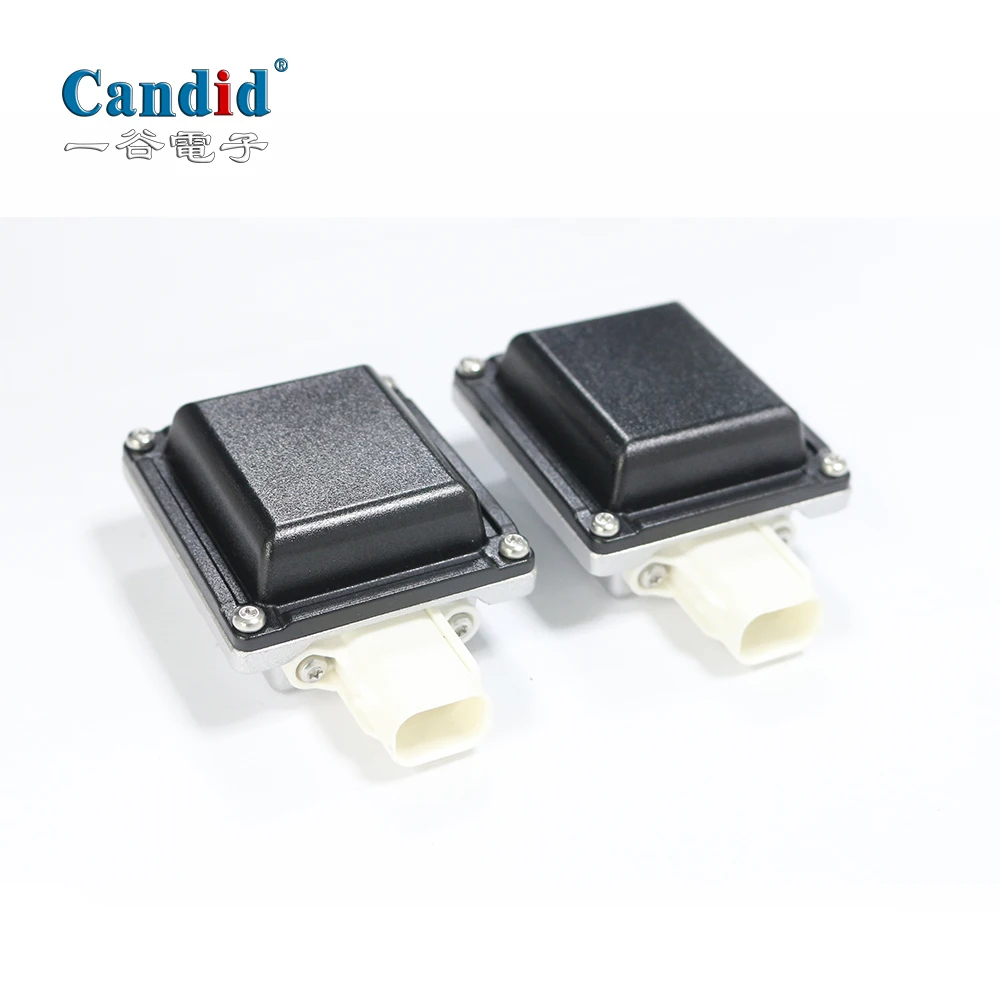

2. Does it need make hole to install radar sensor? No, BSD is different the normal parking sensor, BSD is with left and right microwave radar, it will be pasted on the bumper, the alarm range is 3-15m

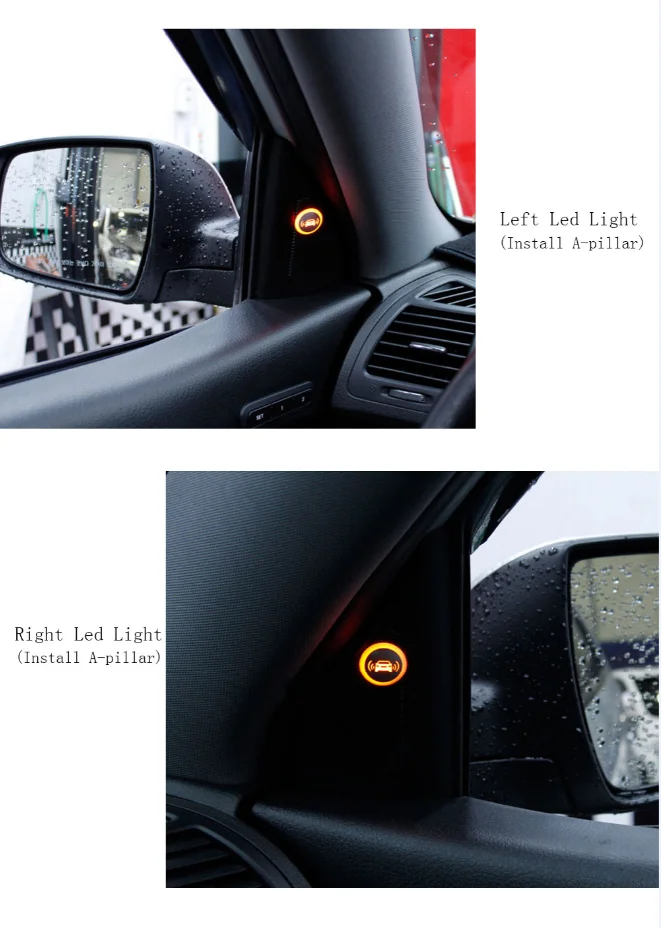

3. Why your product no main device? Our microwave radar build in DSP processor, it can directly transfer the command signal to the LED light, so it can save the transfer time, make sure your safe driving.
