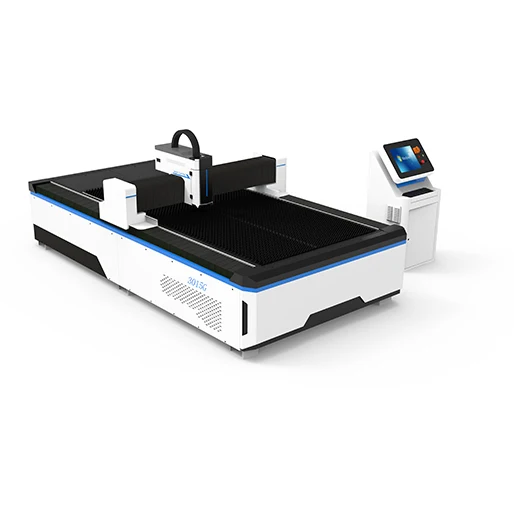

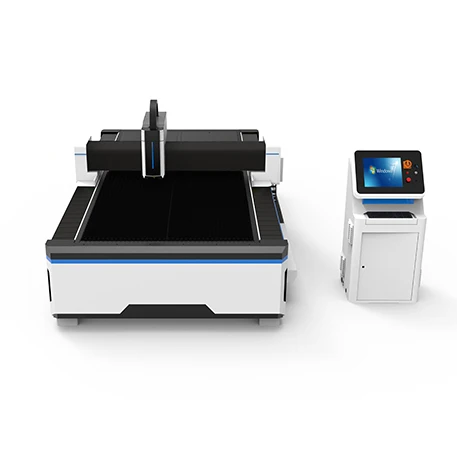

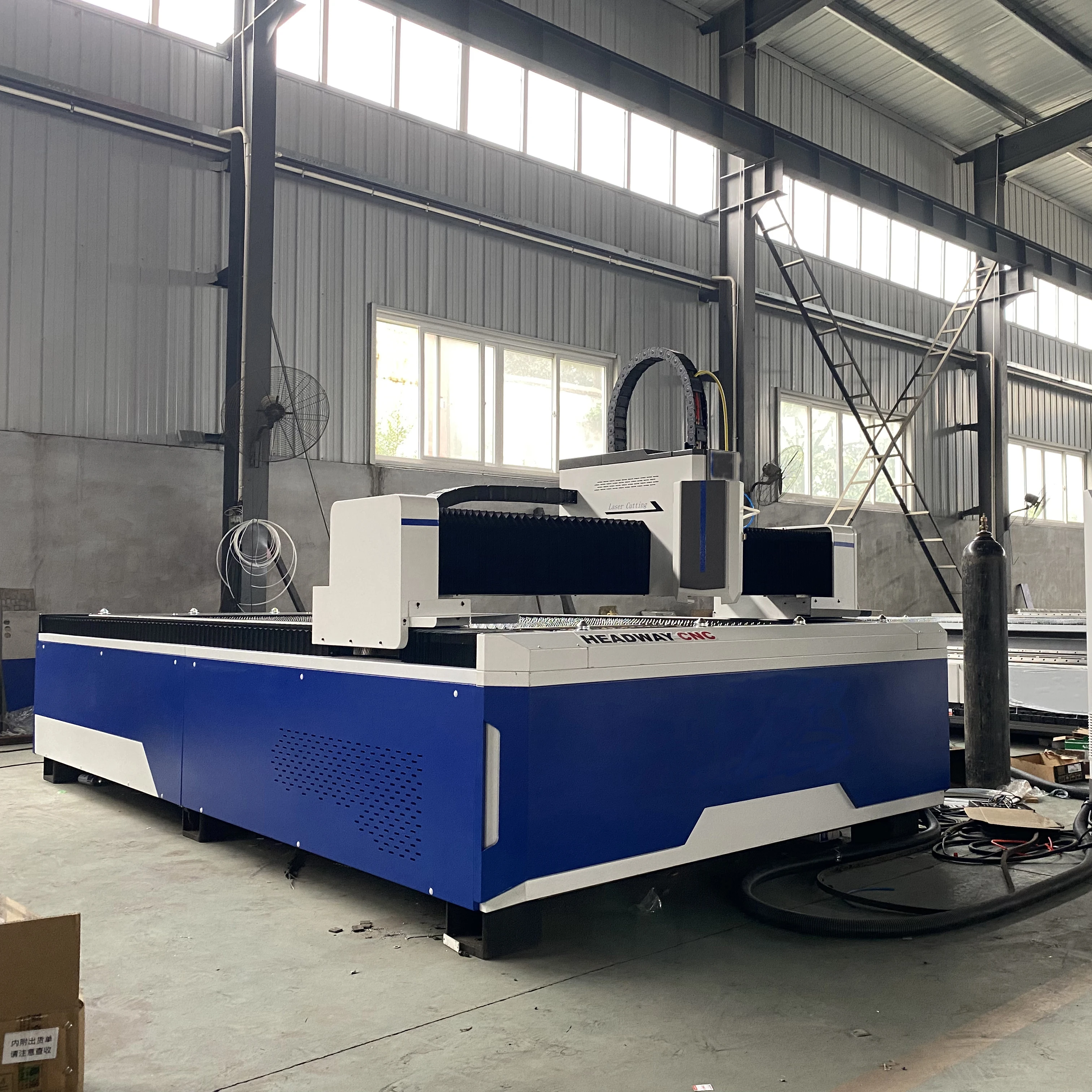

Headway metal laser cutter CNC fiber laser cutting machine sheet metal
- Category: Industry Laser Equipment >>>
- Supplier: Qingdao Headway Industry And Trade Co. Ltd.
Share on (1600301528035):
Product Overview
Description

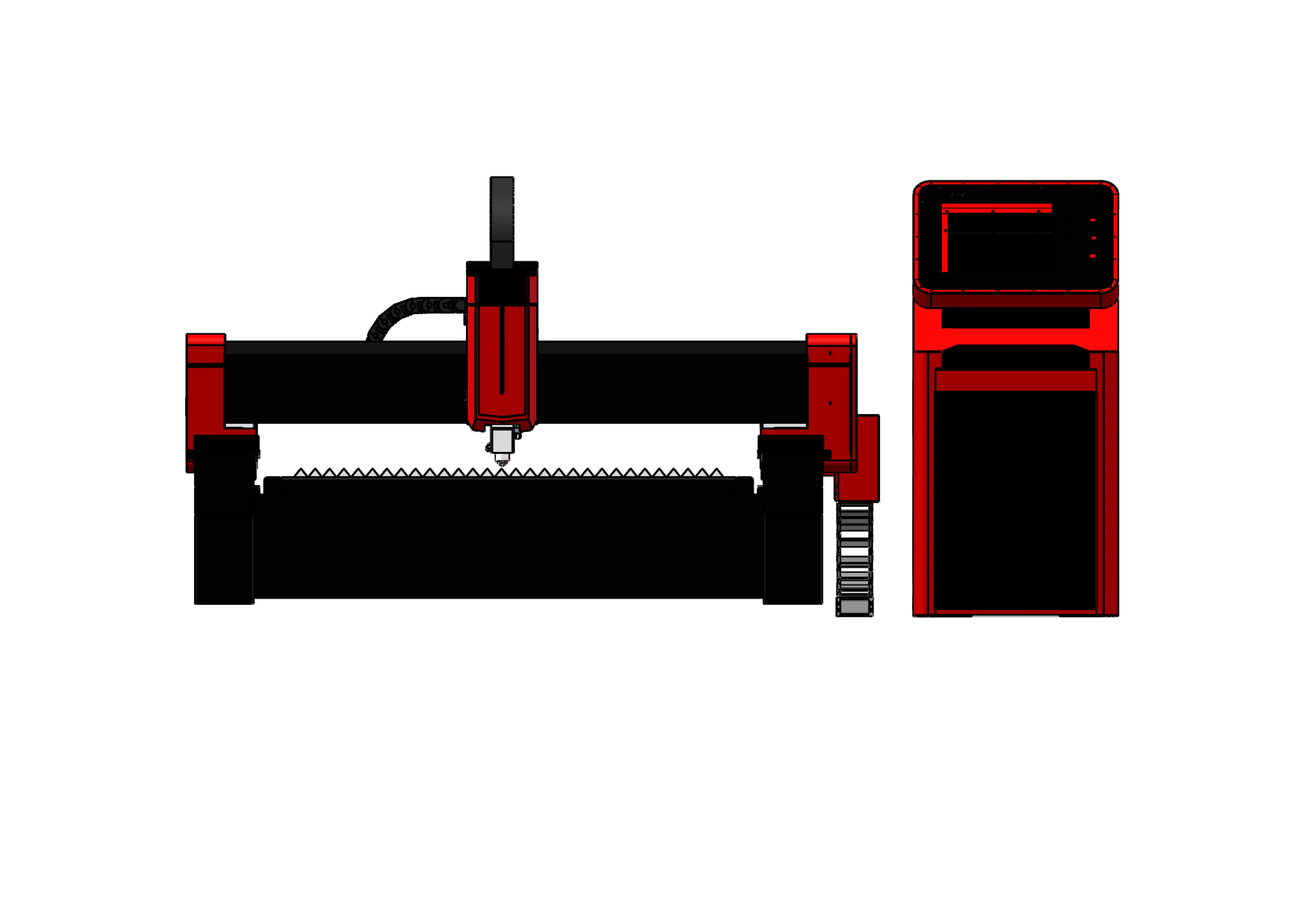

Machine details
Cnc Fiber Laser Cutting Machine (Optional)
1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: MAX,RAYCUS, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, HEADWAY CNC, best price and high quality, with CE etc certificates
2. Fiber laser generator: MAX,RAYCUS, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, HEADWAY CNC, best price and high quality, with CE etc certificates
1 | model | HD-3015 |
2 | cutting working area | 1500*3000mm |
3 | Laser Generator | Raycus / IPG /MAX |
4 | Transmission system | gear+rails |
5 | Fiber Laser Power | 1000W |
6 | X.Y axis location accuracy | ±0.01mm |
7 | X.Y axis max moving speed | 120m/min |
8 | Laser wave length | 1064nm |
9 | Machine color | Support custom made |
10 | Gross weight | 3500KG |
11 | Machine warranty | 2 |

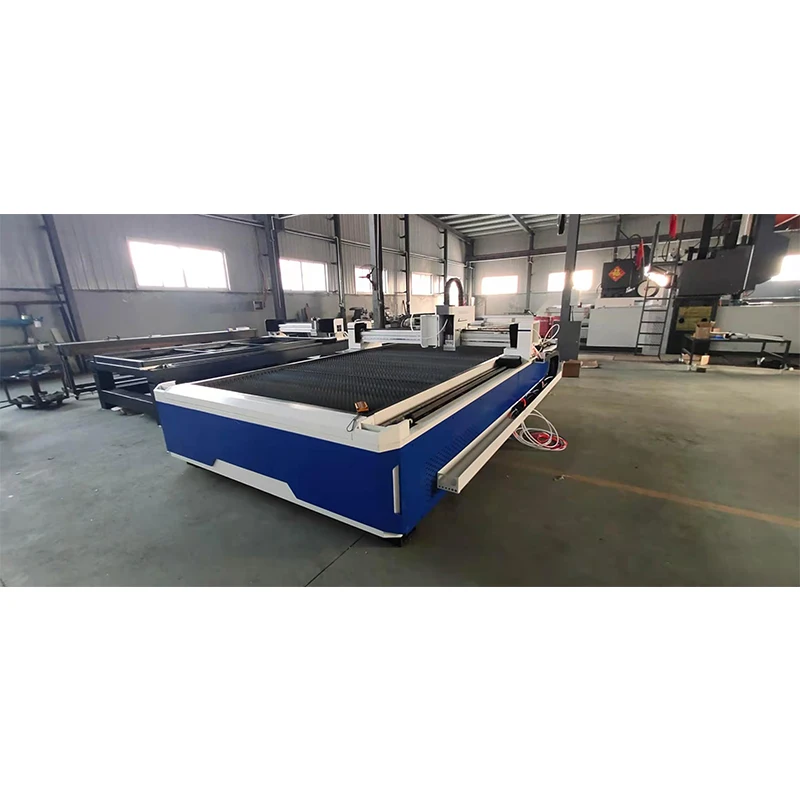

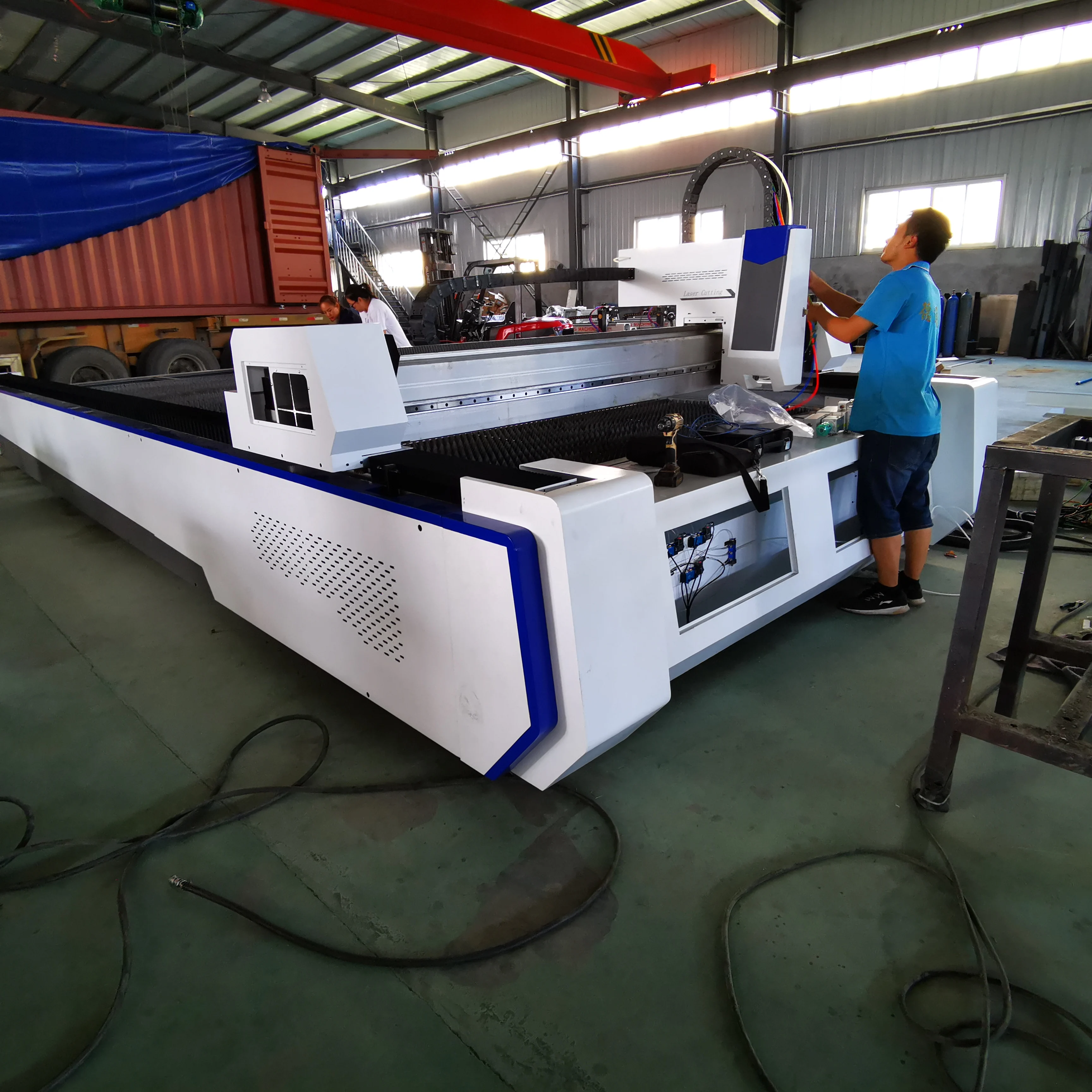

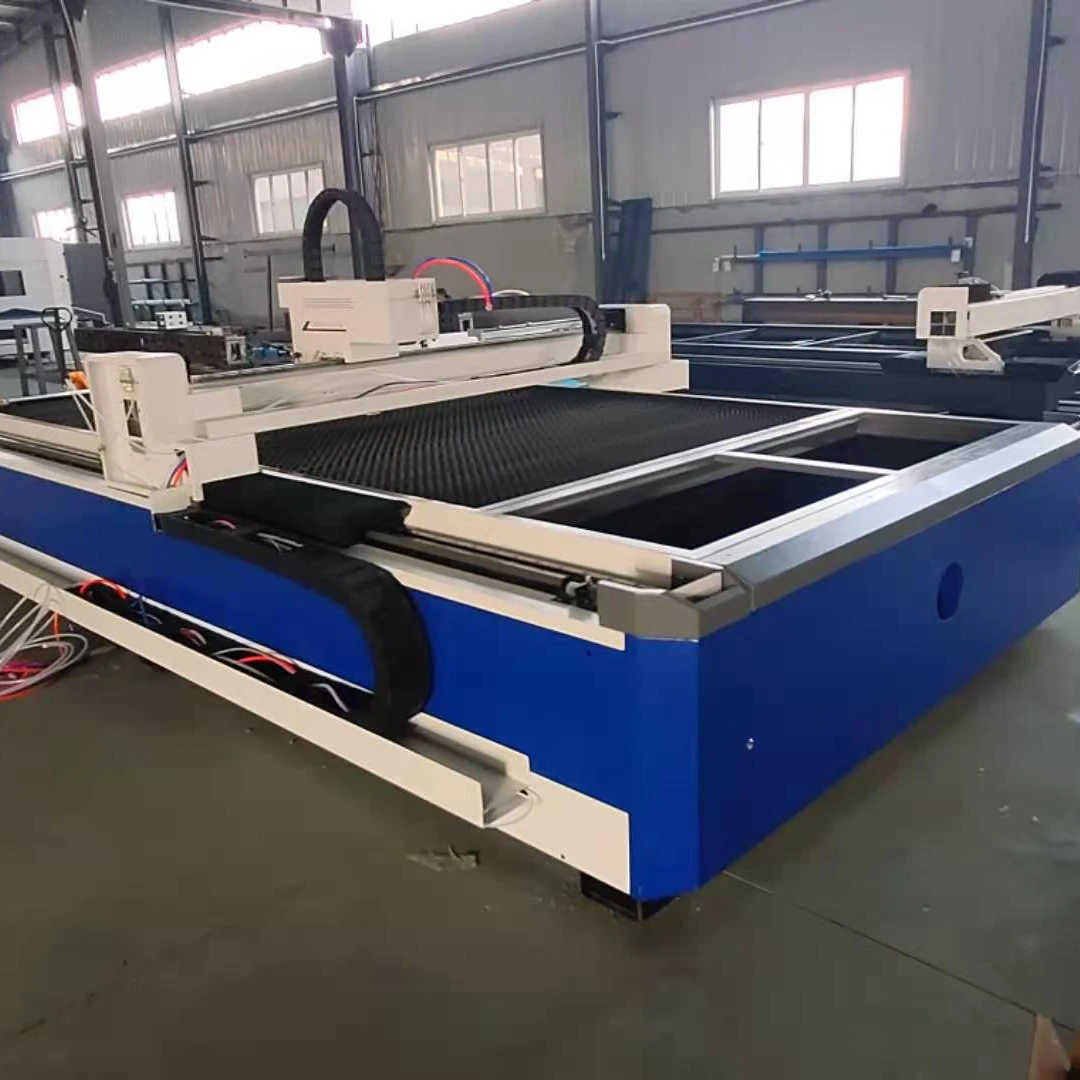

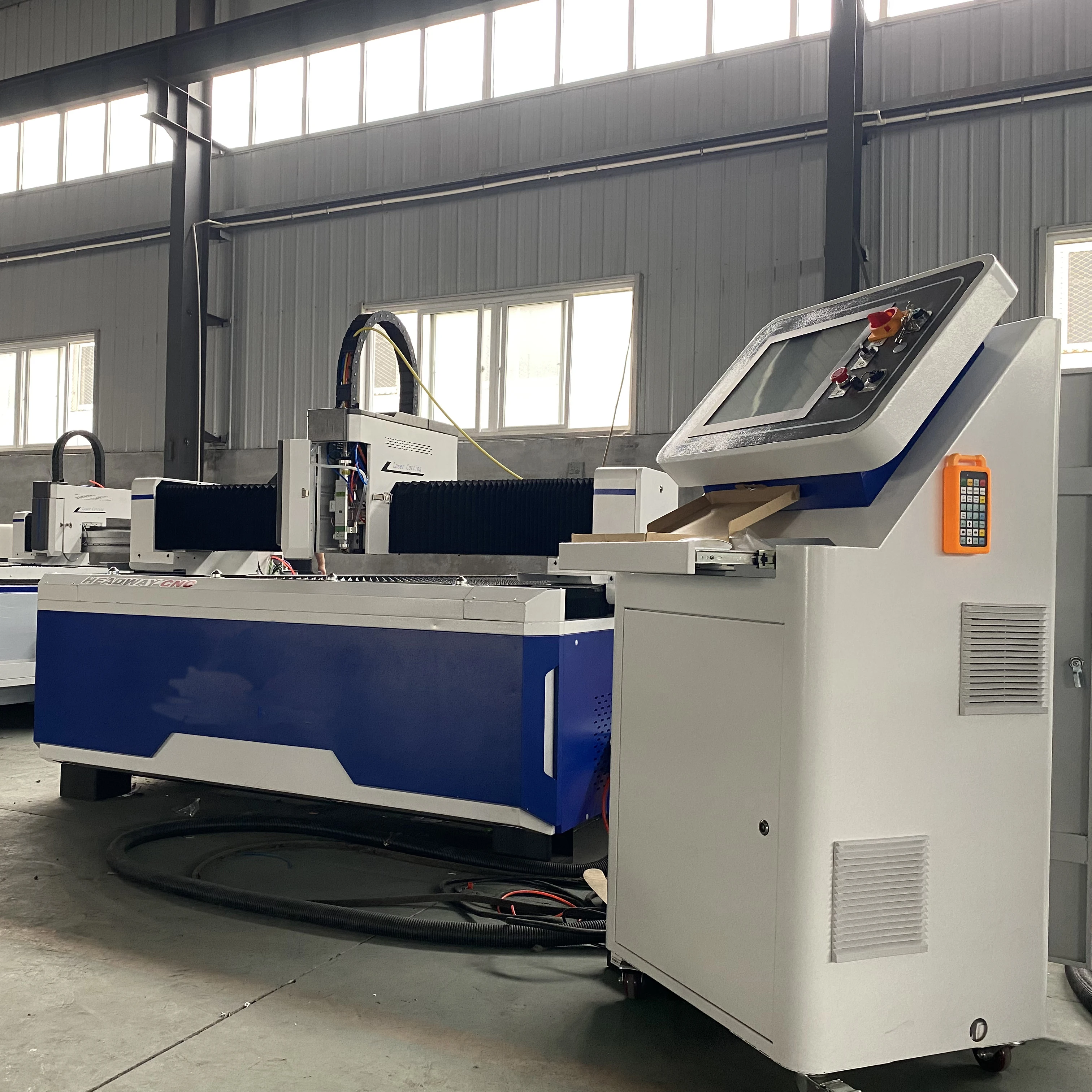

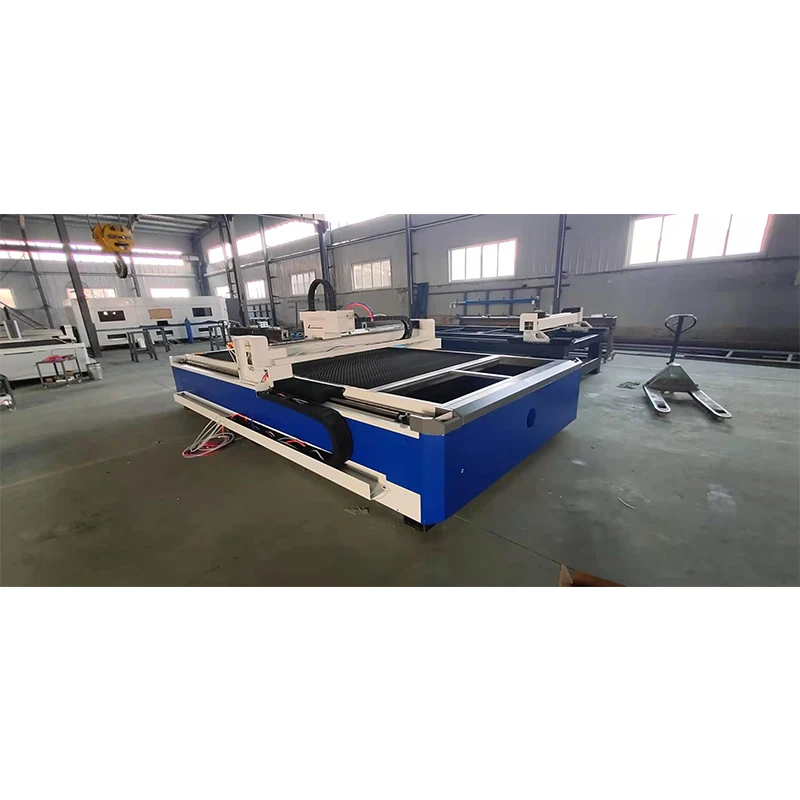

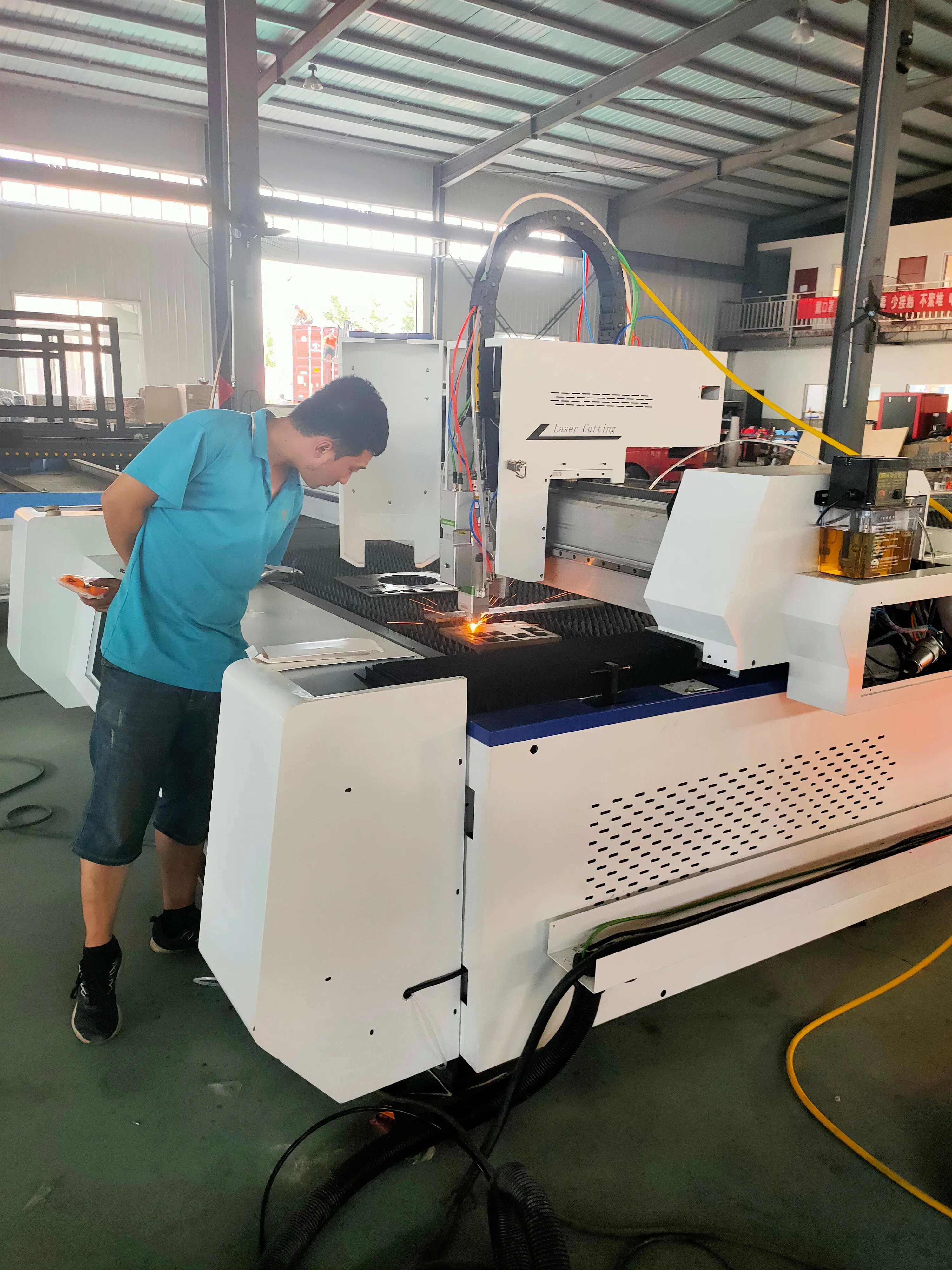

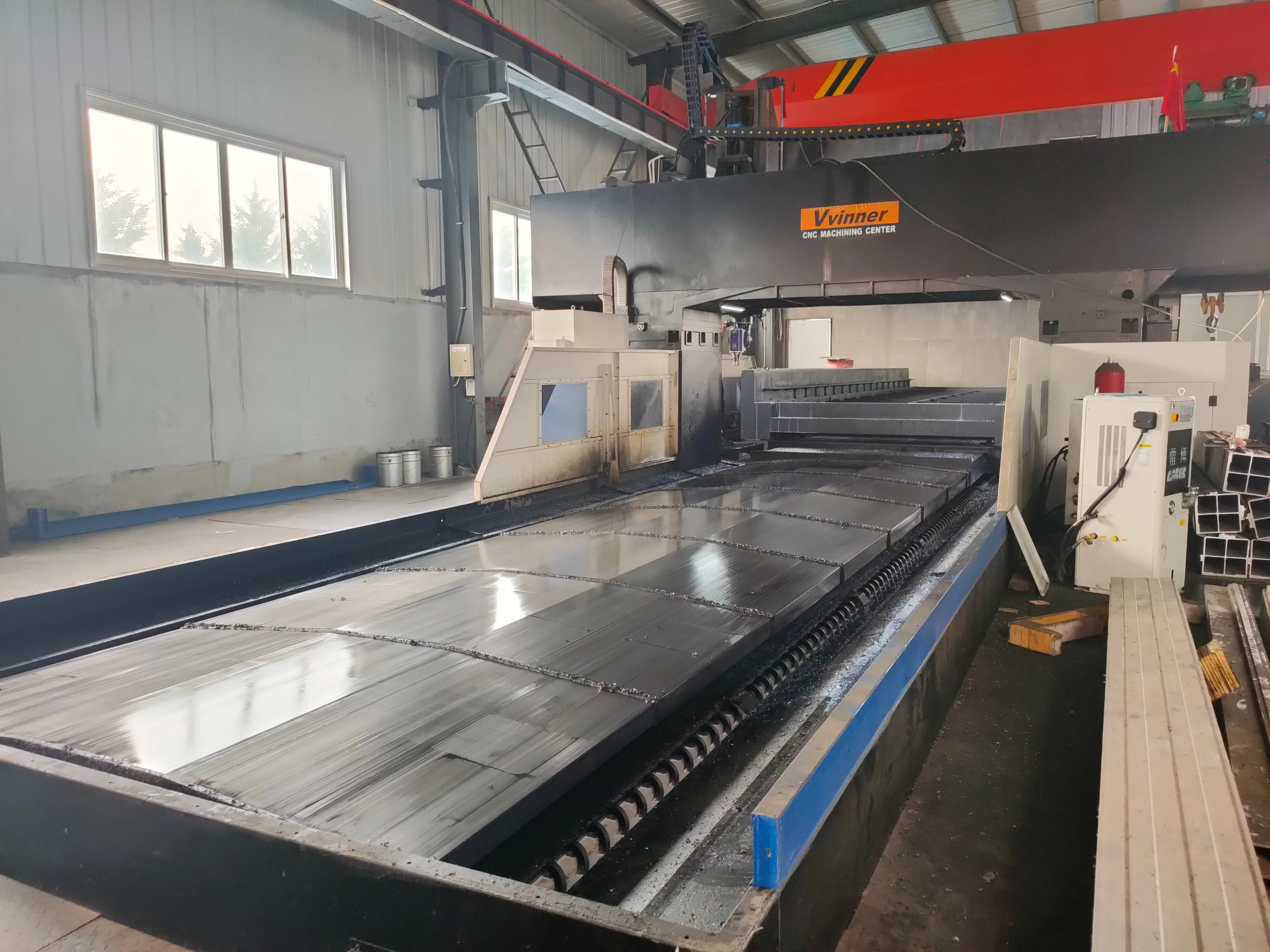

Machine in factory
Main parts
HEADWAY CNC Laser Promise
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!
* Every machine parts must be tested well!

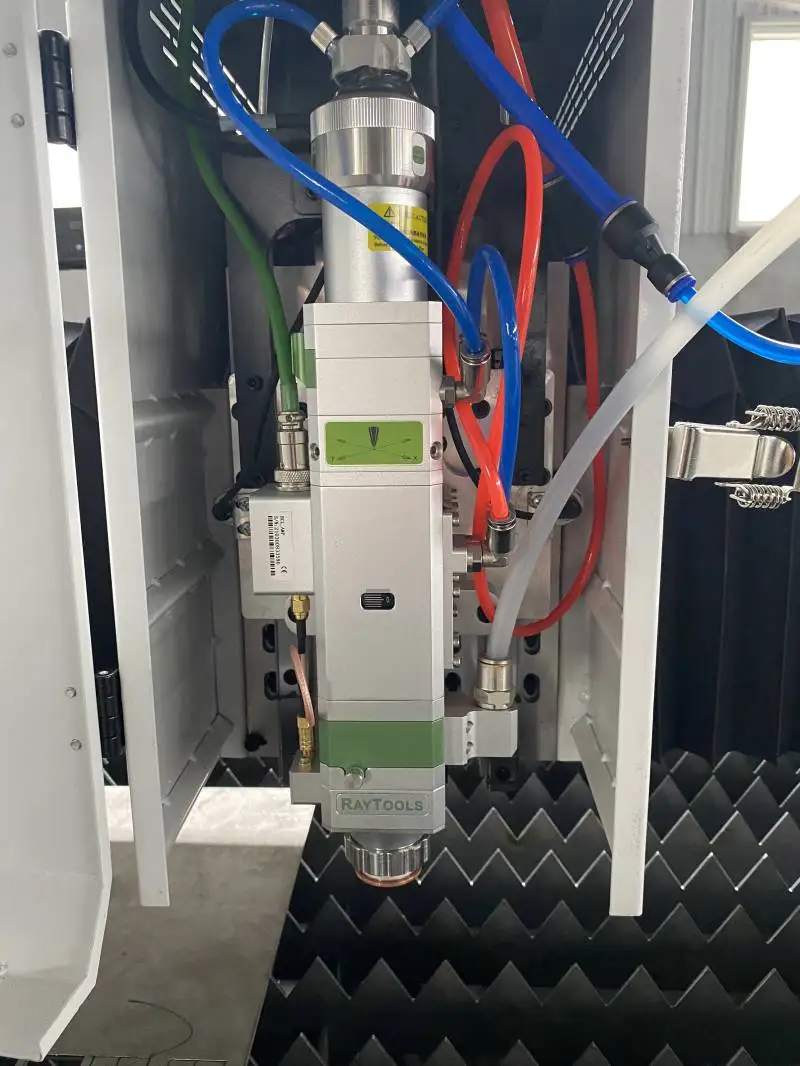

Fiber laser cutting head-Raytools
Raytools Laser CuttingHead, Optimized optical configuration and smooth and efficient airflow design. Au3tech, Pretic, WSX, can be optional.
1000W Raycus laser Generator
The internal structure adopts the performance separation design of optical and electrical modules, and the operating performance is more stable.
Optical modules, electrical modules, control units, and drive units can be directly replaced, upgraded, and maintained at the client.
Users can choose fibers with different core diameters according to different processing requirements to meet differentiated processing needs.
Reduce welding spatter and make thick plate cutting ability more stable.
Fuji servo motor
Fuji servo motor , Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
Fuji servo motor , Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
Fuji servo drive
Fuji servo driver, Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
Fuji servo driver, Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
DSP.

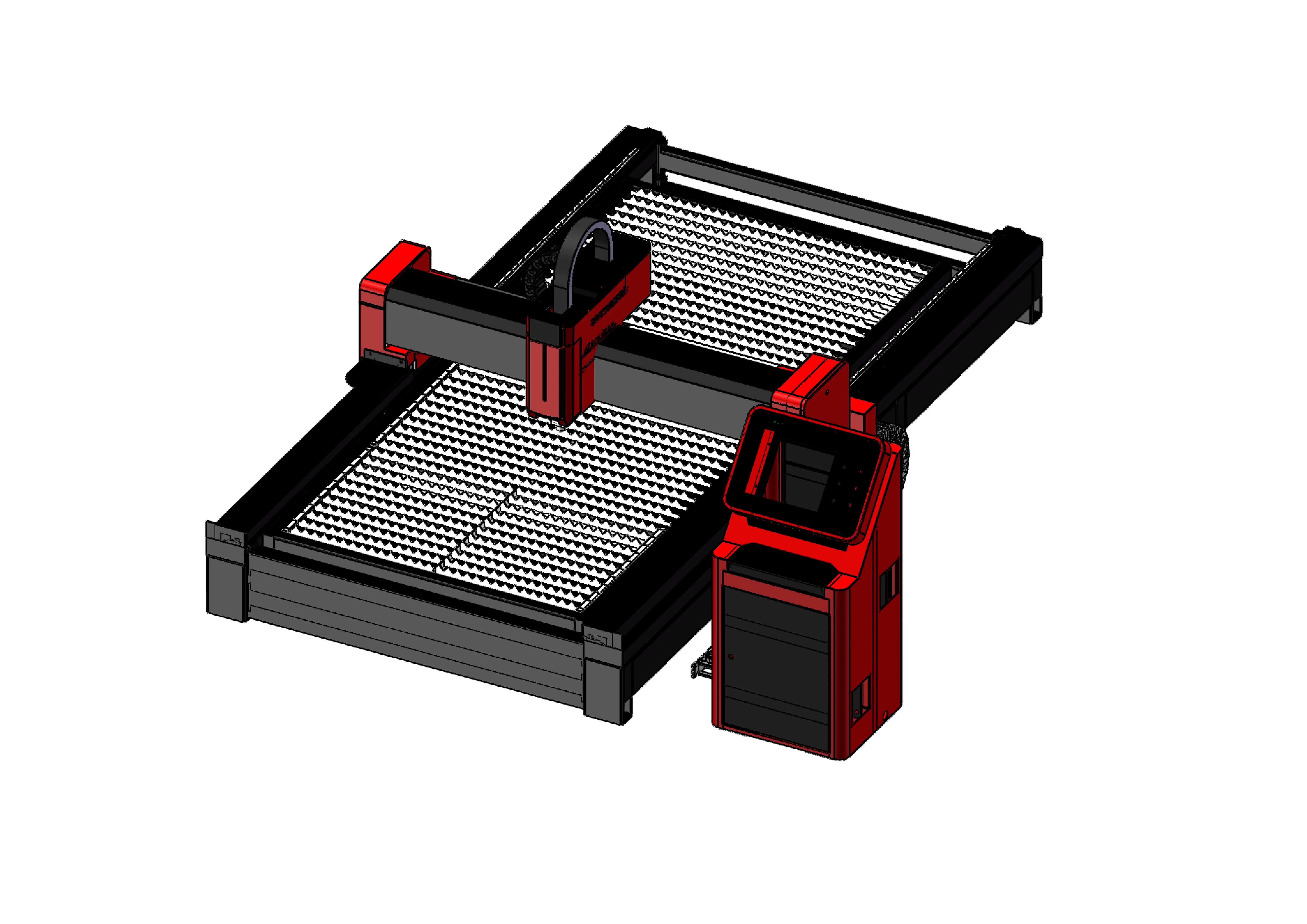

Rack

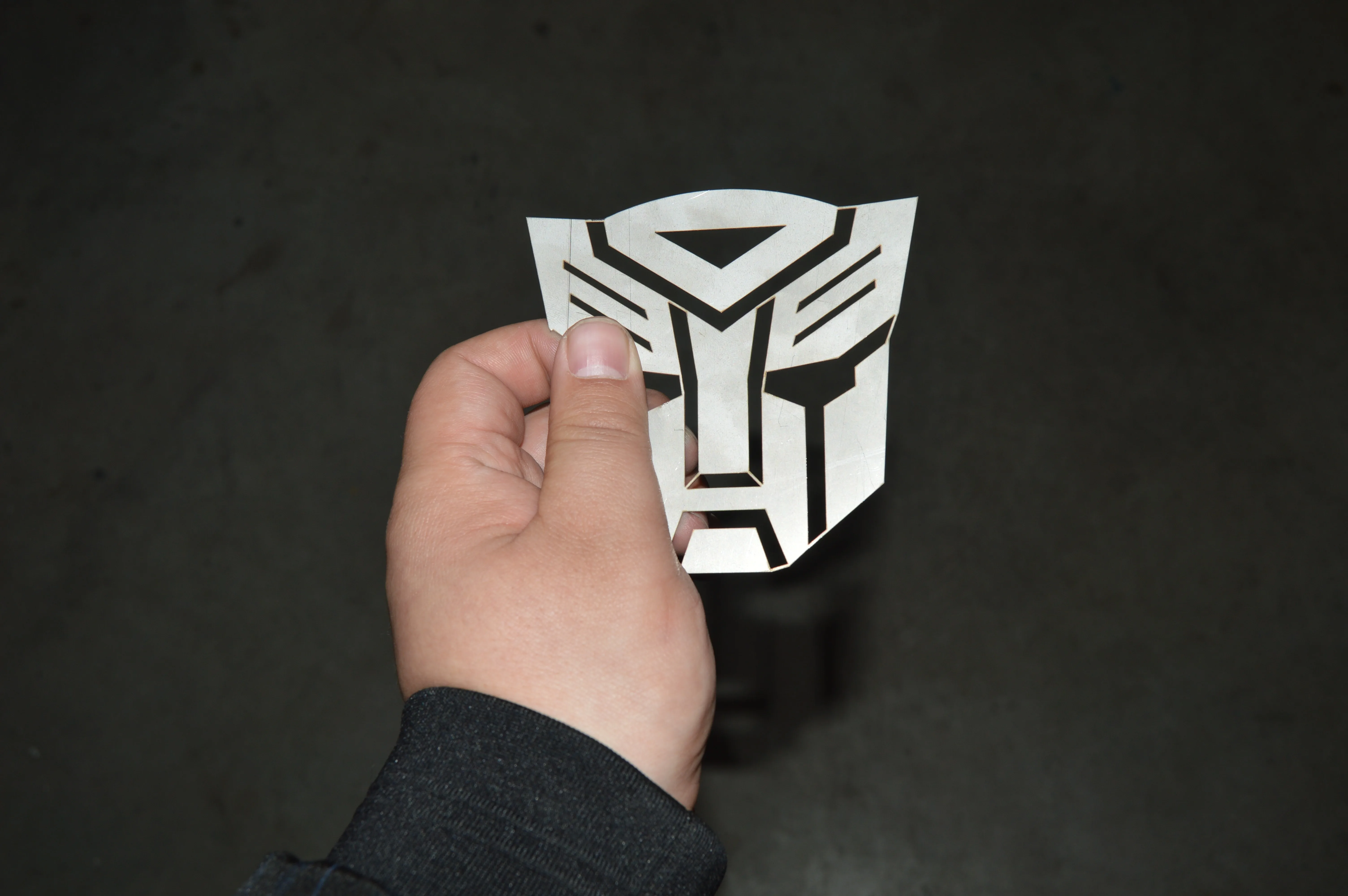

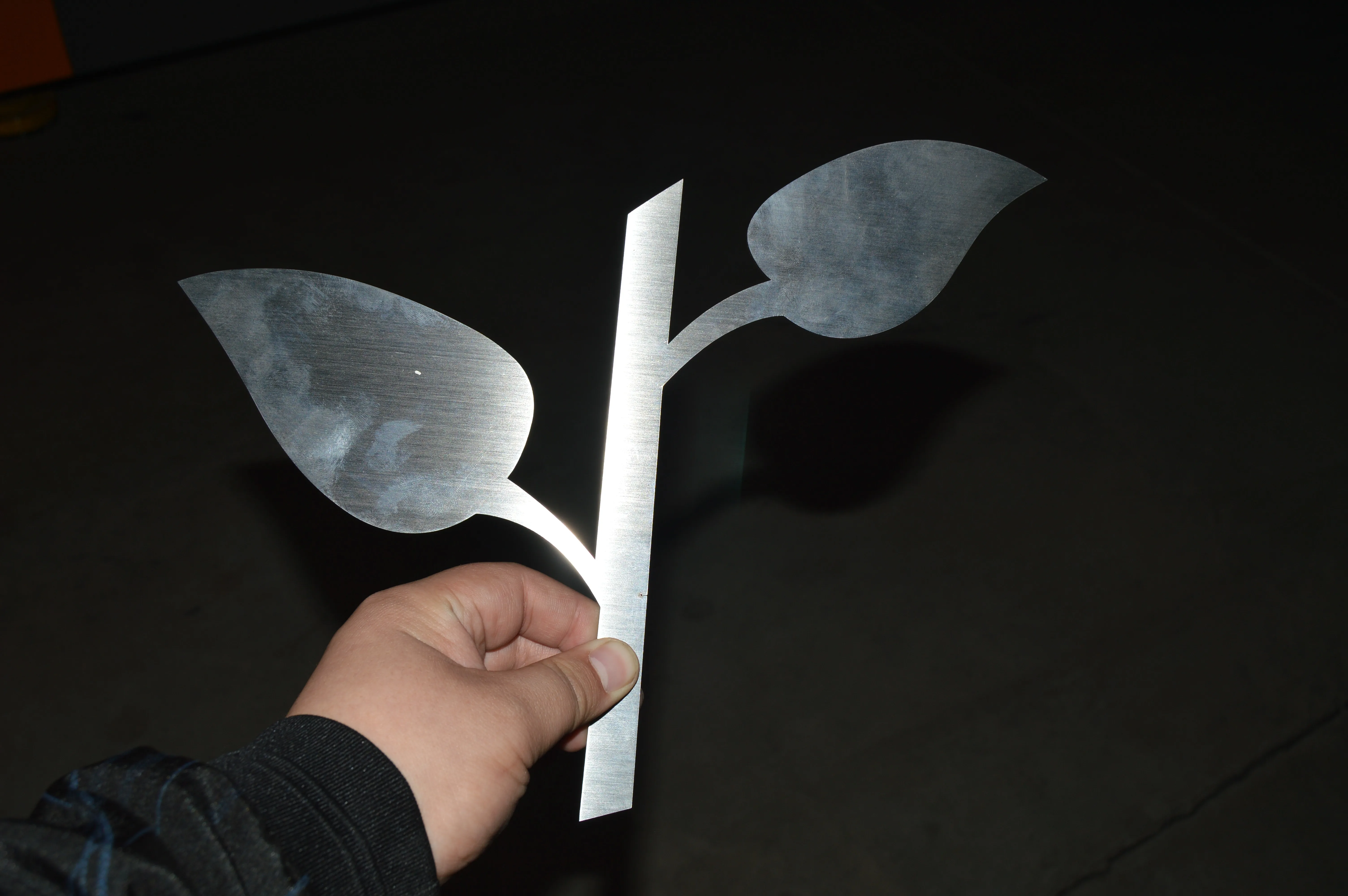

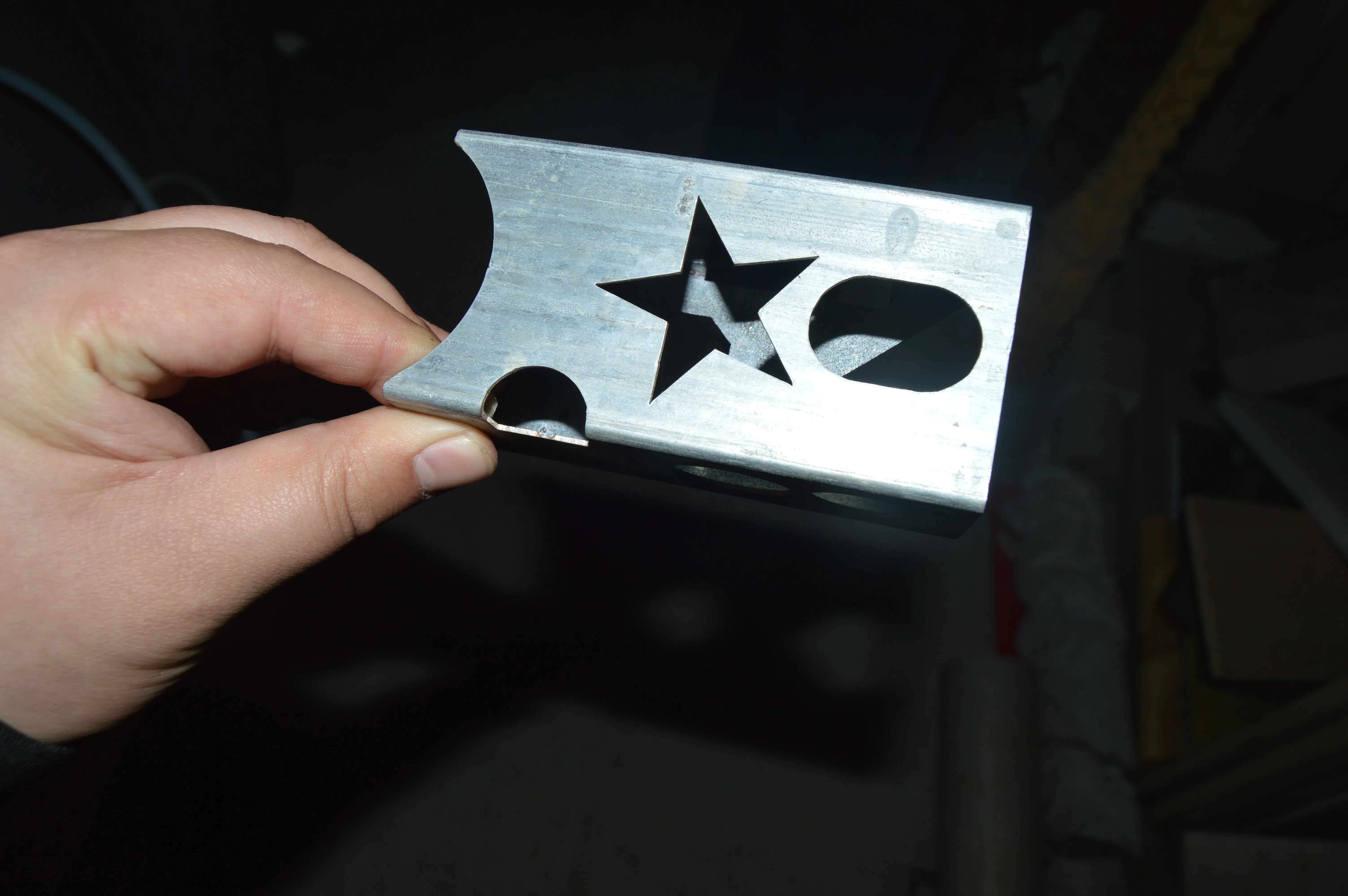

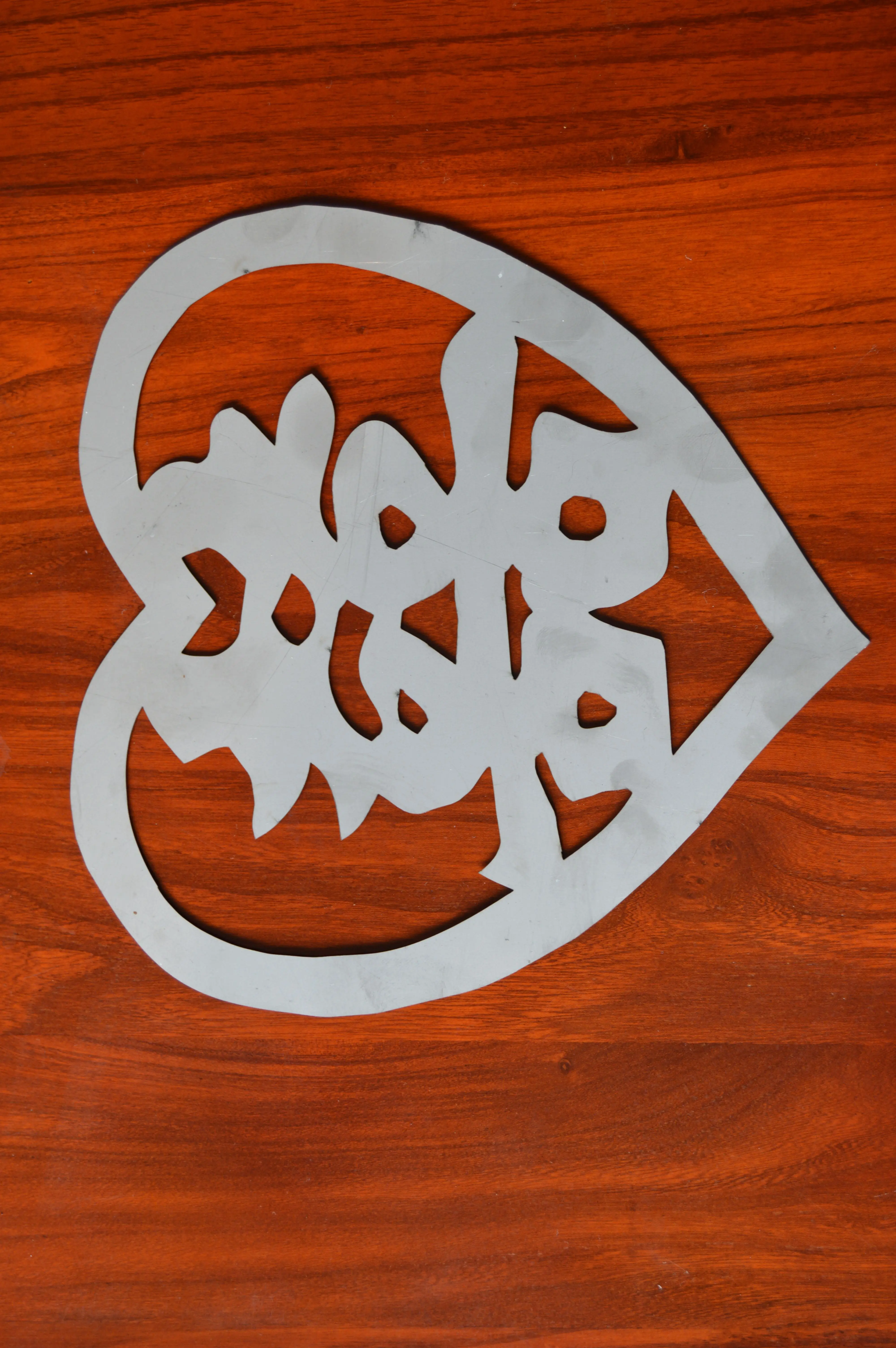

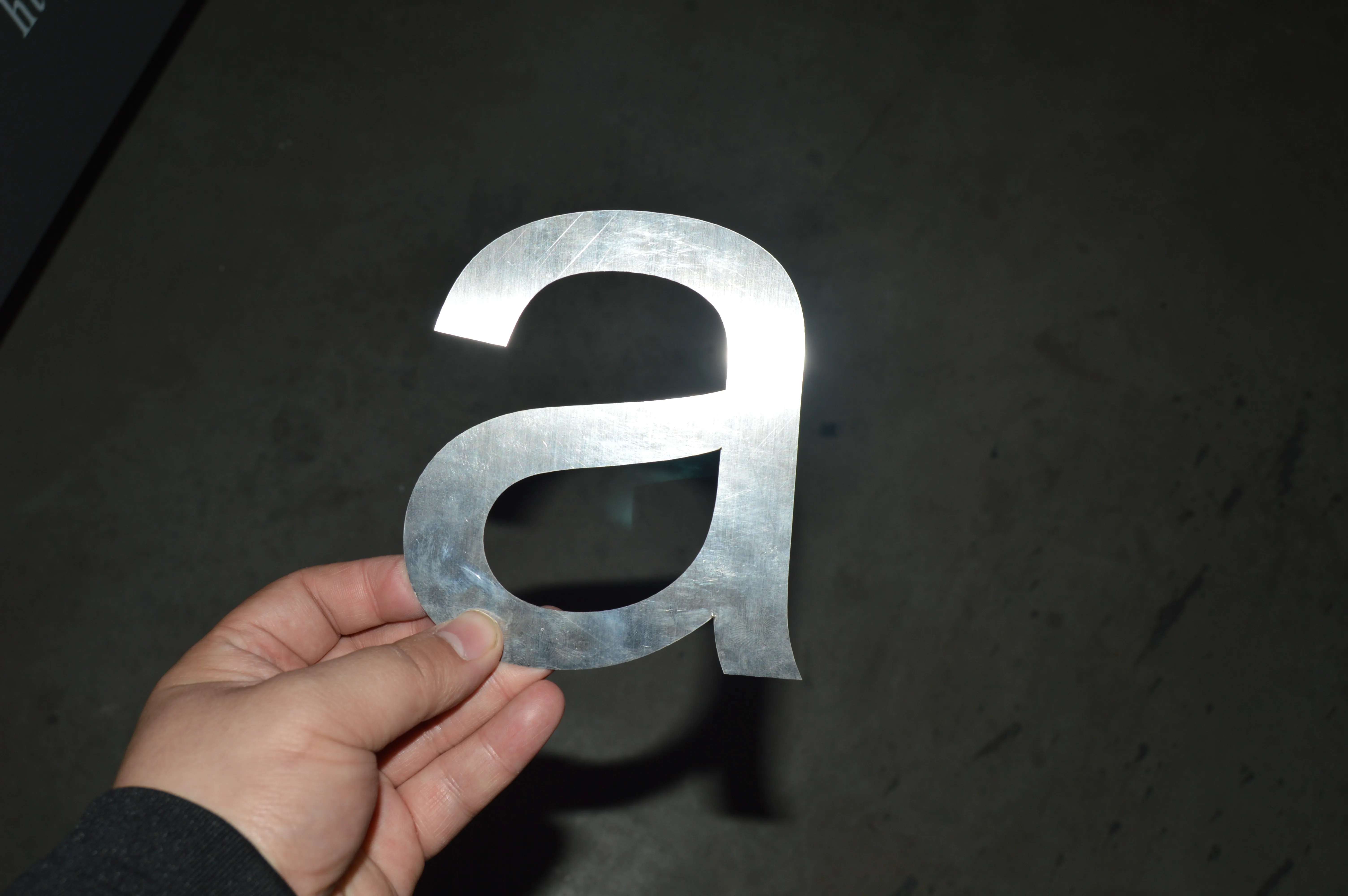

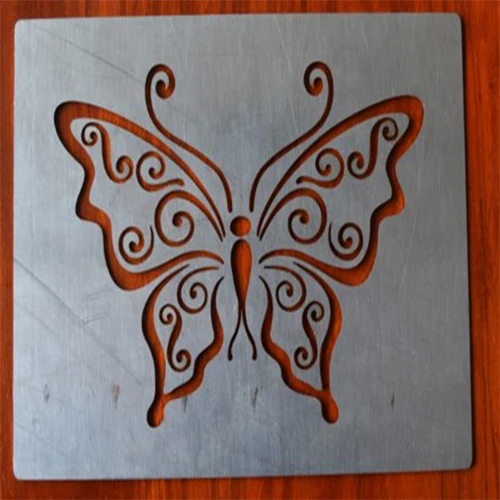

Samples
Machine application
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
Application Industries:
HEADWAY CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
Application Industries:
HEADWAY CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
MFSC-1000 (50μm) cutting data | ||||||||||
material type | thickness（mm） | speed（m/min） | Focus position | gas | Cutting effect | |||||
Carbon steel （Q235B） | 1 | 24~26 | 0 | N2 | Glossy | |||||
2 | 8~9 | 0~0.5 | N2 | |||||||
3 | 2.8~3 | 4.5~5.5 | O2 | |||||||
4 | 2.2~2.4 | 2~3 | O2 | Matte surface | ||||||
5 | 1.5~1.7 | 2~3 | O2 | |||||||
6 | 1.2~1.4 | 2~3 | O2 | |||||||
8 | 10~1.1 | 2~3 | O2 | |||||||
10 | 0.75~0.85 | 2~3 | O2 | |||||||
12 | 0.6~0.65 | 2~3 | O2 | |||||||
Stainless steel （SUS304） | 1 | 21~23 | 0 | N2 | No slag | |||||
2 | 6.5~7 | 0~0.5 | N2 | |||||||
3 | 2.3~2.5 | -1~-1.5 | N2 | |||||||
4 | 1.4~1.6 | -2~-2.5 | N2 | |||||||
5 | 0.6~0.7 | -3~-3.5 | N2 | A small amount of dross | ||||||

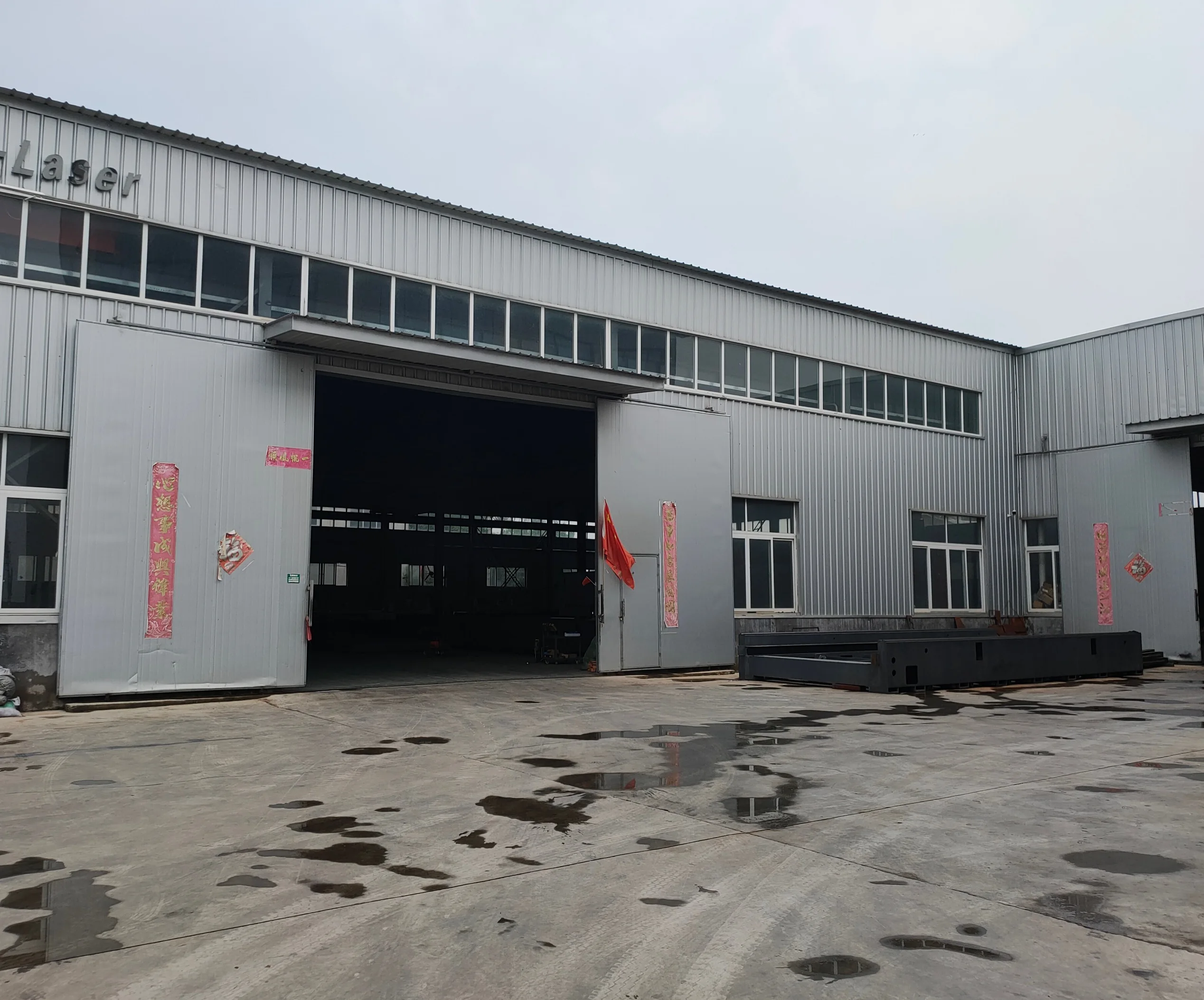

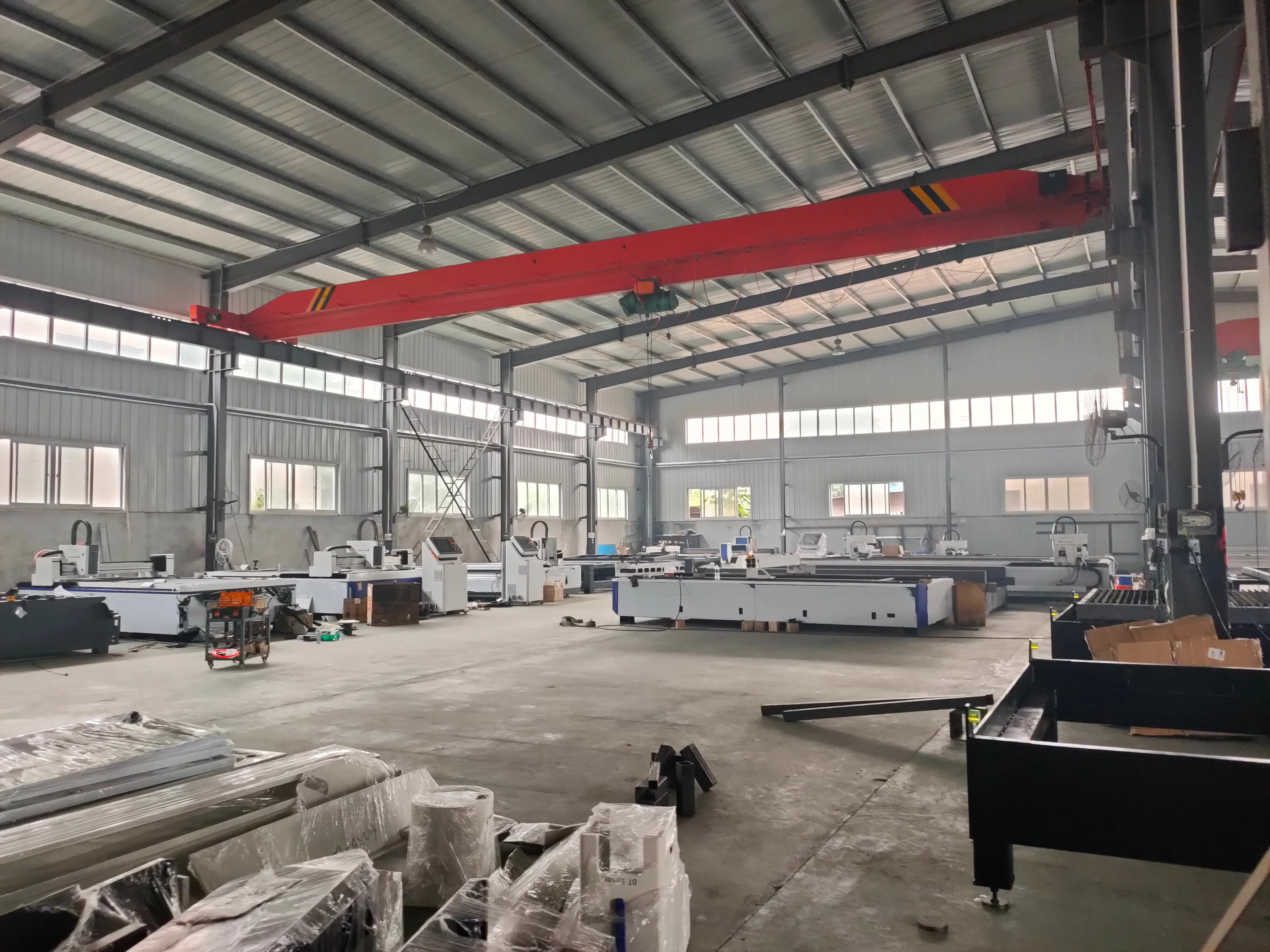

Company Profile
* 15 years factory production experience
* 3 years machine warranty
* 156 exported country experience

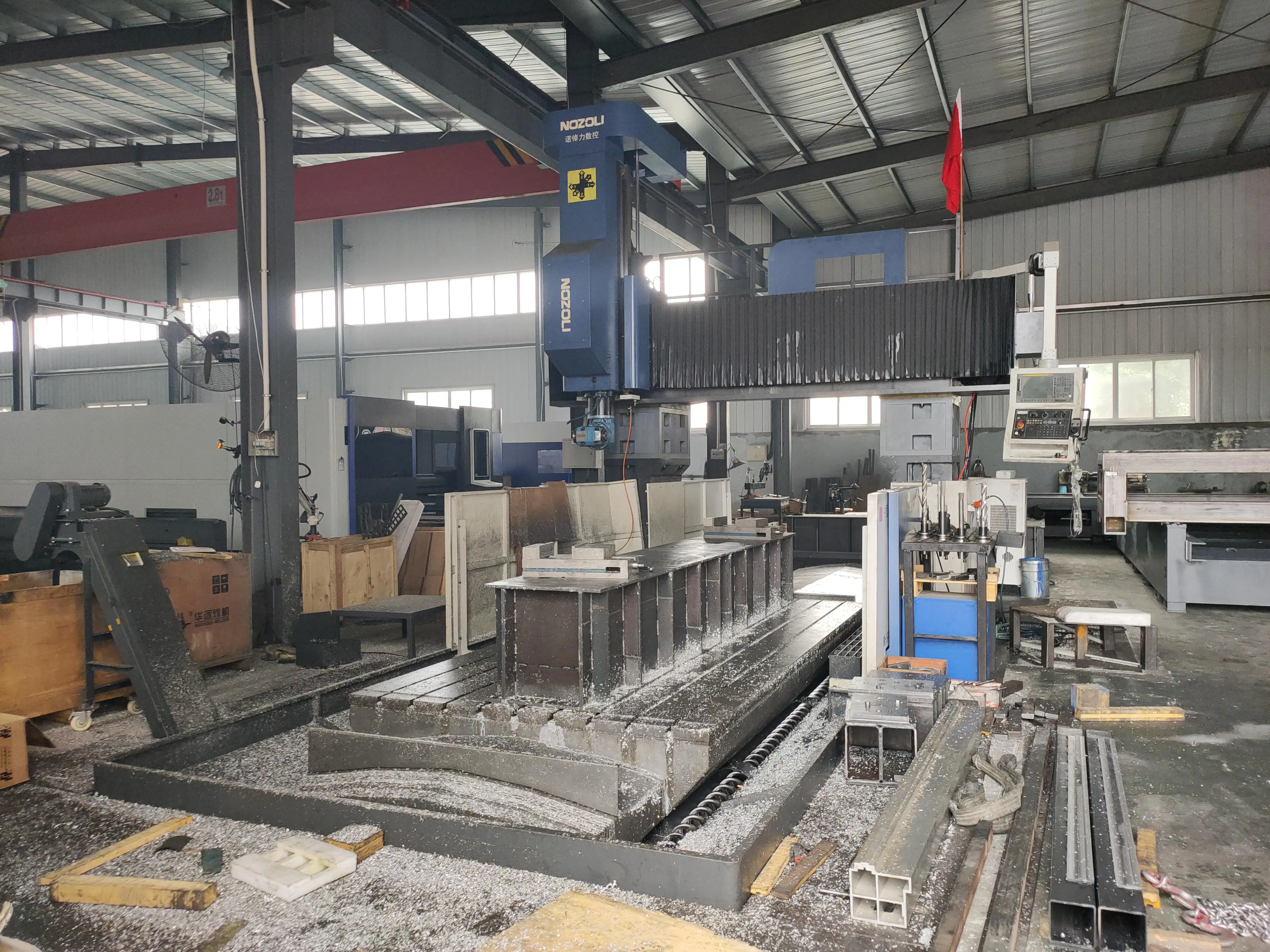

* 32000 square meters fiber laser cutting machine factory
* 3 years machine warranty
* 156 exported country experience
* 32000 square meters fiber laser cutting machine factory
AboutHEADWAY CC Nindustry and trade Co., Ltd.
is established in July 2007, All machines, passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas, and supply OEM service for more than 30 manufactures.
Now, we have owned our International brand, HEADWAY CNC
Now, we have owned our International brand, HEADWAY CNC
Customer Photos
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
