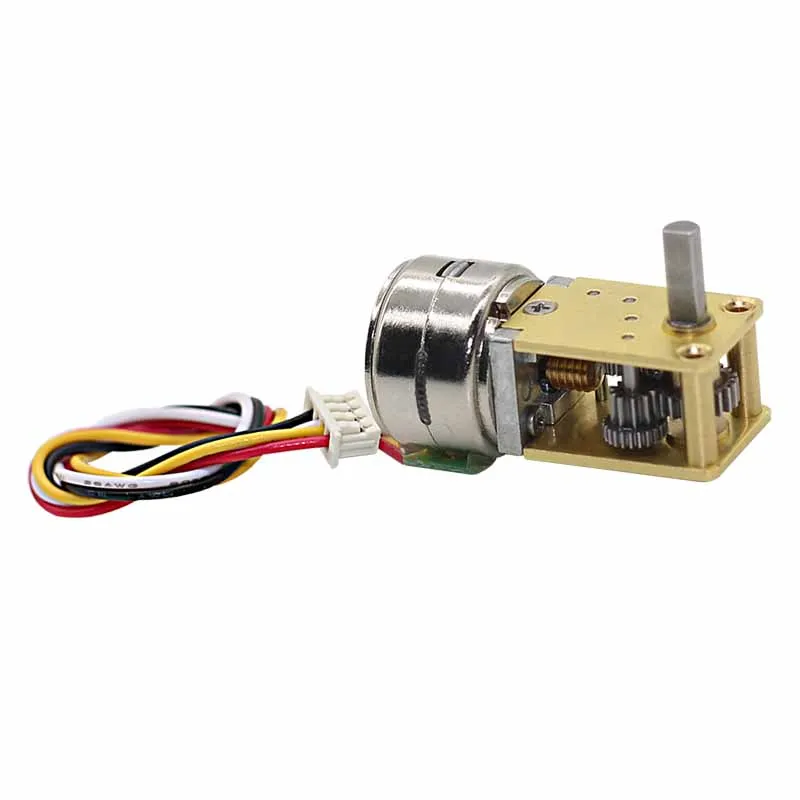

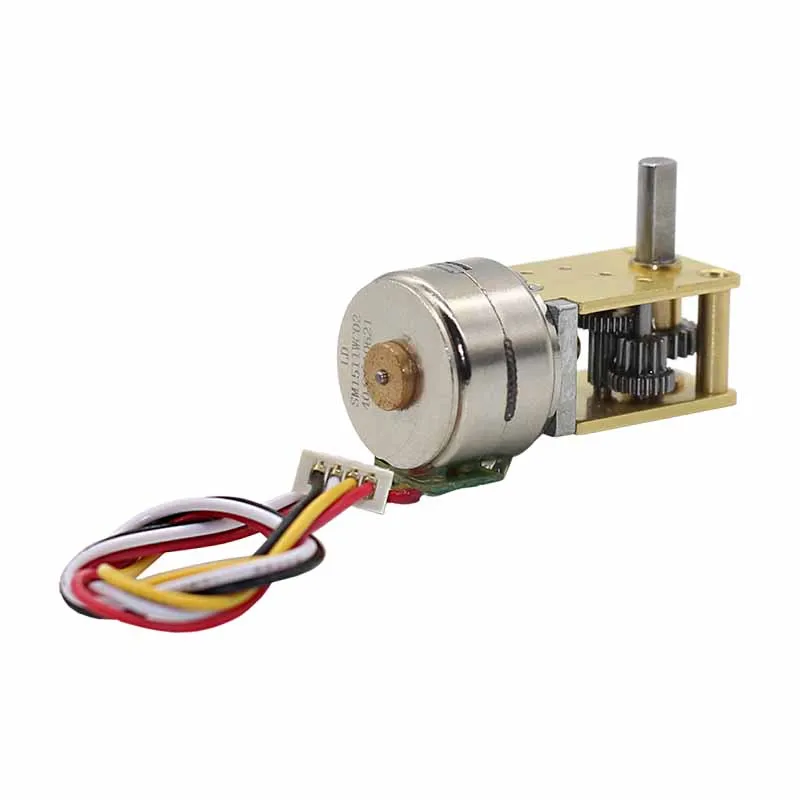

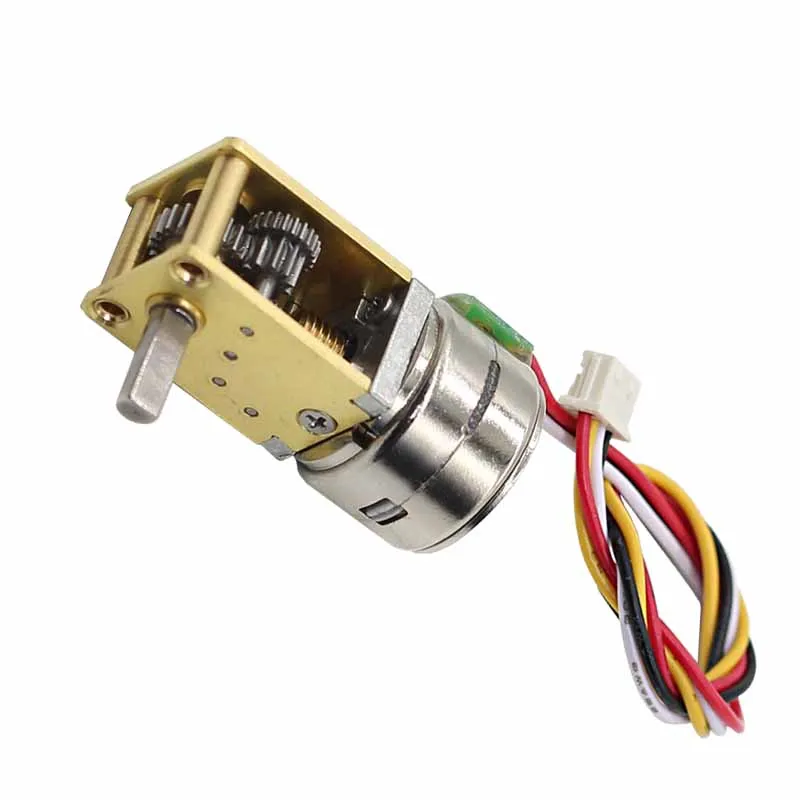

JGY 15BY dc Stepper worm gear motor 15by Micro dc stepper gear motor with opened worm gearbox reducer for automatic device
- Category: Stepper Motor >>>
- Supplier: Shenzhen,Jinshunlaite,Motor,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
N20 dc gear motor
1 Standard Operating Conditions:
1-1 Rated Voltage: 6v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -30C~+70C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2 Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:114-3rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
-- Ratio: 21:1 42:1 118:1 236:1 302:1 603:1 875:1 1030:1
2-3 Micro motor : 15BY stepper gear motor
1-1 Rated Voltage: 6v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -30C~+70C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2 Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:114-3rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
-- Ratio: 21:1 42:1 118:1 236:1 302:1 603:1 875:1 1030:1
2-3 Micro motor : 15BY stepper gear motor
stepper angle : 18d max slewing frequency 800pps at 5 V,
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one
for this type, hope your kindly understanding.
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one
for this type, hope your kindly understanding.

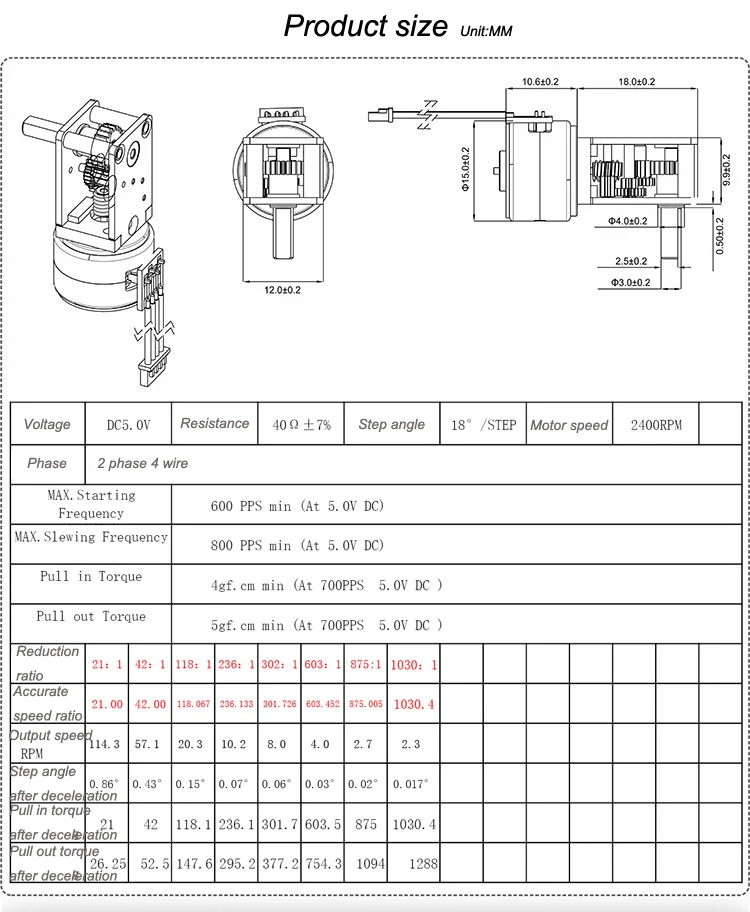

Product Drawing

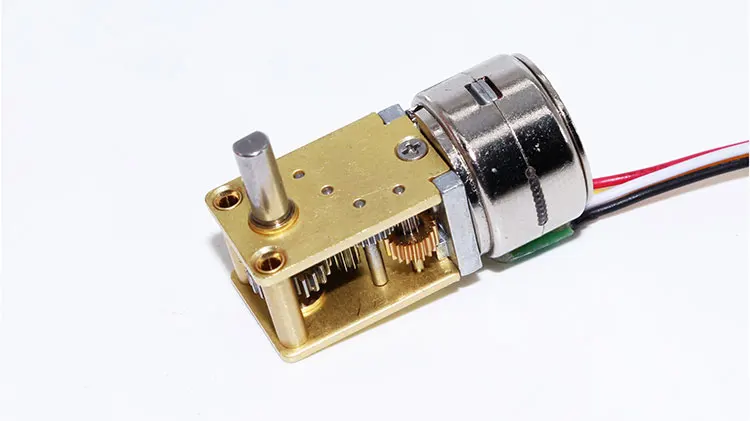

15BY stepper dc motor with open-gearbox reducer
the motor shaft can be customied , like shaft length , screw shaft etc
Product Paramenters

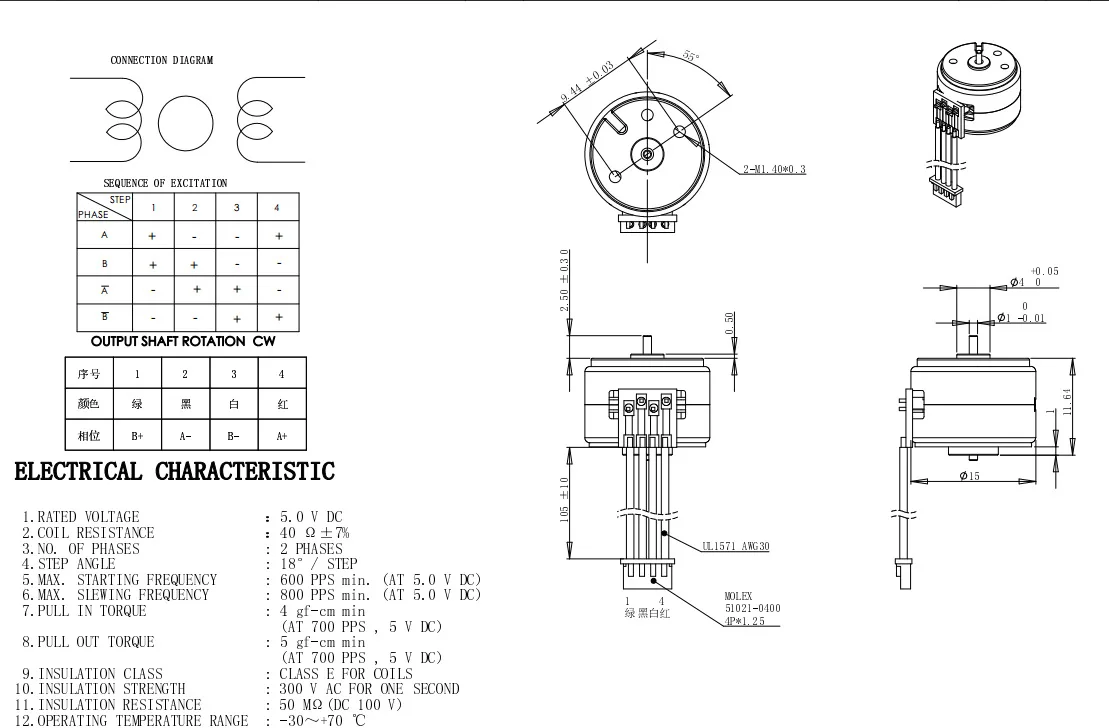

dc stepper motor connection method

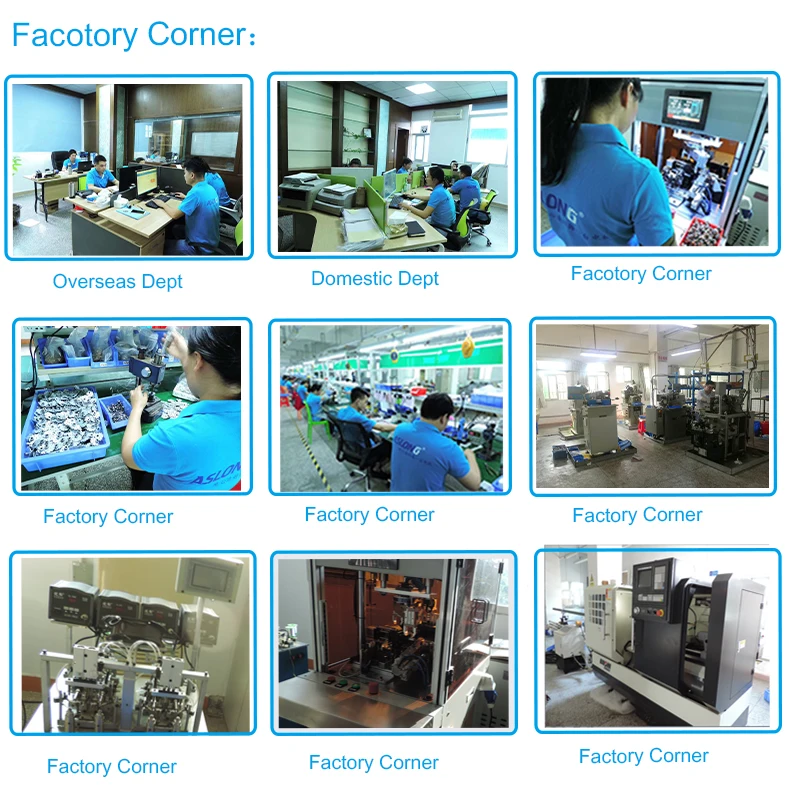

Company Profile
