Односторонний Гидравлический поршневой цилиндр для рынка Северной Америки
- Category: Hydraulic Cylinders >>>
- Supplier: Qingdao Weitai Hydraulic Co. Ltd.
Share on (1600301583115):
Product Overview
Description
Products Description

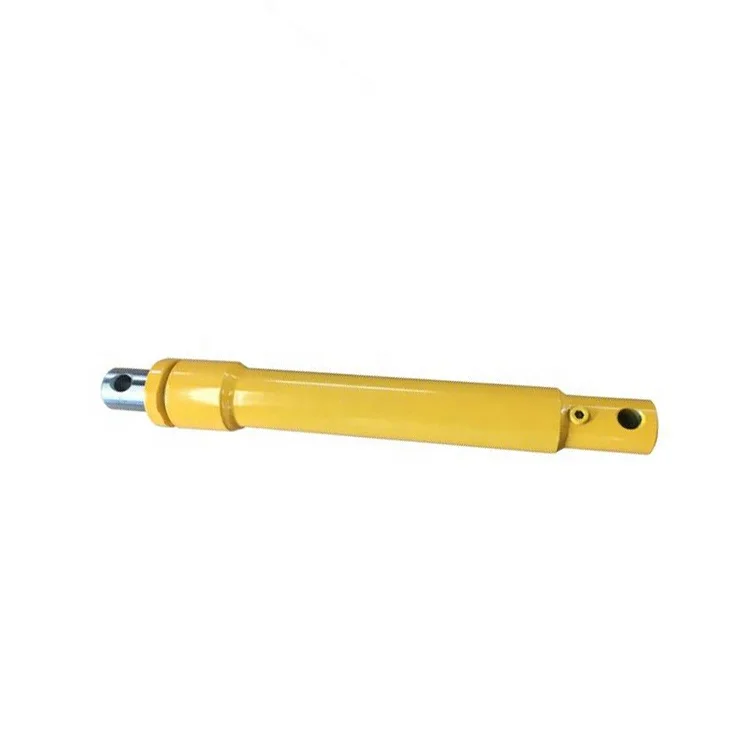

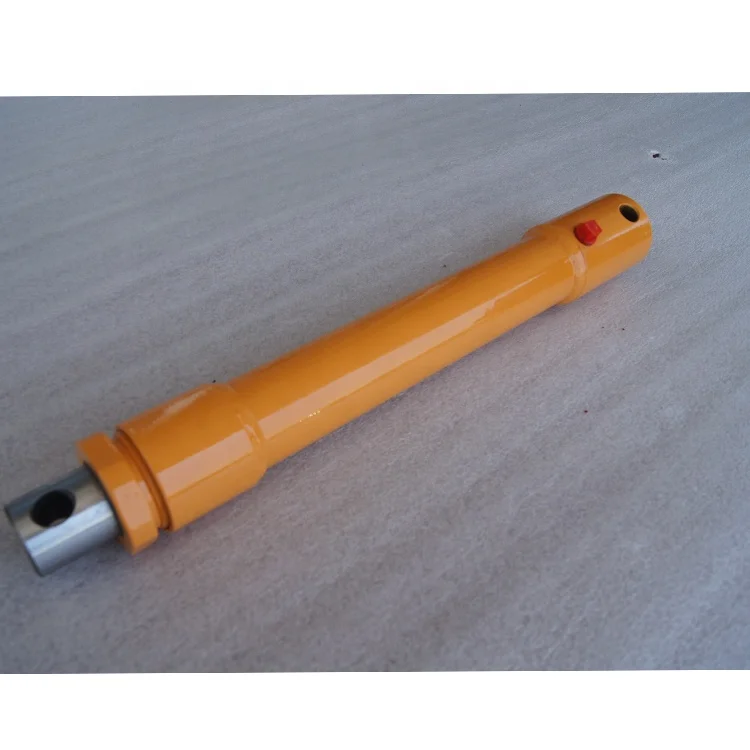

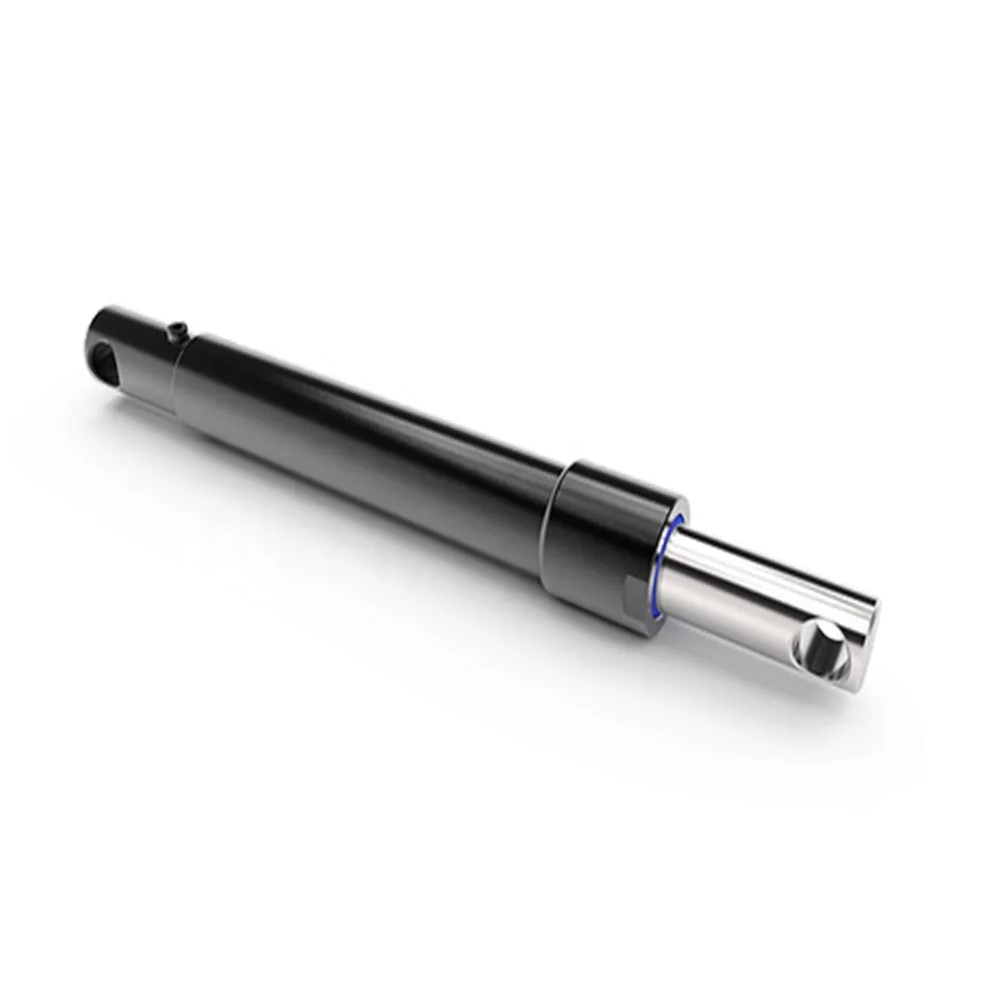

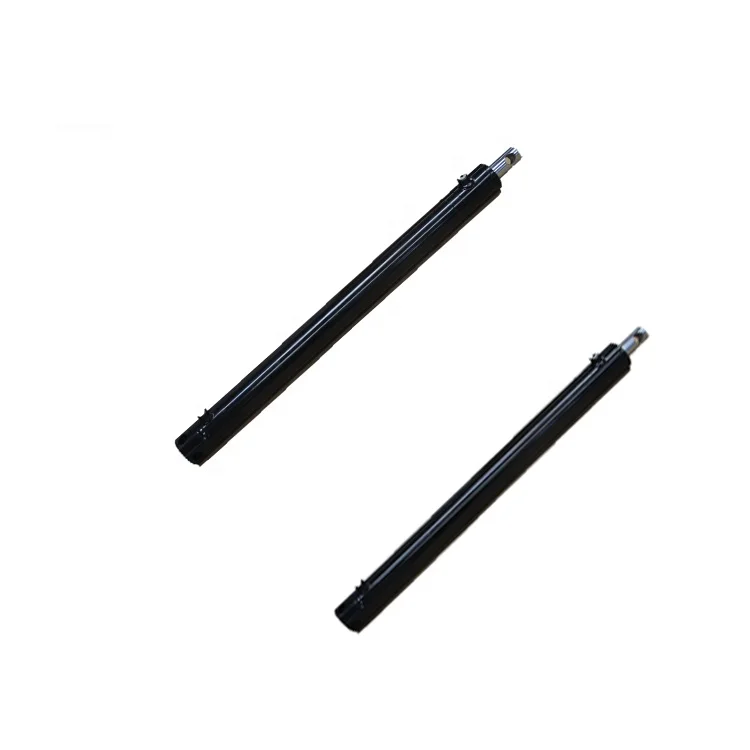

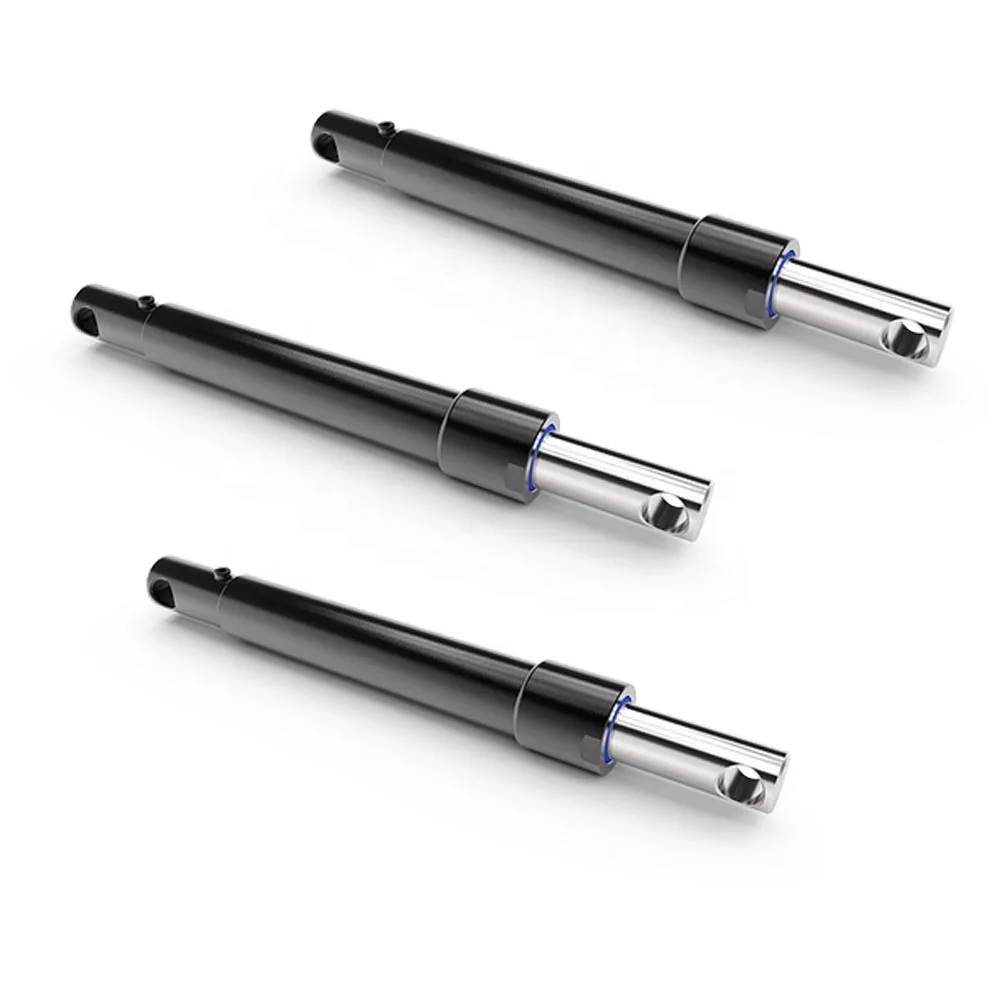

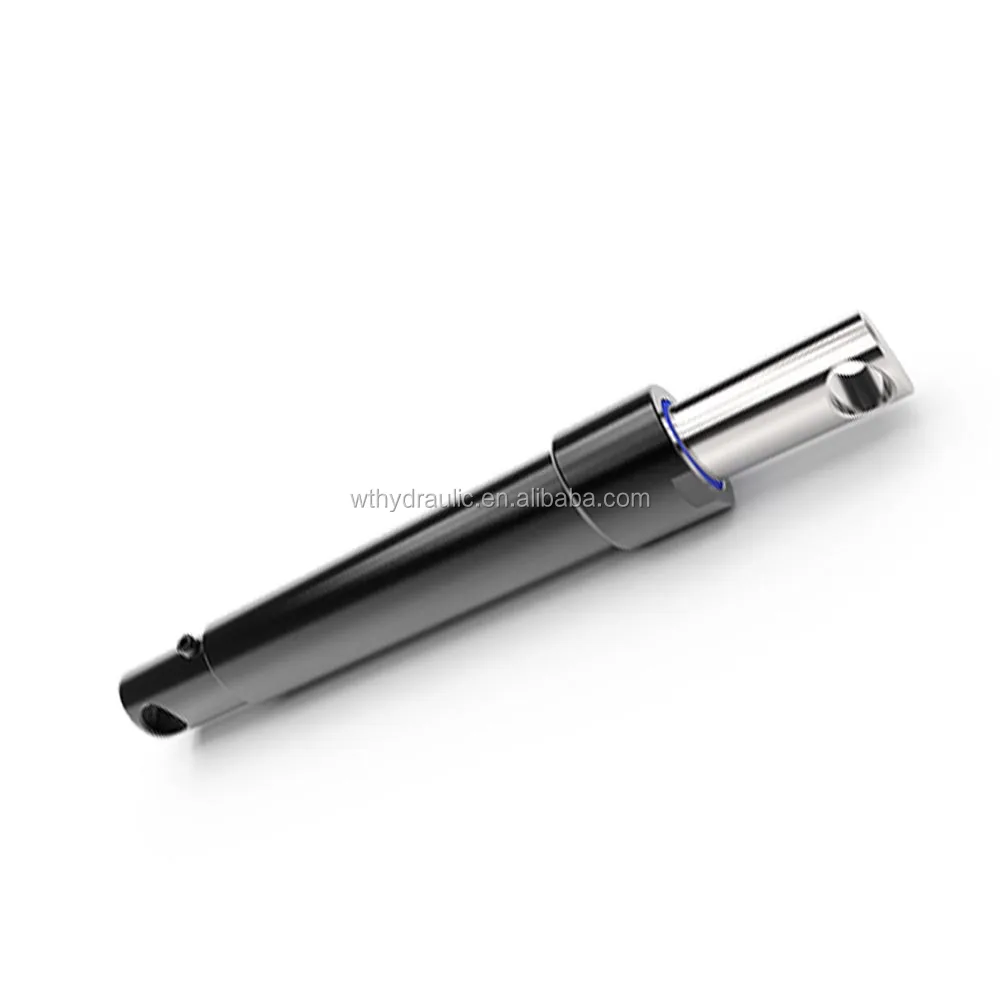

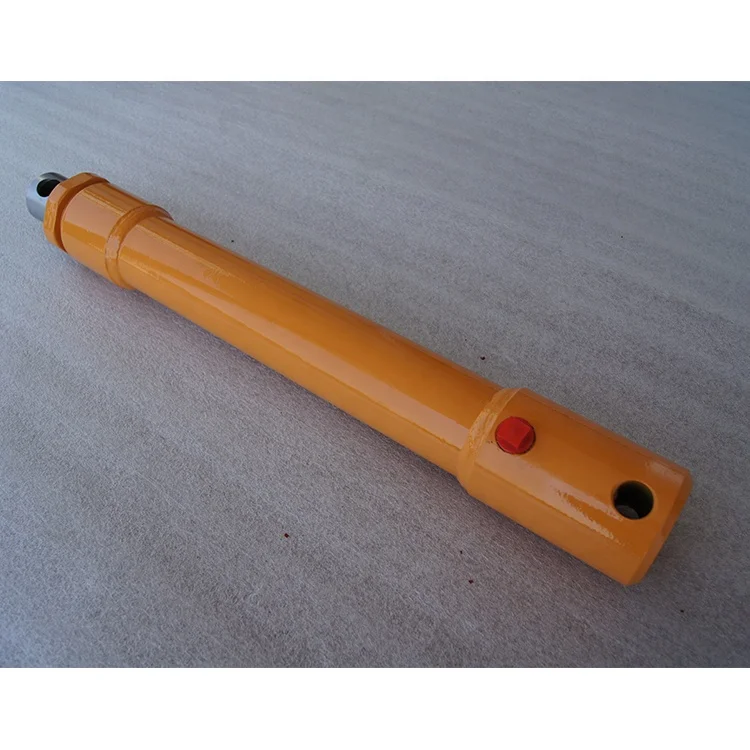

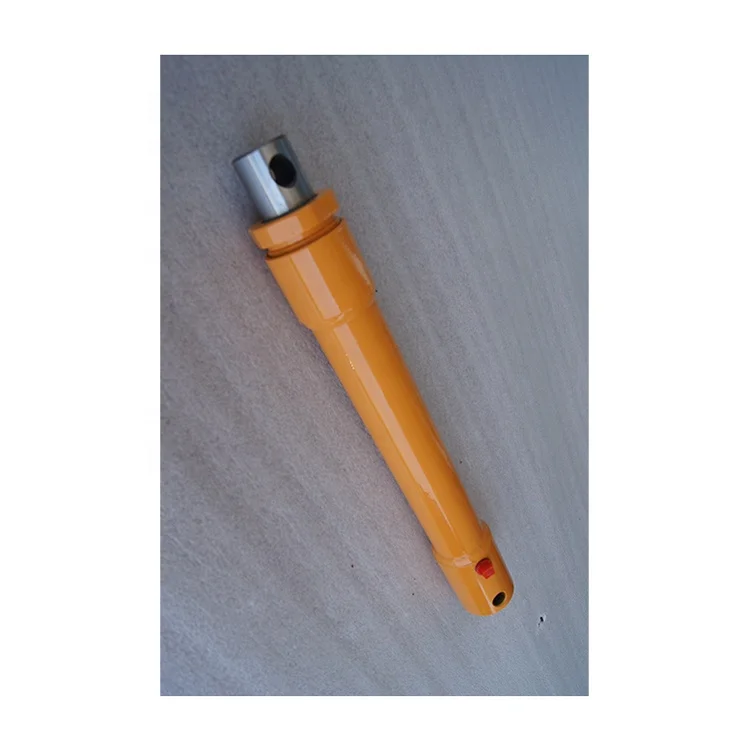

Snowplow hydraulic cylinder
Replacing cylinders for Arctic
Snowplow hydraulic cylinder
Replacing cylinders for Arctic,
Single acting Plunger cylinders are mainly used for Snow Plows to lift the plow and adjust angle.
Features:
* Mainly used for Snow Plow.
* Working pressure: 3000PSI.
* Pin holes at base and rod end.
* Two 1/4” ports 90 degrees apart.
* Can be made as required.
Materials:
* GLAND - High grade ductile iron
* TUBE - High quality Steel tube, precision skived and rolled
* TUBE SEAL - O-Ring with anti-extrusion backup washer
* ROD - Chrome Plated C1045 Steel
* ROD CLEVIS - High tensile steel
* END CAP - Casting steel
* PISTON - High grade ductile iron, precision machined
* PISTON SEAL - Urethane Seal Rubber
* GLAND SEAL - Polyurethane U-cup
* ROD WIPER - Urethane
* PORTS - NPT (SAE optional)
* COLOR - Yellow, Red, Black, or as required
Replacing cylinders for Arctic,
Single acting Plunger cylinders are mainly used for Snow Plows to lift the plow and adjust angle.
Features:
* Mainly used for Snow Plow.
* Working pressure: 3000PSI.
* Pin holes at base and rod end.
* Two 1/4” ports 90 degrees apart.
* Can be made as required.
Materials:
* GLAND - High grade ductile iron
* TUBE - High quality Steel tube, precision skived and rolled
* TUBE SEAL - O-Ring with anti-extrusion backup washer
* ROD - Chrome Plated C1045 Steel
* ROD CLEVIS - High tensile steel
* END CAP - Casting steel
* PISTON - High grade ductile iron, precision machined
* PISTON SEAL - Urethane Seal Rubber
* GLAND SEAL - Polyurethane U-cup
* ROD WIPER - Urethane
* PORTS - NPT (SAE optional)
* COLOR - Yellow, Red, Black, or as required
Details Images
Related Products
Our Company
We are one of the earliest hydraulic enterprises which specializing in export business in China. At the first beginning, we are OEM factory, and have gradually developed into a comprehensive company integrating production, trade and investment. Hydraulic cylinders and motors are the two main products of our company. Now, Weitai has an own factory and one OEM factory in Hydraulic cylinder, and also a shareholder of a high-quality motor manufacturer in hydraulic motor. All factories are ISO certified and our material suppliers have all obtained CE, RoHS, CSA and UL certificates. Weitai can design and customize according to drawings to meet the diverse needs of customers.
Weitai Hydraulic has more than 30 years’ experience in OEM exporting for well-known brand in North America. The annually supplying capacity of cylinder is 100,000pcs. Our Tie-rod cylinders, Welding Cylinders, Plunger Cylinders and multi-stage cylinders are widely used in Car lift, Snow Plow, Trailers, and Agricultural Machinery etc. The maximum range of cylinder diameter can be up to 12 inches and the maximum stroke can be up to 120 inches. The rated pressure can reach up to 35MPa.
Packaging & Delivery
FAQ
1) What does WEITAI do?
A: Weitai Hydraulic is a supplier of high quality hydraulic products including Hydraulic Cylinders, Hydraulic Motors, Power Units
and other components, trading both within China and internationally.
2) What Certificate do you have?
A: All our factories are ISO certificated. And our main suppliers of materials and parts are with CE, RoHS, CSA and UL
certificates.
3) How long is your delivery time?
A: The delivery time depends on different products and quantity. The cylinder usually needs about 45-60 days and the motor needs
about 20-30 days.
4) Could WEITAI produce parts as customers’ requirement or drawing?
A: Yes, we can OEM for you as your drawings. Our engineer also can give you professional support for technical suggestions.
5) What kind of payment terms do you accept?
A: We prefer T/T through bank. 30% when order is confirmed and 70% before shipment. L/C is also acceptable for amount over
20,000USD.
6) What is your warranty policy?
A: All our products are warranted for one full year from date of delivery against defects in materials and workmanship. This
warranty does not cover parts that are worn out through the course of normal operation or are damaged through negligence. We
serious remind that unclean hydraulic oil will definitely cause damage to your Hydraulic components. And this damage is not
included in the warranty range. So we strongly suggest you to use new clean oil or make sure the system oil are clean when using
our parts.
7) What kinds of Cylinders do you usually make?
A: As a 30 years manufacture, we can make almost every conventional cylinders. Such as Tie-rod cylinders, welded cylinders, piston
cylinders, plunger cylinders, telescopic cylinders, double rod cylinders, Rephrasing Hydraulic Cylinders, High pressure Cylinders,
Stainless Steel Cylinders, Aluminum Alloy Cylinders, Electrical Hydraulic Cylinders, and other special cylinders.
8) What materials are you using for Cylinders?
A: Usually we use #45 steel for cylinder barrel, rod, cap and cylinder end, ductile iron for Piston. #20 Steel are also used in
some cylinders for easily welded. The rod is hardened and chrome plated. Nitrogen or QPQ rod (black rod) can also be supplied as
customer’s required.
9) Which brands of Seal Kit can you use?
A: Our standard seal kit is our OEM brand in China. We can also use the famous brands as customer’s required, such as PARKER,
HERCULES, HALLITE, NOK, DICHTOMATIK, etc.
10) Will you test all your cylinders before delivery?
A: Yes. We test each cylinder before delivery. The testing pressure is usually 2 times of the rated pressure.
