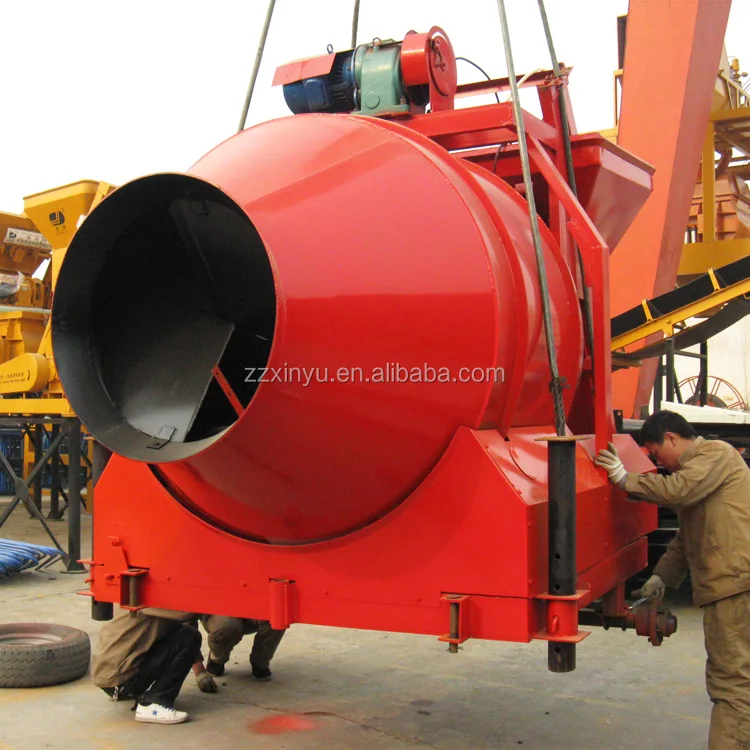

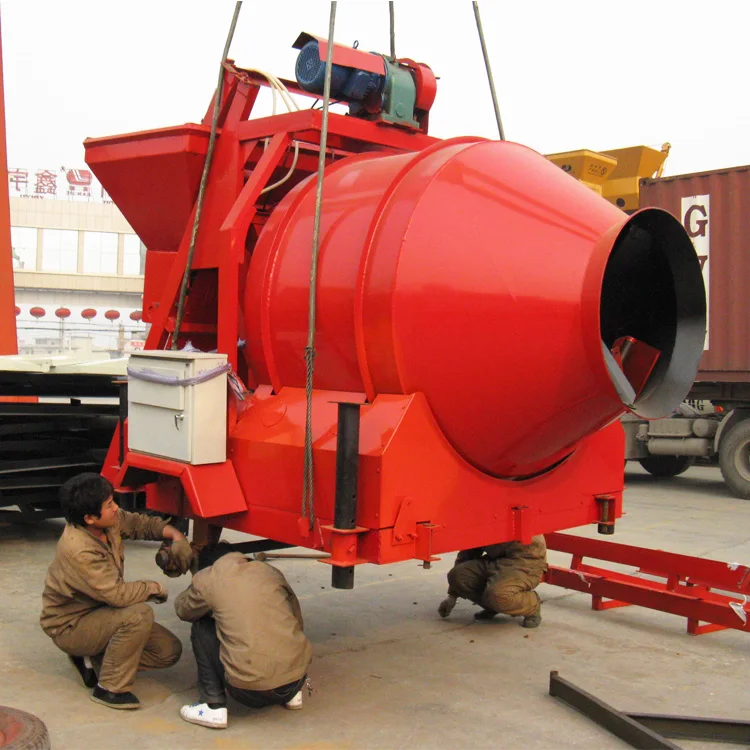

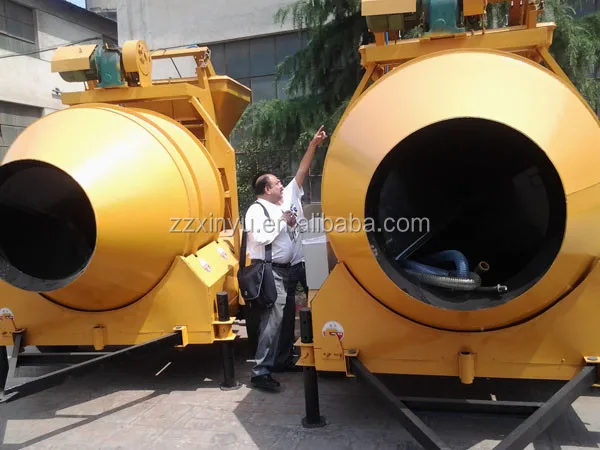

Descriptions of JZC500 Concrete Mixers:
JZC series mixer is a gravity type of double-conic reversing drum concrete mixer.
1. the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and
anti-clockwise during discharging.

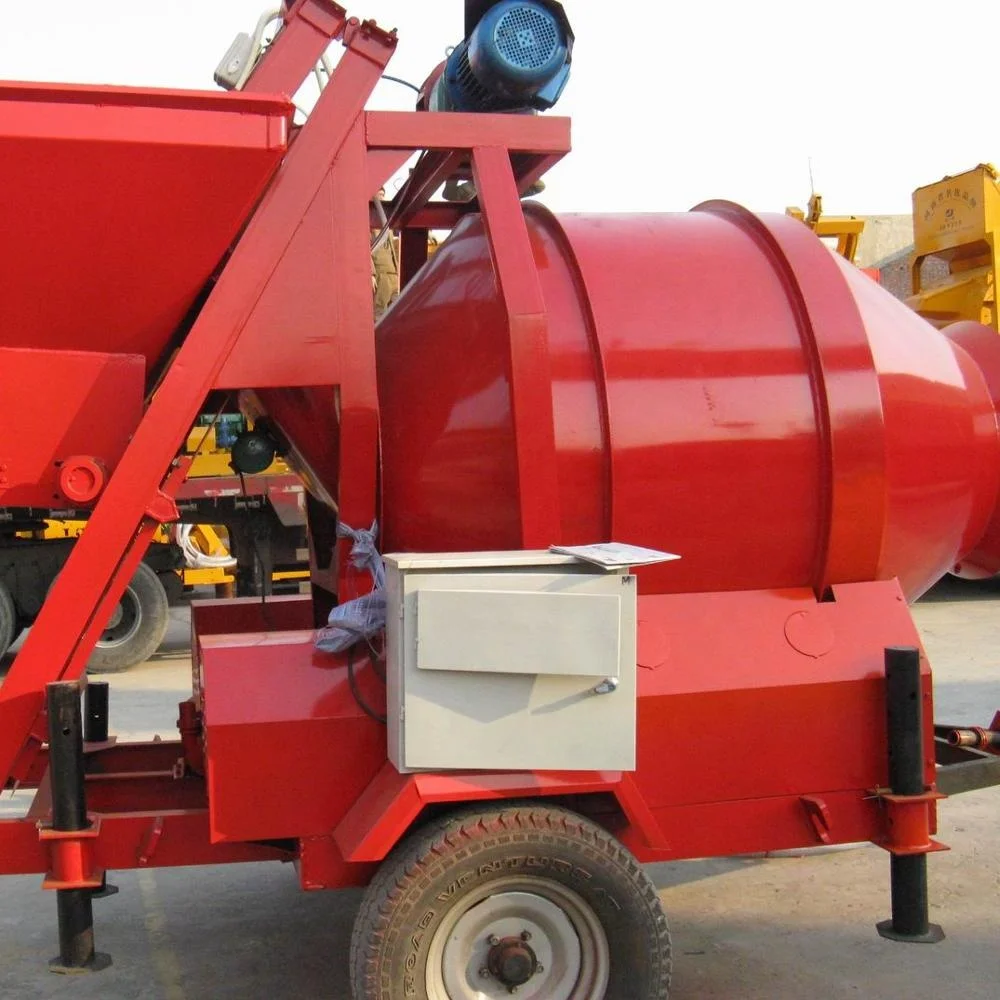

2. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete.
3. These mixer services for ordinary construction site, roads, bridge projects and precast plant.


Technical Parameters of JZC500 Concrete Mixers:
Model | JZC500 |
Discharge volume | 500L |
Charging volume | 800L |
Capacity | 18~20 m3/h |
Aggregate sizes | ≤60mm |
Rotating speed | 13 r/min |
Max. drag speed | 20km/h |
Mixing motor | 7.5kw |
Lifting motor | 5.5kw |
Pump motor | 0.55kw |
Weight | 2400kg |
Dimensions | 3500x2200x3200 mm |

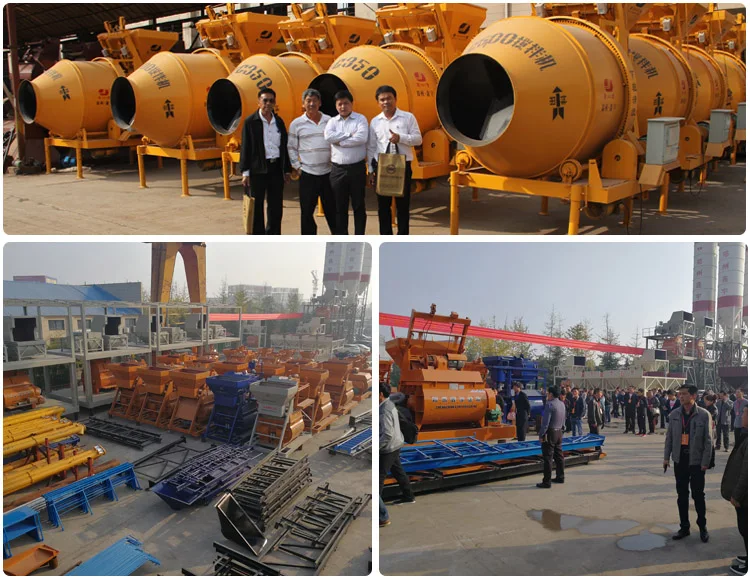

Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing station, JS series twin shaft concrete mixer, PLD batcher, JZ series cement mixer and portable cement mixer.
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.


1. Manufacturer Time: 10~20 working days (for the concrete mixer) after receipt of down payment.

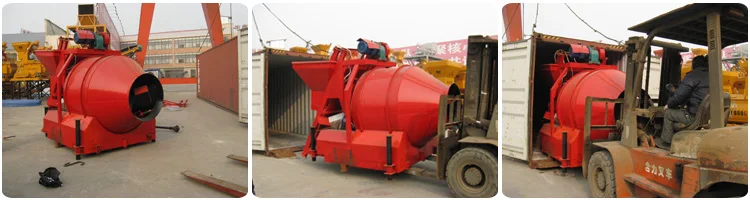

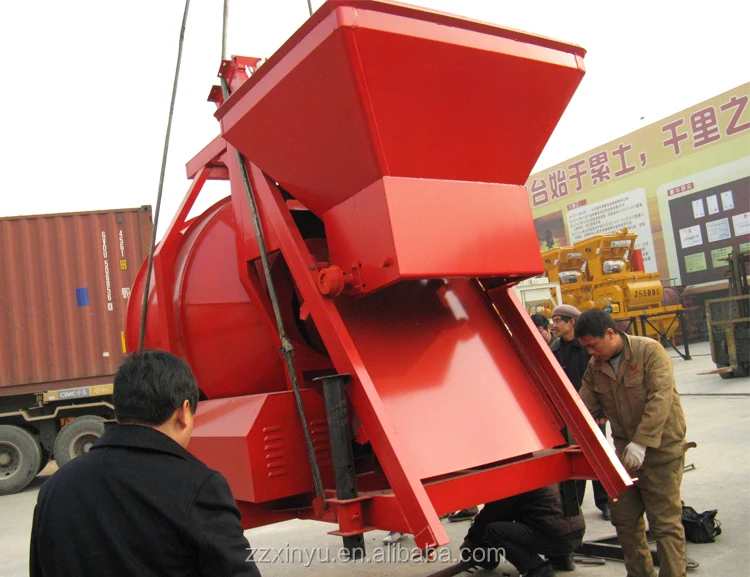

2. Shipment: According to your order quantity. In general, 3 × 40GP for the concrete mixer.
3. Terms of Payment: 30% of total price as down payment by T/T, the balanced 70% of total price shall be paid before delivery.

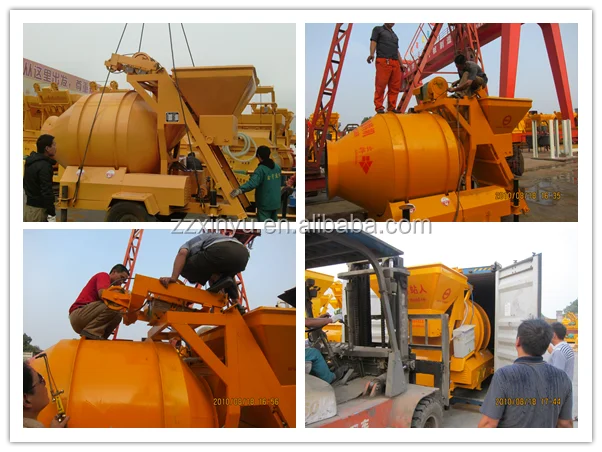

4. Installation: We will send our engineers to guide installation according to your requirement.
