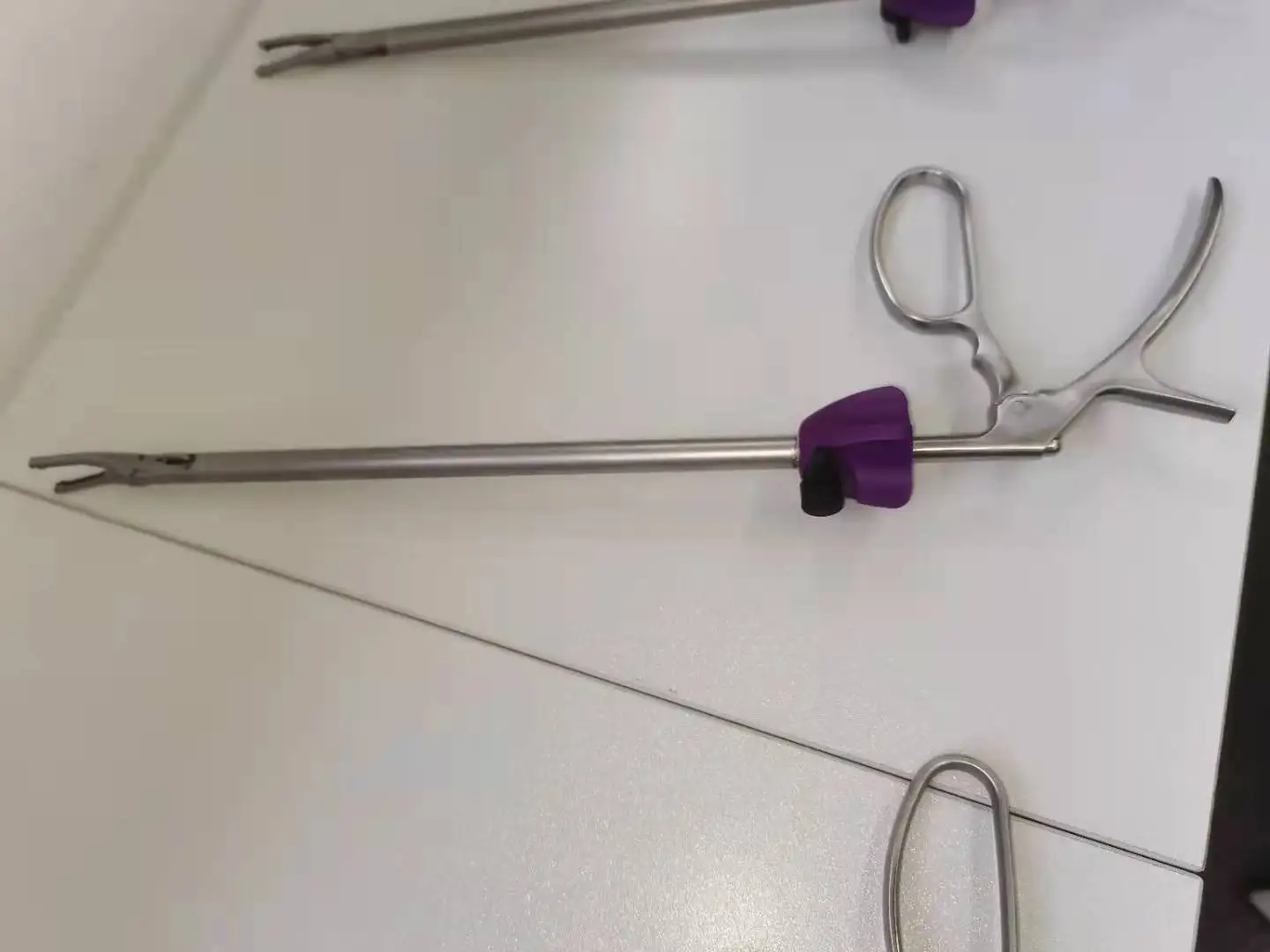

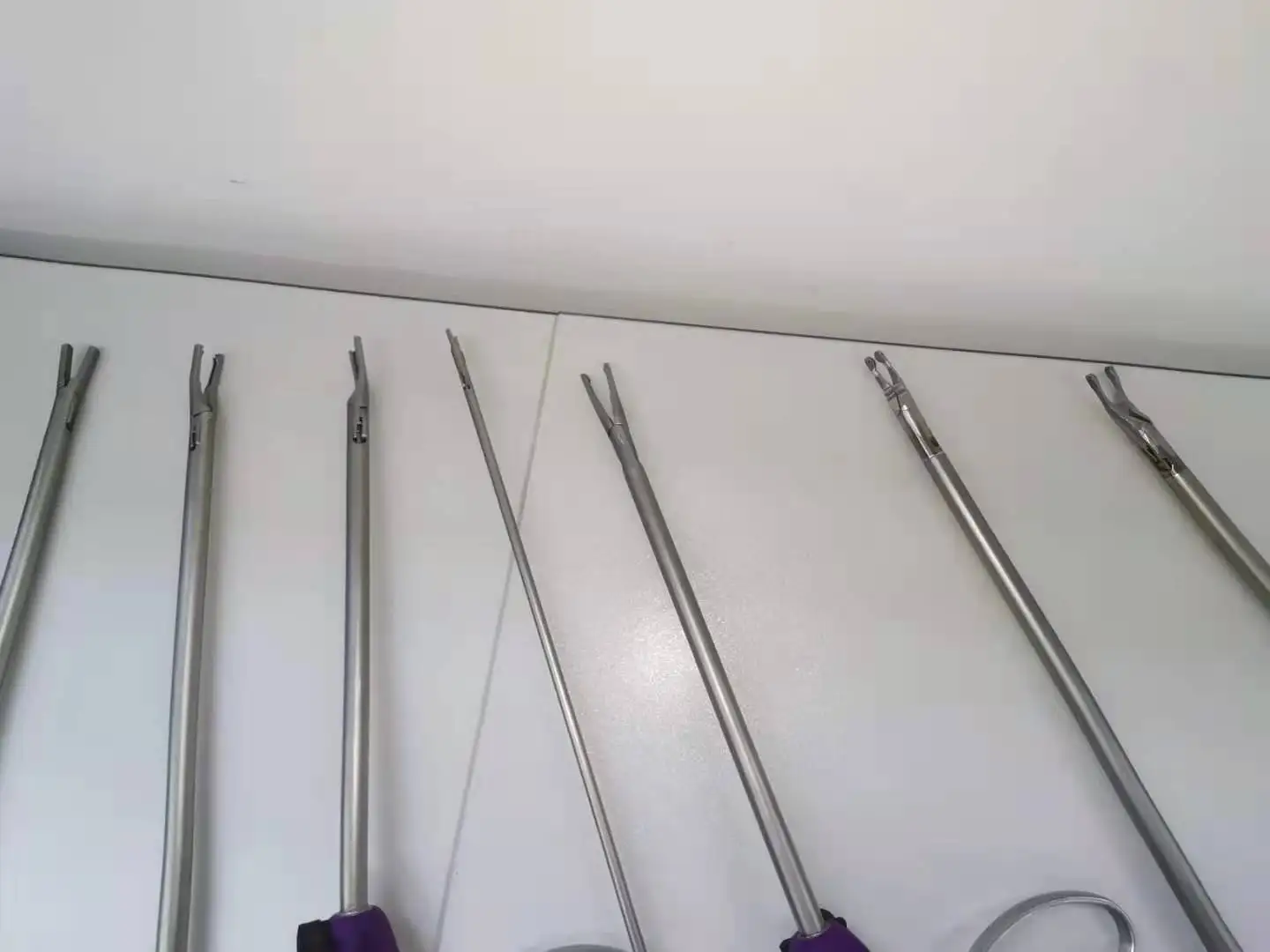

high quality laser cutting machine can be connected to surgical instruments for clip appliers ultrasonic knife
- Category: >>>
- Supplier: Changzhou Men Intelligent Technology Co. Ltd.
Share on (1600301646492):
Product Overview
Description
Product Description
Product Detail
Maximumoperatingspeed | 300mm/s（X）；100mm/s（Y）；100mm/s（Z）；600rpm（θ） |
Positioningaccuracy | ±2um（X）；±3um（Y）；±3um（Z）；±15arcsec（θ） |
Repetitivepositioningaccuracy | ±0.5um（X）；±1um（Y）；±1um（Z）；±3arcsec（θ） |
Cutting seam width | 15um~25um |
Machining material | 304&316L&Ni-Ti&L605etc |
Tube blank length | <2.5m ;(Customized support fixture) |
Machining wall thickness | 0~0.5±0.02 mm |
Pipe machining range | Ø0.3~Ø7.5&Ø1.0~Ø16.0&Ø1.0~Ø40.0±0.03mm |
Length of tailing | 60mm |
Single processing range | 0~300mm (Longer products can be machined by segmented splicing) |
Laser type | Fiber Laser |
Laser wavelength | 1030~1070+10nm |
Laser power | 200W&300W&500W&1000W&QCW150W for optional |
Power supply | 220V±10%,50Hz; AC 20A (Main circuit breaker) |
File format | dxf,dwg |
Equipment dimensions | 1200mmx1300mmx1750mm |
Equipment weight | 1500kg |
Application

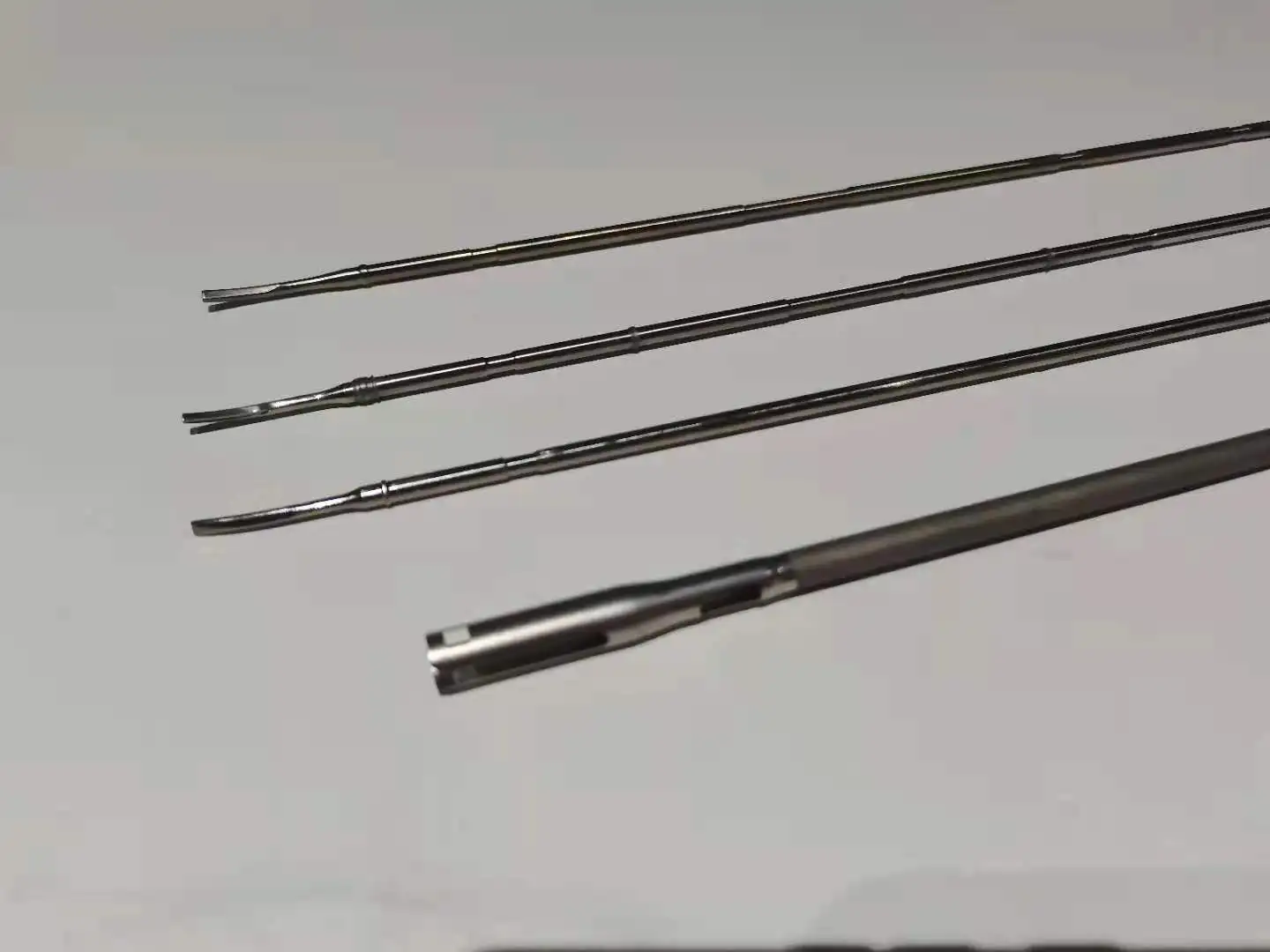

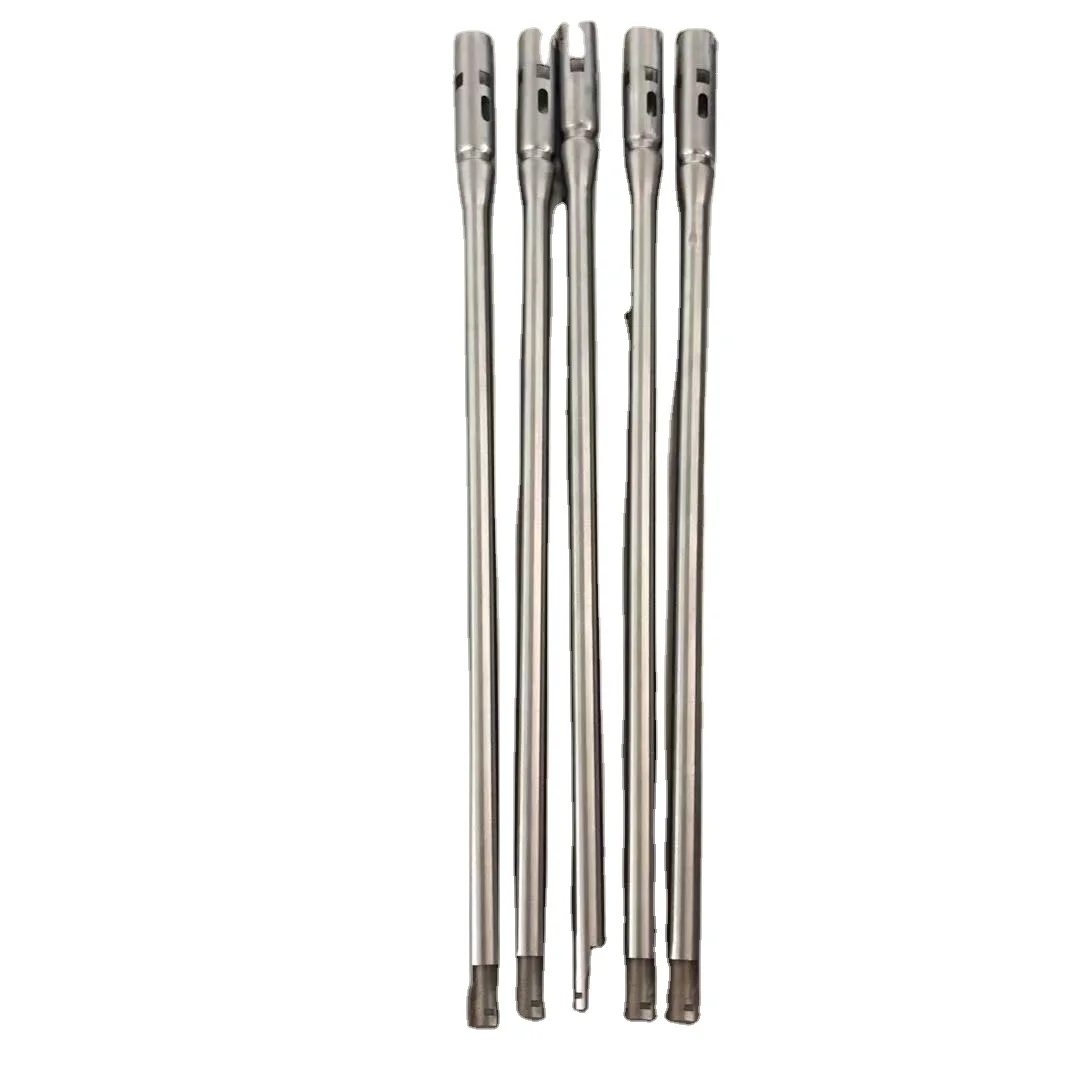

Laser micromachining of indwelling needle,puncture needle,radiofrequency ablation needle,etc
Features:
-Small cutting seam width: 18-30 um
-High machining accuracy: ≤ ±10 um
-Good quality of incision: no burr & smooth incision
-one-off cutting through one side tube wall&continuous automatic feed machining
2.Strong adaptability
-Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
-Supporting equal diameter tube & diameter-varying tube & centripetal &vertical compound opening feature processing of plane instrument
-Can machine 304 & 316L & Ni-Ti & L605 etc.various alloy materials
-Can machine equal diameter tube & deformed tube&semi-finished tube&small for mat plane instrument
-Compatible with precision D-type chuck&ER series chuck&three-jaw chuck and other precision thin-walled tube clamping system
-Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
-Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
-Equipped with self-developed 2D & 2.5D & 3D CAM soft ware system for laser micro machining
3.Flexible design
-Follow the design concept of ergonomics,delicate and concise
-Provide theoptionalfunctionofmachinevisionsystemtorealtimeonlinemonitorthelaserdynamicmachiningprocess
-The software and hardware functions match flexibly,support personalized function configuration
&intelligent production management
-Support for ward innovative design from component level to system level
-Open type control&laser micro machining software system is easy to operate & intuitive interface
-Technical certification :CE,ISO9001,IATF16949
-Follow the design concept of ergonomics,delicate and concise
-Provide theoptionalfunctionofmachinevisionsystemtorealtimeonlinemonitorthelaserdynamicmachiningprocess
-The software and hardware functions match flexibly,support personalized function configuration
&intelligent production management
-Support for ward innovative design from component level to system level
-Open type control&laser micro machining software system is easy to operate & intuitive interface
-Technical certification :CE,ISO9001,IATF16949
