Product Overview

Description

Specification of Metric Thread Plug Gauge



Confirm: GB3934-83, DIN13, ISO1502-96

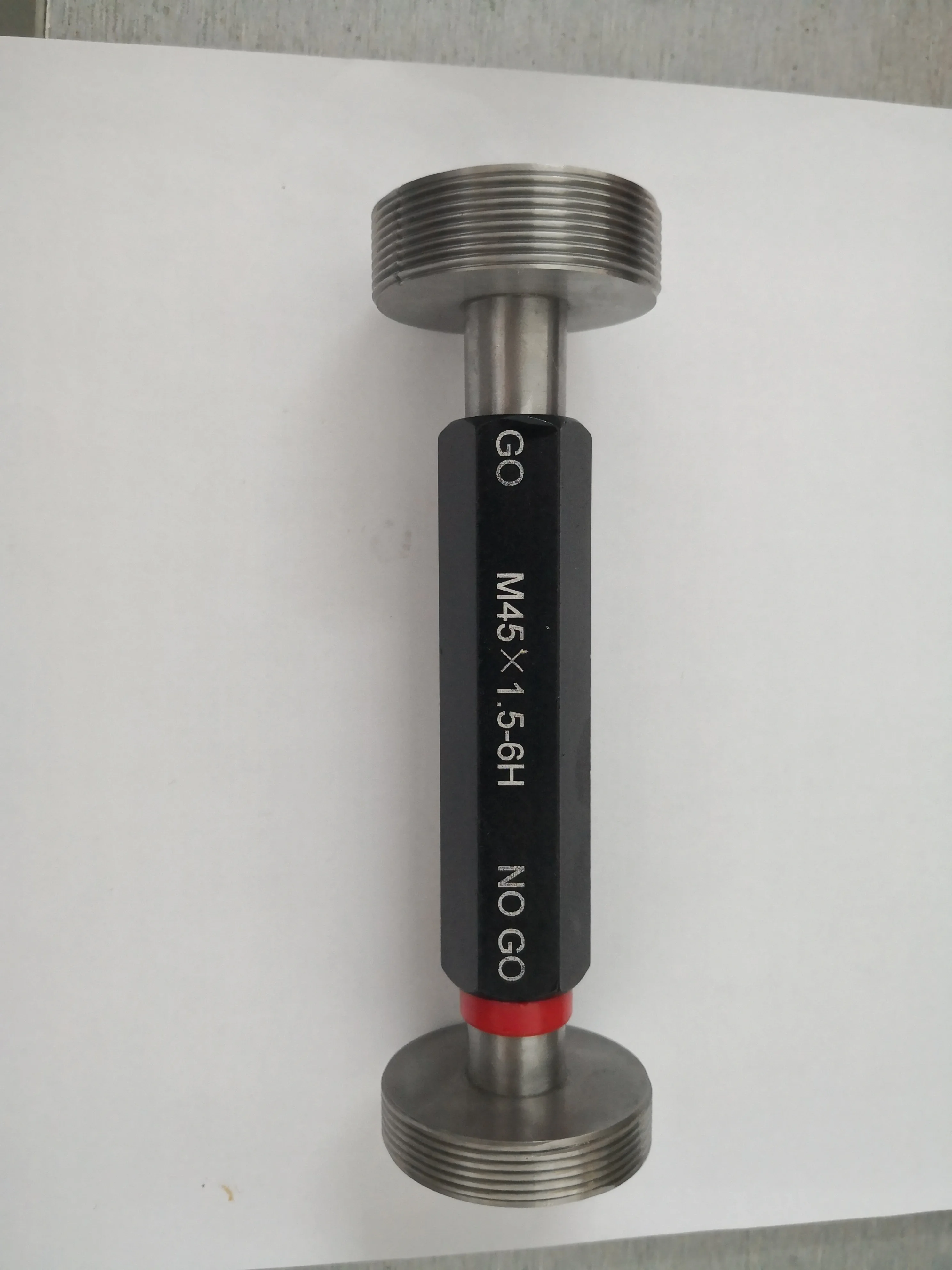

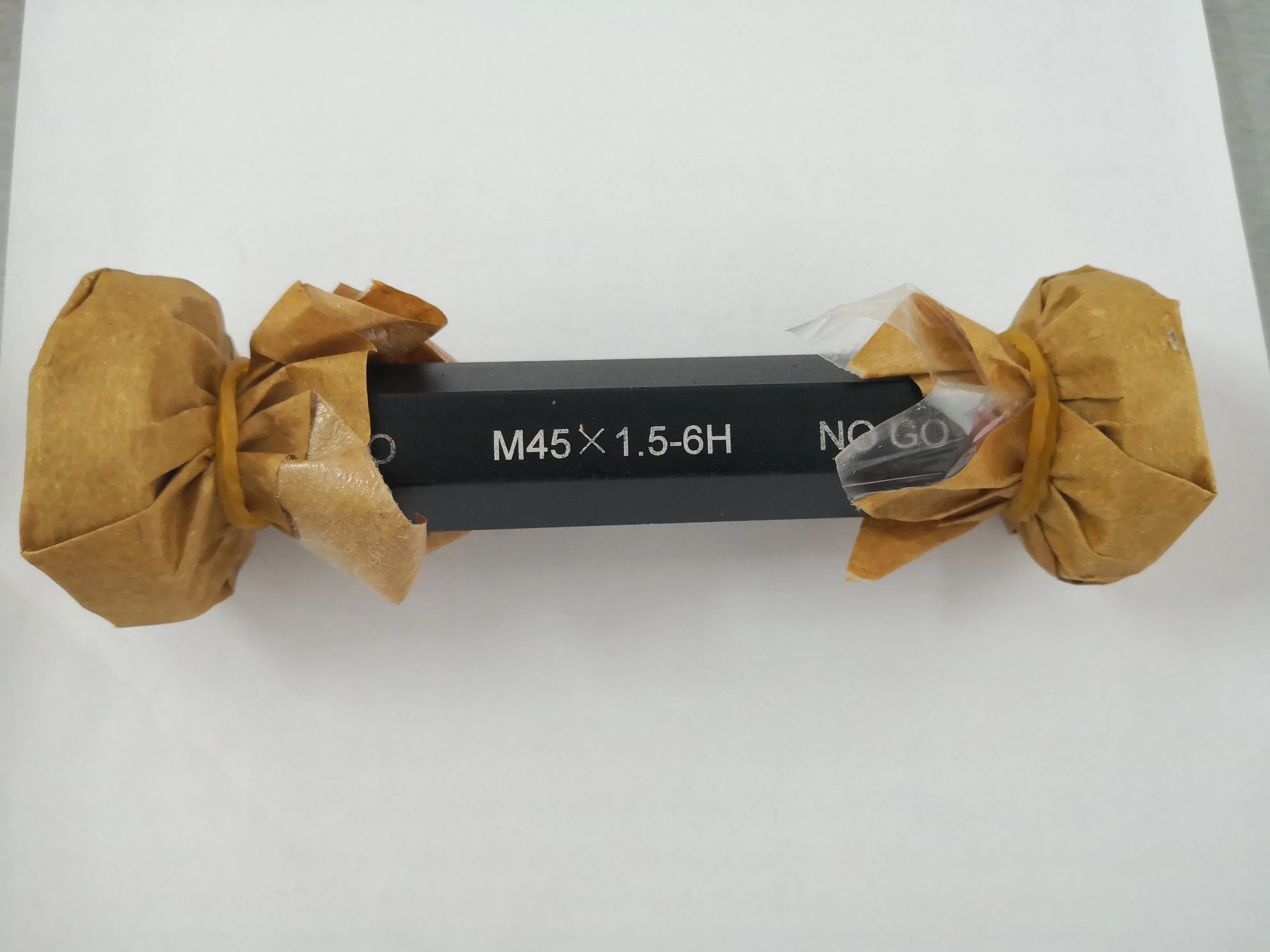

Product Name: The Metric Thread Plug Gauge
Product use: for internal and external thread detection proofreading
Model: M1-M320 (complete specifications, can also be customized non-standard size gauge, please contact us for details.)
Material: Gcr15 (GCr15 refers to a high carbon chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has high hardness, uniform structure, good wear resistance and longer service life)
Accuracy: Plug gauge 6H or 6G (default shipment is the general standard 6H; can also be customized 4H, 4H5H, 5G, 5H, 5H6H, 6G, 6H, 7G, 7H , please contact us for details)

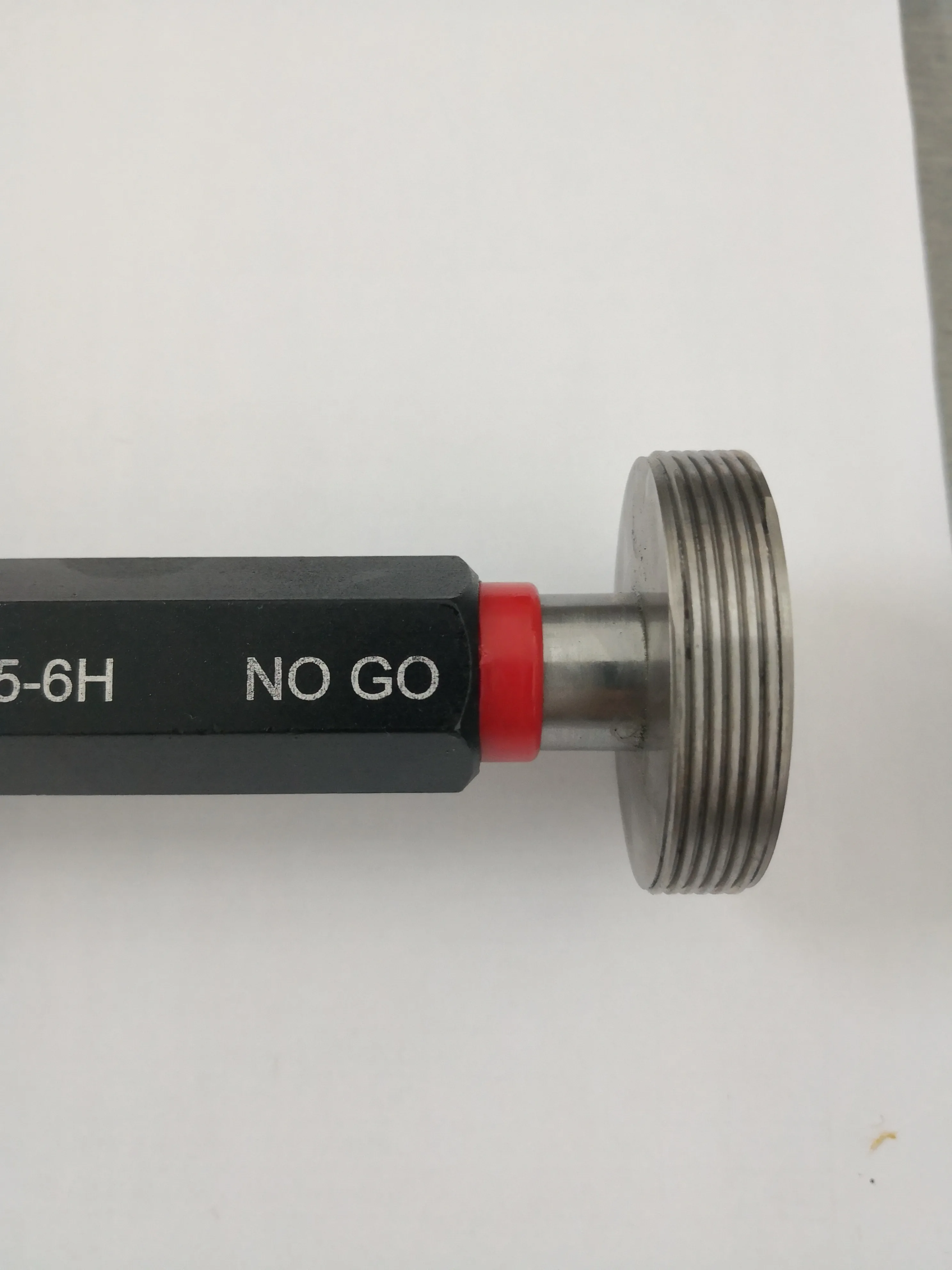

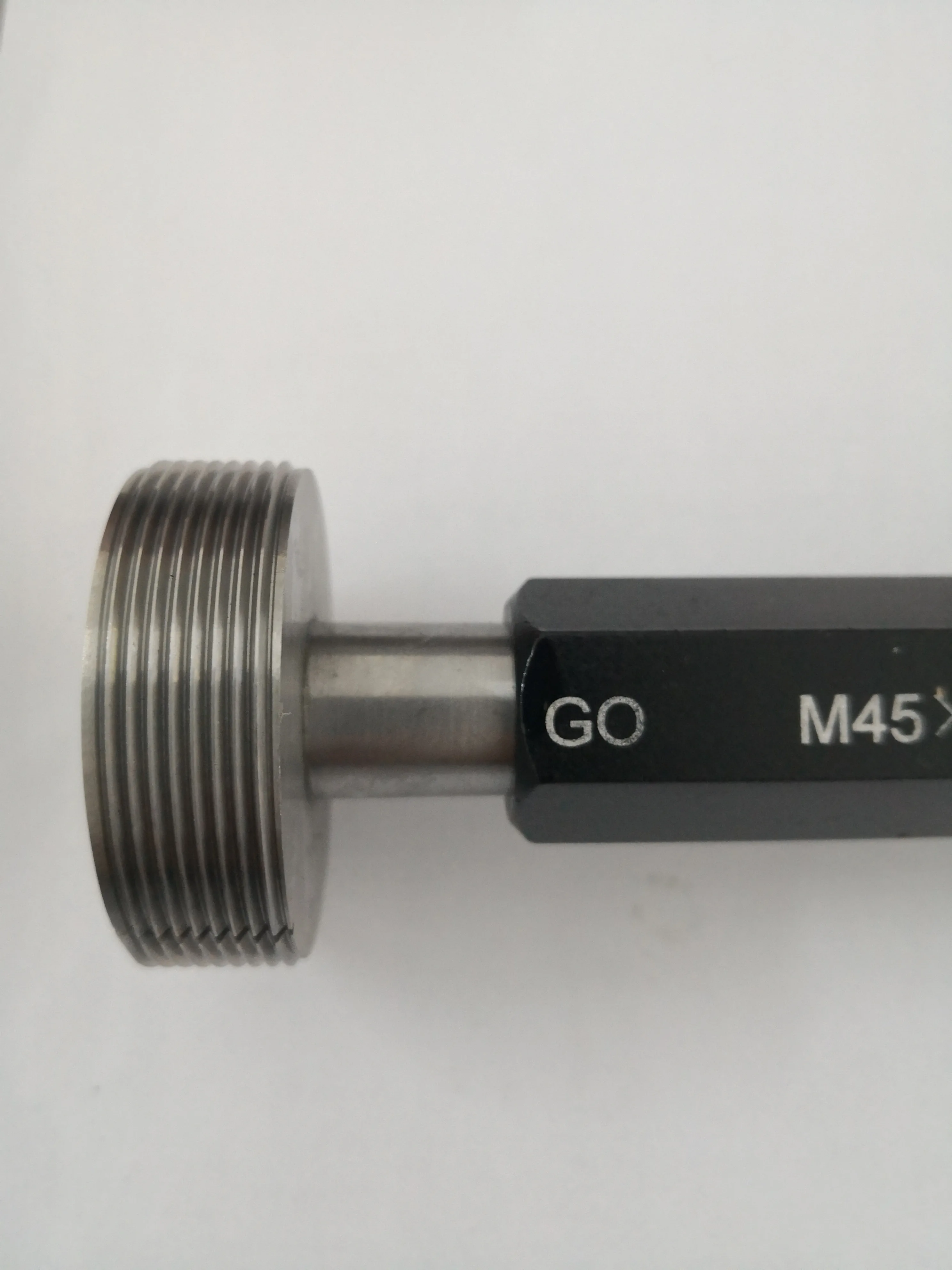

Unit: 1 pay [2; (General Regulation T/GO) and (Stop Z/NO GO)
Quality Assurance: Every product in our store is strictly tested before it leaves the factory.



Nominal Size	Coarse	Fine					Accuracy
	Pitch 1	Pitch 2	Pitch 3	Pitch 4	Pitch 5	Pitch 6
M1.0	0.25	0.20					4H,  4H5H,            5G,      5H,  5H6H,             6G,           6H,           7G,     7H
M1.1	0.25	0.20
M1.2	0.25	0.20
M1.4	0.30	0.20
M1.6	0.35	0.20
M1.8	0.35	0.20
M2.0	0.40	0.25
M2.2	0.45	0.25
M2.5	0.45	0.35
M3.0	0.50	0.35
M3.5	0.60	0.35
M4.0	0.70	0.50
M5.0	0.80	0.50
M6.0	1.00	0.75	0.50
M8.0	1.25	1.00	0.75	0.50
M10.0	1.50	1.25	1.00	0.75	0.50
M12.0	1.75	1.50	1.25	1.00	0.75	0.50
M14.0	2.00	1.50	1.25	1.00	0.75	0.50
M16.0	2.00	1.50	1.00	0.75	0.50
M18.0	2.50	2.00	1.50	1.00	0.75	0.50
M20.0	2.50	2.00	1.50	1.00	0.75	0.50
M22.0	2.50	2.00	1.50	1.00	0.75	0.50
M24.0	3.00	2.00	1.50	1.00	0.75	0.50
M27.0	3.00	2.00	1.50	1.00	0.75
M30.0	3.50	3.00	2.00	1.50	1.00	0.75
M33.0	3.50	3.00	2.00	1.50	1.00	0.75
M36.0	4.00	3.00	2.00	1.50	1.00
M39.0	4.00	3.00	2.00	1.50	1.00	1.00
M42.0	4.50	4.00	3.00	2.00	1.50	1.00
M45.0	4.50	4.00	3.00	2.00	1.50	1.00
M48.0	5.00	4.00	3.00	2.00	1.50	1.00
M52.0	5.00	4.00	3.00	2.00	1.50	1.00
M56.0	5.50	4.00	3.00	2.00	1.50	1.00
M60.0	5.50	4.00	3.00	2.00	1.50	1.00
M64.0	6.00	4.00	3.00	2.00	1.50	1.00
M68.0	6.00	4.00	3.00	2.00	1.50	1.00
M72.0	6.00	4.00	3.00	2.00	1.50	1.00
M76.0	6.00	4.00	3.00	2.00	1.50	1.00
M80.0	6.00	4.00	3.00	2.00	1.50
M85.0	6.00	4.00	3.00	2.00	1.50
M90.0	6.00	4.00	3.00	2.00	1.50
M95.0	6.00	4.00	3.00	2.00	1.50
M100.0	6.00	4.00	3.00	2.00	1.50
M105.0	6.00	4.00	3.00	2.00	1.50
M110.0	6.00	4.00	3.00	2.00	1.50
M115.0	6.00	4.00	3.00	2.00	1.50
M120.0	6.00	4.00	3.00	2.00	1.50
M125.0	6.00	4.00	3.00	2.00	1.50
M130.0	6.00	4.00	3.00	2.00	1.50
M140.0	6.00	4.00	3.00	2.00	1.50
......	......	......	......	......	......
M320.0
