High Security Level Wire Making Machine Steel Razor Blade Ribbon for Prison Isolation Machine
- Category: >>>
- Supplier: Anping County Apache Wire Mesh Machinery Manufacturers Co. Ltd
Share on (1600301662973):
Product Overview
Description
Automatic razor blade barbed wire making machine has advantages like easy operation, high efficiency, simple maintenance, saving raw material, etc. It consists of two main parts. Punch press makes strip plates with razor blades. Coiling machine embeds galvanized wire into razor blade strip plates to make it stronger and more stable.

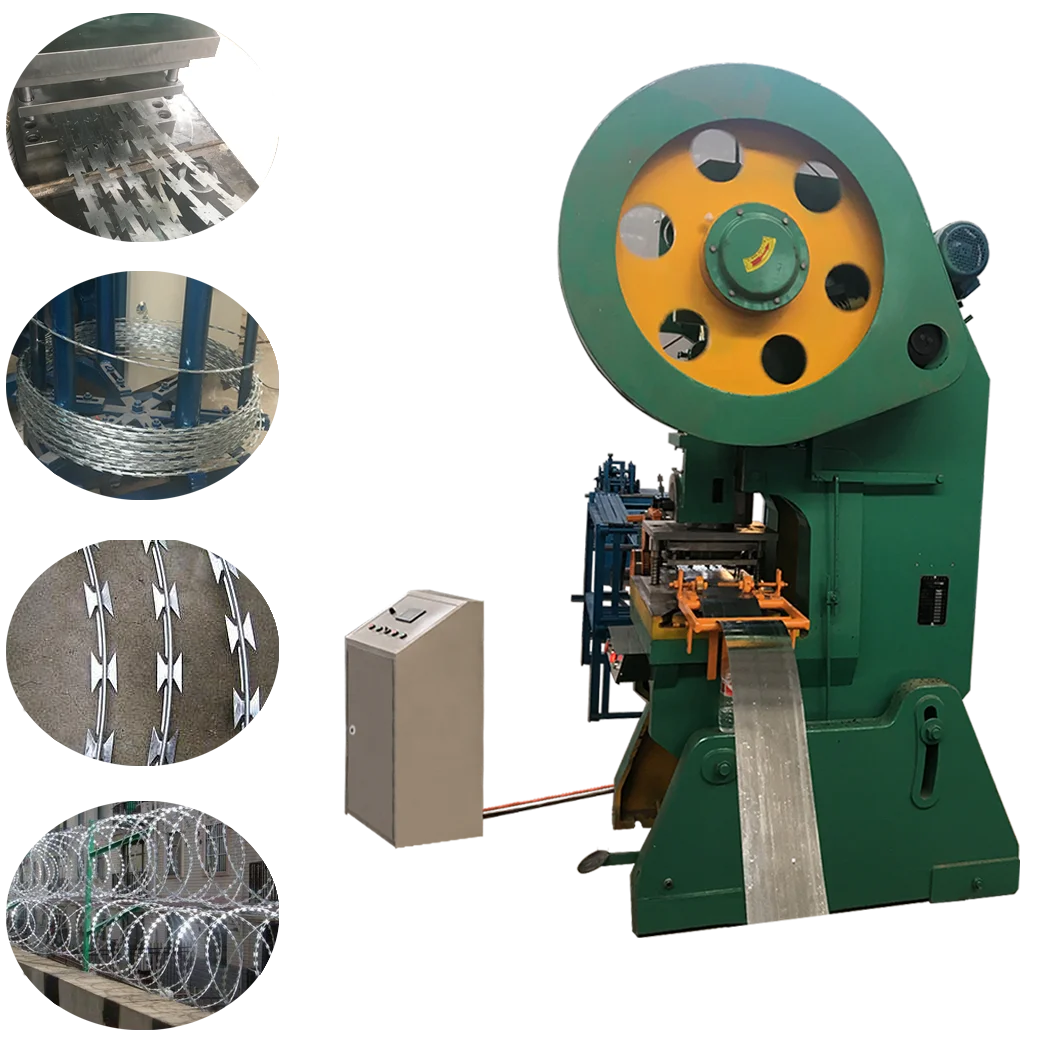

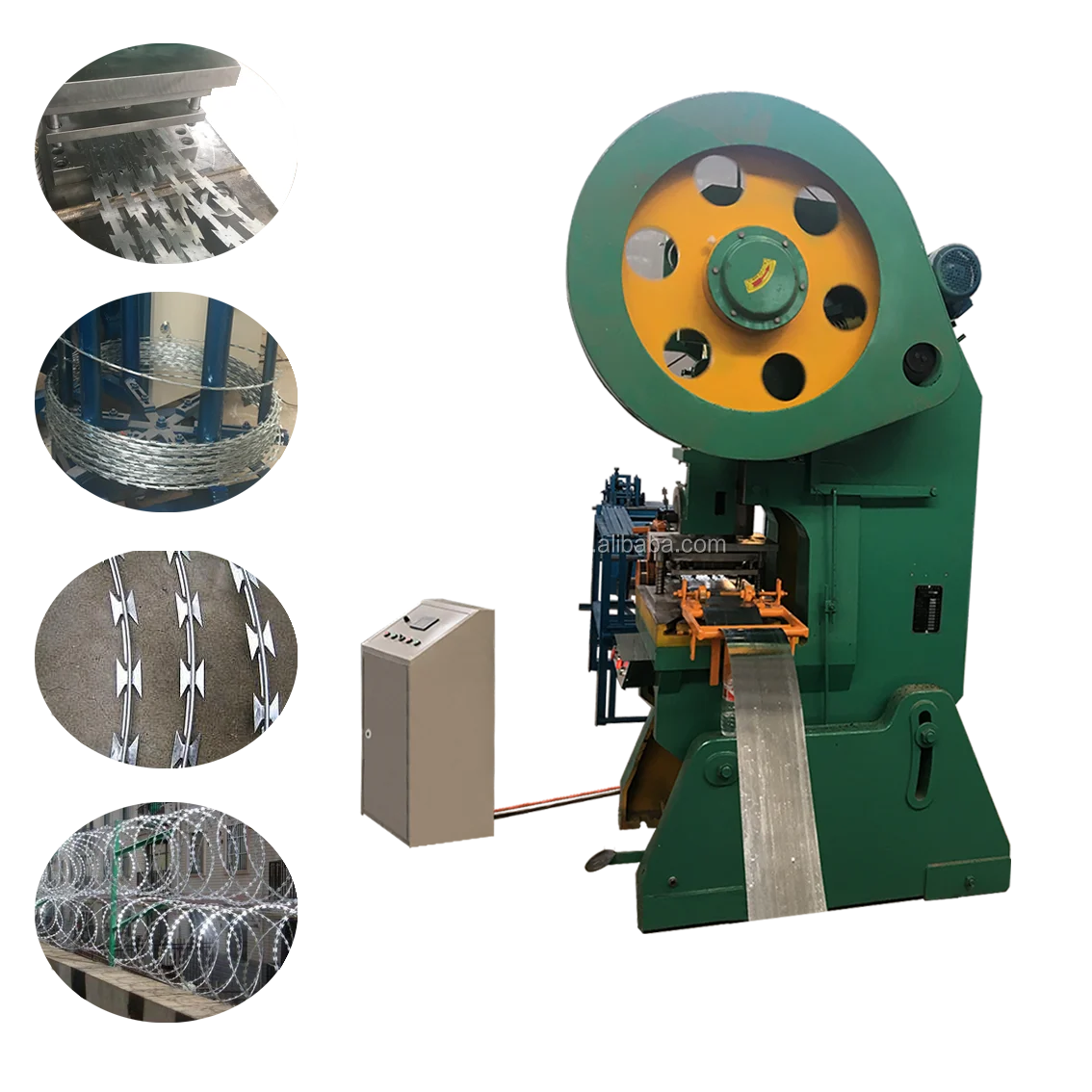

Punch Press
It cuts and punches steel sheet to razor blade shaped strips.
Razor Blade Strips Feeder
It feeds strips to synchronous rack.
Steel Sheet Feeder
It continuously provides steel sheets for punch press.
Synchronous Rack
It transmits razor blade strips from strips feeder to strips collector.

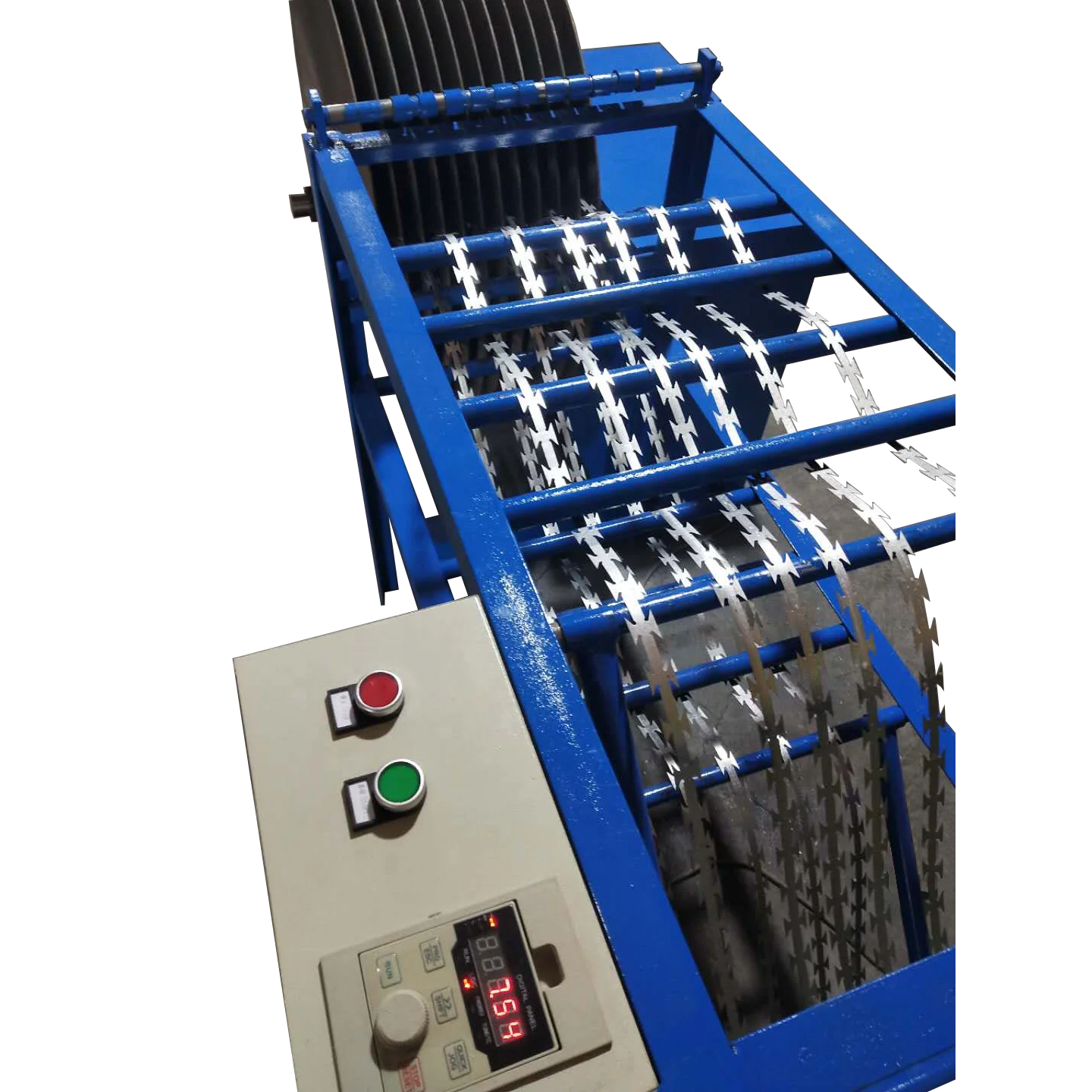

Strips Collector
It is fixed at the end of synchronous rack for collecting razor strips by rolling.

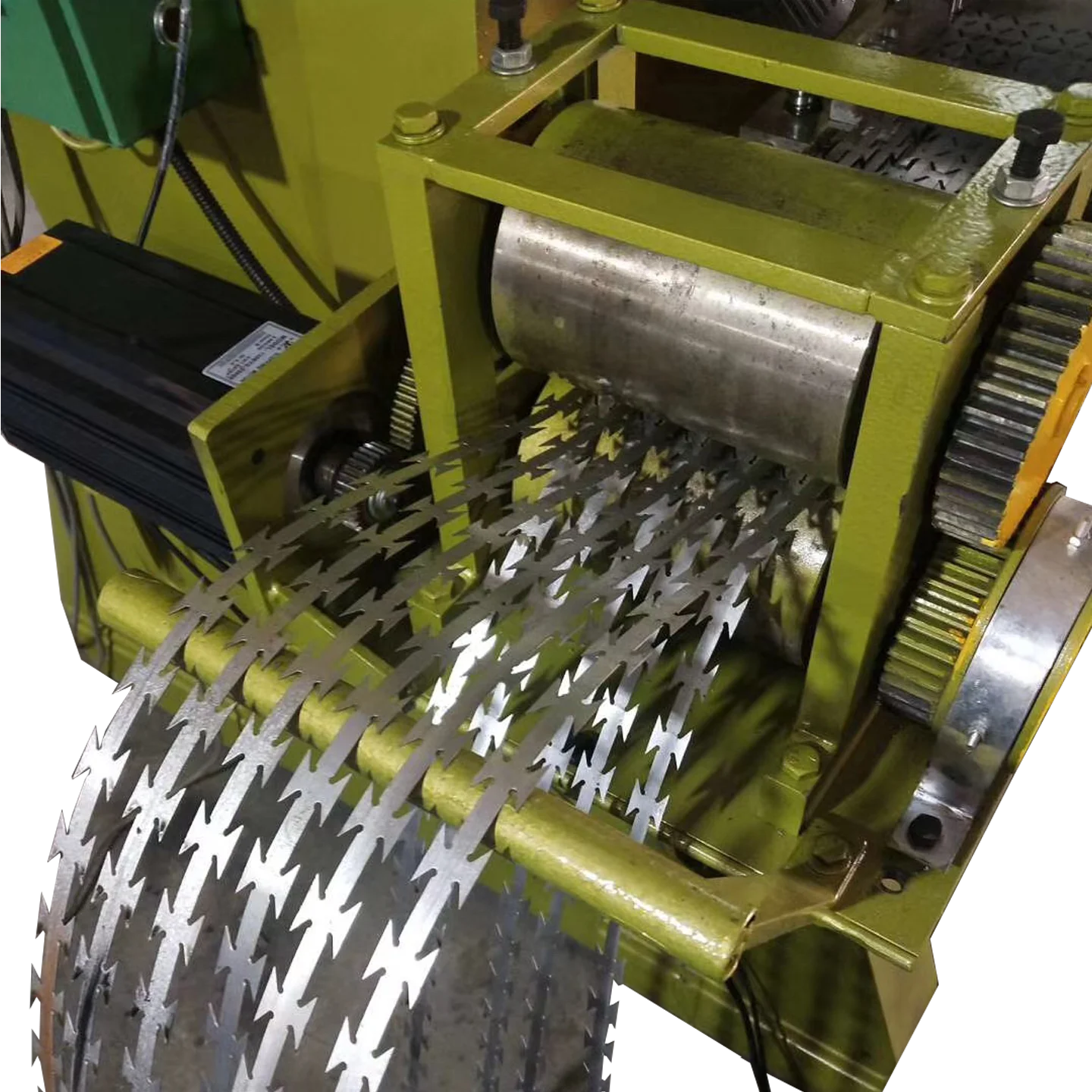

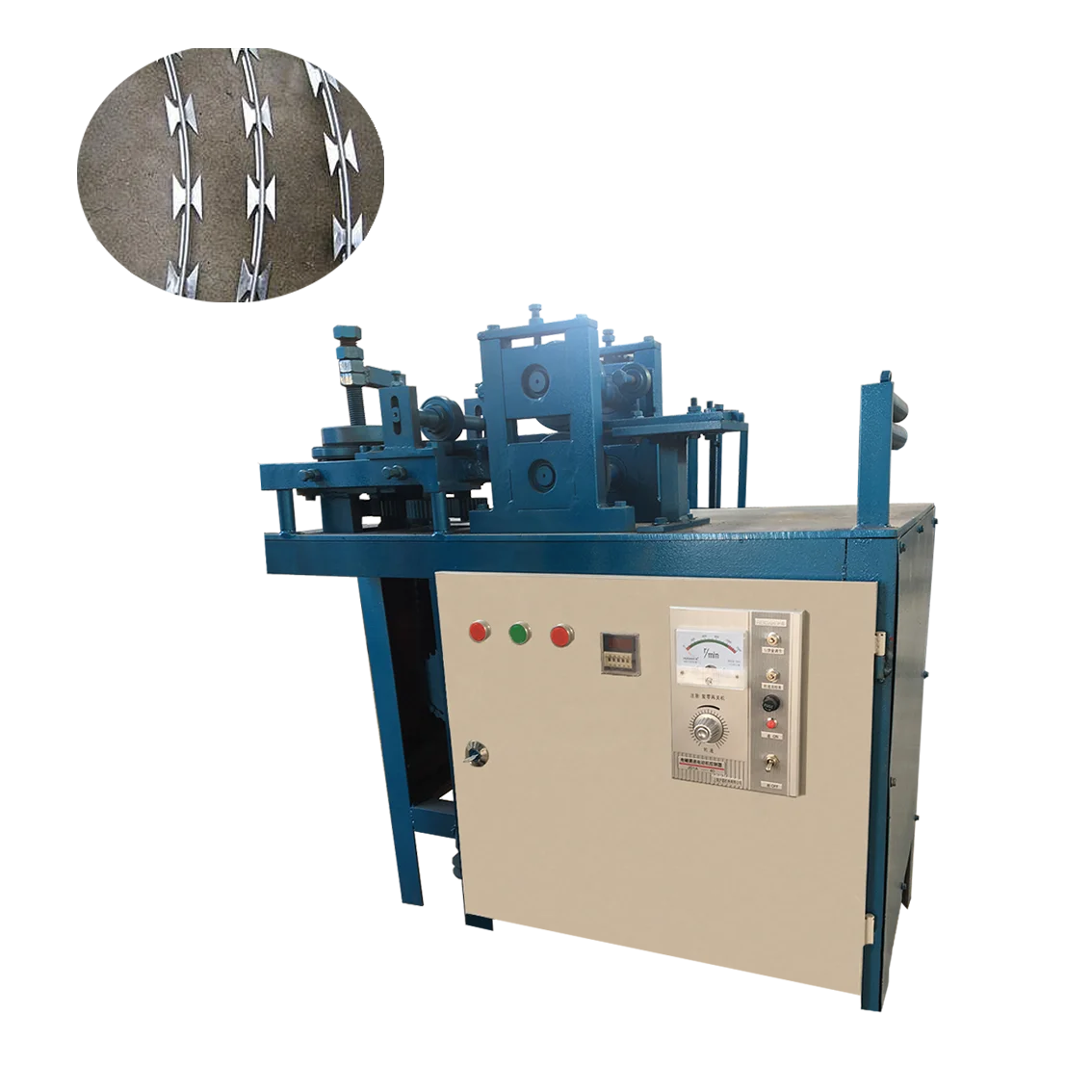

Wire Coiling Machine
It embeds galvanized wire into razor blade strips. Final product will be rolled on the barbed wire roller.
Razor Blade Mold
BTO-22
Razor Blade Strips Roller
It is used to place razor blade strips from strips collector.
Wire Rack
It is used to place coiling wire for coiling machine.
Item | Data |
Thickness of sheet | 0.5±0.05mm |
Power | 5.5 kw |
Capacity | 200 kg/h |
Weight | 4.2 t |
Raw materials | Galvanized Steel Sheet and Wire |
Overall size | 1600*1800*2600 (mm) |
We can design the machine according to the parameters you require ,such as the wire diameter,mesh hole size,mesh width and voltage.

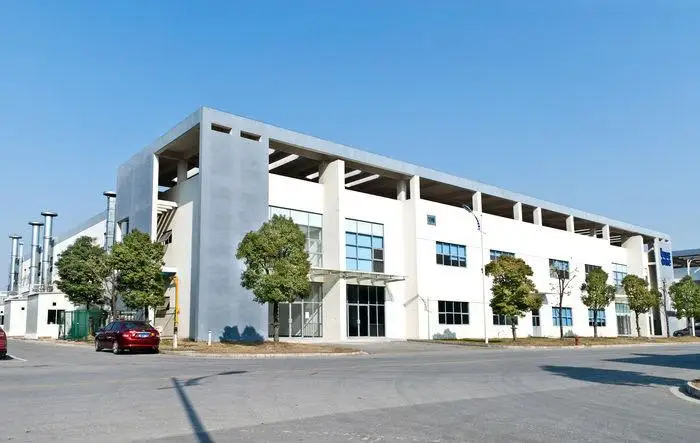

Anping Apache Wire Mesh Machinery Manufacture Co.,Ltd
Our company is an integrated enterprise of manufacturing wire mesh making machines, producing wire mesh and deep-processing wire mesh, and its main business is developing and producing wire mesh and wire mesh making machines.
Since it was established in 1995, we have been devoting to improving the automation and safety of the wire mesh making machine manufacture. Now, we have mature technology and rich experience in developing and producing wire mesh machines, and more and more independently developed patented products are taking the lead and highly recognized in the wire mesh making industry.
With the innovative technology and guaranteed quality, our products have been exported to many countries in the world, and at the same time we have built good relationships with the clients from the whole world. Now we have the professional team for product research and development, full equipped quality detection and technological service system, which ensures our customers to have the best products and service.
Q: What is your company information?
A: Our company has been engaged in making and selling wire mesh machines and related mesh products for more than 25 years. We have our own technology and testing department. Some of our independently developed products are industry-leading. Our factory is located in Anping county, Hebei Province of China. It's near Beijing airport and Shijiazhuang airport. Our nearest port of shipment is Tianjin Port.
Q: What is the price of your machine?
A: We have standardized and customized machines. Based on your needs, we can make different types of machines. Their prices are different.
Q: Which way do you use for transporting?
A: Usually we use sea transportation, from Tianjin Port China to the destination port.
Q: What is the industrial voltage of the machine?
A: Our industrial voltage is 380v 3phase 50hz. If yours is different, please tell us in advance so we would equip the machine with corresponding parts according to your needs to make sure you can use the machine normally.
Q: How long would it take to finish making the machine?
A: Generally it would take 7-30 days to finish the machine.
Q：Can your company send technicians to my country for machine installation and worker training?
A：Yes, our technicians have been to more than 50 countries before. They are very experienced.
Q：What's the guaranteed time for your machines?
Q：What's the guaranteed time for your machines?
A：Our guaranteed time is 1 years since the machine was installed in your factory.
Q：Can you export and supply the customs clearance documents we need?
A：We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc.
